Trimetal connecting rod bearings BMW N63B44 S63B44

The BMW N63B44 and S63B44 V8 engines

The N63B44 and S63B44 engines are 4.4-litre V8s fitted to the BMW 5, 6, 7 and 8 Series as well as the X5 and X6. They produce from 405 to 635 hp depending on the version and equip vehicles built since 2007.

From the factory, BMW fits these engines with standard connecting rod bearings sized for the loads of the original engine: as soon as power, engine speed or boost pressure increase, they reach their limits.

Trimetal connecting rod bearings

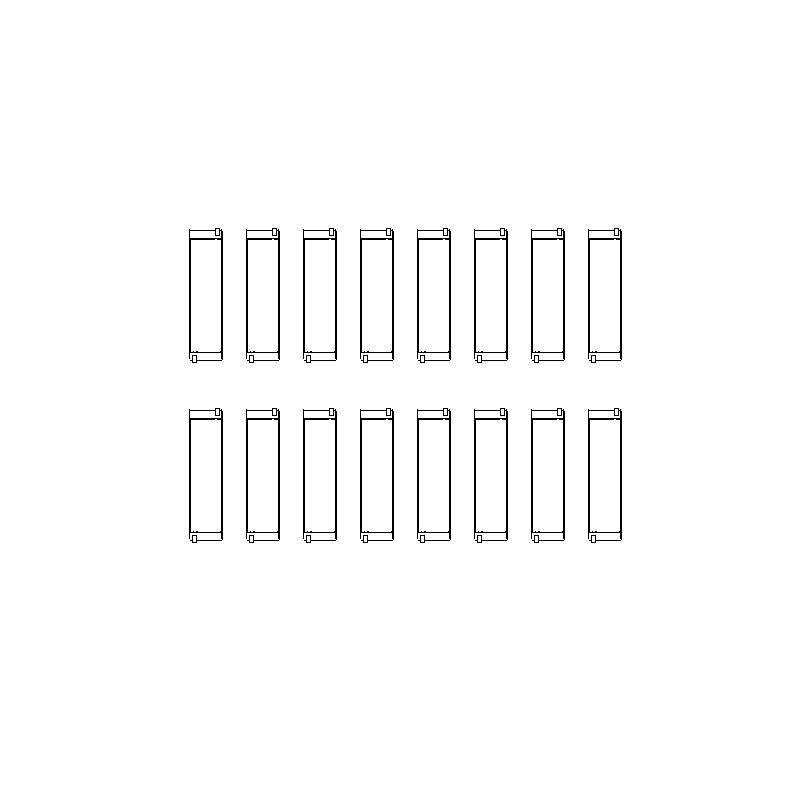

A trimetal bearing stacks three layers: a steel back, a copper-lead intermediate layer with high load capacity and an anti-friction running surface that protects the journal. The complete set contains 16 half shells, eight pairs for a V8 engine. On the King side, the complete set is made up of one CR8050GPC box of 8 pairs.

The original bearing relies on an aluminium alloy over a steel back, intended for low to medium loads, whereas trimetal is designed for high, sustained loads: an aluminium bi-metal takes around 8,000 psi, a performance trimetal up to 12,000 psi, 50% more. Hence better resistance and better durability on turbocharged, supercharged and high-revving engines.

Technical specifications

Technical guide

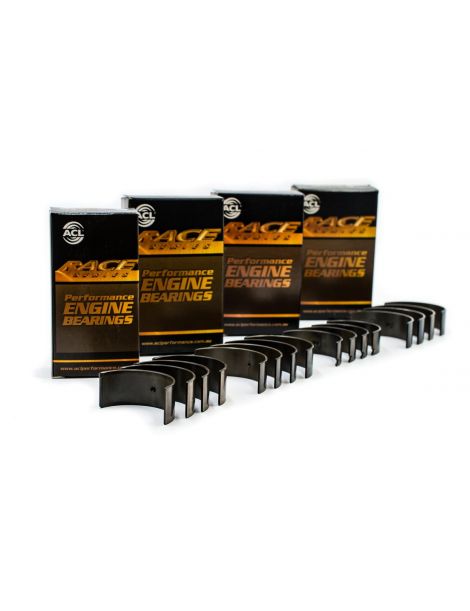

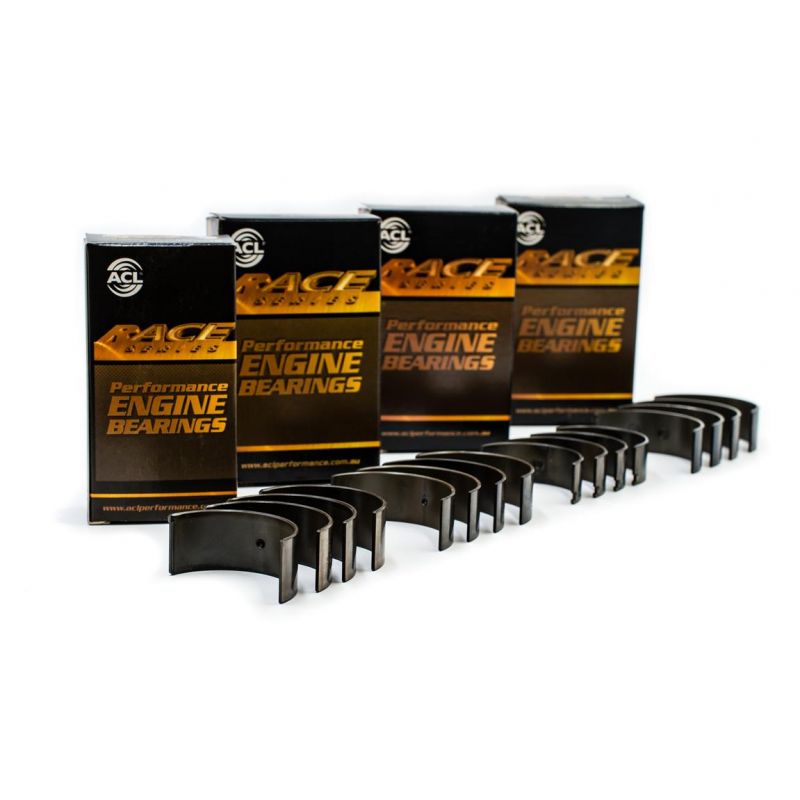

The ACL and King rod bearings shown here are trimetal bearings, designed for engine building and racing. Compared with an original bearing, they handle far higher loads: they cope with increased power, high rpm or the addition of a turbo or supercharger, where a standard bearing quickly reaches its limit.

The two brands

ACL Bearing Company, an Australian manufacturer of high-performance engine bearings since 1949, offers with its Race Series precise trimetal bearings, available in many sizes and proven on built engines worldwide. Its Calico version (HC suffix) adds the CT-1 coating, a dry film lubricant that reduces friction and abrasive wear.

King Engine Bearings, an Israeli manufacturer of high-performance engine bearings since the 1960s, offers with its GPC range a silver-based tri-metal: steel back, lead-bronze intermediate layer and a silver-based overlay containing solid lubricant particles. Its 10-micron polymer coating protects the bearing in case of oil starvation or metal-to-metal contact, and the range handles up to 17,000 psi.

Construction and advantages

Criterion	ACL Race Series	King Racing
Cross-section
Type	High-performance trimetal bearing	High-performance trimetal bearing
Country of manufacture	Australia	Israel
Construction	Trimetal: steel back, copper layer, soft surface	Tri-metal: steel back, lead bronze, silver-based overlay
Alloy	Race Series (copper-lead)	GPC (silver, solid lubricant)
Protective coating	No (Race); Calico CT-1 (HC)	Yes: 10 µm polymer
Available sizes	Standard to +0.25 mm (+ increased clearance HX)	Standard to +0.25 mm (+ increased clearance STDX)

Vehicle compatibility

This connecting rod bearing set fits the BMW N63B44 and S63B44 V8 engines of the following vehicles:
