Forged connecting rods BMW - 5.0L 32V - S62B50 for forged pistons

The BMW S62B50 engine

The BMW S62B50 is the M division’s naturally aspirated 5.0-litre V8, the heart of the M5 E39 and the Z8 roadster. It displaces 4,941 cc with a 94 mm bore and an 89 mm stroke, a deliberately squarer layout than the later M V8s and one that delivers torque early. Four camshafts, 32 valves, eight individual throttle bodies and double VANOS produce 400 hp at 6,600 rpm and 500 Nm, figures that made the M5 E39 the benchmark sports saloon of its generation.

Built from 1998 to 2003, this V8 is now sought after for its character as much as its rarity, which makes every failure expensive. Its standard connecting rods are sized for factory output and nothing more: add forced induction, rework the intake and exhaust, increase capacity or run back-to-back track sessions, and the engine’s limit moves to the bottom end. A set of forged 4340 steel rods, combined with forged pistons, pushes that limit far higher.

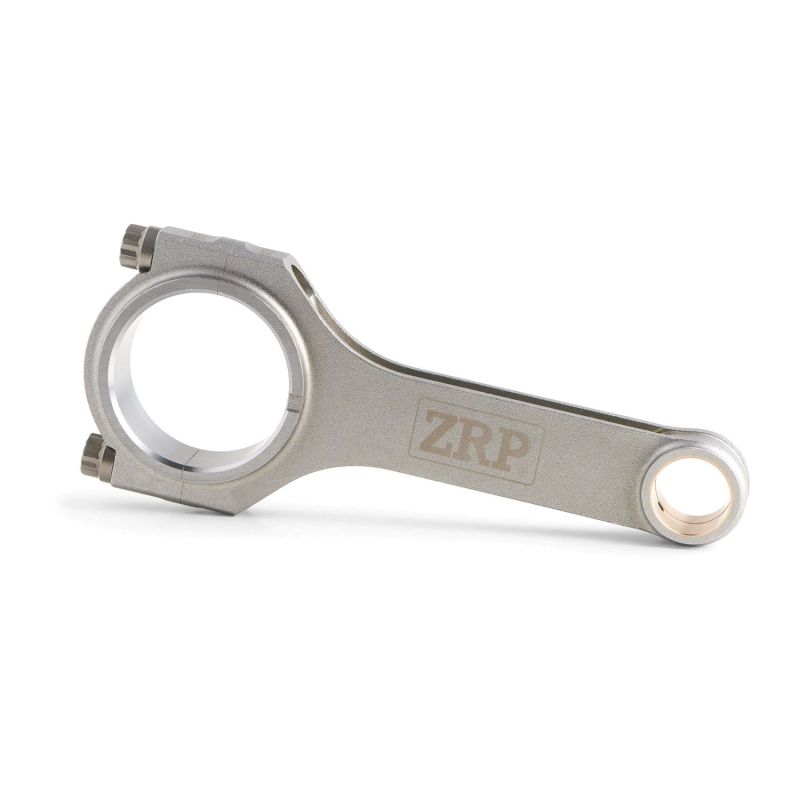

Forged connecting rods

Forged and then machined from heat-treated 4340 steel, these rods replace parts sized for road use. Forging aligns the metal grain with the load path, which clearly raises fatigue life compared with a mass-production rod, a decisive gain on a 5.0-litre V8 where each cylinder produces substantial torque.

Shot-peened, individually inspected and weight-matched to ±1 g across the eight rods in the set, they preserve the balance of the V8. They suit every serious use of a tuned M5 E39 or Z8: circuit racing and track days, hillclimb, drift, rally, drag and time attack, and they support Stage 1, Stage 2 and Stage 3 builds as well as full race engines. The ARP bolts supplied keep the assembly secure under heavy load.

Technical specifications of the S62B50 forged connecting rods

Torque and bolt stretch

The big end and its cap form a bore machined in one single operation, with the cap torqued to the nominal figure: any deviation in tightening is therefore paid for directly in geometry. Under-torqued, a S62B50 bolt lets preload fall below the inertia load of the eight rod and piston assemblies; the cap starts lifting by a few microns per revolution, the parting face polishes then degrades by rubbing, the shell is hammered and its running clearance drifts. Over-torqued, the bolt passes its elastic limit and a fatigue crack starts at the thread root; the excess load closes the bore, makes the big end oval and pinches the shell, which locally collapses oil film thickness. This is why the torque and stretch figures in the table below, as defined by the fastener manufacturer for ARP 2000 and ARP L19 in 3/8", must be applied to the letter. Stretch measured with a dial gauge remains the most reliable checking method; assembly is done with ARP lubricant and the kit instructions prevail in case of any discrepancy.

Technical guide

4340 forged steel: what is it?

Connecting rod profiles

H-Beam profile. Its H-section gives high stiffness and excellent resistance to both bending and compression. Slightly heavier than an I-Beam rod, it puts strength first, which is exactly the right compromise on a large-capacity, high-torque engine such as the S62B50, including boosted builds and drag racing. It is the only profile offered for this engine, and the one that best absorbs the compression loads of a tuned 5.0-litre.

How to choose your rod bolts?

The rod bolt is the most heavily loaded part of the assembly: on every revolution it takes the force trying to pull the cap away from the rod body, and that force grows with cylinder pressure. Two ARP grades are offered on this kit; the point is to match the grade to the real use of the build, then follow the specified torque and stretch figures exactly.

ARP 2000: the high-performance standard, with tensile strength around 220,000 psi (about 1,517 MPa). In 3/8" it covers builds up to 200 hp per cylinder and 8,500 rpm, a very wide margin on an S62B50 whose maximum engine speed remains moderate. It is the most common grade for circuit and track days, drift, rally, drag and hillclimb, valued for its strength and versatility, with no special storage requirements.

ARP L19: intended for engines pushed to the extreme, with tensile strength around 260,000 psi (about 1,793 MPa). In 3/8" it allows up to 250 hp per cylinder and 10,000 rpm, the reserve to choose for a heavily boosted or stroked S62B50, where cylinder pressure becomes the limiting factor. The trade-off: the alloy is sensitive to corrosion and hydrogen embrittlement, and must be stored and fitted oiled, away from moisture.

Measuring bolt stretch

Buy the ARP stretch gauge →

The brands offered

ZRP, the Greek manufacturer of high-performance forged connecting rods run by Alex Drakos in Athens. Every rod is forged from 4340 steel, precision machined and then weight-matched to preserve the balance of a V8. For the S62B50 the range focuses on the H-Beam profile, with ARP 2000 or ARP L19 bolts depending on the power targeted. Design, machining and inspection all take place in Greece, and the range is proven in rally, drift and circuit racing.

Glossary

1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center

Vehicle compatibility for the BMW S62B50 engine

These forged connecting rods are compatible with the factory BMW S62B50 engine and its builds. Vehicles concerned:

OEM reference: 11 24 1 406 978 (rod set).

Why it’s the most cost-effective solution?

On an S62B50, a rod that lets go almost always damages the crankshaft, the block and sometimes the cylinder head. This V8 is no longer produced: original parts are becoming scarce, prices are rising and the car stays off the road longer. Returning the engine to factory specification is therefore expensive, only to end up back at the original limits.

For a comparable budget, sometimes less, a set of forged 4340 steel rods combined with forged pistons brings a far greater margin of strength, lasting fatigue life and the freedom to develop the build without opening the bottom end again. On an engine that has become rare, it is also the best way to protect the value of the car.

For the same budget: more reliability, more potential, more longevity.
