NSB Concept forged pistons for Opel Z20LET and Saab B207R: bore 86 mm, RV 8.8-9.5:1, axle 21-23 mm, suitable treatments. Specs table, vehicles and OEM references.

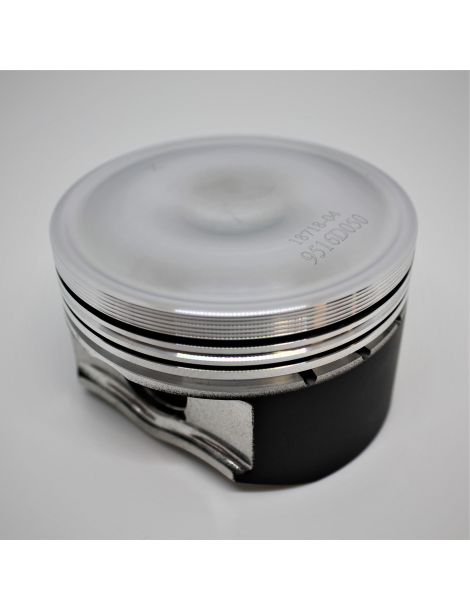

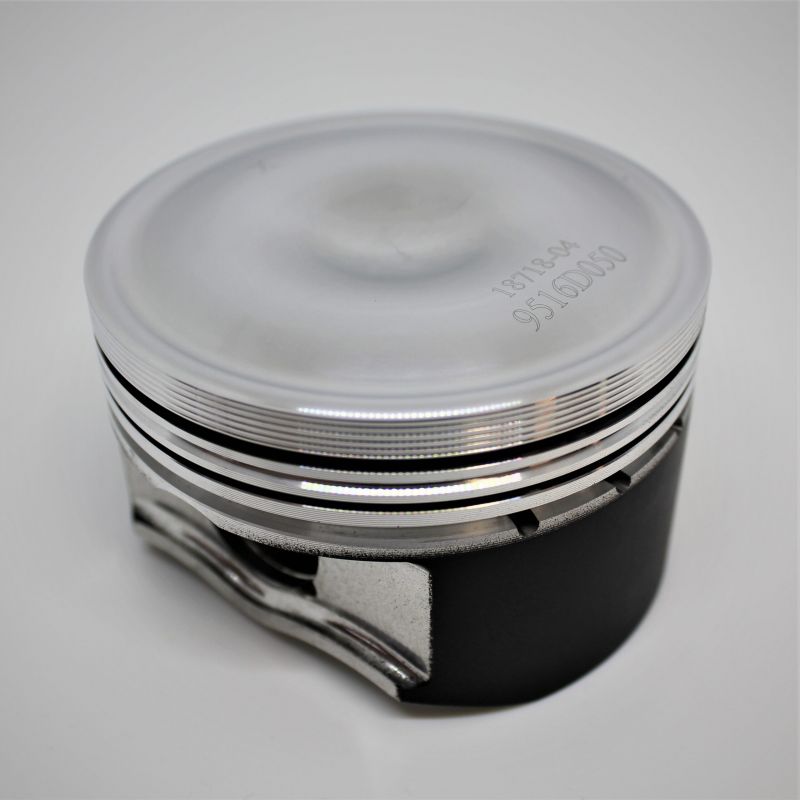

Specifications of the forged pistons offered by NSB Concept for Opel / Saab 2.0 L 16 V (B207R & Z20LET) :
| Reference | OEM Bore 86,00 mm | OEM CR 8,8–9,5 :1 | OEM Pin 21–23 mm | Height OEM Pin 30,4–31,5 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE367M86 | 86.00 | 8.8:1 | 21 | 30.50 | Wiseco AP | Skirt | 4032 | Round | -20.0 cc | NC | 8600XX |
| K9516DA | 86.00 | 9.2:1 | 23 | 31.50 | Wössner | Skirt | 4032 | Round | 5.2 cc | NC | GNH86.00 |
| K9410DA | 86.00 | 8.8:1 | 21 | 30.40 | Wössner | Skirt | 4032 | Round | -20.5 cc | NC | GNH86.00 |
| K9410D050 | 86.50 | 8.8:1 | 21 | 30.40 | Wössner | Skirt | 4032 | Round | -20.5 cc | NC | GNH86.50 |
| K9516D050 | 86.50 | 9.2:1 | 23 | 31.50 | Wössner | Skirt | 4032 | Round | 5.2 cc | NC | GNH86.50 |
| JE-346201 | 86.50 | 8.8:1 | 21 | 30.40 | JE Round | Aucun | 2618 | Round | -20.5 cc | NC | GNH86.50 |
| WKE367M865AP | 86.50 | 8.9:1 | 21 | 30.50 | Wiseco AP | Skirt | 4032 | Round | -20.0 cc | NC | 8650XX |
| JE-346200 | 87.00 | 8.8:1 | 21 | 30.40 | JE Round | Aucun | 2618 | Round | -20.5 cc | NC | GNH87.00 |
| K9516D100 | 87.00 | 9.2:1 | 23 | 31.50 | Wössner | Skirt | 4032 | Round | 5.2 cc | NC | GNH87.00 |
| K9410D100 | 87.00 | 9:1 | 21 | 30.40 | Wössner | Skirt | 4032 | Round | -20.5 cc | NC | GNH87.00 |
Compatibility (engine codes):
B207R • Z20LET
vehicles original equipped de these engines :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Opel | Astra G Cabrio | Z20LET | 192 hp | 2002 – 2003 |
| Opel | Astra G Coupé | Z20LET | 190 hp | 2000 – 2001 |
| Opel | Astra G Coupé | Z20LET | 192 hp | 2001 – 2002 |
| Opel | Astra G OPC (3p) | Z20LET | 200 hp | 2002 – 2004 |
| Opel | Speedster | Z20LET | 200 hp | 2003 – 2005 |
| Opel | Zafira A OPC | Z20LET | 200 hp | 2001 – 2005 |
| Saab | 9-3 II Berline (YS3F) | B207R | 210 hp | 2003 – 2012 |
| Saab | 9-3 II Cabrioland (YS3F) | B207R | 210 hp | 2004 – 2014 |
| Saab | 9-3 II SportCombi (YS3F) | B207R | 210 hp | 2005 – 2012 |
Manufacturer piston references (OEM) :
| Brand | Engine code | Ref. OEM pistons |
|---|---|---|
| Opel | Z20LET | 55558208, 90424165, 0624036, 0624068 |
| Saab | B207R | 55555827 |
Warning : Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
