1.3L 16v - G13B
Manufacturers
1.3L 16v - G13B
Warning: Last items in stock!
New product

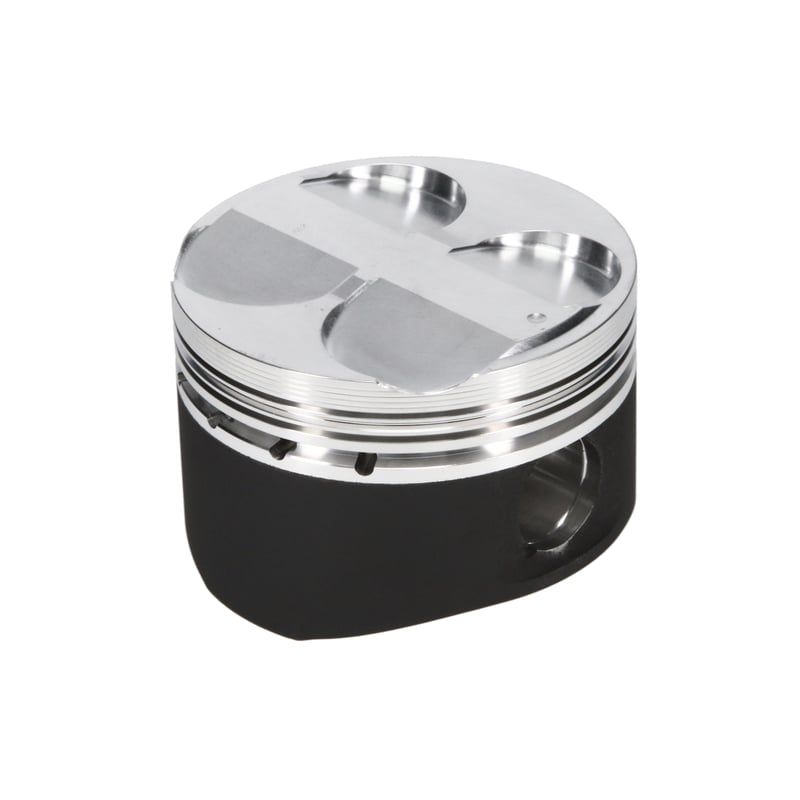

Forged pistons for Suzuki G13B 1.3 16v: O74-75 mm, 19 mm wrist pin, stroke height 28.3-29.1 mm. compatible with Swift/Cultus GTi, Barina GTi. Complete OEM references and technical specifications included.
Specifications of the forged pistons offered by NSB Concept for Suzuki 1.3 L 16 V G13B (Swift/Cultus GTi) :
| Reference | OEM Bore 74,00 mm | OEM CR 10,0 – 11,5 :1 | OEM Pin 19 mm | Height OEM Pin ≈ 28,3 – 29,1 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE247M74 | 74.0 | 8:1 | 19 | 28.3 | Wiseco | Skirt | NC | NC | -8.0 | NC | 2913XC |
| WKE247M745 | 74.5 | 8:1 | 19 | 28.3 | Wiseco | Skirt | 2618 | NC | -8.0 | NC | 2933XC |
| WKE247M75 | 75.0 | 8:1 | 19 | 28.3 | Wiseco | Skirt | 2618 | NC | -8.0 | NC | 7500XX |
Compatibility (engine codes):
Original vehicles equipped with the G13B :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Holden | Barina GTi (ML) | G13B | 100 hp | 1986 – 1989 |
| Suzuki | Cultus GTi (AA33S) | G13B | 97–115 hp (JIS) | 1986 – 1994 |
| Suzuki | Swift GTi (AA33S/AA34S, SF413) | G13B | 100–101 hp | 1986 – 1994 |
OEM piston references :
references and indicative dimensions; to be confirmed depending on VIN, grade (Mark 1/2), market (EU/JPN/AU) and possible rectification (+0.50).
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
