1.2L 16v - EA211
Manufacturers
1.2L 16v - EA211
Warning: Last items in stock!
New product

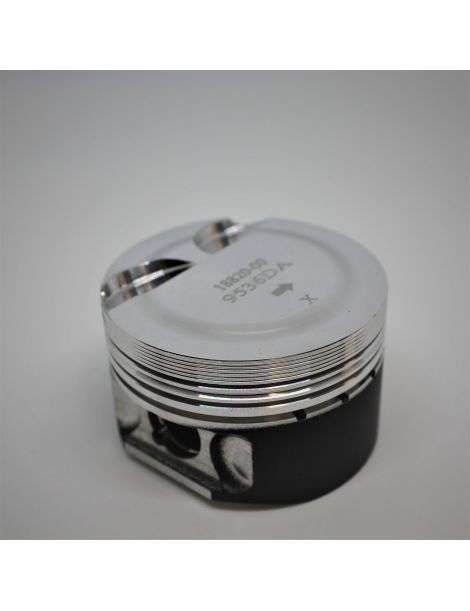

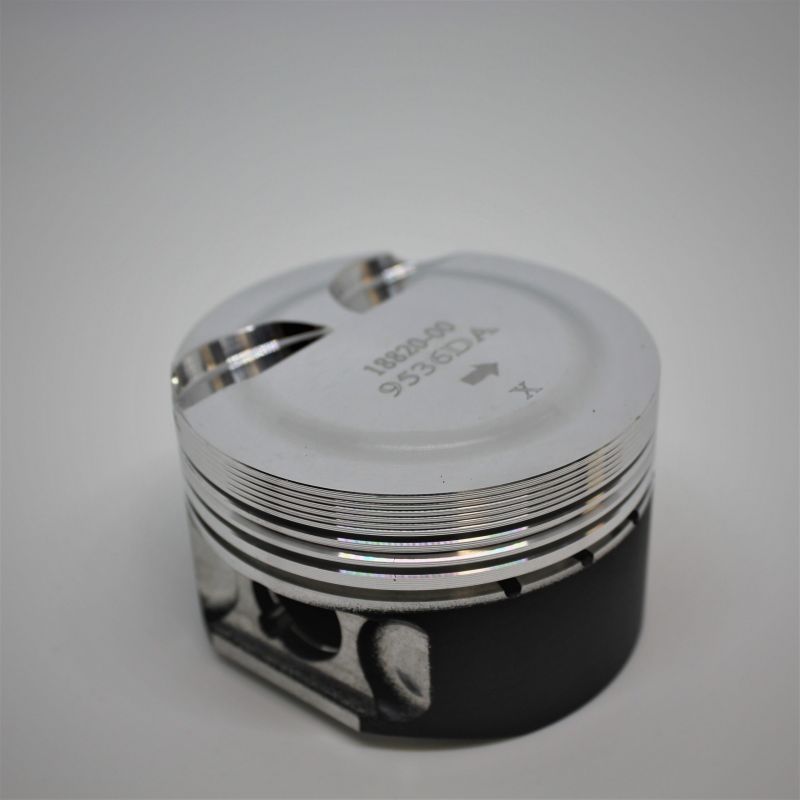

How about this weekly rec: Wossner 2618-T6 forged pistons for VW / Audi 1.2 TSI EA211 Bores 71/71.5 mm, Volume ratio 10.8:1, Pins O 21 mm, forging Round, Rings included.
Specifications of the forged pistons offered by NSB Concept for Volkswagen/Audi 1.2 L 16 V EA211 (CJZ*/CYV*) :
| Reference | OEM Bore 71,00 mm | OEM CR 10,5 :1 | OEM Pin 17 mm | Height OEM Pin 28,00 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9536DA | 71.0 | 10.8:1 | 17 | 28 | Wossner | NC | NC | NC | 1.5 | NC | 710XPY |
| K9536D050 | 71.5 | 10.8:1 | 17 | 28 | Wossner | NC | NC | NC | 1.5 | NC | 715XPY |
Compatibility (engine codes):
Original vehicles equipped with the 1.2 TSI/TFSI EA211 :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Audi | A3 8V (berline/berline 5p) | CJZA | 105 hp | 2013 – 2015 |
| Audi | A3 8V (berline/berline 5p) | CYVB | 110 hp | 2014 – 2016 |
| SEAT | Ibiza 6J/6P (Phase 2015) | CJZC | 90 hp | 2015 – 2017 |
| SEAT | Ibiza 6J/6P (Phase 2015) | CJZD | 110 hp | 2015 – 2017 |
| SEAT | Leon 5F | CJZA | 105 hp | 2013 – 2016 |
| Skoda | Octavia III (5E) | CJZA | 105 hp | 2013 – 2016 |
| Skoda | Fabia III (NJ) | CJZD | 110 hp | 2014 – 2018 |
| Volkswagen | Golf VII (Mk7) | CJZB/CJZA | 85–105 hp | 2012 – 2017 |
| Volkswagen | Polo 6C (GP) | CJZC/CJZD | 90–110 hp | 2014 – 2017 |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
