Connecting rods forged VAG 2.8/2.9 12V/24V VR6 R32

Connecting rods forged kitsZRP and BOOSTLINEfor VR6 and R32 engines are made up of6 Connecting rodsand delivered with theRod bolts ARP.

Find the assembly instructions in the tab "Download" ci-dessus.

Find below (click on the image) the forged pistons and bearings of tri-metal Connecting rods for VAG VR6 and R32 engines:

VR6 2.8/2.9 12V	VR6 2.8 24V
R32	VR6 and R32

Technical characteristics

• Connecting rod type: I
• Center Distance: 164.00mm
• Diameter ofHead: 56.81mm
• Width ofHead: 19.90mm
• Piston pin / Gudgeon pin diameter: 20.00mm
• Rod bolts: ARP2000 or L19
• Screw thread: 3/8"
• Weight: 618gr
• Steel type: 4340
• ATTENTION:These Connecting rods can only be installed with a minimum Bore of 84mm
• References: R-VW-002-I, R-VW-002-JE-L19

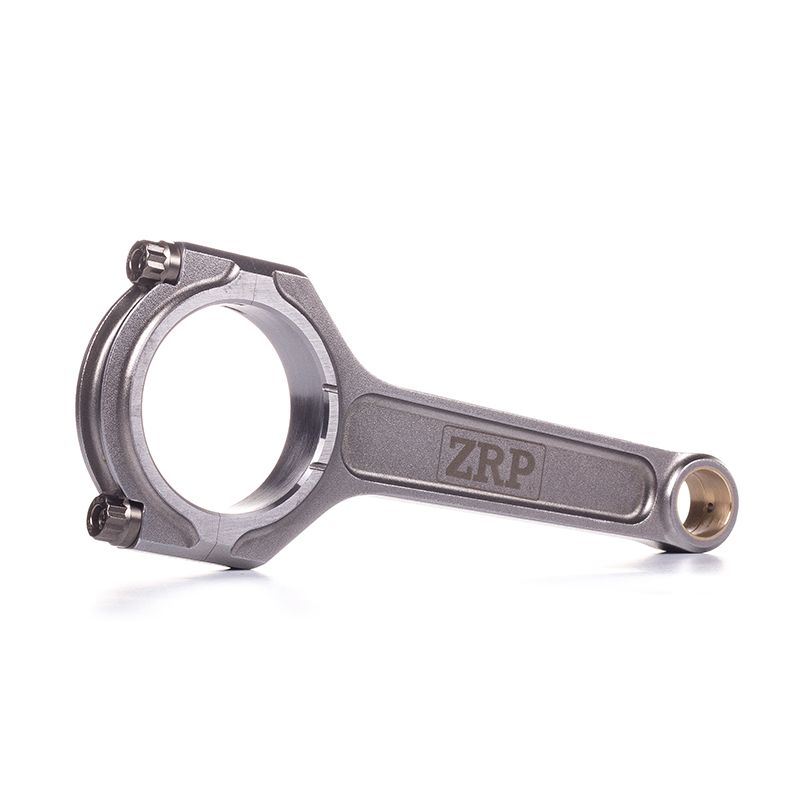

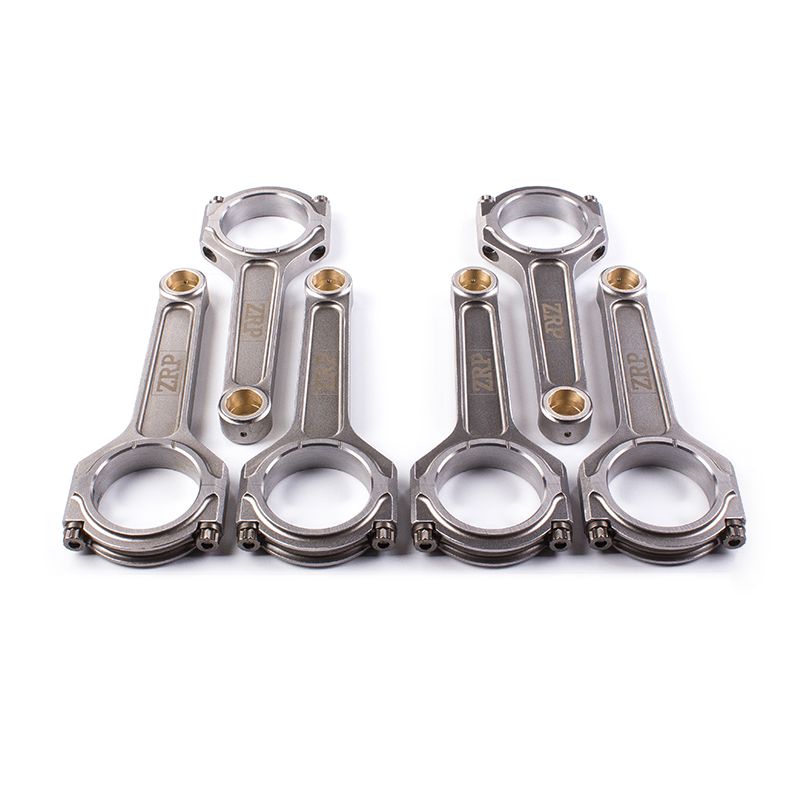

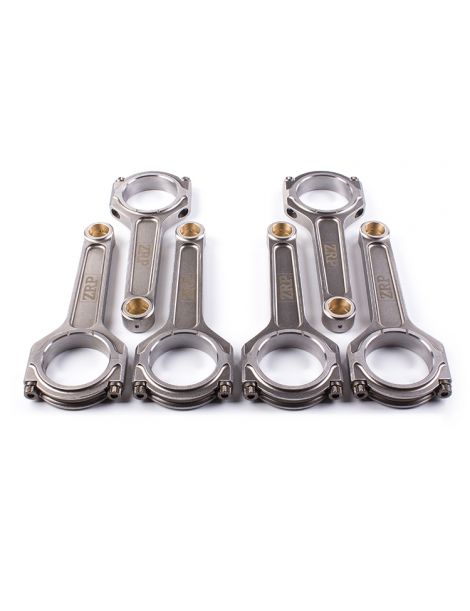

The ZRP Brand is the subsidiary of DRAKOS ENGEERING renowned for its EXPERIENCE in the design of high-performance mechanical parts. ZRP specializes exclusively in forged engine parts and has designed Connecting rods forged in 4340 High Tensile Steel to accept high boosts on your engine and ARP2000 Rod bolts for large increases in engine speed.

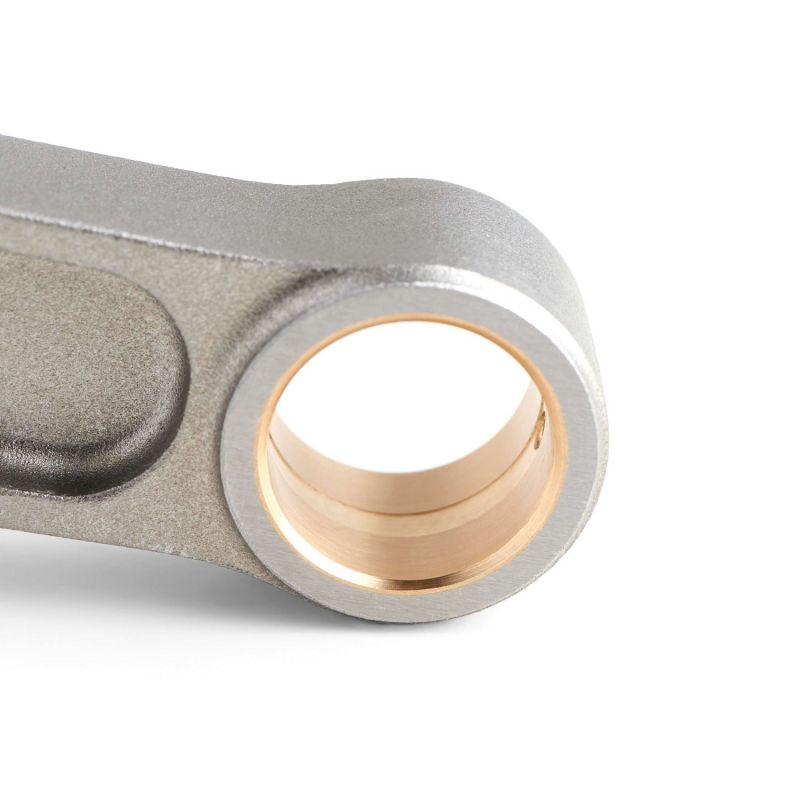

The Head of the ZRP forged Connecting rods is equipped with a ring machined from hot extruded cuPro-Aluminum alloy patented AMPCO 18 before being ground to ensure that the oil film is maintained with your Piston pin / Gudgeon pin. The design of this ZRP forged I-shaped Connecting rod gives it exceptional resistance to significant increases in power and torque due to high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation for forged Drift engines and forged Run Dragster engines..

Technical characteristics

• Connecting rod type: I

• Center Distance: 164.00mm
• Diameter ofHead: 56.81mm
• Width ofHead: 19.91mm
• Piston pin / Gudgeon pin diameter: 20.00mm
• Rod bolts: ARP 2000 or CA625+

• Screw thread: 3/8"
• Steel type: 4340
• ATTENTION: these Connecting rods can only be installed with a minimum Bore of 83.5mm
• References:VW6456-787, VW6456-787+

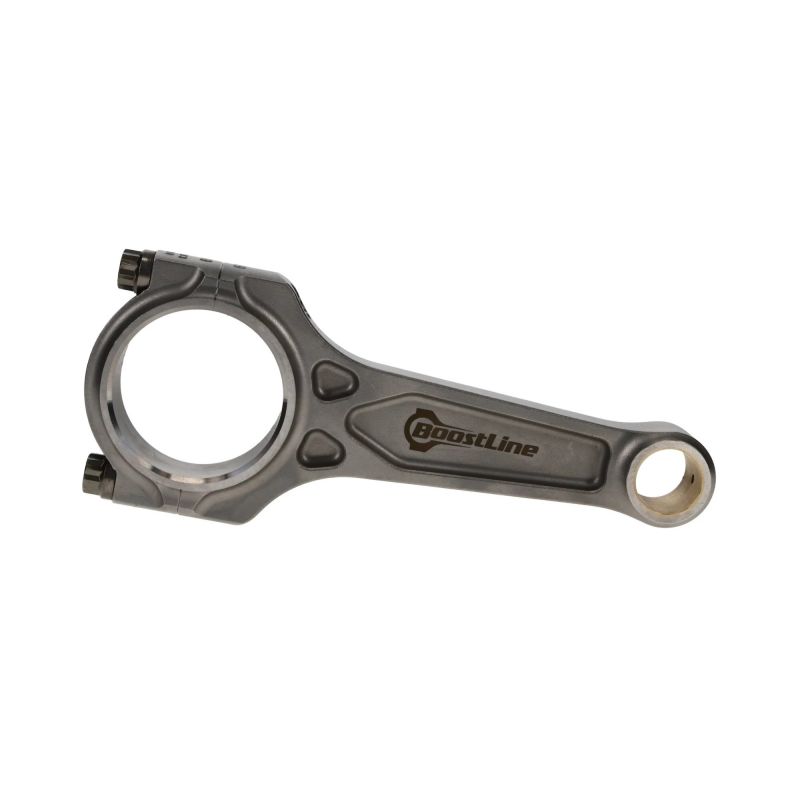

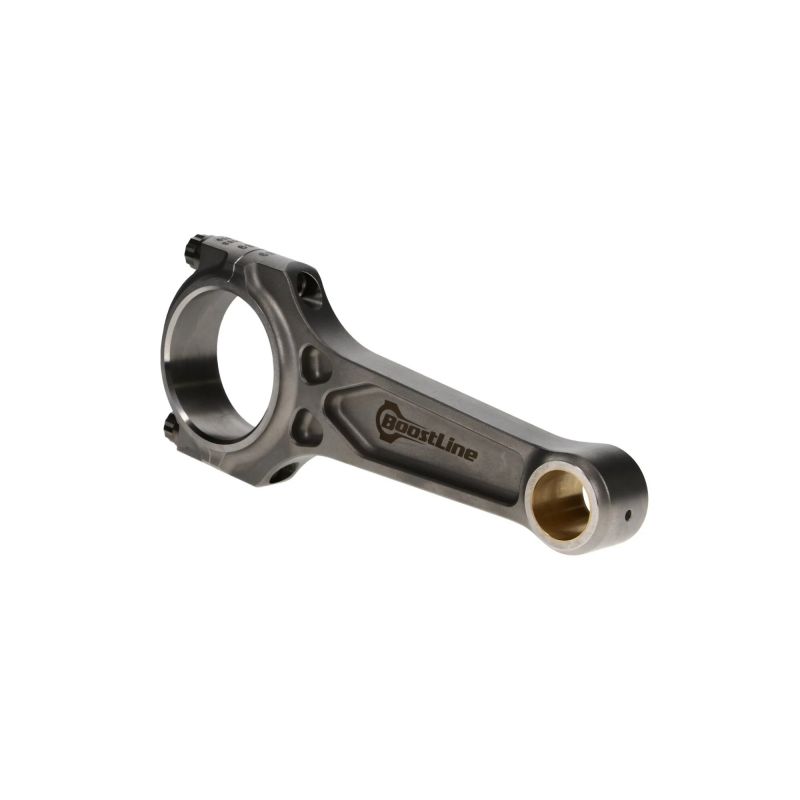

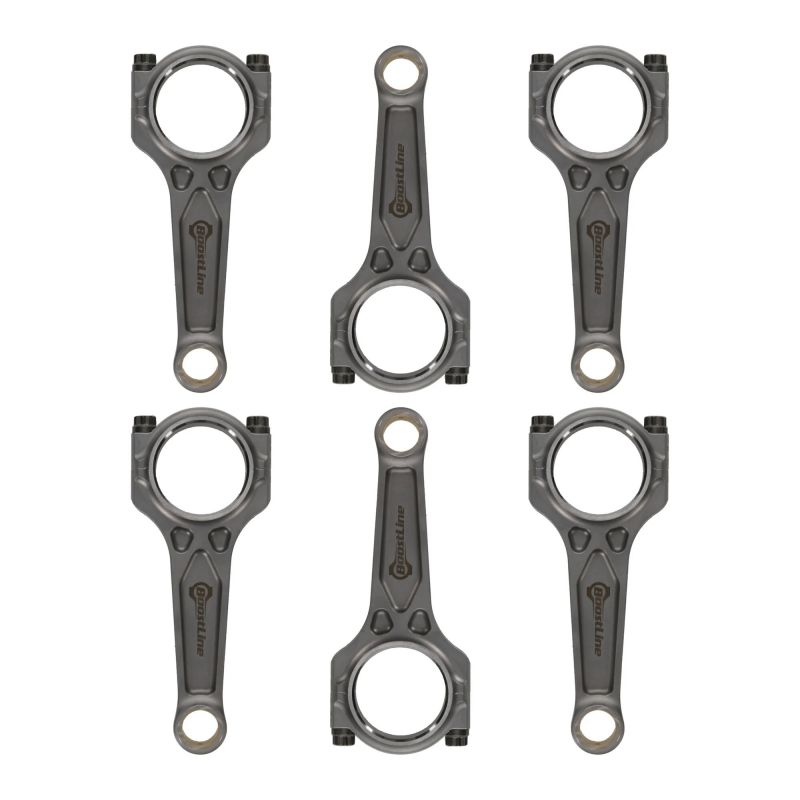

The 3-pocket design of BoOStLine Connecting rods maximizes their resistance while reducing their weight. In fact, this design offers a 60% improvement in Bending stiffness and a 20% reduction in tension constraints (compared to the H-shaped profile). Furthermore, these Connecting rods are equipped with APMCO bronze rings. These BoOStLine forged Connecting rods are therefore particularly recommended for a supercharged engine (Turbo, compressor, nitro).
