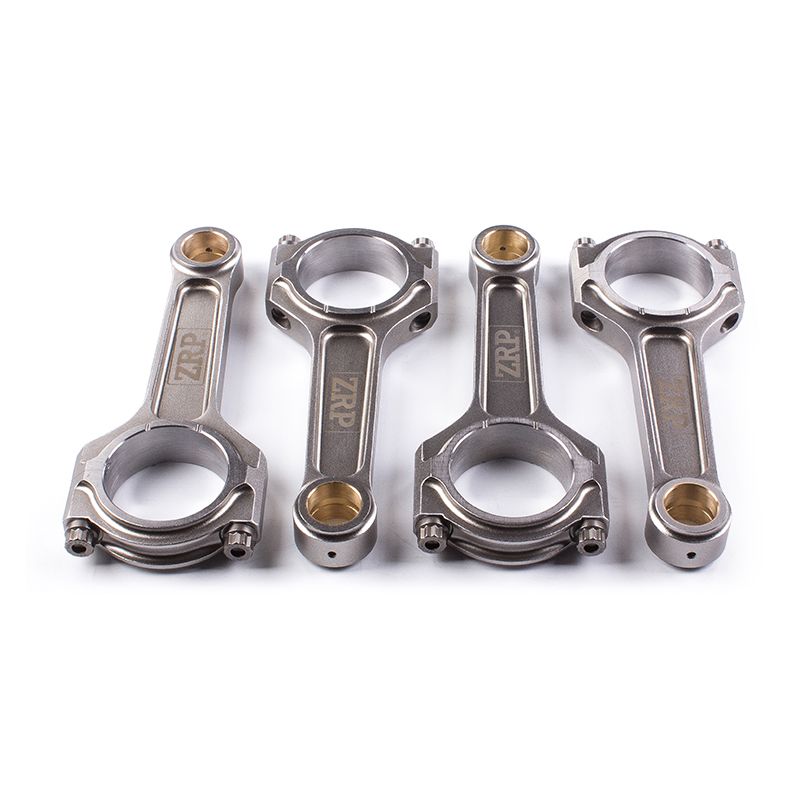

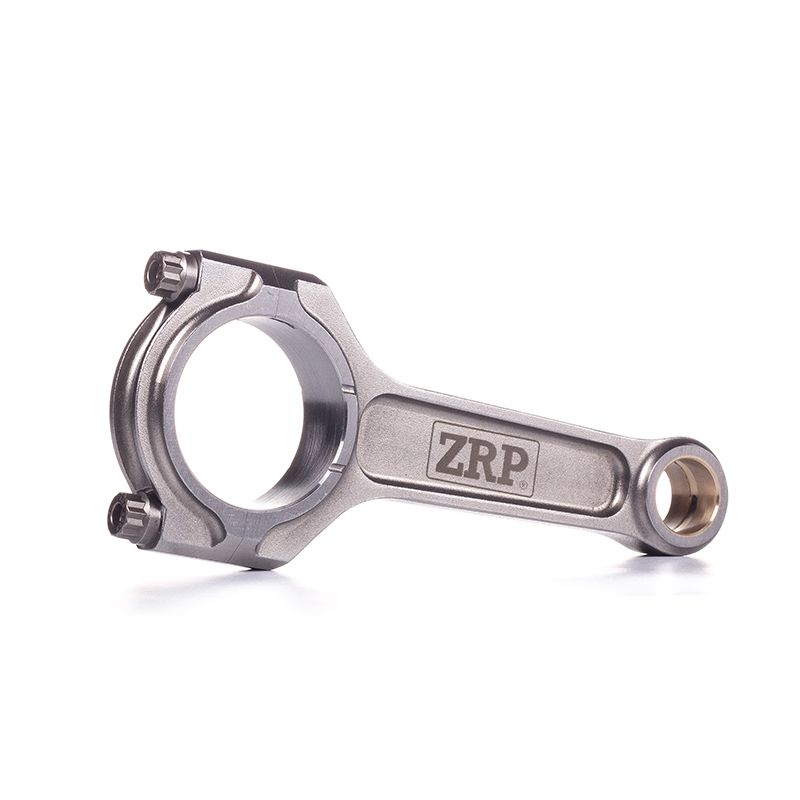

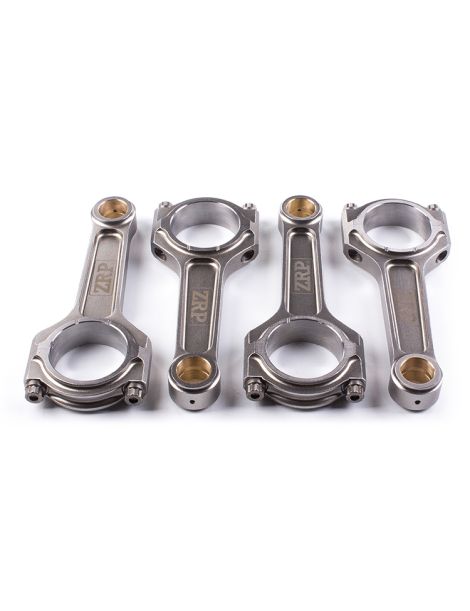

Set of 4 forged 4340 steel connecting rods for BMW M3 E30 2.3 and 2.5 (S14B23 and S14B25 engines).
The BMW S14 is BMW Motorsport's first four-cylinder, designed to homologate the M3 E30 in touring car racing (Group A). It pairs a block derived from the M10 four-cylinder with a sixteen-valve twin-cam head close to that of the M88 six-cylinder. Naturally aspirated and fed by individual throttle bodies, the S14B23 displaces 2,302 cc (bore 93.4 mm × stroke 84 mm) and the S14B25 2,467 cc; it was produced from 1986 to 1992.
In the M3 E30, the S14B23 produces 195 to 220 hp depending on the version (up to the Evolution models), while the S14B25 powers the M3 Sport Evolution with 238 hp. Highly sought after by tuners, this engine gains markedly in reliability with a forged bottom end as soon as revs, compression or power rise: the original rods are then replaced with reinforced forged 4340-steel rods, combined with forged pistons.
Forged from high-strength 4340 steel, these rods make the S14's bottom end reliable once the build goes beyond stock figures. They become essential with forged pistons, raised compression or sustained high-rev use, where the standard rod shows its limits on this highly tuned engine.
Designed for the track, they withstand the repeated stresses of circuit, rally, hillclimb and historic motorsport on an M3 E30, and support Stage 2 to Stage 4+ builds.
| Reference | Brand | Profile | Bolts | Pin diameter OEM 22 mm | Small-end width | Big-end diameter OEM 52 mm | Big-end width | Center-to-center OEM 144 mm | Weight per rod |
|---|---|---|---|---|---|---|---|---|---|
| R-BMW-001-I | ZRP | I | ARP 2000-3/8"-38mm | 22 mm | 52 mm | 23.9 mm | 144 mm | 566 g | |
| R-BMW-001-I-L19 | ZRP | I | ARP L19-3/8"-38mm | 22 mm | 52 mm | 23.9 mm | 144 mm | 566 g |
| Rod | Bolts | Torque | Recommended stretch |
|---|---|---|---|
| ZRP (R-BMW-001-I) | ARP 2000 | 61 N·m | 0.140 – 0.152 mm |
| ZRP (R-BMW-001-I-L19) | ARP L19 | 67.8 N·m | 0.152 – 0.165 mm |
Manufacturers recommend the stretch-gauge method as the reference: the instructions supplied with the kit always take precedence. The torque figures correspond to assembly with ARP lubricant.
| 4340 is a nickel-chromium-molybdenum alloy steel used in aerospace and motorsport. Forged then heat-treated (quench and temper), it delivers a high yield strength, strong fatigue endurance and good ductility. Compared with the sintered steel fitted as standard, forged 4340 improves by around 19% in yield strength, nearly 8% in tensile strength and 19 to 37% in fatigue: the material to choose as revs and cylinder pressure rise. |
 | I-Beam. Its slim central section reduces mass and moving inertia, helping the engine pick up revs - an asset on a naturally aspirated four like the S14. It is the profile offered here for the M3 E30. |
The rod bolt is among the most heavily loaded engine parts. The right move: choose the grade to suit the intended use, then follow the assembly torque and stretch to the letter.
 | ARP 2000 (tensile strength roughly 220,000 psi, ~1,517 MPa) is the high-performance benchmark. Its capacity is read per cylinder and by bolt diameter: around 150 hp per cylinder in 5/16" and 200 hp per cylinder in 3/8", up to 8,500 rpm. Versatile, it suits circuit, trackday, drift, rally, drag and hillclimb alike, combining strength and reliability with no storage precautions. |
 | ARP L19 (tensile strength roughly 260,000 psi, ~1,793 MPa) answers the most severe set-ups: high boost pressure, sustained high engine speeds and heavy cylinder pressure. Its capacity climbs to about 200 hp per cylinder in 5/16" and 250 hp per cylinder in 3/8", up to 10,000 rpm, for high-power builds in drag, drift, rally and circuit. Sensitive to corrosion and hydrogen embrittlement, it is stored and fitted oiled, away from moisture. |
| Beyond torque tightening, checking stretch gives each bolt's true tension, without depending on friction. A suitable gauge lets you meet the manufacturer's spec and ensure even clamping across the four rods. |
 | ZRP is a Greek brand of high-performance forged connecting rods, made by Drakos Engineering in Athens. Each rod is forged from 4340 steel, precision-machined and balanced to ±1 g. For the S14 (M3 E30) they are offered as an I-beam with ARP 2000 or ARP L19 bolts. |
 | 1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center |
These forged connecting rods are compatible with all vehicles fitted with the BMW S14B23 / S14B25 engine (3.0L 24V twin-turbo):
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| BMW | M3 (E30) | S14B23 | 195 – 220 hp | 1986 – 1991 |
| BMW | M3 Sport Evolution (E30) | S14B25 | 238 hp | 1990 – 1991 |
OEM reference: S14B23 - 11 24 1 310 671 / 11 24 1 316 980 ; S14B25 - 11 24 1 310 671 / 11 24 1 316 980.
When an original bottom end breaks (a snapped, bent or scored rod), returning to factory configuration often means replacing rods and pistons together, damaged at the same time. The bill adds up fast, just to get back to stock.
For a comparable, sometimes lower budget, switching to forged 4340 rods and forged pistons gives clearly higher reliability and safety margin, with genuine room to grow. It has been European tuners' choice for over fifteen years.
For the same budget: more reliability, more potential, more longevity.
