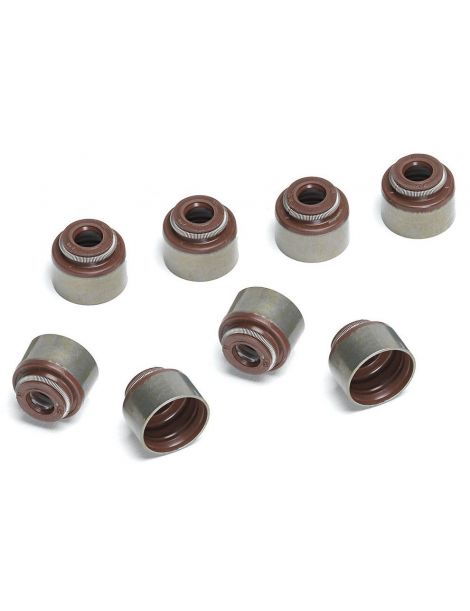

New Reduced price! Joints queue soupapes admission VAG 9A ABF KR BMW S14B23 S14B25 View larger

SUPERTECH inlet valve stem seals BMW M3 E30 S14B23 S14B25

VS-VW7I-8

New product

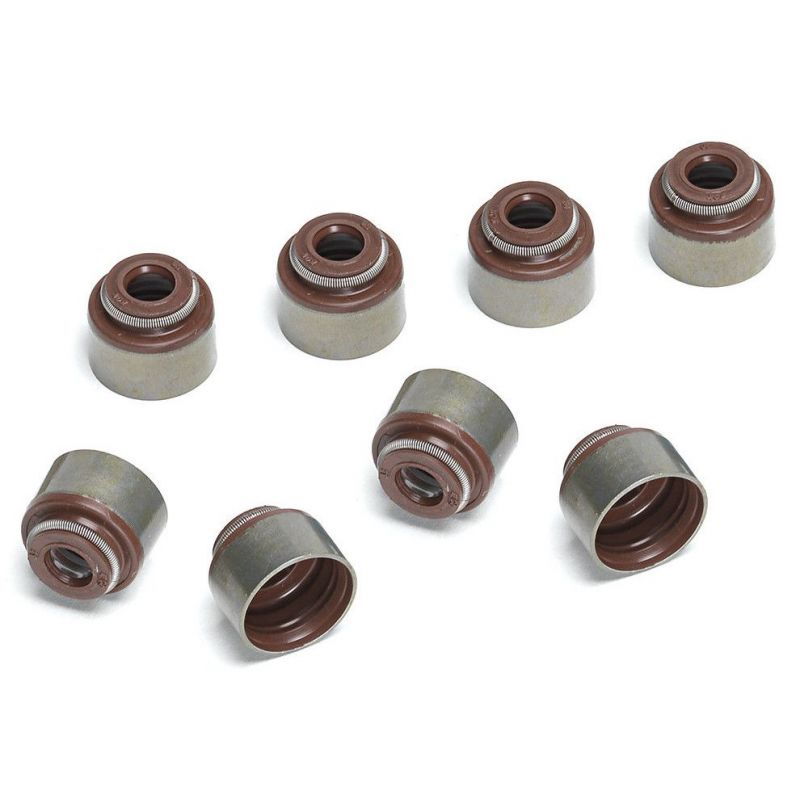

Set of 8 inlet valve stem seals for BMW M3 E30 S14B23 and S14B25, 7 mm stem.

  • Brand: SUPERTECH
  • Engines: S14B23, S14B25
  • Material: Polyacrylate (ACM)

More details

7,07 € tax incl.

-25%

9,42 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  • BMW engines concerned

    This set fits the 7 mm stem inlet valves of the BMW Motorsport S14 four-cylinder of the M3 E30: the 2.3 litre S14B23 (195 to 220 hp, M3, Convertible and Evolution) and the 2.5 litre S14B25 of the M3 Sport Evolution (238 hp), from 1986 to 1993.

    The S14 has 8 inlet valves, two per cylinder. The original seal caps the guide and only lets through the oil the stem needs; BMW supplies it in seal set 11 34 9 059 171.

    SUPERTECH inlet valve stem seals

    On the M3's S14, often revved hard, each inlet seal meters oil for the 7 mm stem without passing any more. Thirty years of heat cycles make it hard: the dipstick drops between oil changes, the M3 E30 smokes blue as soon as it fires up or when it pulls off after long idling, then valves and plugs gather deposits.

    At SUPERTECH, the part is moulded in a good-quality polyacrylate (ACM), fitted to a 9.8 mm guide (outside diameter) and to the 7 mm stem. Its 8 pieces equip the full inlet of an S14B23 or S14B25; on the exhaust, where heat rises much more, SUPERTECH fits a seal of another elastomer, sold separately.

    Stem seal technical specifications

    Part numberBrandPositionMaterialStem ØGuide ØSeal outside Ø
    VS-VW7I-8SUPERTECHInletPolyacrylate (ACM)7 mm9.8 mm13.2 mm

    Stem seal installation

    PartOriginalReinforced
    Inlet stem sealBMW set 11 34 9 059 171Replaced by this set
    Exhaust stem seal7 mm stemVS-VW7E-8 (BMW)
    Valve guides (BMW)Inside Ø 7.0 mmGDE-BMS14-7-8*2
    Valves (BMW)7 mm stemInlet / Exhaust

    Technical guide

    The brand offered

    SUPERTECHA San Jose, California firm active for more than 30 years, SUPERTECH designs most of a race engine's valvetrain, from the valve to the seal. Ultrasonic testing, radiography and laser inspection approve its batches, which renowned engine builders then fine-tune.

    Inlet or exhaust?

    The S14 takes seals of identical dimensions on inlet and exhaust, but not of the same material: polyacrylate (ACM) VS-VW7-I for the inlet, Viton (FKM) VS-VW7-E on the much hotter exhaust side. SUPERTECH rates polyacrylate at 177 °C (350 °F) and Viton at 204 °C (400 °F) continuous. An M3 E30 cylinder head calls for 8 seals of each kind.

    When valve stem seals must be replaced

    • Oil dropping, blue smoke from the M3 E30 at start-up
    • Valves out, S14 cylinder head redone
    • New valve guides fitted
    • Fitting of stronger valves or springs

    Vehicle compatibility

    BMW

    ModelEngine codePowerYears
    M3 2.3 (E30)S14B23195-215 hp1986-1991
    M3 Cabriolet 2.3 (E30)S14B23195-215 hp1988-1993
    M3 Evolution 2.3 (E30)S14B23220 hp1988-1990
    M3 Sport Evolution 2.5 (E30)S14B25238 hp1990-1992

    OEM part number (BMW stem seal set): 11 34 9 059 171 (S14B23, S14B25)

    Important: this set targets the S14 of the M3 E30; the S14B20 of the 320is is not listed by SUPERTECH for this reference.

    Remember the exhaust valve stem seals

    The S14 exhaust wears just as quickly: change its 8 seals during the same head removal. For the M3 E30, SUPERTECH offers:

    BMW M3 E30 S14 exhaust stem seals →
