Forged connecting rods BMW - 2.0L 16V Turbo - N20B20 N26B20 for forged pistons

The BMW N20B20 N26B20 engine

The N20 is BMW's 2.0-litre turbocharged four-cylinder petrol engine, built from 2011 to 2017. Aluminium block, double overhead camshafts, 16 valves, direct injection, Valvetronic variable valve lift and a twin-scroll turbo: it replaced the naturally aspirated sixes across much of the range. With an 84 mm bore and a 90.1 mm stroke, it produces from 156 to 245 hp depending on version. The N26 is its SULEV emissions variant for the North-American market.

Very widely used (1 to 5 Series, X1, X3, X4, X5, X6, Z4), the N20 is a popular tuning base: its displacement and turbo offer strong potential. But as soon as boost pressure and power rise, the standard rods become the weak link. Switching to forged 4340 connecting rods secures the bottom end and allows significant, reliable power gains.

Forged connecting rods

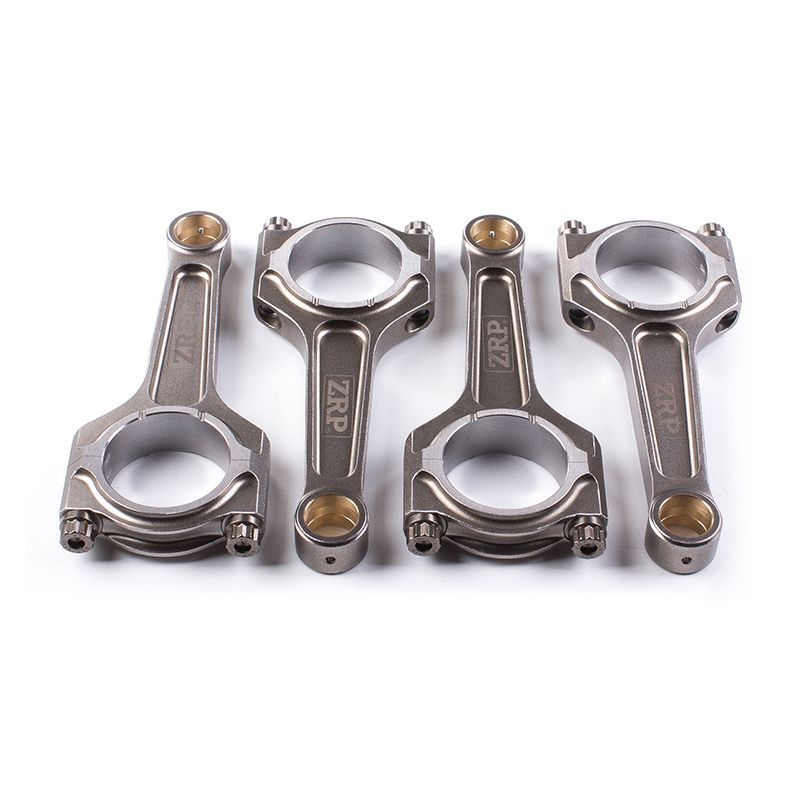

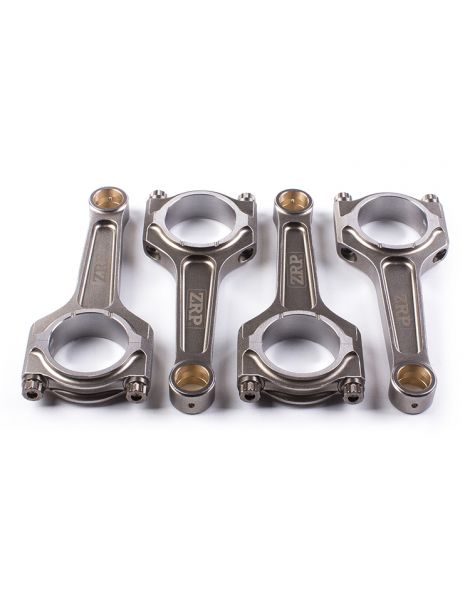

Everything starts with the steel: a high-strength 4340, forged and heat treated, whose yield strength and fatigue endurance are on a different scale from those of a mass-production rod. That is what makes the N20 / N26 bottom end reliable as soon as power climbs, and it is essential when moving to forged pistons, raising the rev limit, increasing boost pressure or gaining displacement. The ZRP I profile, 487 g for a 144 mm centre-to-centre, a 22 mm pin and a 53.6 mm big end, stays light while taking far more load.

They are sized for modified engines, turbocharged or supercharged, and cover every discipline: rally, drift, drag, circuit and trackdays, hillclimb, time attack. They support Stage 2, Stage 3 and Stage 4+ builds, right up to the competition block. On a modern turbo four-cylinder such as the N20 they follow the rise in boost pressure without becoming the weak point.

Technical specifications of the BMW N20B20 N26B20 forged connecting rods

Couple de serrage et allongement

Contrary to a widespread belief, it is not combustion pressure that threatens rod fasteners: combustion pushes the piston down and compresses the joint between rod and cap. The danger comes from the phase where the piston is decelerated at the top of its stroke, when inertia pulls the cap outwards. If tightening has stayed below the range, preload no longer covers that pull: the cap lifts, the shell is hammered, the parting face degrades and running clearance drifts until the oil film is lost. If tightening has exceeded the range, the bolt has been stretched beyond its elastic limit: its preload collapses anyway, and the overload has distorted the bearing bore and made the big end oval. For the ZRP rods of this N20 or N26 only one combination exists, with 3/8" ARP 2000 fasteners: the torque and stretch figures in the table below, as specified by the fastener manufacturer, apply without discussion. The stretch gauge remains the reliable method, with ARP assembly lubricant and the kit instructions as references.

Technical guide

4340 forged steel: what is it?

Connecting rod profiles

I-Beam profile. Thin central section and reduced mass: the I-beam rod limits inertia and allows high engine speeds. It is the profile of choice for modern engines, rally builds and high-revving units, drift and time attack in particular. It is the profile chosen for this M40 / M43 kit.

How to choose your rod bolts?

The rod bolt is the part whose metallurgy translates most directly into engine reliability. Alloy grade, cleanliness of the steel, quench and temper carried through the whole section, threads rolled after that treatment to work-harden the thread root: every step adds cyclic fatigue margin. Dimensional consistency then decides how equal the preloads are from one bolt to the next. This N20 / N26 is supplied with ARP 2000 hardware in 3/8"-38 mm; refer to the table for torque and stretch, and always drive the tightening by measured stretch.

ARP 2000 (tensile strength around 220,000 psi, ~1,517 MPa) stands as the high-performance standard. Its thresholds are reasoned per cylinder and per bolt diameter: on the order of 200 hp per cylinder in 3/8", for engine speeds allowed up to 8,500 rpm. Versatile, it suits circuit, trackday, drift, rally, drag and hillclimb, with a recognised balance of strength and reliability and no storage constraints.

Measuring bolt stretch

Buy the ARP stretch gauge →

The brands we offer

ZRP : a Greek brand of high-performance forged connecting rods, made by Drakos Engineering in Athens. Each rod is forged from 4340 steel, precision-machined and balanced to stay reliable at high rpm. Available here in I-Beam profile and supplied with ARP 2000 or ARP L19 bolts, they are designed and inspected in Greece and used in rally, on track and in drift.

Glossary

1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center

Vehicle compatibility for the BMW N20B20 N26B20 engine

Below are the vehicles fitted with the BMW 2.0L 16V Turbo N20B20 N26B20 engine. Measuring the piston pin diameter and the rod length remains essential before any order.

OEM reference: 11 24 7 624 616.

Why it is the most cost-effective solution

A broken standard rod on this engine is not solved with one part: the rods AND the pistons, almost always damaged at the same time, have to be replaced, and the crankshaft, bearings and liners have to be checked. The bill for a simple return to the factory configuration is high, and the engine has gained no capability at all.

For an equivalent or even lower budget, a set of 4340 forged rods combined with forged pistons changes the level of reliability and installs a real safety margin, with the option of raising power afterwards. This has been the choice of European engine builders for more than fifteen years on turbo four-cylinders of this type.

For the same budget: more reliability, more potential and more longevity for the N20 bottom end.
