2,5L 16v - EJ257 met EJ20 cilinderkop
Manufacturers
2,5L 16v - EJ257 met EJ20 cilinderkop
Let op: laatste artikelen op voorraad!
Nieuw product

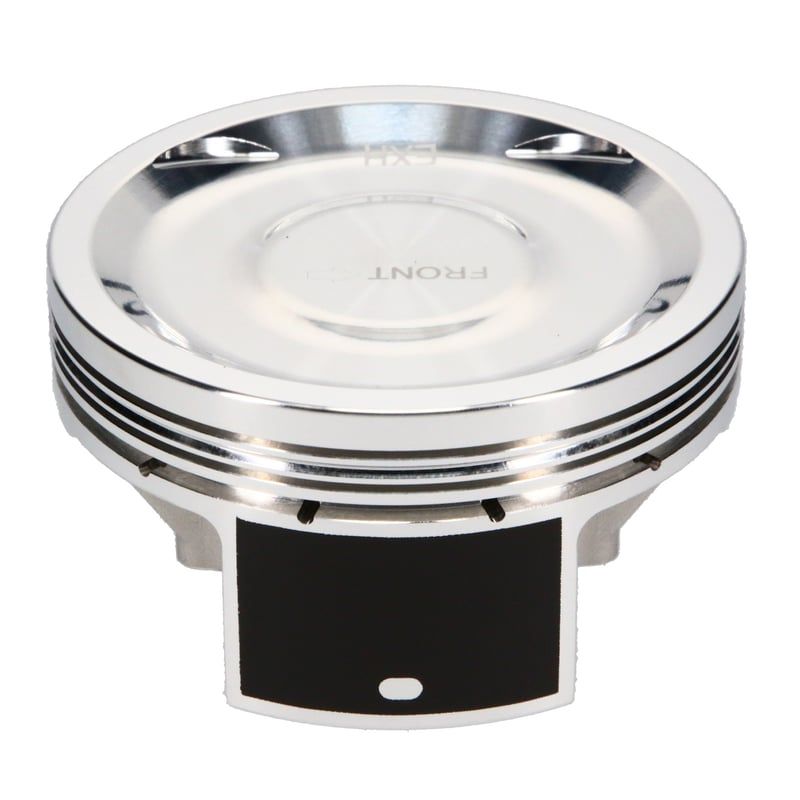

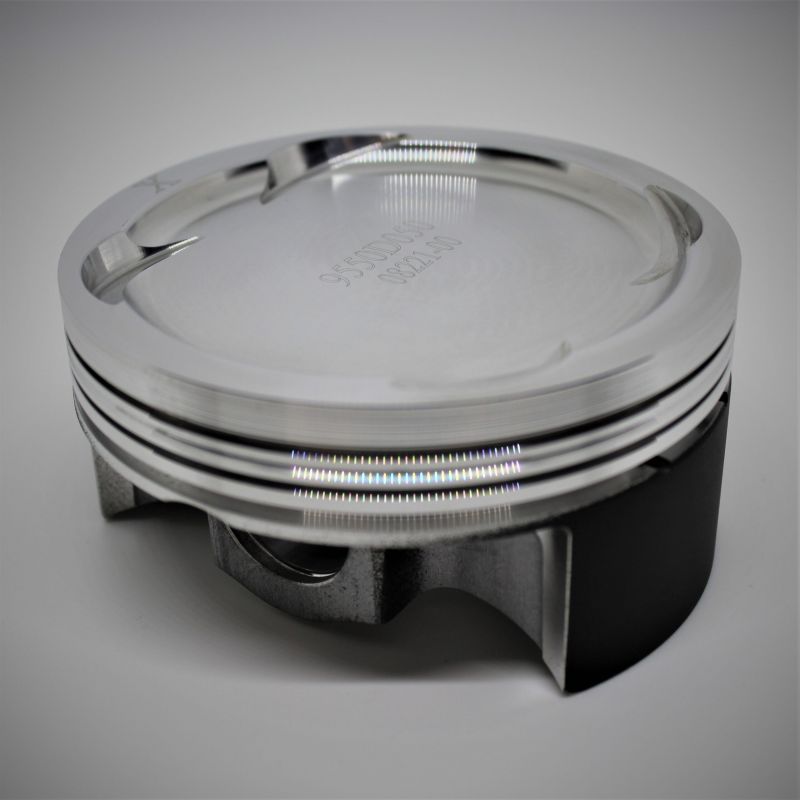

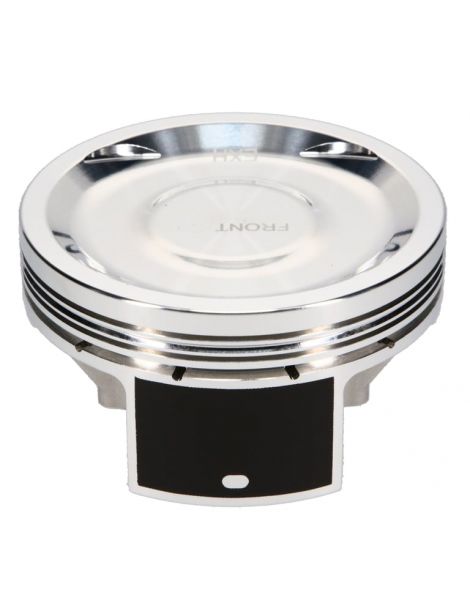

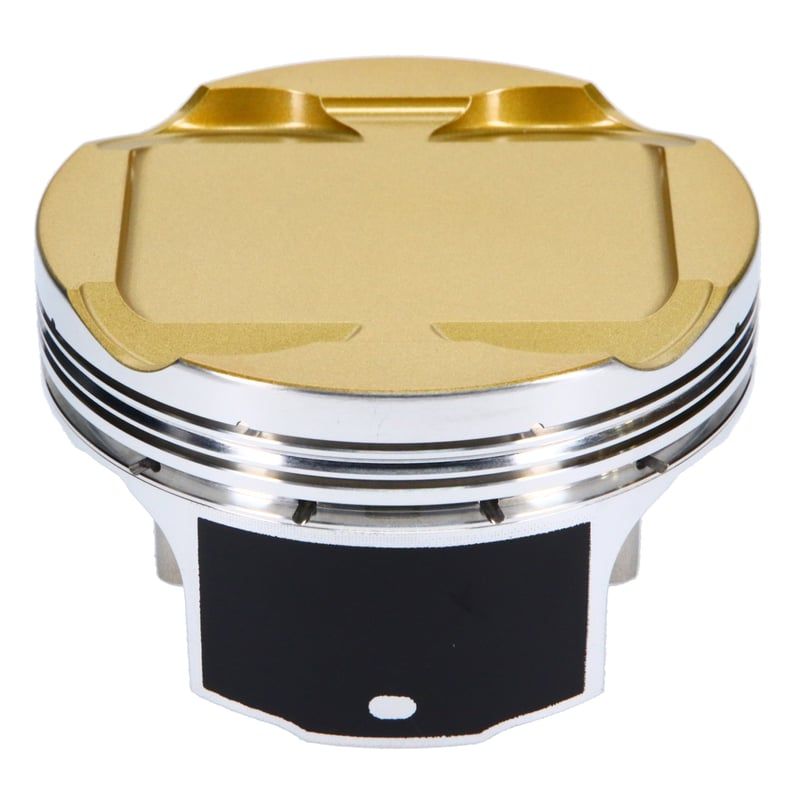

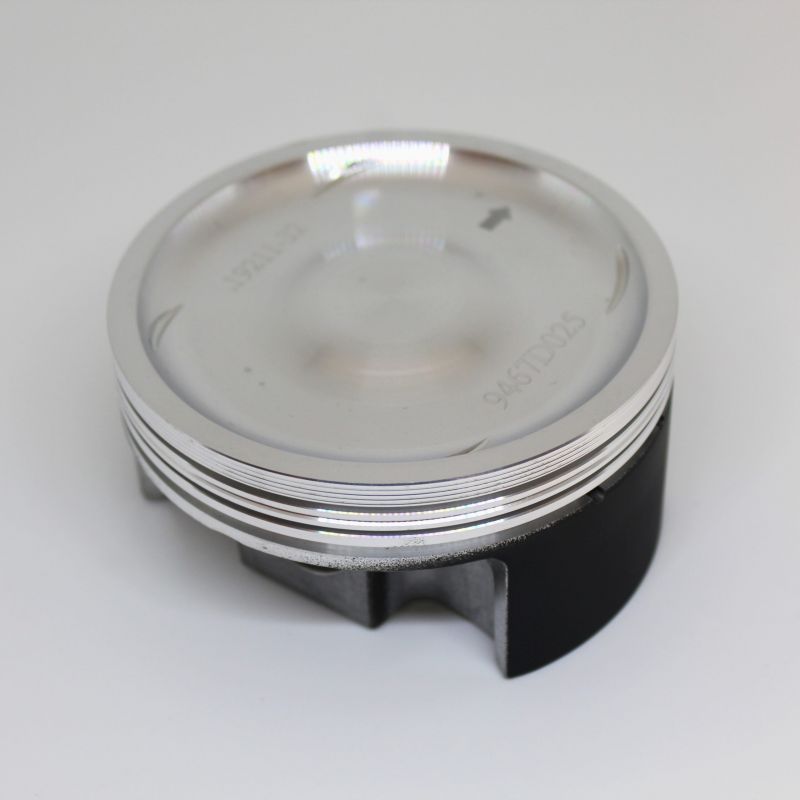

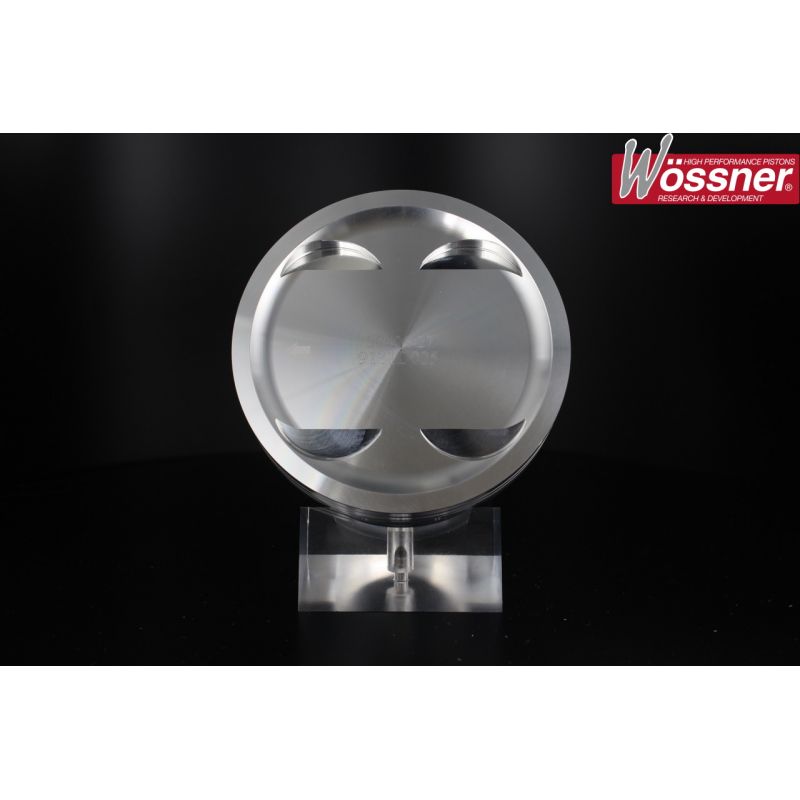

Tabel gesmede zuigers EJ257 + cilinderkops EJ20 (hybride) : Ø 99,50 mm, zuigerpen 23 mm, CH 30,70 mm, RV 8,2-8,4:1. Compatibiliteiten EJ257/EJ205/EJ207, voertuigen STi en OEM-referenties.
Kenmerken van de gesmede zuigers aangeboden door NSB Concept voor Subaru 2.5 L — EJ257 short block met cilinderkoppen EJ20 (EJ205/EJ207) :
| Referentie | Boring (mm) OEM: 99,50 | CR OEM: 8,2–8,4 :1 | Pistonpen (mm) OEM: 23 | Compressiehoogte (mm) OEM: 30,70 | Serie | Coating | Aluminium | Smeedproces | Dome | Gewicht | Zuigerveren |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-291059 | 99.5 | 8.5:1 | 23 | 30.7 | JE FSR | NC | 2618 | FSR | -25.5 | 405.0 | NC |
| JE-367902 | 99.5 | 8.5:1 | 23 | 30.7 | JE Ultra Series | Kop + Mantel | 2618 | FSR | -25.5 | 413.0 | NC |
| JE-325249 | 99.5 | 9.5:1 | 23 | 30.7 | JE FSR | NC | 2618 | FSR | -16.4 | 411.0 | NC |
| K9263D025 | 99.75 | 8.1:1 | 23 | 31.0 | Wossner | NC | NC | Slipper | -28.0 | NC | 997XPY |
| K9467D025 | 99.75 | 8.4:1 | 23 | 30.7 | Wossner | NC | NC | Slipper | -25.3 | NC | 997XPY |
| JE-296349 | 99.75 | 8.5:1 | 23 | 30.7 | JE FSR | NC | 2618 | FSR | -26.0 | 410.0 | NC |
| JE-367903 | 99.75 | 8.5:1 | 23 | 30.7 | JE Ultra Series | Kop + Mantel | 2618 | FSR | -26.0 | 415.0 | NC |
| K9131D025 | 99.75 | 8.6:1 | 23 | 30.7 | Wossner | NC | NC | Slipper | -23.0 | NC | 997XPY |
| K9550D025 | 99.75 | 9:1 | 23 | 30.7 | Wossner | NC | NC | NC | -19.0 | NC | 997XPY |
| JE-325250 | 99.75 | 9.5:1 | 23 | 30.7 | JE FSR | NC | 2618 | FSR | -16.7 | 414.0 | NC |
| K9263D050 | 100.0 | 8.2:1 | 23 | 31.0 | Wossner | NC | NC | Slipper | -28.0 | NC | 1000XPY |
| JE-291060 | 100.0 | 8.5:1 | 23 | 30.7 | JE FSR | NC | 2618 | FSR | -26.4 | 410.0 | NC |
| JE-367904 | 100.0 | 8.5:1 | 23 | 30.7 | JE Ultra Series | Kop + Mantel | 2618 | FSR | -26.4 | 417.0 | NC |
| K9467D050 | 100.0 | 8.5:1 | 23 | 30.7 | Wossner | NC | NC | Slipper | -25.3 | NC | 1000XPY |
| K9131D050 | 100.0 | 8.6:1 | 23 | 30.7 | Wossner | NC | NC | Slipper | -23.0 | NC | 1000XPY |
| K9550D050 | 100.0 | 9:1 | 23 | 30.7 | Wossner | NC | NC | NC | -19.0 | NC | 1000XPY |
| JE-325251 | 100.0 | 9.5:1 | 23 | 30.7 | JE FSR | NC | 2618 | FSR | -17.0 | 416.0 | NC |
| K9263D100 | 100.5 | 8.2:1 | 23 | 31.0 | Wossner | NC | NC | Slipper | -28.0 | NC | 1005XPY |
| K9467D100 | 100.5 | 8.5:1 | 23 | 30.7 | Wossner | NC | NC | Slipper | -25.3 | NC | 1005XPY |
| K9131D100 | 100.5 | 8.7:1 | 23 | 30.7 | Wossner | NC | NC | Slipper | -23.0 | NC | 1005XPY |
| K9550D100 | 100.5 | 9.1:1 | 23 | 30.7 | Wossner | NC | NC | NC | -19.0 | NC | 1005XPY |
Compatibiliteit (motorcodes) :
Originele voertuigen uitgerust met de EJ257 2.5 Turbo (base short block) :
| Merk | Model | Motorcode | Vermogen | Jaren |
|---|---|---|---|---|
| Subaru | Impreza WRX STi (GD) 2.5 Turbo | EJ257 | 300 hp (≈305 pk) | 2004 – 2007 |
| Subaru | Impreza WRX STi (GR/GV) 2.5 Turbo | EJ257 | 305 hp (≈309 pk) | 2008 – 2014 |
| Subaru | WRX STi (VA) 2.5 Turbo | EJ257 | 310 hp (≈314 pk) | 2015 – 2021 (US) |
OEM zuiger referenties :
De exacte referenties kunnen variëren (markt EU/US/JDM, jaren & klassen A/B). Controle met VIN verplicht.
Let op : Controleer voor de montage altijd de integriteit en conformiteit van elk onderdeel van de zuigerkit en de conformiteit van de montage in de motor; eventuele garantie is strikt beperkt tot de onderdelen van de zuigerkit.
