MTR-04 2-way ignition module connector

7-way connector for MTR-04 2-way ignition module

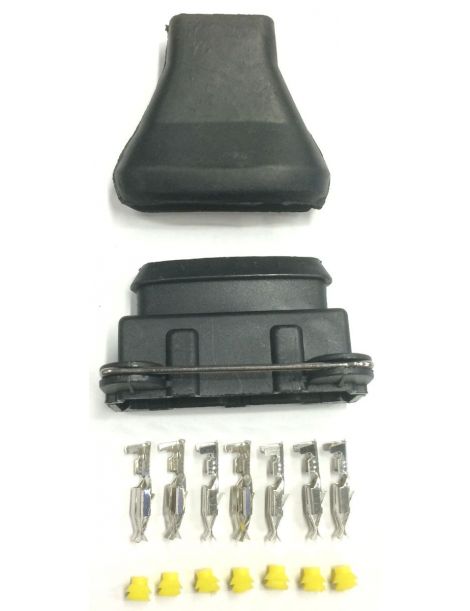

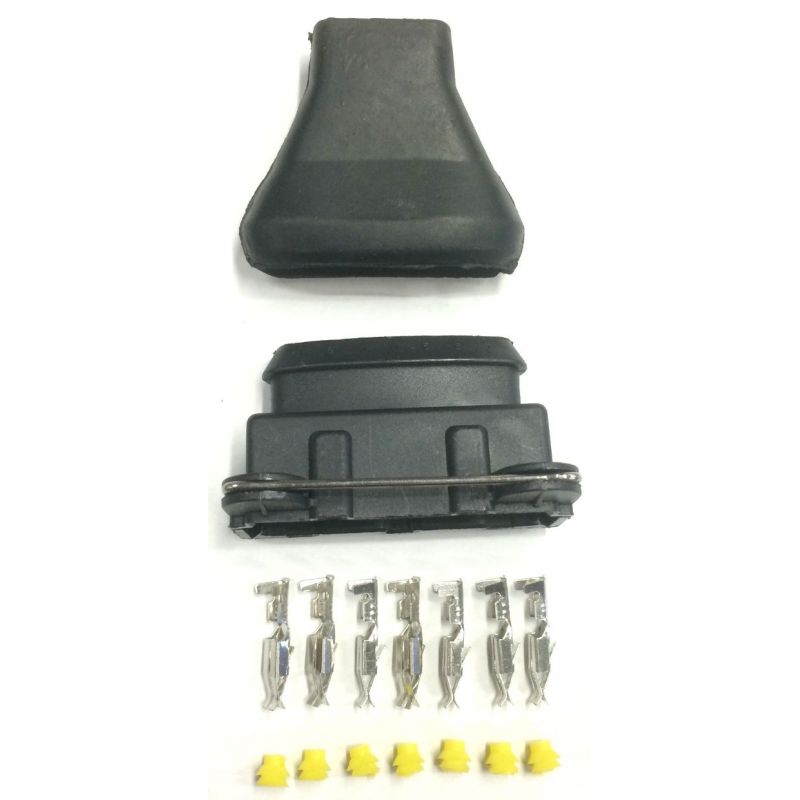

This connector for the MTR04 module comes with 7 crimp terminals/caps and a protective cap.

Original equipment or after the installation of a programmable control unit (Challenger 5 or EMS-4 for example), the MTR04 ignition module allows you to control 2 ignition coils.

For your information, here is the connection of the MTR-04 module:

• Reference 1: output channel 1 ---> to coil (cylinders 1 and 4)

• Reference 2: input channel 1 ---> coming from the computer

• Mark 3: not used

• Mark 4: ground wire of 1.5 on ENGINE BLOCK

• Mark 5: not used

• Mark 6: channel 2 output ---> to coil channel 2 (cylinders 2 and 3)

• Reference 7: input channel 2 ---> coming from the calculator
