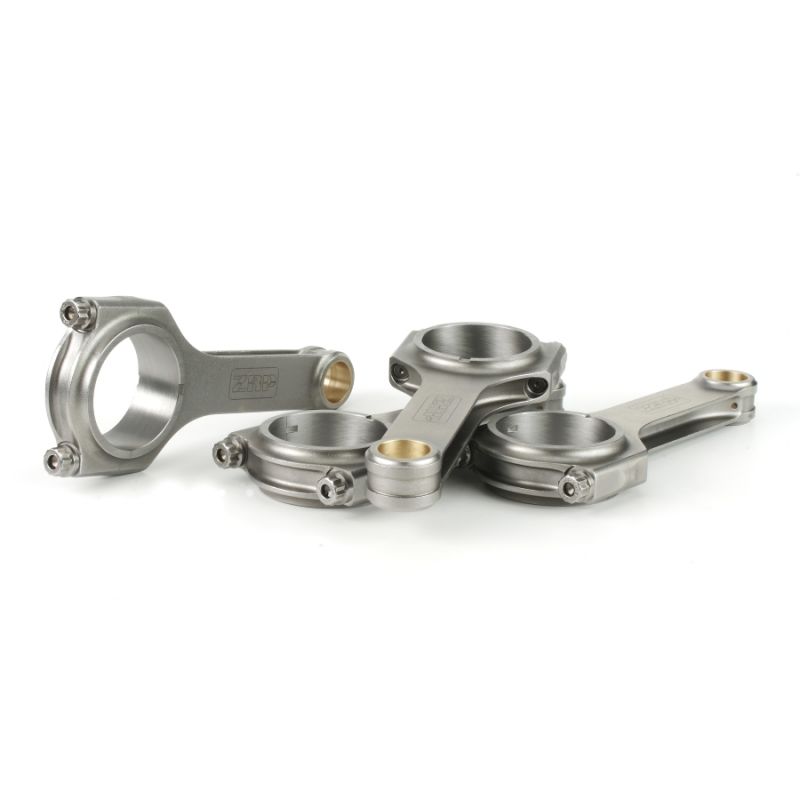

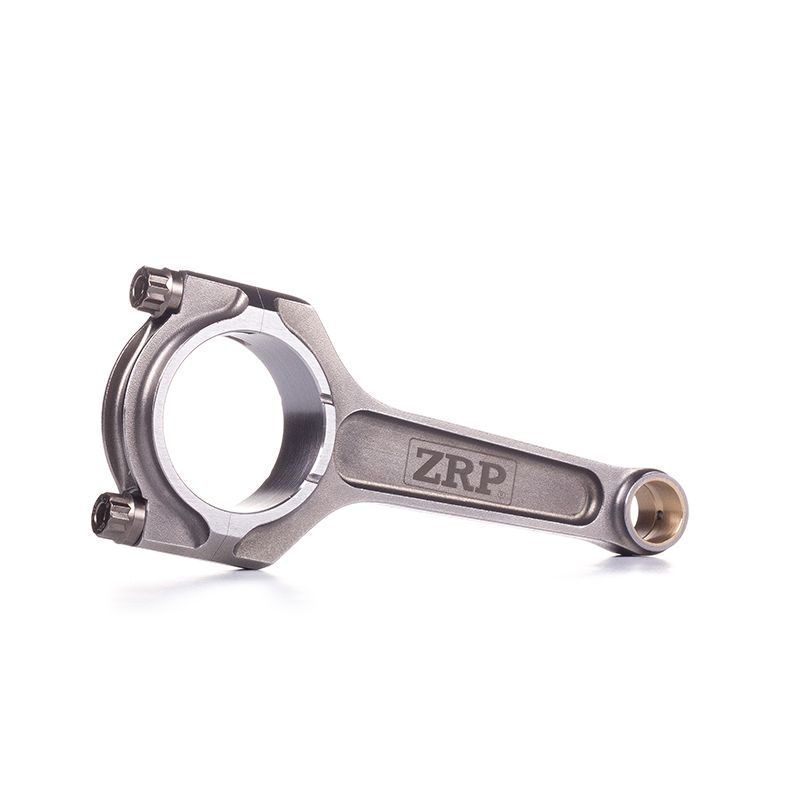

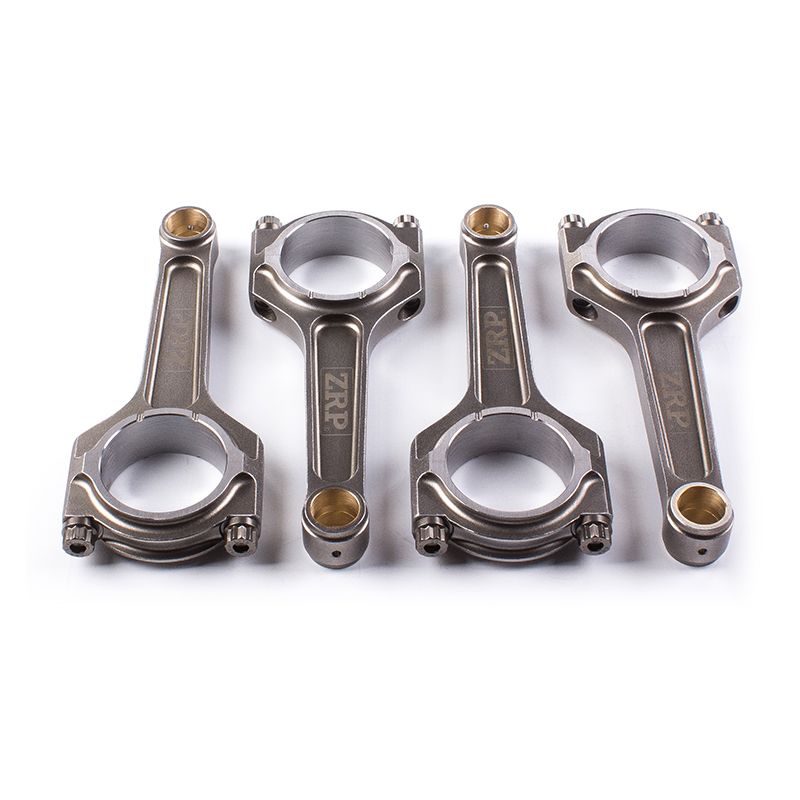

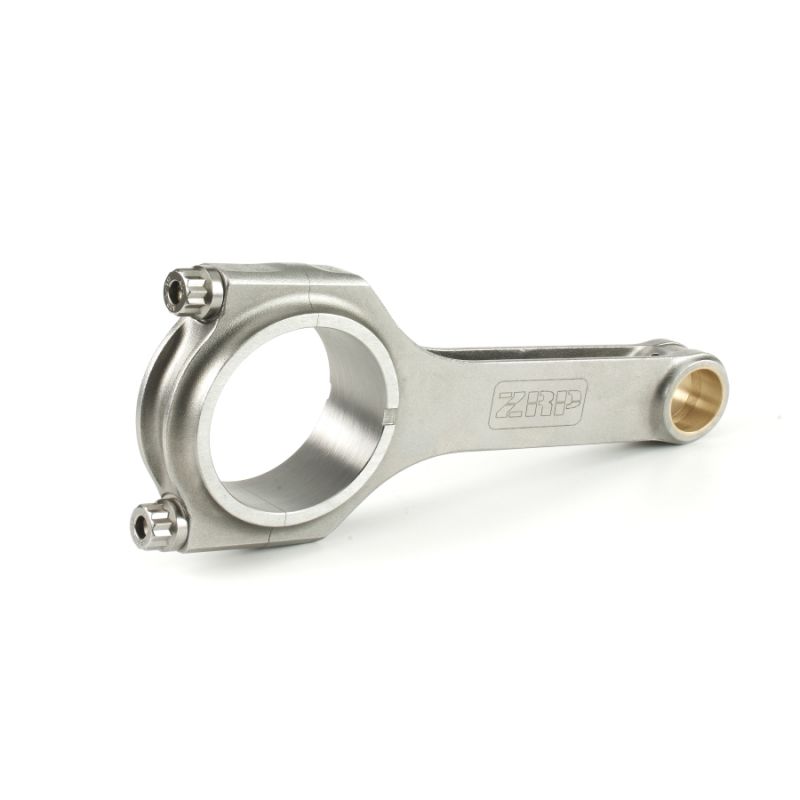

Set of 4 forged 4340 steel connecting rods for Citroën / Peugeot 1.6L 16V TU5J4 / TU5JP4 (18 mm pin).
The TU5J4 and its TU5JP4 derivative make up PSA's family of 1.6-litre 16-valve four-cylinder sports engines. Naturally aspirated, it has a 78.5 mm bore and an 82 mm stroke (1,587 cc) and was produced from 1995 to 2007. Its multi-valve cylinder head and compact architecture give it a reputation as a lively, free-revving engine.
It powers the group's sportiest versions: Peugeot 106 S16 and 206 S16, Citroën Saxo VTS and C2 VTS. These light hatchbacks built the TU5's reputation in rallying, on track and in hillclimbing. Very responsive to tuning (intake, exhaust, camshafts, even forced induction), it quickly pushes the original rod to its limit as soon as power, engine speed or cylinder pressure rise.
On a naturally aspirated TU5 build, the stress does not come from boost but from inertia: at high rpm the rod takes alternating loads that grow with the square of engine speed, and the small end and cap bolts are the first to suffer. A forged set with the correct pin diameter — 18 mm for this reference — allows a higher rev limit and lets you run full track or hillclimb sessions without eating into the bottom end's safety margin.
Forged and then machined from high-strength 4340 steel, these rods are designed for an 18 mm piston pin: they go with the forged pistons that adopt this reduced diameter on a built TU5J4 or TU5JP4. Moving to forged rods is required with forged pistons, a higher maximum rpm, an increase in boost pressure or a gain in displacement, as soon as the standard rod can no longer keep up.
Designed for built engines, highly tuned naturally aspirated as well as boosted, they cover every discipline: rally, drift, drag racing, circuit and track use, hillclimb, time attack. They follow Stage 2, Stage 3 and Stage 4+ builds up to a fully rebuilt competition engine, with an H profile at 461 g per rod that favours big-end stiffness.
| Reference | Brand | Profile | Bolts | Pin diameter OEM 19,5 mm | Small-end width | Big-end diameter OEM n.p. | Big-end width | Center-to-center OEM 133.6 mm | Weight per rod |
|---|---|---|---|---|---|---|---|---|---|
| R-PEU-001H | ZRP | H | ARP 2000-3/8"-38mm | 18 mm | 48.66 mm | 23.91 mm | 133,6 mm | 461 g | |
| R-PEU-001H-L19 | ZRP | H | ARP L19-3/8"-38mm | 18 mm | 48.66 mm | 23.91 mm | 133,6 mm | 461 g |
| Rod | Bolts | Torque | Recommended stretch |
|---|---|---|---|
| ZRP (R-PEU-001H) | ARP 2000 | 61 N·m | 0.140 – 0.152 mm |
| ZRP (R-PEU-001H-L19) | ARP L19 | 67.8 N·m | 0.152 – 0.165 mm |
The bearing shell is the first witness of a botched assembly. Too little tension in the bolts and it is struck every time the cap lifts: its overlay is hammered, cracks, flakes away in small patches and clearance grows until the oil film separates nothing at all. Too much tension and it is choked: the bore, closed beyond its nominal size by an oval big end, pinches it at the edges, oil no longer flows freely and local temperature alone is enough to ruin the bearing surface. Between the two, the specified range is narrow and it belongs to the fastener manufacturer, not to the builder. For the H-profile ZRP rods of this TU5 with 18 mm pin, the torque and stretch figures in the table below distinguish ARP 2000 from ARP L19 in 3/8" and are taken as they stand. Stretch checking with a dial gauge remains the only reliable verification of the tension obtained; assemble with ARP lubricant, the kit instructions taking priority.
| 4340 steel is a nickel-chromium-molybdenum alloy steel used in both aerospace and motorsport. Forged then heat-treated (quenched and tempered), it combines high tensile strength, excellent fatigue life and real ductility. Compared with a factory rod (often made of sintered metal, optimised for mass-production cost), a 4340 forged rod gains roughly +19% yield strength, +8% tensile strength and above all +19 to +37% fatigue strength, i.e. a service life under cyclic loading several times longer. This is exactly what makes forged 4340 the reference material as soon as engine speed and load rise. |
 | H-Beam profile. The H section offers great rigidity and excellent resistance to bending and compression: a robust profile suited to torque- and reliability-oriented engines. |
On a built TU5 everything depends on the rod bolt: it sets the maximum usable rpm and the cylinder pressure that can be tolerated. The grade is chosen according to how the engine is used, discipline by discipline, from torque taken up at low rpm on a rally stage to rpm held high through a hillclimb or a circuit session, up to the very short load peaks of drag racing. Target power per cylinder then refines the choice. The two grades available here in 3/8"-38 mm are fitted to the torque and stretch of the table.
 | ARP 2000, with a tensile strength of ~220,000 psi (~1,517 MPa), covers almost all the needs of a built 1.6 16V: up to 200 hp per cylinder in 3/8" and up to 8,500 rpm. On a TU5 used in rally, on circuit or in hillclimb, the margin stays large, even after adding boost. It is also the most common grade in track days, drift and drag racing, and it calls for no particular storage constraint. |
 | L19 climbs to ~260,000 psi (~1,793 MPa) and allows up to 250 hp per cylinder in 3/8" as well as 10,000 rpm. It makes full sense on a TU5 with very high boost pressure, high cylinder pressure or rpm held high for a long time, and on the big power levels in drag racing, drift, rally and circuit. Its limitation is practical: sensitive to corrosion and to hydrogen embrittlement, L19 bolts are stored and fitted oiled, away from moisture, never bare. |
| Beyond torque tightening, measuring rod-bolt stretch remains the most reliable check for achieving correct preload. The measurement is taken with the bolt fitted: place the dial gauge (stretch gauge) on both ends of the bolt and read its actual stretch, which must match the recommended value (see the torque & stretch table above). This method removes the friction variations inherent to torque tightening and secures the assembly on heavily stressed engines. |
 | ZRP is a Greek brand of high-performance forged connecting rods, designed by Alex Drakos in Athens. Each rod is forged from 4340 steel, precision-machined and balanced to ±1 g to stay reliable at high rpm. On this TU5 application they are offered in H or I profile with ARP 2000 or L19 hardware, designed and inspected in Greece, and proven in rallying, on circuit and in drift. |
 | 1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center |
These forged rods, in the 18 mm piston pin version, suit vehicles fitted with the 1.6 16V TU5J4 or TU5JP4 engine, with a 133.6 mm centre-to-centre length. The table below lists the Citroën and Peugeot models concerned.
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| Citroën | Saxo VTS | TU5J4 | 118 hp | 1996–2003 |
| Citroën | C2 VTS | TU5JP4S | 122 hp | 2004–2009 |
| Citroën | C2 1.6 16V | TU5JP4 | 109 hp | 2003–2010 |
| Citroën | C3 1.6 16V | TU5JP4 | 109 hp | 2002–2010 |
| Citroën | C4 1.6 16V | TU5JP4 | 109 hp | 2004–2011 |
| Citroën | Xsara 1.6 16V | TU5JP4 | 109 hp | 2000–2005 |
| Peugeot | 106 S16 | TU5J4 | 120 hp | 1996–2004 |
| Peugeot | 206 S16 | TU5JP4 | 109 hp | 2000–2009 |
| Peugeot | 207 1.6 16V | TU5JP4 | 109 hp | 2006–2013 |
| Peugeot | 307 1.6 16V | TU5JP4 | 109 hp | 2000–2009 |
| Peugeot | 308 1.6 16V | TU5JP4 | 109 hp | 2008–2014 |
OEM reference: 0603 86 (set of 4 rods).
A standard rod that breaks on a TU5 nearly always takes the matching piston with it, sometimes the head as well, and calls for a check of the block. Going back to standard parts therefore means buying original rods and pistons, a high bill for an engine that will stay as fragile as it was before the failure.
For a comparable, often lower budget, forged 4340 rods combined with forged pistons using an 18 mm pin bring far greater reliability and safety margin, with real room to develop the build further. This has been the approach of European engine builders for more than 15 years on competition TU5 engines.
For the same budget the sum holds no surprise: more reliability, more potential, more service life.
