Forged connecting rods Ford / Volvo - 2.0L & 2.5L 20V Turbo - JZDA / B5254T (Focus RS, white block) for forged pistons

The Ford Duratec 2.5T & Volvo 2.0 / 2.5 20V « white block » engine

Volvo's « white block » is the modular inline-five family launched in 1991 on the 850. Fully aluminium, twin overhead cams and four valves per cylinder (20V), it comes as a 2.0L turbo (B5204T2, 1,984 cc, 81 mm bore) and a 2.5L 20V (B5254, 2,435 cc, 83 mm bore x 90 mm stroke), in both naturally aspirated and turbo forms. Ford adopted this very same five-cylinder block under the Duratec 2.5T name (Duratec-ST / RS), notably in the Focus ST and the Focus RS Mk2.

On the Volvo side it powers the 850, S70, V70 (first generation), C70 and XC70, with outputs of roughly 165-170 hp naturally aspirated, 180 hp on the 2.0 turbo (B5204T2) and up to 193 hp on the 2.5 turbo (B5254T). On the Ford side, the Focus RS Mk2 (JZDA code, 305 hp, 2009-2011) and the limited RS500 (HUBA code, 350 hp) take this same block to very high boost levels. Praised for its stout bottom end and strong tuning potential, it readily accepts higher boost; to secure high power figures, the rotating assembly is upgraded with forged internals.

Forged connecting rods

Machined from high-strength 4340 steel, these reinforced forged rods secure the bottom end as soon as power rises. They become essential when fitting forged pistons, raising the rev limit, increasing boost pressure or gaining displacement, all cases where the white block’s original rod reaches its limits.

Built to withstand the heavy loads of tuned engines (factory turbo or sharper builds), they suit every discipline (rally, drift, drag, circuit and track days, hillclimb, time attack) and support Stage 2, Stage 3 and Stage 4+ builds, up to full competition engines.

Technical specifications of the Ford Duratec 2.5T & Volvo 2.0 / 2.5 20V forged connecting rods

Torque and bolt stretch

On this five-cylinder engine each fastener grade has its own range: ARP 2000, CA625+ and L19 are not tightened the same way, and a figure borrowed from the neighbouring row of the table leads straight to one of the two faults. Too low, and preload stays below the separating force: the cap lifts at the end of the power stroke, the parting face loses its surface finish, the shell is hammered then driven out of its bore, and clearance reaches a value no adjustment can recover. Too high, and the bolt passes its elastic limit: it stays elongated, its preload collapses with the first thermal expansion, the bearing bore distorts and the big end goes oval, with the oil film breaking wherever the shell no longer bears. The torque and stretch figures below are those of the fastener manufacturer for each reference, Boostline as well as ZRP, in 38 or 41 mm: they apply row by row, with no transposition. The stretch gauge remains the reference method, the only one able to tell what the bolt has actually taken; ARP assembly lubricant and kit instructions take priority.

Technical guide

4340 forged steel: what is it?

Connecting rod profiles

	I-beam profile. With its thinner central section, the I-beam rod is lighter: less inertia and freer rev pick-up. It is the preferred profile on modern turbo engines like the N54. Its I-HD (Heavy Duty) version is a reinforced variant, designed for higher loads.
	I-3P profile (3-pocket I-beam, Boostline). Patented profile that keeps the lightness of an I-beam while adding triangulated reinforcements on the big end: bending resistance about 60% higher than an H-beam. Ideal on heavily boosted engines.

How to choose your rod bolts?

On a rod bolt, everything is decided in the material and in the way it is formed: alloy grade, metallurgical cleanliness, quench and temper cycle, then rolling of the threads after treatment, which work-hardens the thread root, closes the micro initiation sites and pushes the endurance limit further. Add to that dimensional consistency, the condition for identical preload on every bolt. This five-cylinder is built with two bolt widths depending on the rod: 3/8"-41 mm on the Boostline I-3P, 3/8"-38 mm on the ZRP I profile. Choose the grade according to target boost pressure and engine speed, then tighten by measured stretch.

	ARP 2000 designates a wrought, through-hardened steel whose tensile strength is around 220,000 psi, i.e. ~1,517 MPa, with threads rolled after heat treatment giving excellent cyclic fatigue endurance and good stability against ambient corrosion. The grade covers builds up to 200 hp per cylinder in 3/8" and up to 8,500 rpm: it is the most common in circuit racing, trackdays, drift, rally, drag and hillclimb. On this engine it exists in 3/8"-41 mm (Boostline I-3P) and in 3/8"-38 mm (ZRP I), with no storage constraint.
	L19 is obtained from a noticeably richer alloy and a more demanding heat treatment: tensile strength reaches about 260,000 psi, i.e. ~1,793 MPa, for 250 hp per cylinder in 3/8" and up to 10,000 rpm. It is made for very high boost pressure, sustained high engine speeds and high cylinder pressure, hence for big power in drag, drift, rally and circuit; here it equips the ZRP I-profile rod in 3/8"-38 mm. The downside of that metallurgy: L19 is sensitive to corrosion and to hydrogen embrittlement, and must be stored as well as fitted oiled, away from moisture.
	CA625+ (Custom Age 625+) is ARP's premium alloy: its tensile strength ranges from 260,000 to 280,000 psi, i.e. ~1,793 to 1,931 MPa, obtained through an age-hardened grade and a specific heat treatment, with threads rolled after treatment. It is reserved for the most extreme builds, beyond 250 hp per cylinder in 3/8" and beyond 10,000 rpm. Its chemistry gives it better resistance to atmospheric corrosion and oxidation than ARP 2000, and it is immune to hydrogen embrittlement: it therefore does not impose the storage precautions of L19. On this five-cylinder it is offered in 3/8"-41 mm on the Boostline I-3P.

Measuring bolt stretch

Buy the ARP stretch gauge →

The brands offered

	BOOSTLINE (Wiseco group), a forged connecting rod range from the American Wiseco group, a benchmark since 1941. Its patented 3-pocket design combines the rigidity of an I-beam with the robustness of an H-beam. Forged from 4340 steel and machined in the USA, they come with ARP 2000 bolts (Custom Age 625+ optional) and are built for boosted engines.

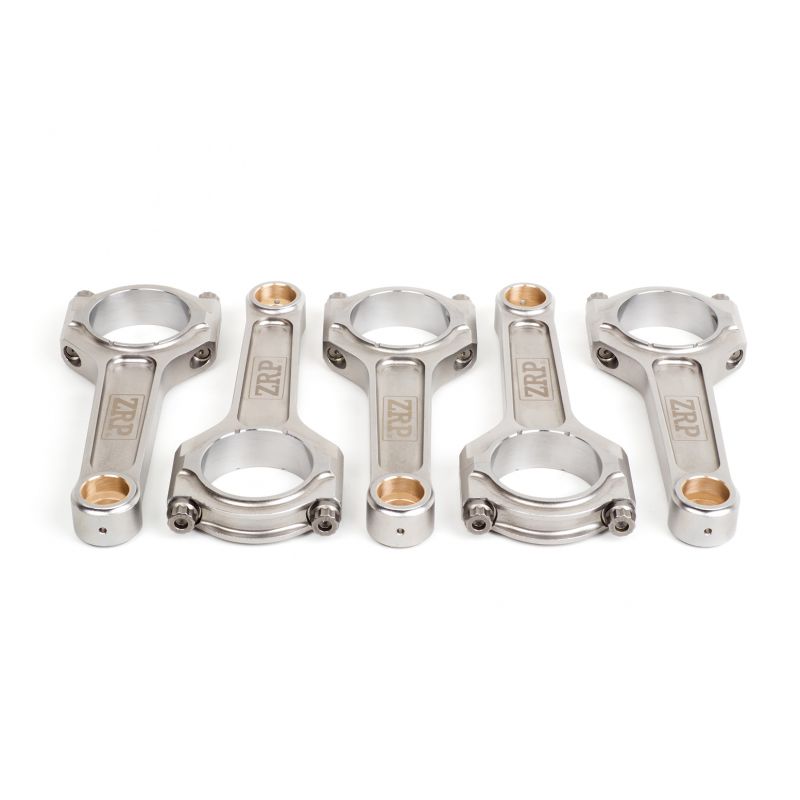

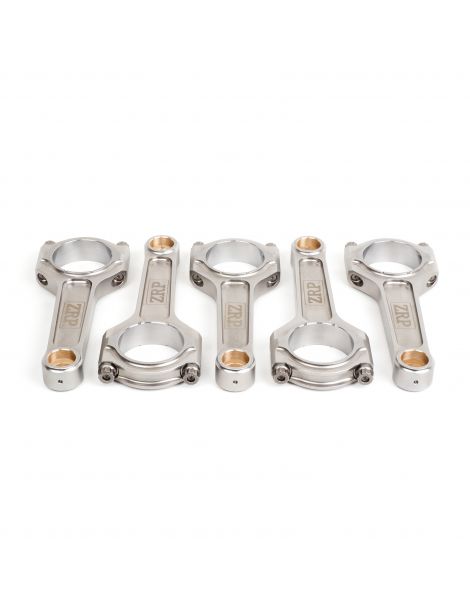

	ZRP, a Greek brand of high-performance forged connecting rods, designed by Alex Drakos in Athens. Each rod is forged from 4340 steel, precision-machined and balanced to ±1 g to stay reliable at high rpm. Available in I-beam or H-beam profile with ARP 2000, L19 or Custom Age 625+ bolts, they are designed and inspected in Greece, and proven in rally, on circuit and in drift.

Glossary

1) Small end 2) Small-end diameter 3) Rod beam 4) Rod bolt 5) Big end 6) Rod nut / bolt 7) Rod cap 8) Big-end diameter 9) Center-to-center

Vehicle compatibility - Ford Duratec 2.5T & Volvo 2.0 / 2.5 20V (white block)

These forged connecting rods fit the Volvo “white block” five-cylinder 2.0 and 2.5 20V engines (naturally aspirated and turbo):

OEM reference: 1270483 (set of 5 connecting rods).

Why it’s the most cost-effective solution?

When a stock bottom end fails (a broken, bent or scored rod), returning to factory specification means replacing both rods and pistons, often damaged together. The bill climbs fast for a simple repair.

For an equivalent or even lower budget, fitting forged 4340-steel rods with forged pistons delivers far greater reliability and safety margin, plus real headroom to raise power. It has been the choice of European engine builders for over 15 years.

For the same budget: more reliability, more potential, more longevity.
