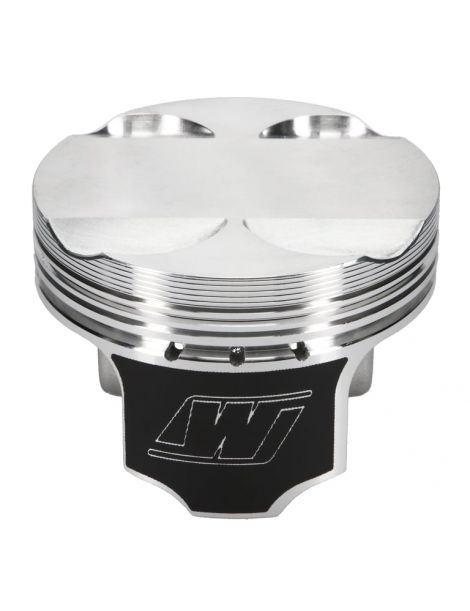

Reduced price! Pistons forgés 2.4L 16v K24 Honda

View larger

Display all pictures

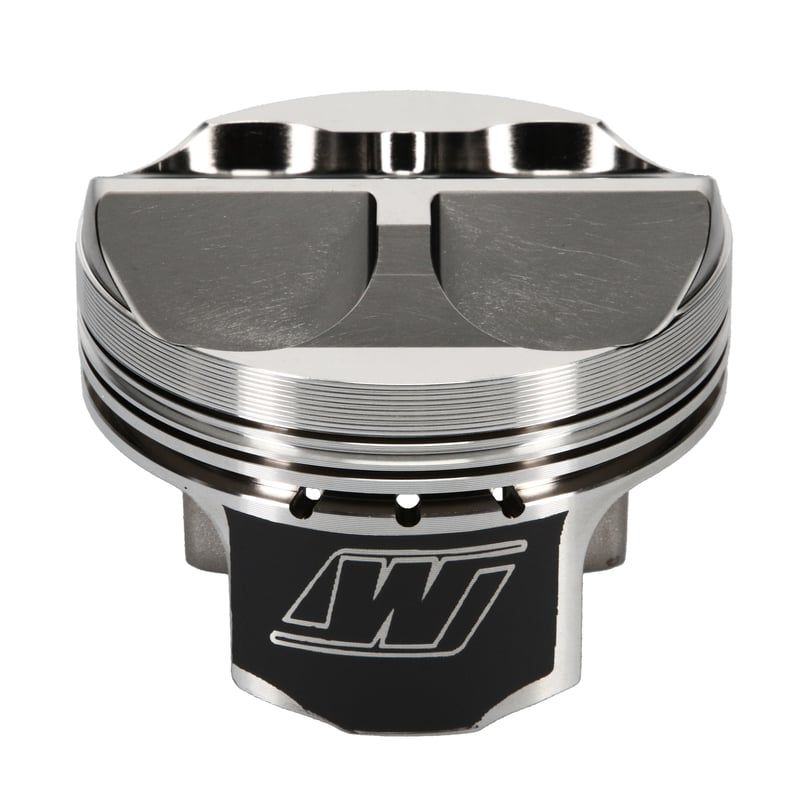

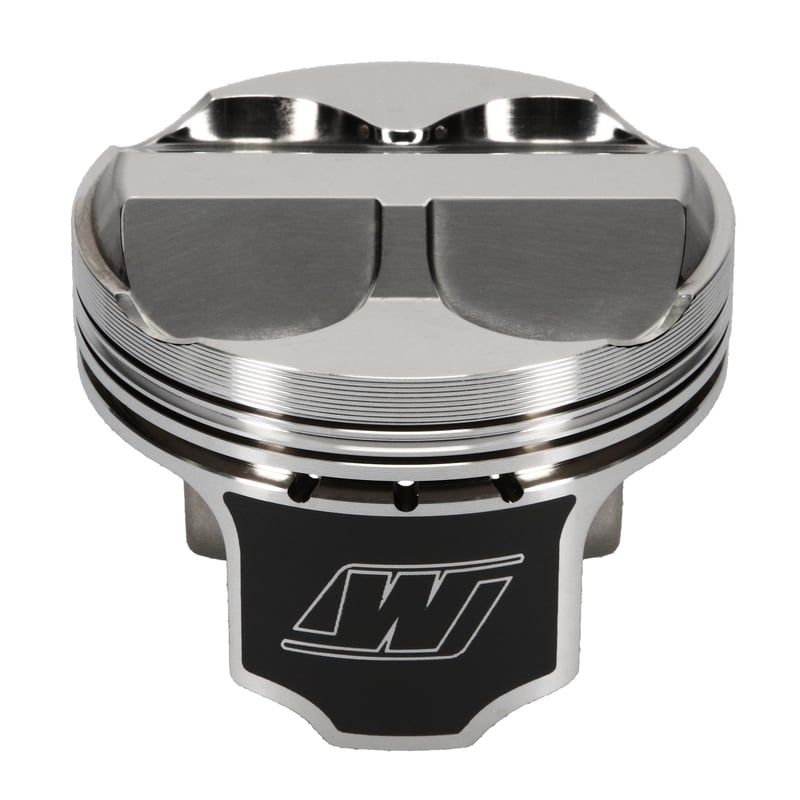

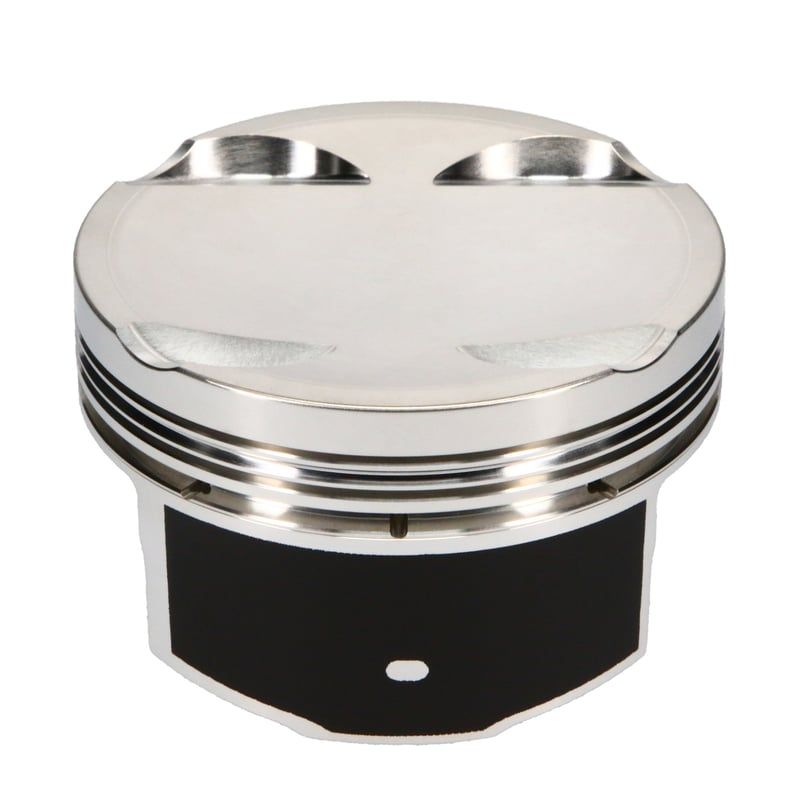

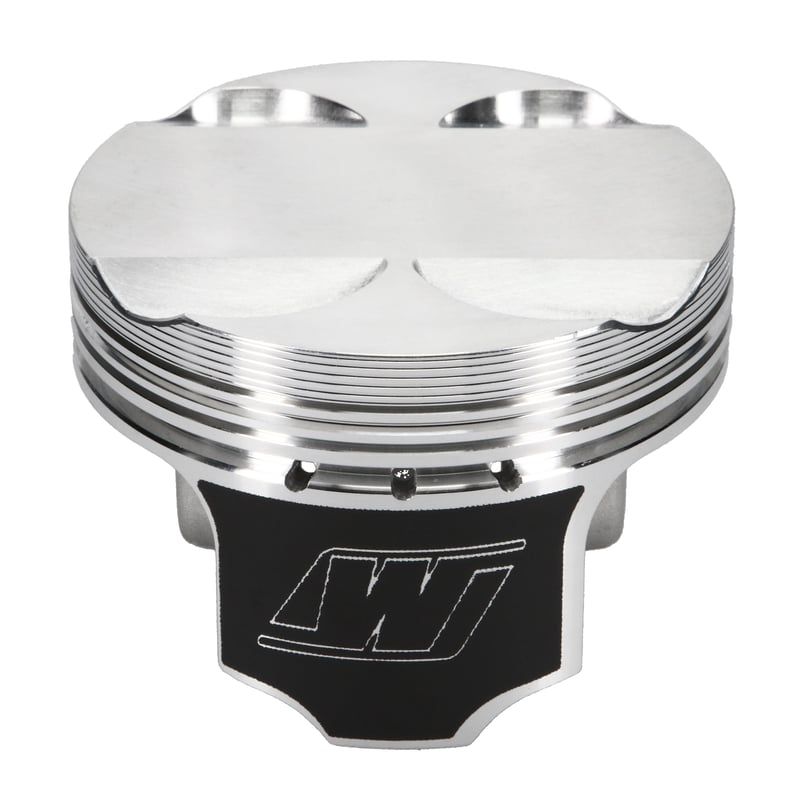

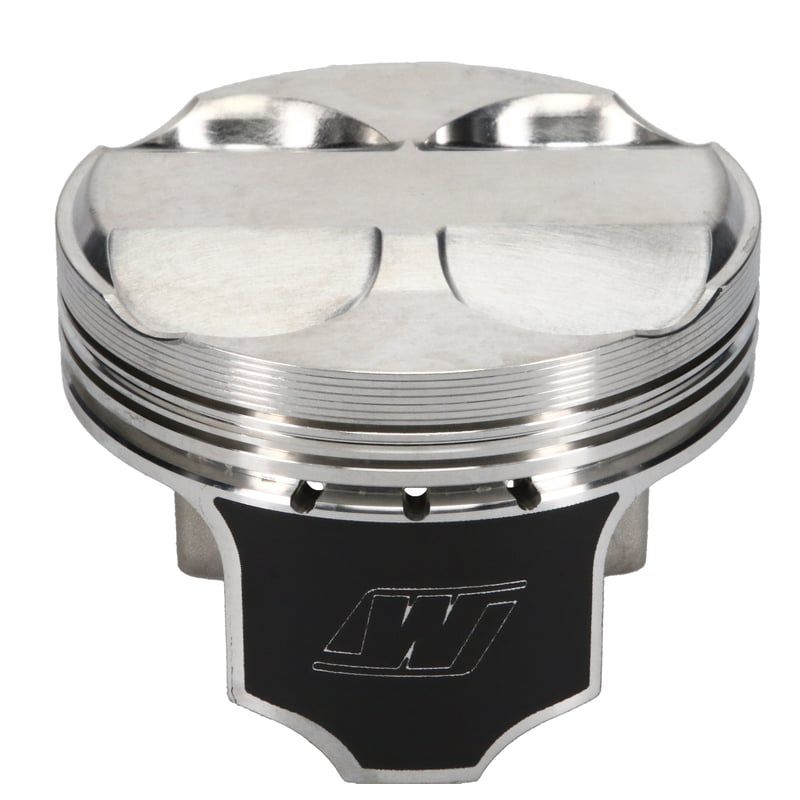

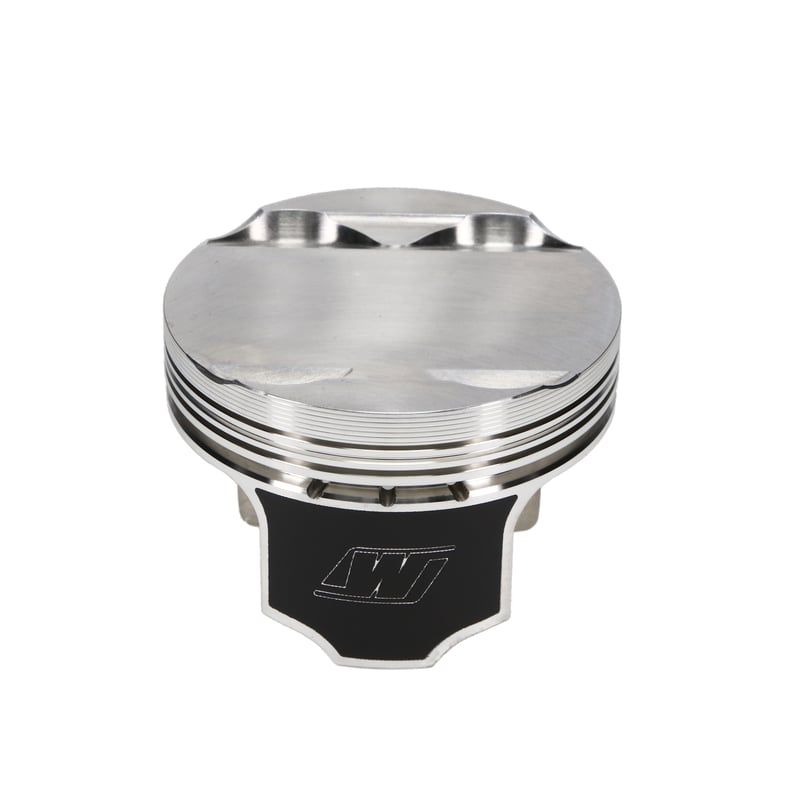

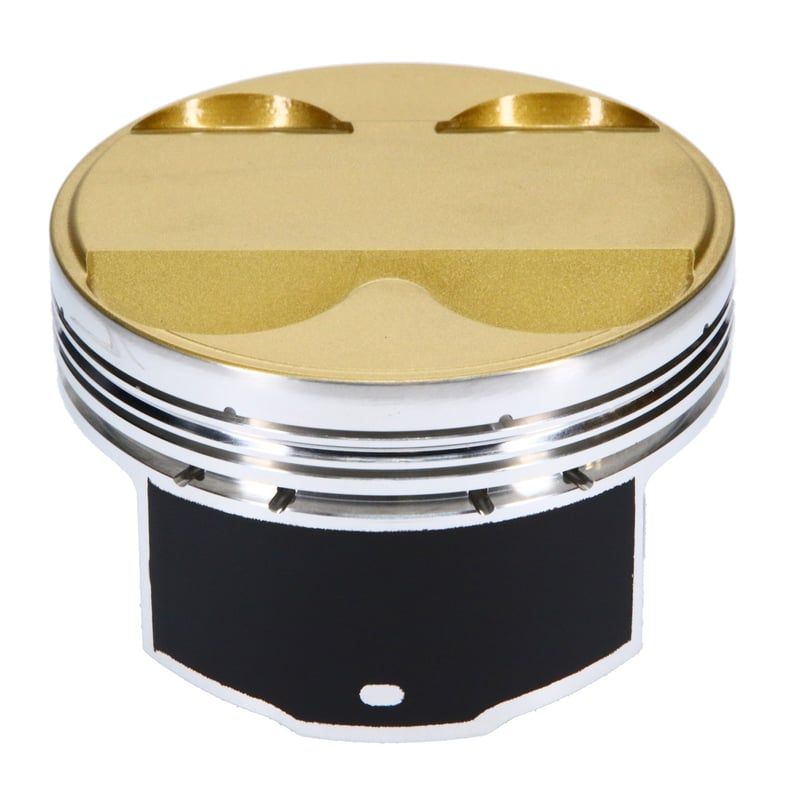

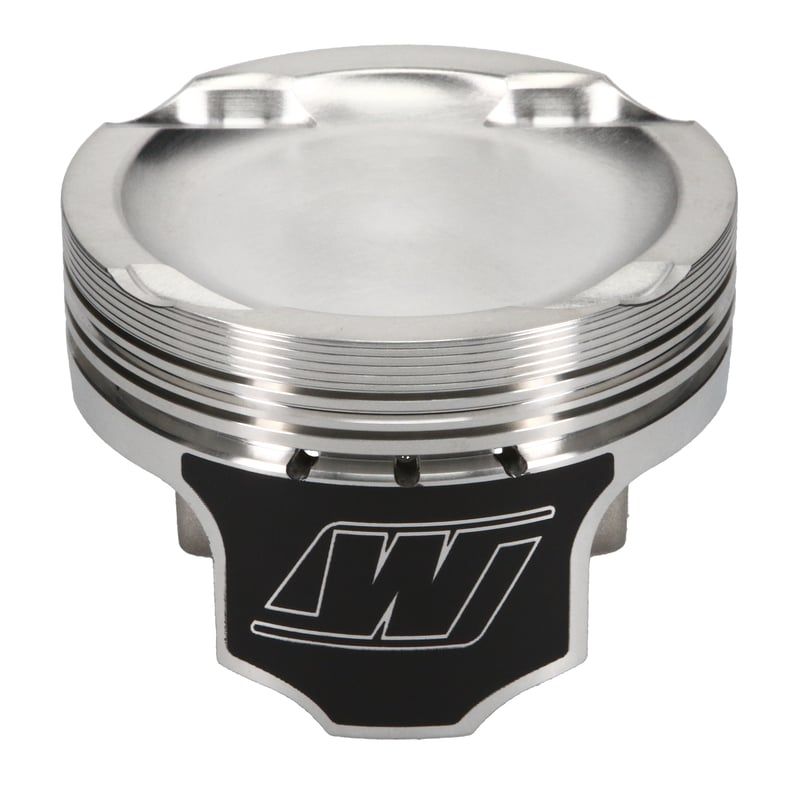

2.4L 16v K24 Honda Forged Pistons

Marque Forged Pistons

Condition: New product

Forged pistonsHonda K24 2.4L Bores87 90mm, Volume ratio 8.8 14.5:1, Pin22mm. RangesJE (FSR/Round/Ultra), Supertech, Wiseco. Data from the file, conformal sorting, compatibilities &OEM referencesincluded.

More details

574,43 € tax incl.

-25%

765,91 € tax incl.

Bore | CR | Range

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

Quantity

More info
Avis (0)

Specifications of the forged pistons offered by NSB Concept for Honda 2.4 L 16 v K24 :

Reference piston	Bore (mm)OEM 87.0	CROEM 12.5 :1	pin (mm)OEM 22.0	Height pin (mm)OEM 29.87	Range	Aluminium	Coating	Forging	Dome (cc)	Weight (g)	Rings
WK622M87	87	8,8 :1	22	30	Wiseco	2618	Skirt	NC	-21	NC	8700XX
JE-309418	87	9 :1	22	29,87	JE FSR	2618	NC	FSR	-15,5	301	NC
WK568M87	87	9 :1	22	30	Wiseco	2618	Skirt	NC	-9	NC	8700XX
JE-242858	87	9,7 :1	NC	29,87	JE Round	2618	NC	Round	NC	316	NC
WK631M87	87	9,8 :1	22	30	Wiseco	2618	Skirt	NC	-3.5 FT	NC	8700XX
JE-376664	87	10 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
JE-309421	87	10 :1	22	29,87	JE FSR	2618	NC	FSR	-7,4	318	NC
JE-361273	87	10 :1	22	29,87	JE Ultra Series	2618	Crown + Skirt	FSR	-0,4	354	NC
WK634M87	87	11 :1	22	30	Wiseco	2618	Skirt	NC	5	NC	8700XX
JE-309424	87	11,5 :1	22	29,87	JE FSR	2618	NC	FSR	2	332	NC
P4-HK87-N0-4	87	11,5 :1	22	30	Supertech	4032	Crown + Skirt	NC	-0,5	277	W8700XX
P4-HK87-P8-4	87	11,5 :1	22	30	Supertech	4032	Crown + Skirt	NC	8	322	W8700XX
WK573M87	87	11,7 :1	22	30	Wiseco	NC	Skirt	NC	8	NC	8700XX
WK573M87AP	87	11,7 :1	22	30	Wiseco AP	2618	Skirt	NC	8	NC	8700XX
JE-338059	87	11,9 :1	22	29,87	JE FSR	2618	NC	FSR	9	NC	NC
WK650M87	87	12,4 :1	22	30	Wiseco	2618	Skirt	NC	10,5	NC	8700XX
WK650M87AP	87	12,4 :1	22	30	Wiseco AP	2618	Skirt	NC	10,5	NC	8700XX
JE-376669	87	12,5 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
JE-345618	87	12,5 :1	22	29,87	JE FSR	2618	NC	FSR	12,4	NC	NC
JE-361263	87	12,5 :1	22	29,87	JE FSR	2618	NC	FSR	5,2	NC	NC
P4-HK87-P15-4	87	12,5 :1	22	30	Supertech	4032	Crown + Skirt	NC	11,4	325	W8700XX
P4-HK87-P4-4	87	12,5 :1	22	30	Supertech	4032	Crown + Skirt	NC	4,5	308	W8700XX
JE-242194	87	13,3 :1	22	29,87	JE Round	2618	NC	Round	8,6	334	NC
JE-376674	87	14,5 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
WK634M8725	87,25	11 :1	22	30	Wiseco	2618	Skirt	NC	5	NC	8725XX
WK622M875	87,5	8,8 :1	22	30	Wiseco	2618	Skirt	NC	-21	NC	8750XX
WK568M875	87,5	9 :1	22	30	Wiseco	2618	Skirt	NC	-9	NC	8750XX
JE-361260	87,5	9,3 :1	22	29,87	JE FSR	2618	NC	FSR	-15,9	NC	NC
WK631M875	87,5	9,8 :1	22	30	Wiseco	2618	Skirt	NC	-3.5 FT	NC	8750XX
JE-376665	87,5	10 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
JE-361274	87,5	10 :1	22	29,87	JE Ultra Series	2618	Crown + Skirt	FSR	-1	360	NC
JE-361261	87,5	10,3 :1	22	29,87	JE FSR	2618	NC	FSR	-8,1	NC	NC
WK634M875	87,5	11 :1	22	30	Wiseco	2618	Skirt	NC	5	NC	8750XX
P4-HK875-N0-4	87,5	11,5 :1	22	30	Supertech	4032	Crown + Skirt	NC	-0,5	280	W8750XX
WK573M875	87,5	11,7 :1	22	30	Wiseco	NC	Skirt	NC	8	NC	8750XX
WK573M875AP	87,5	11,7 :1	22	30	Wiseco AP	2618	Skirt	NC	8	NC	8750XX
JE-361262	87,5	11,8 :1	22	29,87	JE FSR	2618	NC	FSR	0,9	NC	NC
JE-338060	87,5	12 :1	22	29,87	JE FSR	2618	NC	FSR	9	NC	NC
WK650M875	87,5	12,4 :1	22	30	Wiseco	2618	Skirt	NC	10,5	NC	8750XX
WK650M875AP	87,5	12,4 :1	22	30	Wiseco AP	2618	Skirt	NC	10,5	NC	8750XX
JE-376670	87,5	12,5 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
JE-345619	87,5	12,5 :1	22	29,87	JE FSR	2618	NC	FSR	11,9	NC	NC
JE-361264	87,5	12,5 :1	22	29,87	JE FSR	2618	NC	FSR	4,6	NC	NC
P4-HK875-P15-4	87,5	12,5 :1	22	30	Supertech	4032	Crown + Skirt	NC	11,4	325	W8750XX
P4-HK875-P4-4	87,5	12,5 :1	22	30	Supertech	4032	Crown + Skirt	NC	4	315	W8750XX
JE-376675	87,5	14,5 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
WK622M88	88	8,8 :1	22	30	Wiseco	2618	Skirt	NC	-21	NC	8800XX
JE-309419	88	9 :1	22	29,87	JE FSR	2618	NC	FSR	-17,1	306	NC
JE-242862	88	9 :1	22	29,87	JE Round	2618	NC	Round	-7,6	325	NC
WK568M88	88	9 :1	22	30	Wiseco	2618	Skirt	NC	-9	NC	8800XX
JE-376666	88	10 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
JE-309422	88	10 :1	22	29,87	JE FSR	2618	NC	FSR	-8,7	320	NC
JE-361275	88	10 :1	22	29,87	JE Ultra Series	2618	Crown + Skirt	FSR	-1,6	364	NC
JE-309425	88	11,5 :1	22	29,87	JE FSR	2618	NC	FSR	0,8	336	NC
WK573M88	88	11,7 :1	22	30	Wiseco	2618	Skirt	NC	8	NC	8800XX
WK573M88AP	88	11,7 :1	22	30	Wiseco AP	2618	Skirt	NC	8	NC	8800XX
JE-338061	88	12,1 :1	22	29,87	JE FSR	2618	NC	FSR	9	NC	NC
WK650M88	88	12,4 :1	22	30	Wiseco	2618	Skirt	NC	10,5	NC	8800XX
WK650M88AP	88	12,4 :1	22	30	Wiseco AP	2618	Skirt	NC	10,5	NC	8800XX
JE-376671	88	12,5 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
JE-345620	88	12,5 :1	22	29,87	JE FSR	2618	NC	FSR	11,5	NC	NC
JE-361265	88	12,5 :1	22	29,87	JE FSR	2618	NC	FSR	4,1	NC	NC
P4-HK88-P4-4	88	12,5 :1	22	30	Supertech	4032	Crown + Skirt	NC	3,5	317	W8800XX
P4-HK88-P8-4	88	13,2 :1	22	30	Supertech	NC	Crown + Skirt	NC	8	NC	W8800XX
JE-242196	88	13,3 :1	22	29,87	JE Round	2618	NC	Round	8,3	341	NC
JE-376676	88	14,5 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
JE-309420	89	9 :1	22	29,87	JE FSR	2618	NC	FSR	-18,7	309	NC
WK568M89	89	9 :1	22	30	Wiseco	2618	Skirt	NC	-9	NC	8900XX
JE-376667	89	10 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
JE-309423	89	10 :1	22	29,87	JE FSR	2618	NC	FSR	-10,1	322	NC
WK634M89	89	11 :1	22	30	Wiseco	2618	Skirt	NC	5	NC	8900XX
JE-309426	89	11,5 :1	22	29,87	JE FSR	2618	NC	FSR	-0,3	339	NC
WK573M89	89	11,7 :1	22	30	Wiseco	2618	Skirt	NC	8	NC	8900XX
WK573M89AP	89	11,7 :1	22	30	Wiseco AP	2618	Skirt	NC	8	NC	8900XX
JE-338062	89	12,3 :1	22	29,87	JE FSR	2618	NC	FSR	9	NC	NC
WK650M89	89	12,4 :1	22	30	Wiseco	2618	Skirt	NC	10,5	NC	8900XX
WK650M89AP	89	12,4 :1	22	30	Wiseco AP	2618	Skirt	NC	10,5	NC	8900XX
JE-376672	89	12,5 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
JE-361266	89	12,5 :1	22	29,87	JE FSR	2618	NC	FSR	3	NC	NC
P4-HK89-P4-4	89	12,5 :1	22	30	Supertech	4032	Crown + Skirt	NC	2,2	325	W8900XX
P4-HK89-P8-4	89	13,2 :1	22	30	Supertech	NC	Crown + Skirt	NC	8	NC	W8900XX
JE-376677	89	14,5 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
WK634M895	89,5	11 :1	22	30	Wiseco	2618	Skirt	NC	5	NC	8950XX
JE-317759	90	9 :1	22	29,87	JE FSR	2618	NC	FSR	-21	314	NC
JE-376668	90	10 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
JE-317760	90	10 :1	22	29,87	JE FSR	2618	NC	FSR	-12,3	328	NC
JE-317761	90	11,5 :1	22	29,87	JE FSR	2618	NC	FSR	-2,2	345	NC
JE-376673	90	12,5 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC
JE-338063	90	12,5 :1	22	29,87	JE FSR	2618	NC	FSR	9	NC	NC
JE-361267	90	12,5 :1	22	29,87	JE FSR	2618	NC	FSR	2	NC	NC
JE-376678	90	14,5 :1	22	29,87	JE	NC	NC	NC	NC	NC	NC

Compatibility engine :

2.2L 16v - H22

Brand	Model	Chassis	Engine code	Power (ch)	Years
Honda	Prelude 2.2 VTi (EU)	BB6/BB8	H22A5	185	1997 – 1998
Honda	Prelude 2.2 VTi (EU)	BB6/BB8	H22A8	200	1999 – 2001
Honda	Prelude Type S (JP)	BB6	H22A	220	1997 – 2001
Honda	Prelude VTEC (US)	BB6	H22A4	200	1997 – 2001

Manufacturer piston references (OEM):

CR‑V 2002–2006 (K24A1) — SET A (Std) : 13010‑RAA‑A01 ; SET B (Std) : 13020‑RAA‑A01 ; Over Size 0,25 : 13030‑RAA‑A01.
Accord / Element 2003–2007 (K24A4/A8) — SET A (Std) : 13010‑RAA‑A01 ; SET B (Std) : 13020‑RAA‑A01 ; Over Size 0,25 : 13030‑RAA‑A01.
Accord 2008–2012 & CR‑V 2010–2011 (K24Z2/Z3) — SET A (Std) : 13010‑R40‑A00 ; SET B (Std) : 13020‑R40‑A00.
Acura TSX 2004–2008 (K24A2) — SET (Std) : 13010‑RBB‑A00.
Acura TSX 2009–2014 (K24Z3) — SET A (Std) : 13010‑RL5‑A00.
Civic Si 2012–2013 (K24Z7) — SET A (Std) : 13010‑RL5‑A10.

Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
