3.2L 24v - S52B32US
Manufacturers
3.2L 24v - S52B32US
Warning: Last items in stock!
New product

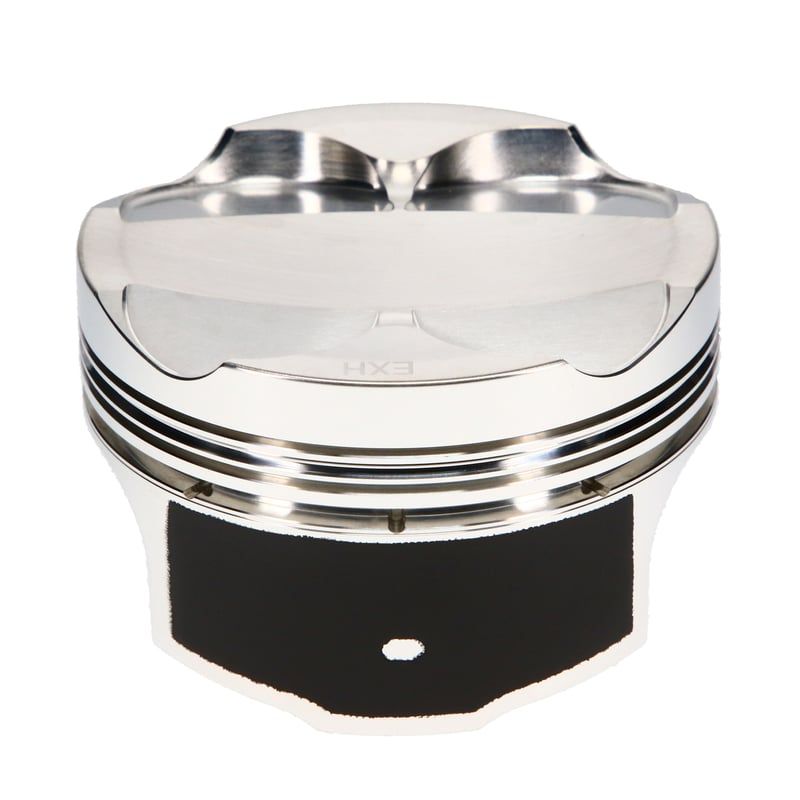

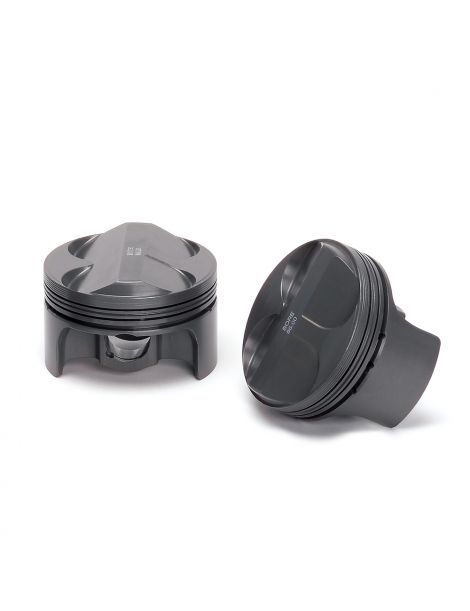

BMW S52B32US 3.2L Forged Pistons bores 86.5-87 mm, RV 8.5-12.5:1, axle 22 mm. JE FSR & Supertech, complete table, M3 E36 / Z3 M compatibilities, OEM reference included.
Specifications of the forged pistons offered by NSB Concept for BMW 3.2 L 24 v S52B32US :
| Reference piston | Bore (mm)OEM 86,50 | CROEM 10,5 :1 | pin (mm)OEM 22 | Height pin (mm)OEM 31,0 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-297172 | 86.5 | 11.5:1 | 22 | 31 | JE FSR | 2618 | NC | FSR | -9.4 | 291 | NC |
| JE-297174 | 86.5 | 12.5:1 | 22 | 31 | JE FSR | 2618 | NC | FSR | -5.0 | 292 | NC |
| JE-297170 | 86.5 | 9:1 | 22 | 31 | JE FSR | 2618 | NC | FSR | -25.1 | 285 | NC |
| P6-BM87-N12-6 | 87 | 11:1 | 22 | 31 | Supertech | 4032 | Crown + Skirt | NC | -12.0 | 306 | W8700XX |
| JE-297173 | 87 | 11.5:1 | 22 | 31 | JE FSR | 2618 | NC | FSR | -9.9 | 297 | NC |
| JE-297175 | 87 | 12.5:1 | 22 | 31 | JE FSR | 2618 | NC | FSR | -5.5 | 297 | NC |
| P6-BM87-N25-6 | 87 | 8.5:1 | 22 | 31 | Supertech | 4032 | Crown + Skirt | NC | -25.0 | 306 | W8700XX |
| JE-297171 | 87 | 9:1 | 22 | 31 | JE FSR | 2618 | NC | FSR | -25.8 | 290 | NC |
Compatibility engine :
| Brand | Model | Chassis | Power (ch) | Years |
|---|---|---|---|---|
| BMW | M3 3.2 US | E36 Coupé/Sedan/Cabrioland | 240 | 1996 – 1999 |
| BMW | Z3 M (Roadster/Coupé) | E36/7 • E36/8 | 240 | 1998 – 2000 |
Reference piston manufacturer (OEM):
