B58B30 forged pistons: Table O82.83, RV 10.5.11:1, pin 22, CH 32.2.33.2, JE/Wossner/Diamond. Compatibilities & vehicles, plus OEM BMW/Toyota piston references.

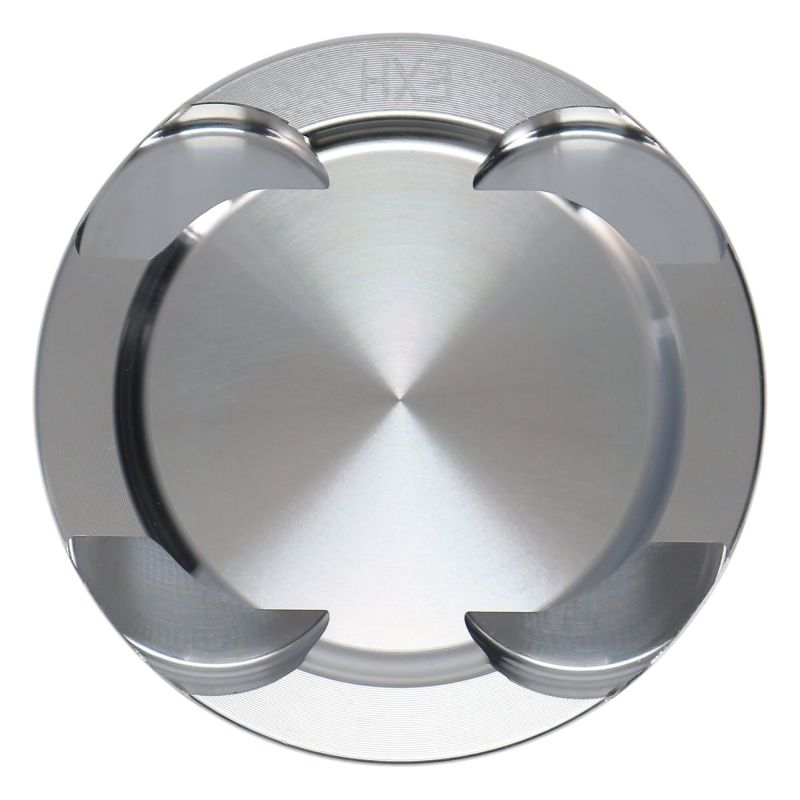

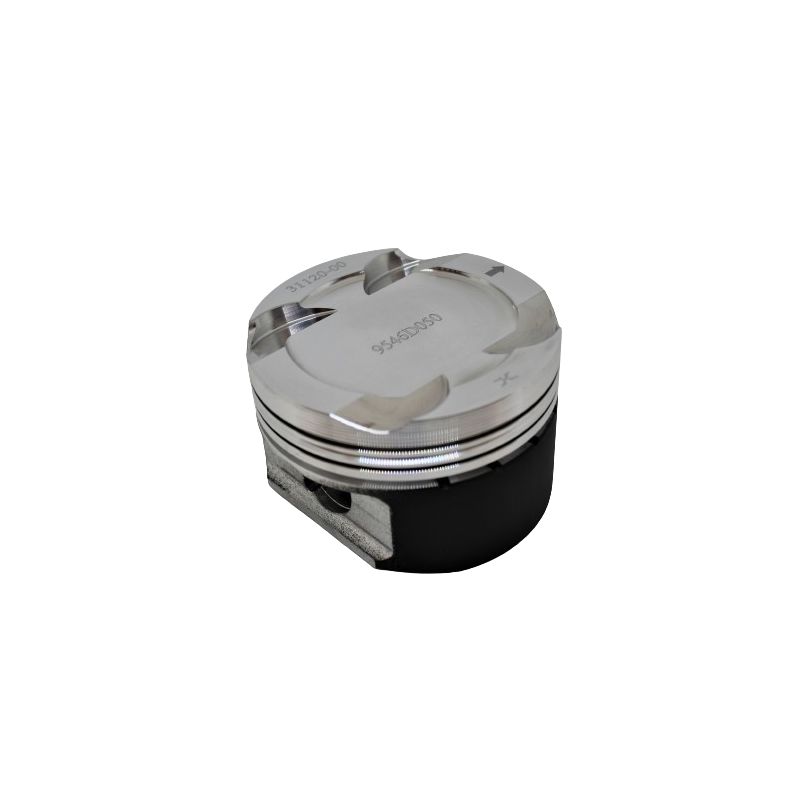

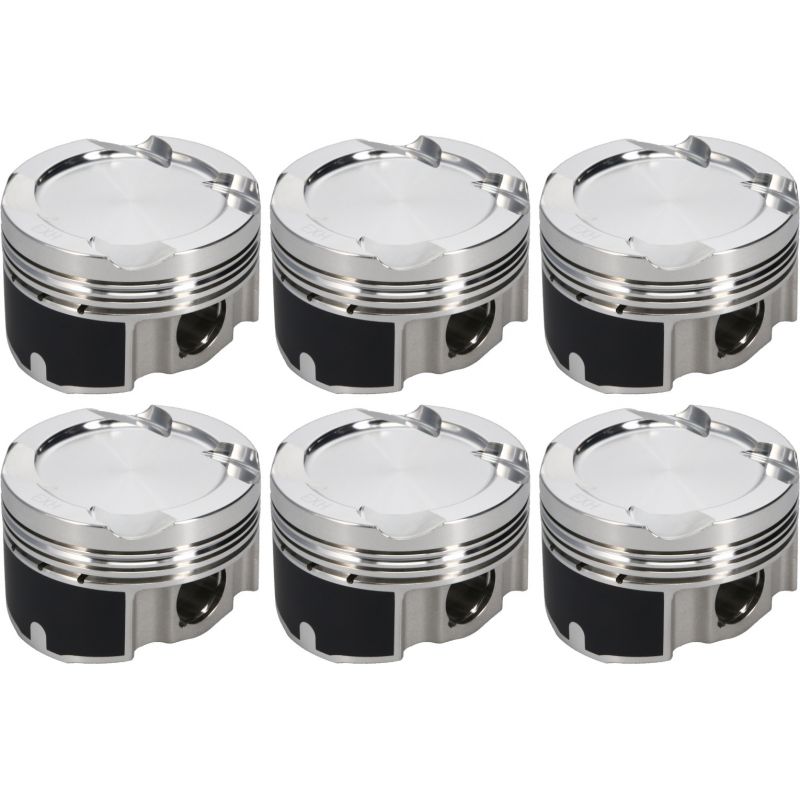

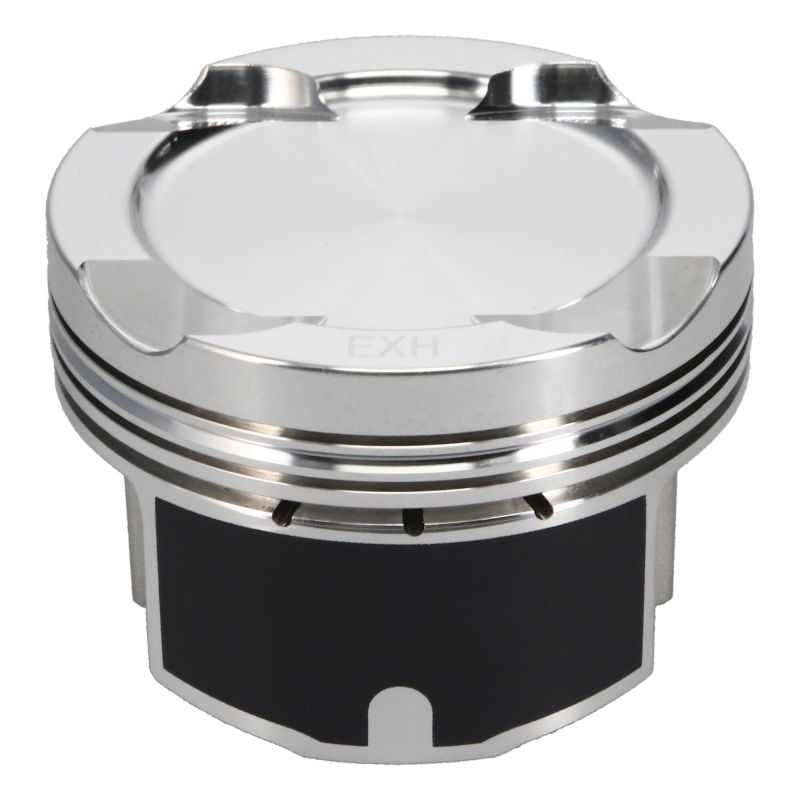

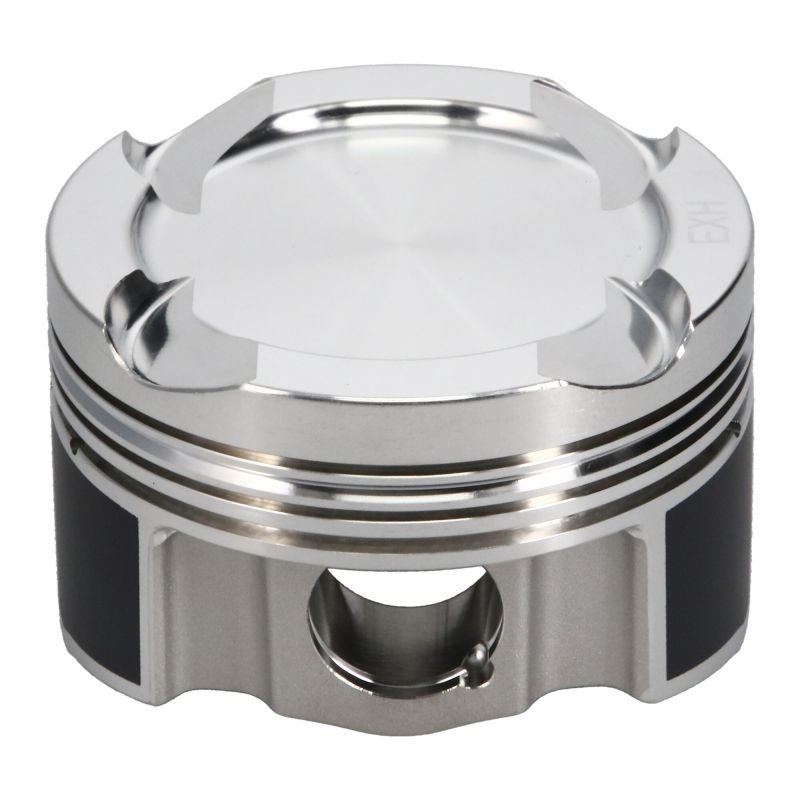

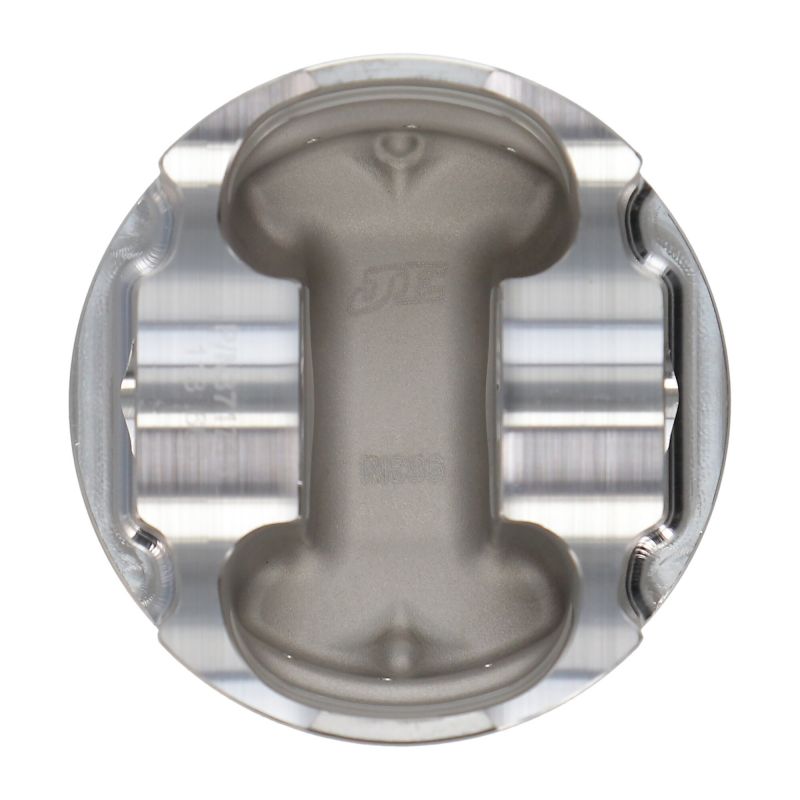

Characteristics of the forged pistons offered by NSB Concept for BMW/Toyota 3.0 L 24 V B58B30:
| Reference | Bore | VR | Pin | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-371718 | 82.0 | 10.5:1 | 22 | 32.2 | JE | N/A | 2618 | N/A | -11.1 | N/A | N/A |
| K9559DA-6 | 82.0 | 10.5:1 | 22 | 33.2 | Wossner | N/A | N/A | Slippers | -8.47 | N/A | GNH82.00 |
| DIA-37050-6 | 82.0 | 11:1 | 22 | 33.14 | Diamond | Skirt | 2618 | N/A | -8.4 | N/A | 9523228 |
| JE-389616 | 82.0 | 11:1 | 22 | 33.2 | JE | N/A | N/A | N/A | -9.1 | N/A | N/A |
| K9546DA-6 | 82.0 | 11:1 | 22 | 33.2 | Wossner | N/A | N/A | N/A | -8.47 | N/A | 820XPY |
| K9559D050-6 | 82.5 | 10.6:1 | 22 | 33.2 | Wossner | N/A | N/A | Slippers | -8.47 | N/A | GNH82.50 |
| K9546D050-6 | 82.5 | 11.1:1 | 22 | 33.2 | Wossner | N/A | N/A | N/A | -8.47 | N/A | 825XPY |
| JE-371720 | 83.0 | 10.5:1 | 22 | 32.2 | JE | N/A | 2618 | N/A | -12.3 | N/A | N/A |
| JE-389617 | 83.0 | 11:1 | 22 | 33.2 | JE | N/A | N/A | N/A | -10.3 | N/A | N/A |
Compatibilities (engine codes):
BMW: B58B30M0 B58B30M1 B58B30M2 B58B30O1 B58B30C.
Toyota: B58 (Toyota designation for Supra 3.0 J29/DB).
Original vehicles equipped with the B58:
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| BMW | M140i F20/F21 | B58B30M0 | 340 hp | 2016 2019 |
| BMW | M240i F22/F23 | B58B30M0 | 340 hp | 2016 2021 |
| BMW | M240i G42 | B58B30O1 | 374.382 hp | 2021 present |
| BMW | M340i G20/G21 | B58B30O1 | 374.382 hp | 2019 2024 |
| BMW | M440i G22/G23/G26 | B58B30O1 | 374.382 hp | 2021 present |
| BMW | 340i F30/F31/F34 | B58B30M0 | 326.355 hp | 2015 2019 |
| BMW | 440i F32/F33/F36 | B58B30M0 | 326.355 hp | 2016 2019 |
| BMW | 540i G30/G31 | B58B30M0/M1 | 333.340 hp | 2017 2023 |
| BMW | 740i G11/G12 | B58B30M1 | 326.340 hp | 2016 2022 |
| BMW | 840i G14/G15/G16 | B58B30M1 | 333.340 hp | 2019 2026 |
| BMW | X3 M40i G01 | B58B30M0/O1 | 360.382 hp | 2017 2024 |
| BMW | X4 M40i G02 | B58B30M0/O1 | 360.382 hp | 2018 2024 |
| BMW | X5 xDrive40i G05 | B58B30M1/M2 | 333.388 hp | 2018 present |
| BMW | X6 xDrive40i G06 | B58B30M1/M2 | 333.388 hp | 2019 present |
| BMW | X7 xDrive40i G07 | B58B30M1/M2 | 333.388 hp | 2018 present |
| BMW | Z4 M40i G29 | B58B30M1/O1 | 340.382 hp | 2019 present |
| Toyota | GR Supra 3.0 (A90/A91) | B58 (B58B30) | 340.387 hp | 2019 present |
Piston manufacturer references (OEM):
BMW B58 (540i/740i/840i/X3-X7, etc.)
: 11 25 8 681 079 (11258681079) OEM piston (according to BMW parts network).
Toyota GR Supra 3.0 (B58)
: 13101-WAA03 (piston sub-assy, with pin); possible earlier: 13101-WAA02 (depending on vintage/transfer window).
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
