3.0L 24v - B58B30
Manufacturers
3.0L 24v - B58B30
Warning: Last items in stock!
New product

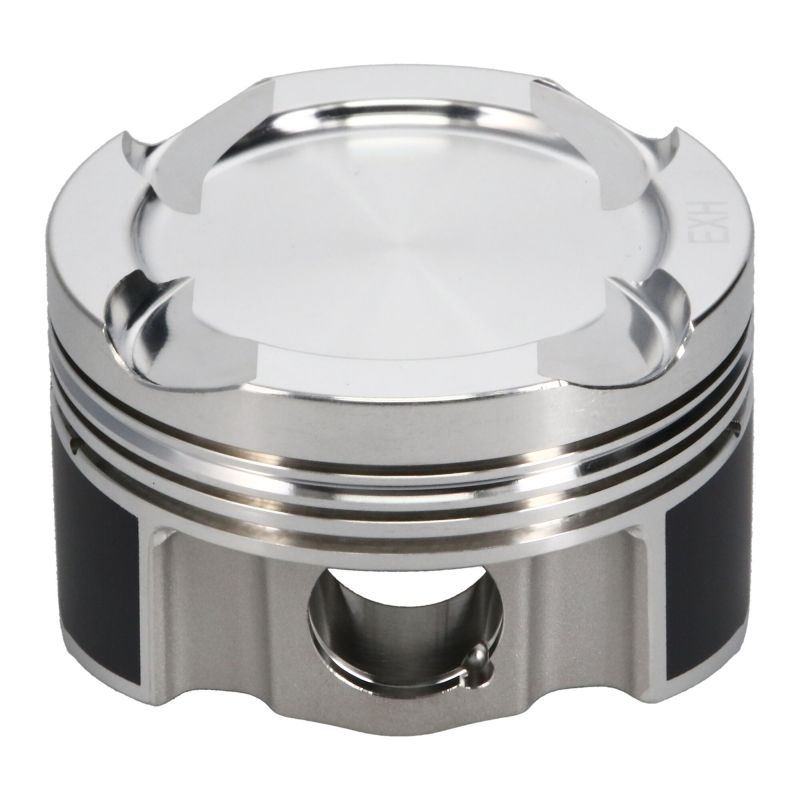

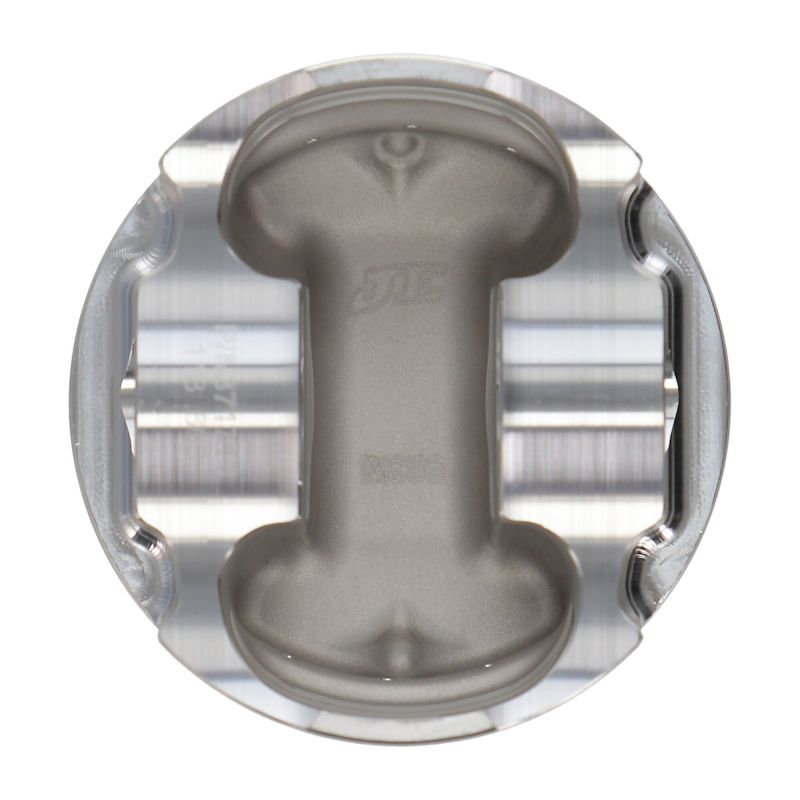

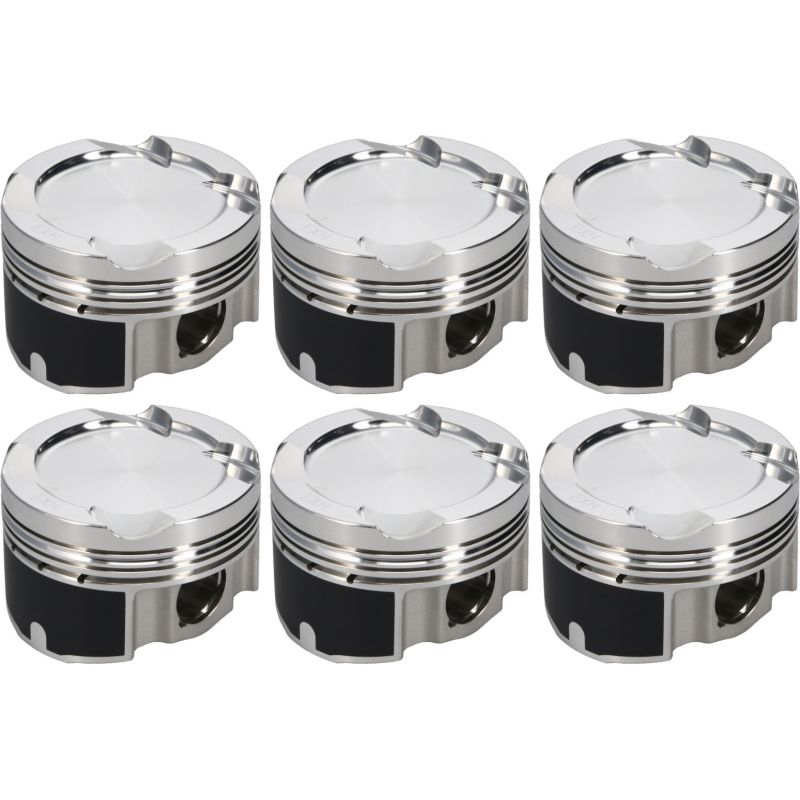

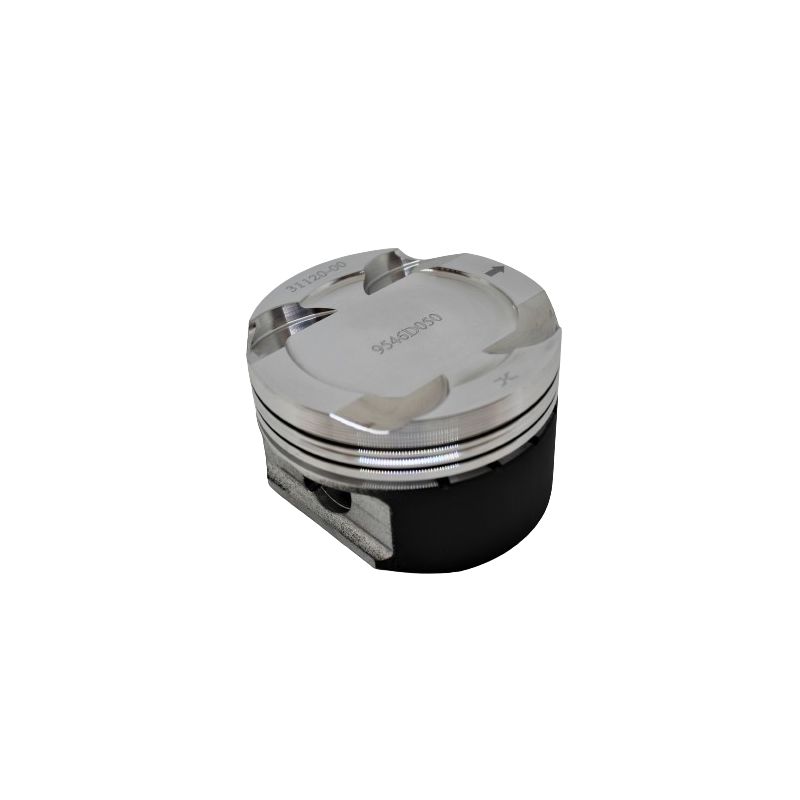

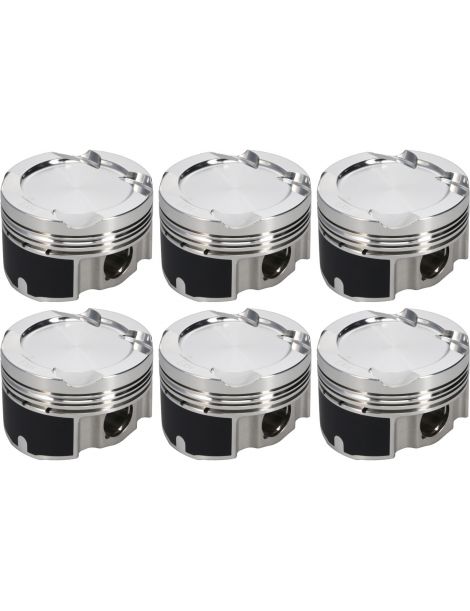

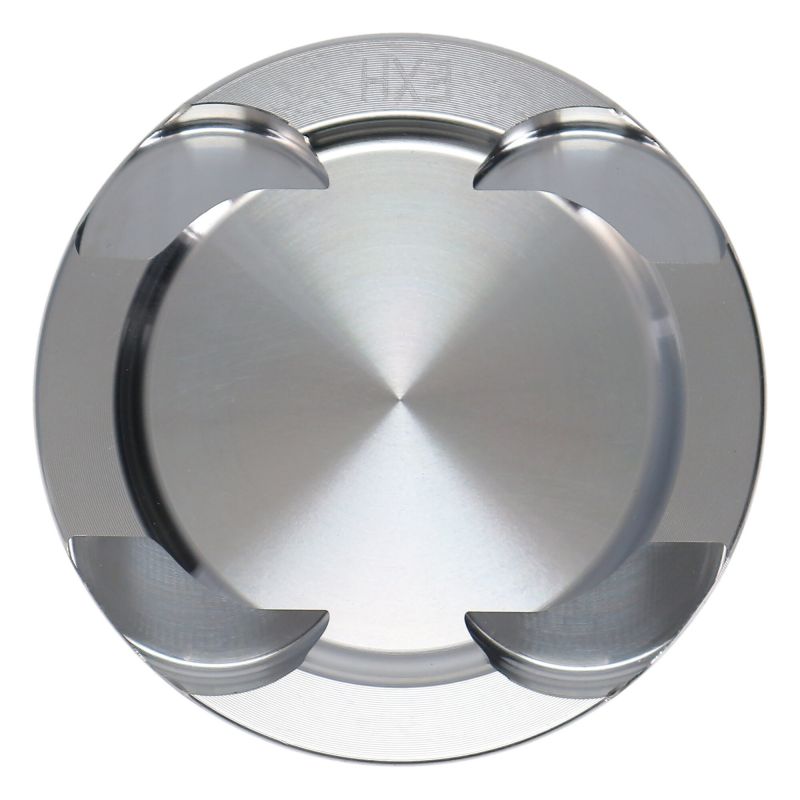

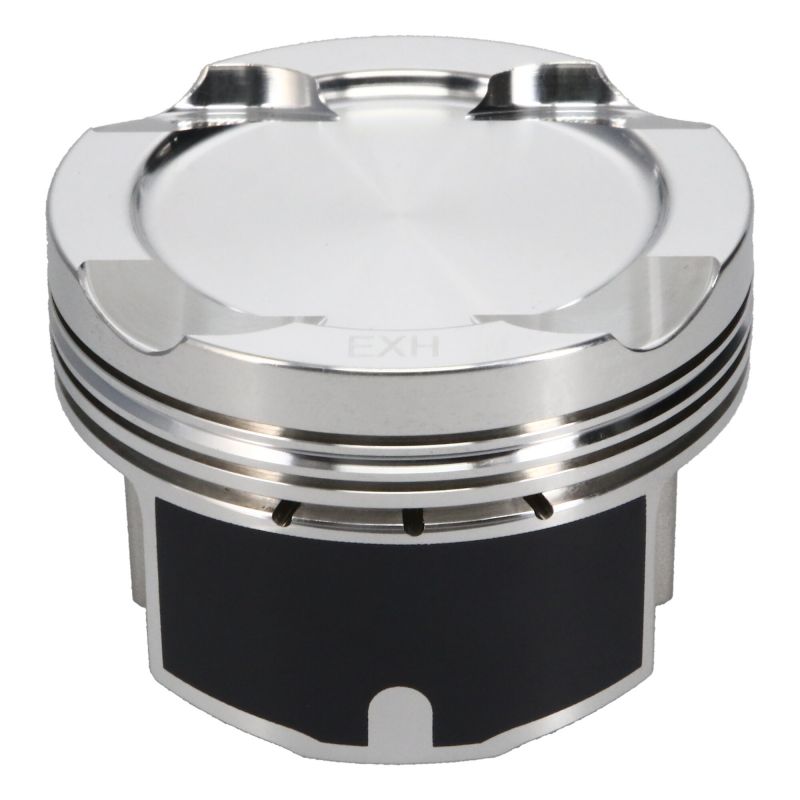

B58 stroker 100 mm forged pistons: Table O82.83, RV 11:1, pin 22, CH 30.5. Compatibilities & vehicles, plus OEM BMW/Toyota piston references.
Characteristics of the forged pistons offered by NSB Concept for BMW/Toyota B58B30 (100 mm crankshaft stroker):
| Reference | Bore | VR | Pin | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-389618 | 82 | 11:1 | 22 | 30.5 | JE | N/A | N/A | N/A | -12.0 | N/A | N/A |
| JE-389619 | 83 | 11:1 | 22 | 30.5 | JE | N/A | N/A | N/A | -13.2 | N/A | N/A |
Compatibilities (engine codes):
BMW: B58B30M0 B58B30M1 B58B30M2 B58B30O1 B58B30C.
Toyota: B58 (Toyota designation for GR Supra 3.0 J29/DB).
Original vehicles equipped with the B58:
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| BMW | 340i F30/F31/F34 | B58B30M0 | 326.355 hp | 2015 2019 |
| BMW | 440i F32/F33/F36 | B58B30M0 | 326.355 hp | 2016 2019 |
| BMW | 540i G30/G31 | B58B30M0/M1 | 333.340 hp | 2017 2023 |
| BMW | 740i G11/G12 | B58B30M1 | 326.340 hp | 2016 2022 |
| BMW | 840i G14/G15/G16 | B58B30M1 | 333.340 hp | 2019 2026 |
| BMW | M140i F20/F21 | B58B30M0 | 340 hp | 2016 2019 |
| BMW | M240i F22/F23 | B58B30M0 | 340 hp | 2016 2021 |
| BMW | M240i G42 | B58B30O1 | 374.382 hp | 2021 present |
| BMW | M340i G20/G21 | B58B30O1 | 374.382 hp | 2019 2024 |
| BMW | M440i G22/G23/G26 | B58B30O1 | 374.382 hp | 2021 present |
| BMW | X3 M40i G01 | B58B30M0/O1 | 360.382 hp | 2017 2024 |
| BMW | X4 M40i G02 | B58B30M0/O1 | 360.382 hp | 2018 2024 |
| BMW | X5 xDrive40i G05 | B58B30M1/M2 | 333.388 hp | 2018 present |
| BMW | X6 xDrive40i G06 | B58B30M1/M2 | 333.388 hp | 2019 present |
| BMW | X7 xDrive40i G07 | B58B30M1/M2 | 333.388 hp | 2018 present |
| BMW | Z4 M40i G29 | B58B30M1/O1 | 340.382 hp | 2019 present |
| Toyota | GR Supra 3.0 (A90/A91) | B58 (B58B30) | 340.387 hp | 2019 present |
Piston manufacturer references (OEM):
BMW B58 (e.g. 340i/540i/740i/840i/X3-X7, etc.)
: 11 25 8 681 079 (11258681079) OEM piston.
Toyota GR Supra 3.0 (B58)
: 13101-WAA03 (piston sub-assy, with pin).
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
