Forged connecting rods Toyota - 3.0L 24V - 2JZ-GE / 2JZ-GTE (Supra Mk4) for forged pistons

The vast majority of the connecting rods offered for the 2JZ are made from forged 4340 steel, a nickel-chromium-molybdenum alloy recognised as the benchmark for high-performance rods. Forging aligns the grain flow of the metal along the load paths, providing an excellent balance of tensile strength, toughness and fatigue endurance. After forging, the rods are machined, heat-treated and inspected to guarantee precise geometry and controlled mass.

One reference stands apart: the R-TOY-006-IP rod is produced from forged 817M40T steel, a 4340-type alloy processed to a British standard, chosen for its high mechanical properties and consistency. In both cases, these are aerospace- and competition-grade forged steels, a world away from the cast or sintered rods of mass production.

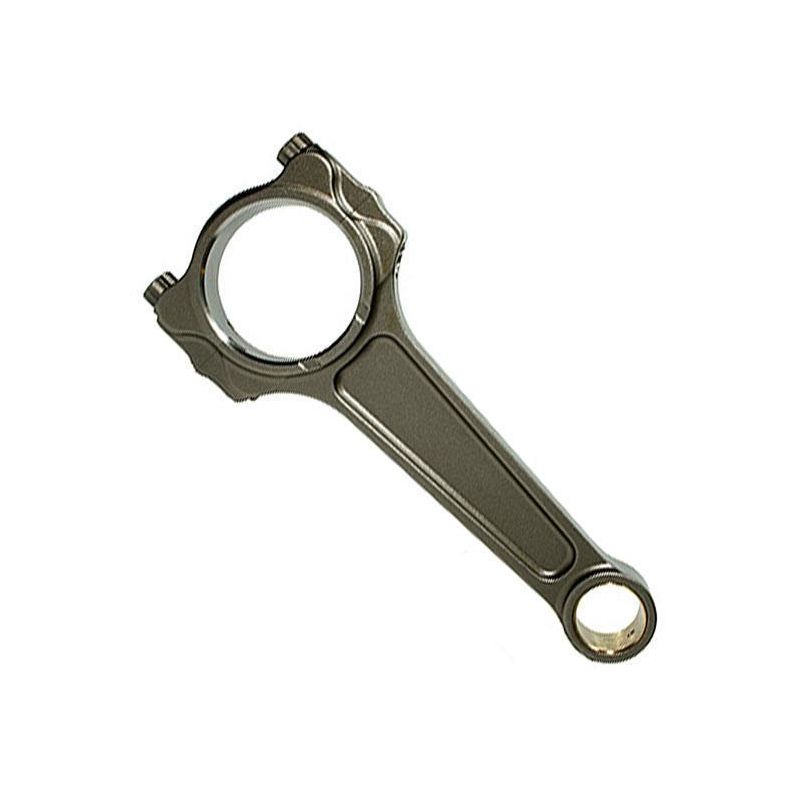

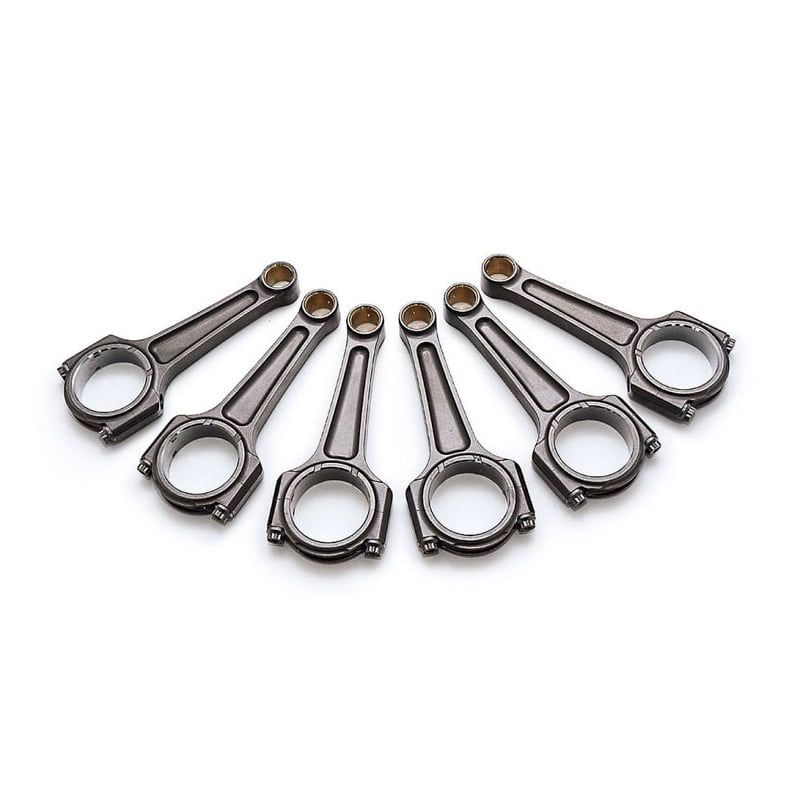

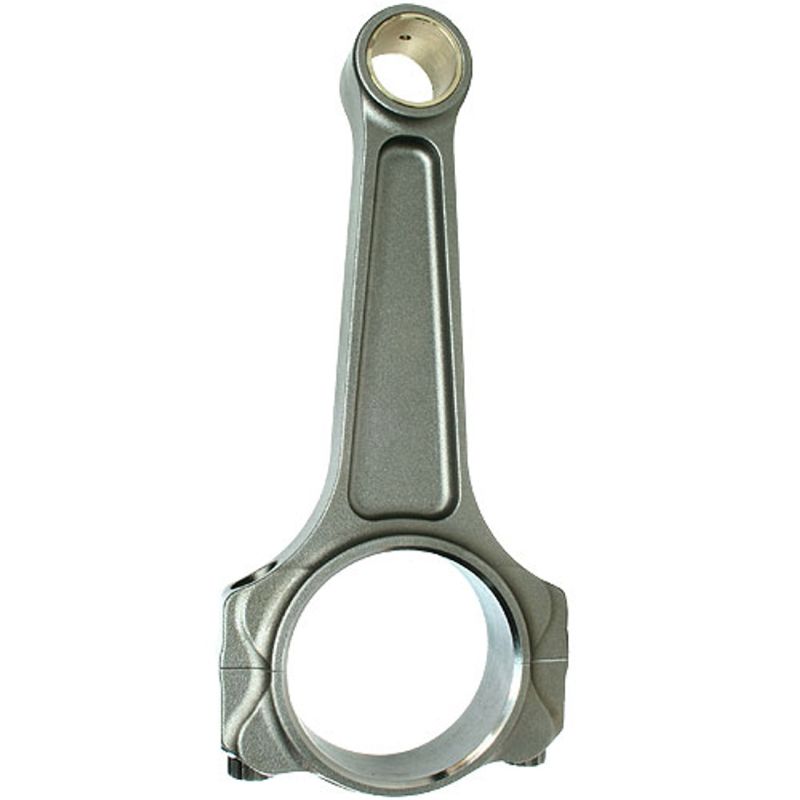

The I profile (I-Beam) takes the shape of an I in cross-section, with a central web bordered by two flanges. Naturally light, it reduces the moving mass and suits engines that favour high rpm. In its heavy-duty version it keeps this lightness while gaining strength, making it a balanced compromise between reduced inertia and solidity for a sporty 2JZ, from a prepared naturally aspirated engine to a moderate twin-turbo build.

The I-3P profile is an evolution of the I profile with three bearing surfaces, designed to combine the lightness of the I-Beam with reinforced rigidity. The material distribution optimises buckling resistance and body stability under heavy loads while keeping weight in check. This profile targets ambitious 2JZ builds seeking both a light rotating assembly and a large safety margin at high boost and high rpm.

The H profile (H-Beam) has a body relieved on both faces, revealing two parallel flanges joined by a central web, like the letter H seen in cross-section. This geometry offers excellent rigidity for a contained weight and handles compressive loads very well, which makes it particularly suited to heavily boosted engines such as the 2JZ-GTE. It is a versatile profile, valued for its robustness on high-boost builds.

ARP2000 hardware is the proven standard for high-performance rods. It offers a tensile strength of about 220,000 psi (roughly 1517 MPa) and suits the vast majority of 2JZ builds, up to an order of about 200 hp per cylinder and engine speeds reaching around 8500 rpm. On this listing the bolts are offered in 3/8 inch diameter, in 38 mm and 41 mm lengths depending on the rods.

ARP L19 hardware is a step above. This higher-performance alloy steel allows greater stresses and suits highly tuned engines, as a guide up to about 250 hp per cylinder. It is recommended when boost pressure and engine speed rise significantly. ARP L19 is more sensitive to corrosion and requires particular care during assembly and storage, in exchange for its superior strength.

ARP CA625+ hardware is the strongest grade in the range, reserved for extreme use. It is intended for very high-power engines exceeding the previous thresholds and for the highest engine speeds, up to about 10,000 rpm in extreme use. It maintains preload and rod-cap sealing under the harshest competition conditions, where the slightest loss of clamp load would be fatal.

On high-performance rods, the tightening of the cap bolts is ideally controlled by measuring bolt stretch rather than by torque alone. By measuring the elongation of the bolt between the free and tightened states with a stretch gauge, you eliminate the variations of friction under the head and in the thread, which distort the relationship between torque and actual preload.

This is the method recommended by hardware manufacturers to obtain a uniform preload across all six rods and to avoid any loosening under load. Each rod-and-hardware pairing has a target stretch range: you must reach that value, measured along the bolt axis, rather than relying on the torque wrench alone. The quoted torque remains a useful starting value when stretch measurement is not possible.

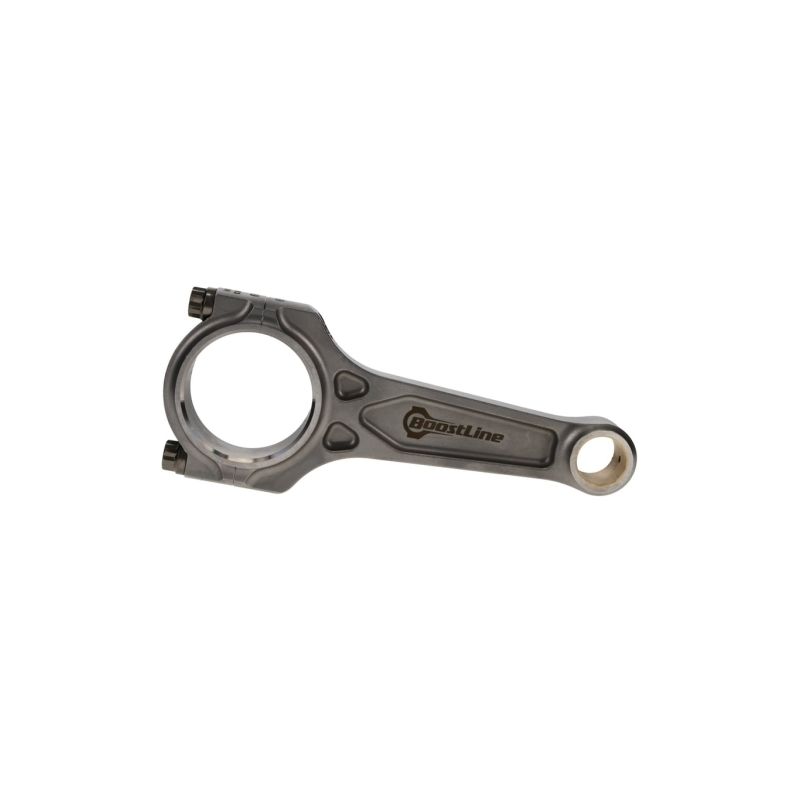

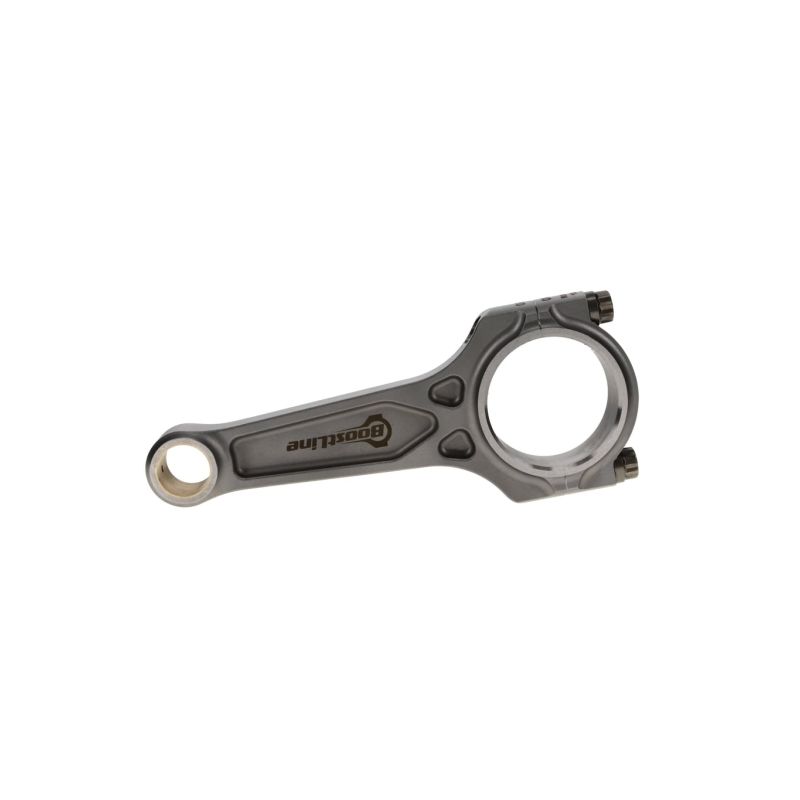

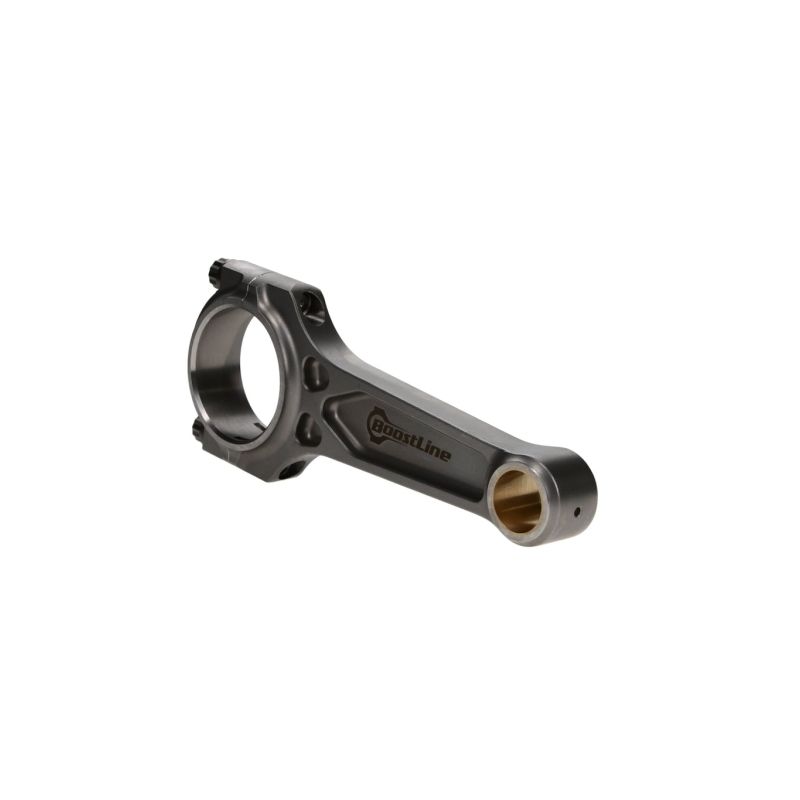

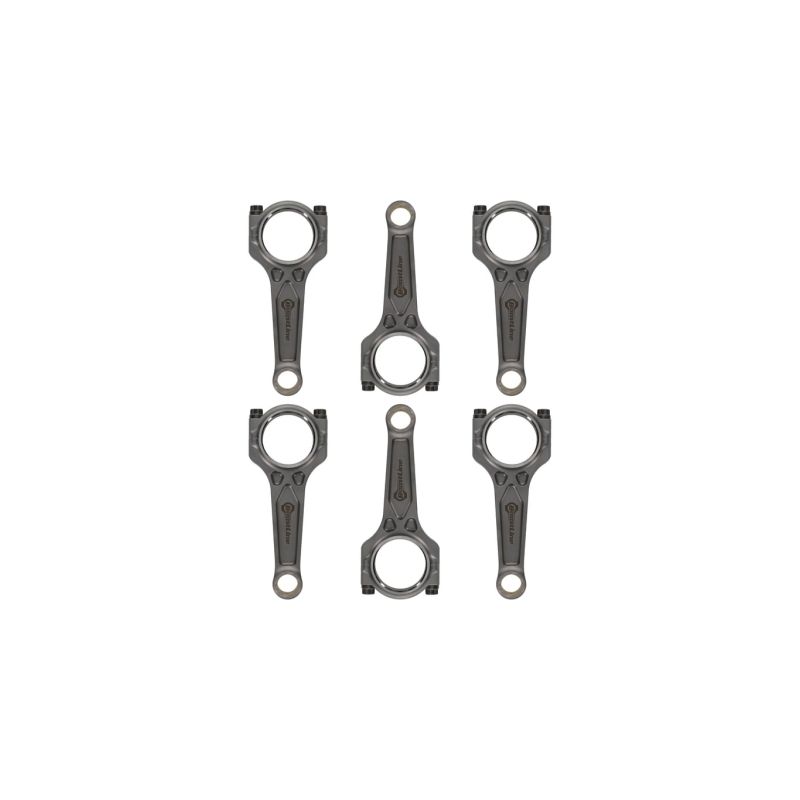

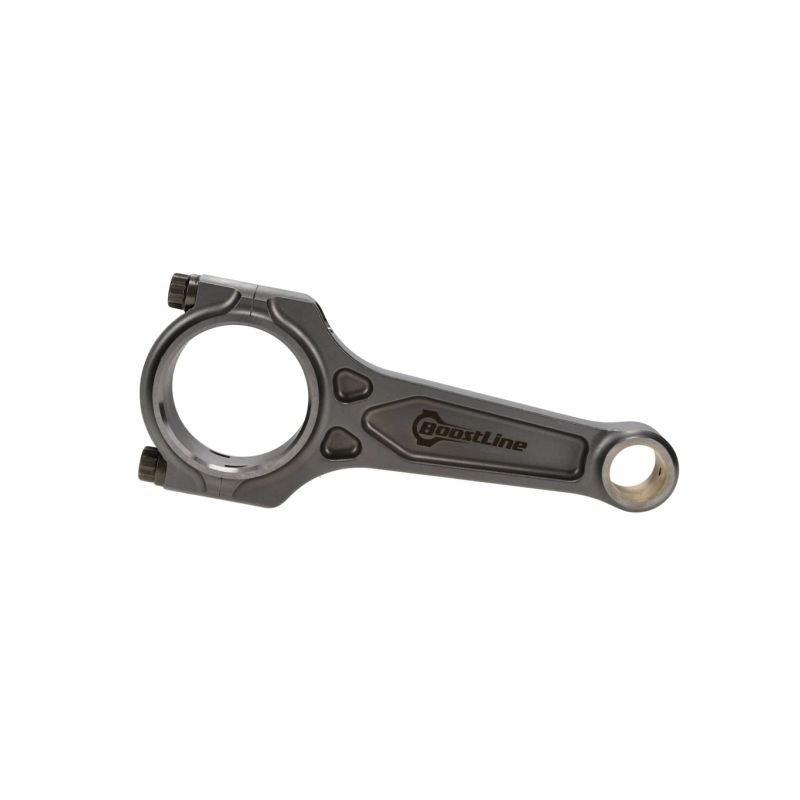

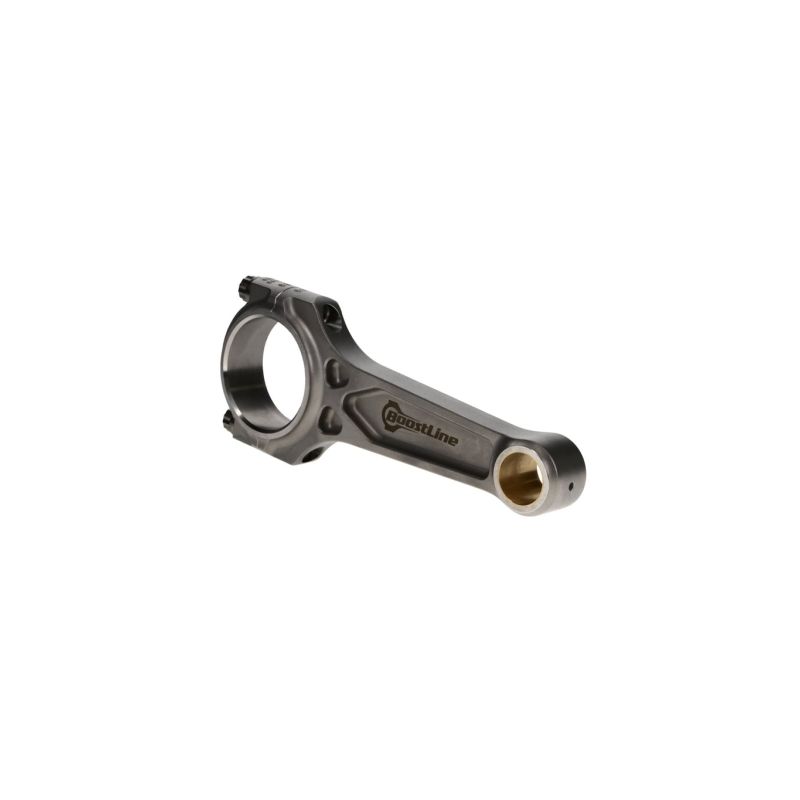

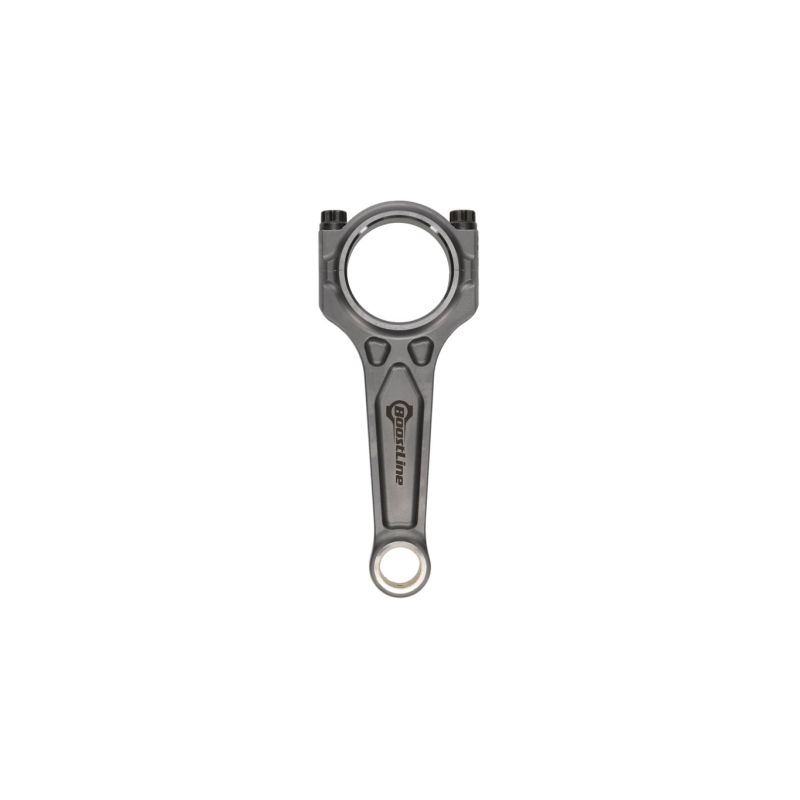

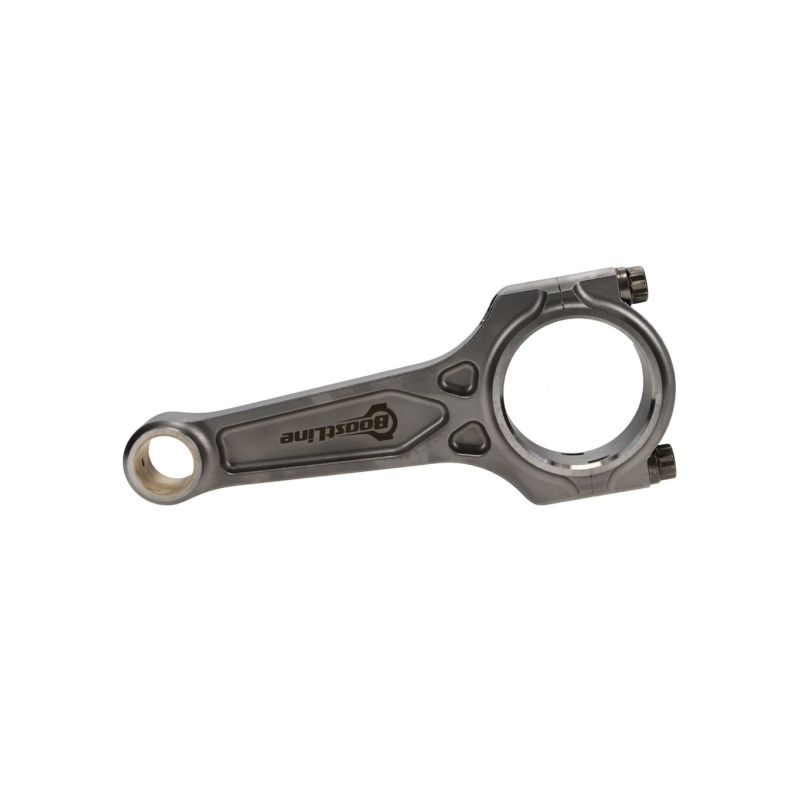

Boostline is Wiseco’s forged connecting-rod line, the American piston specialist in business since 1941. For the 2JZ it offers its I-3P: an I-beam body whose three machined pockets bring stiffness up to the level expected of an H-beam, without added weight. Forged in 4340 steel and machined in the United States, it is ordered with ARP 2000 or ARP Custom Age 625+ bolts for heavily boosted engines.

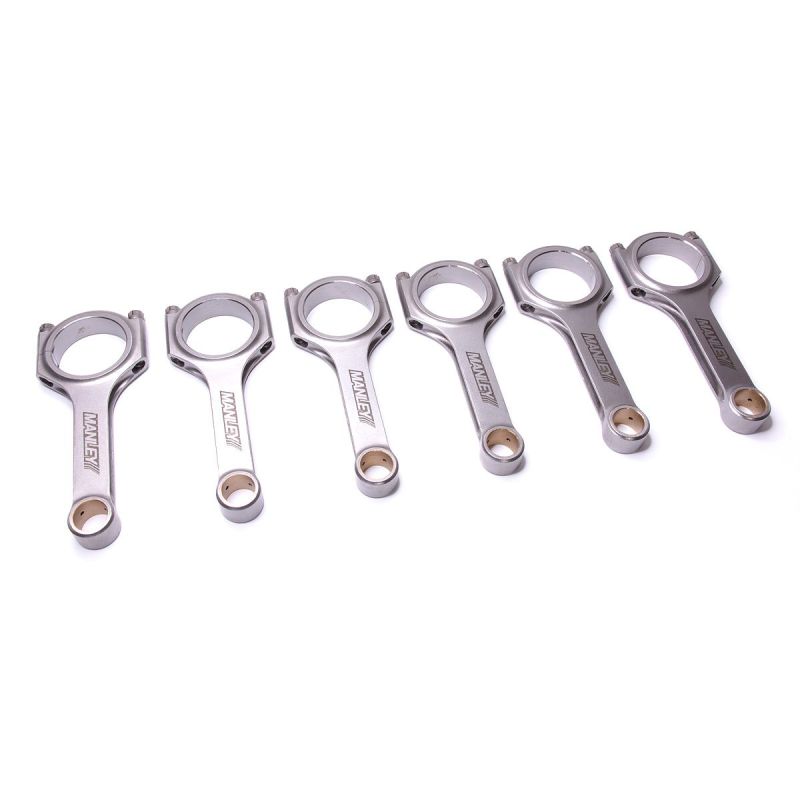

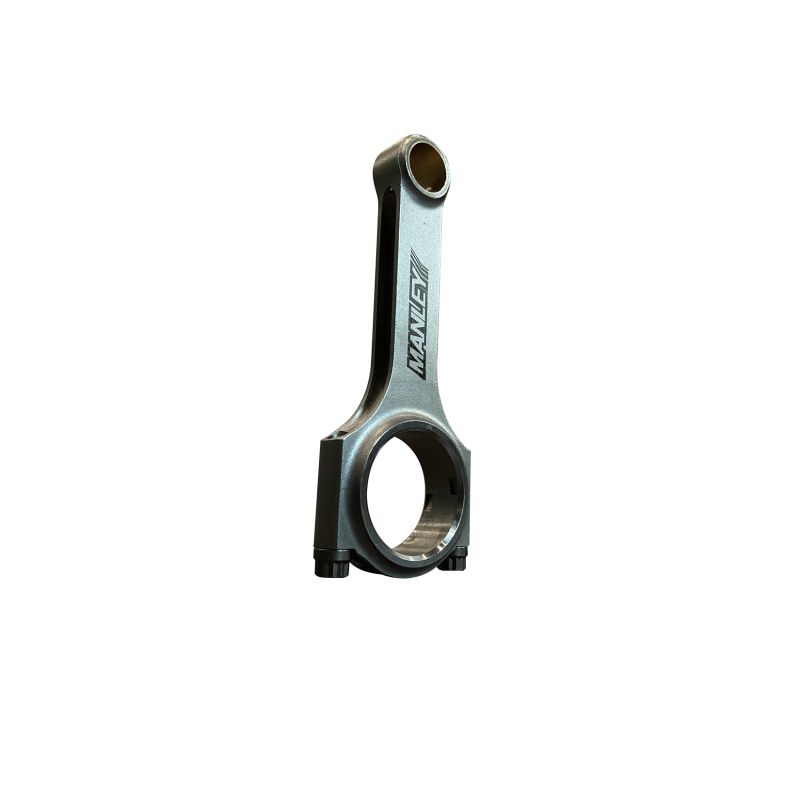

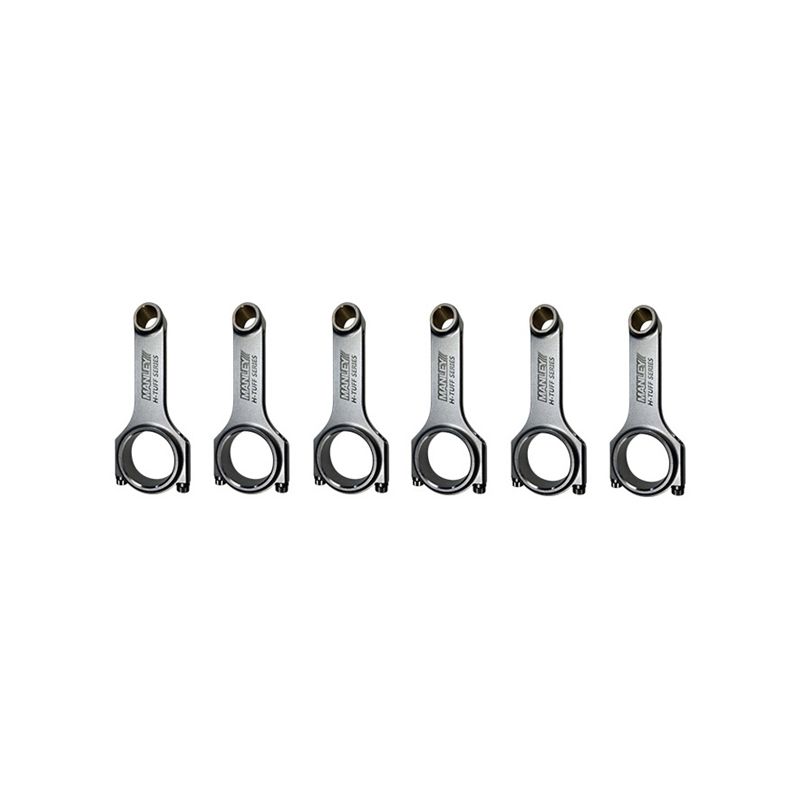

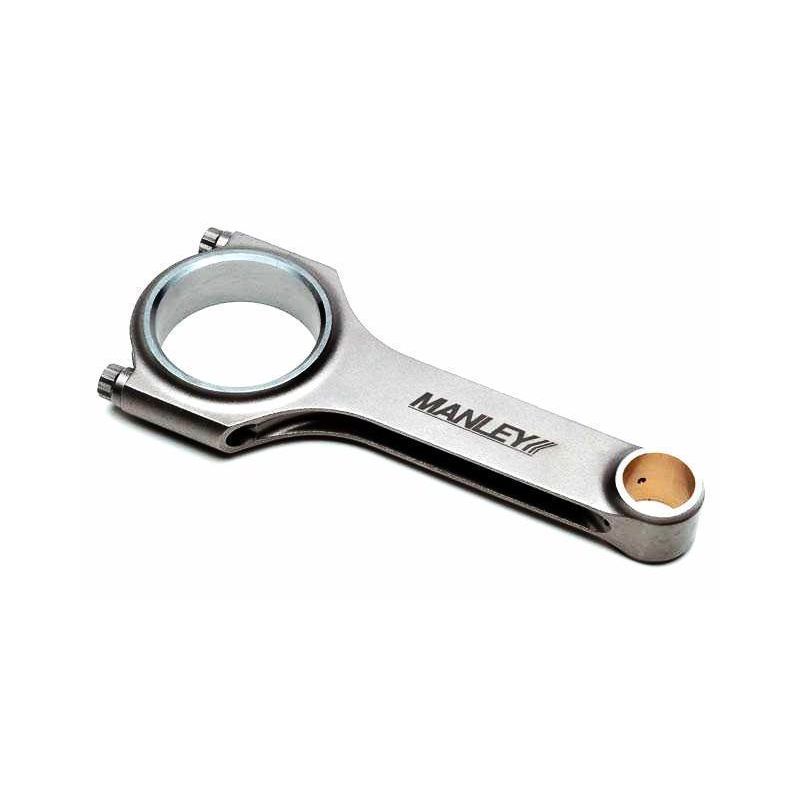

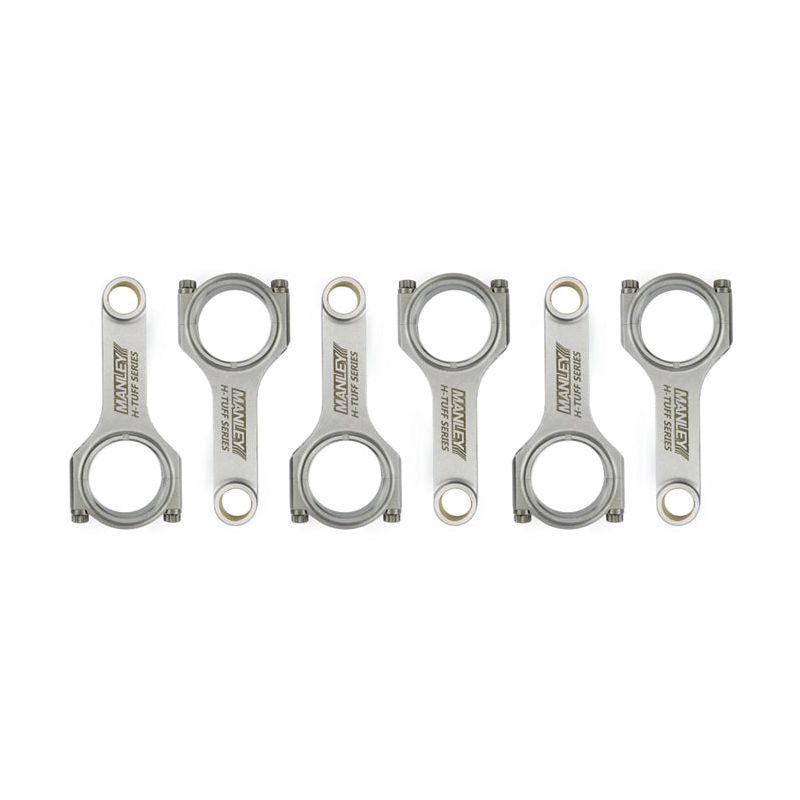

Manley is an independent American manufacturer, in the forged connecting-rod market since 1966. Its material is a vacuum-degassed aerospace 4340 steel, shot-peened and then inspected piece by piece. The 2JZ is unusually well served: H, H-HD and I-HD profiles, with ARP 2000 bolts on the standard versions and ARP Custom Age 625+ on the reinforced variants.

Wössner manufactures high-performance forged parts in Germany, pistons as well as connecting rods. For the 2JZ its offer comes down to a single I-profile rod in forged steel, held to the tightest tolerances, weighed and matched across the set of six, supplied with ARP 2000 hardware. It suits a meticulous build where machining finesse and consistent masses count more than escalation.

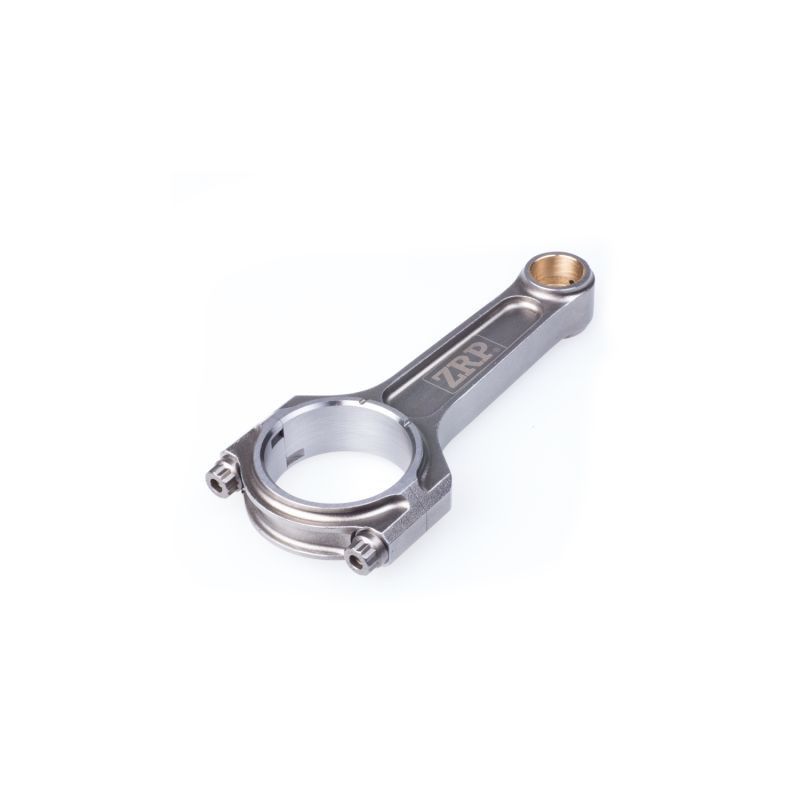

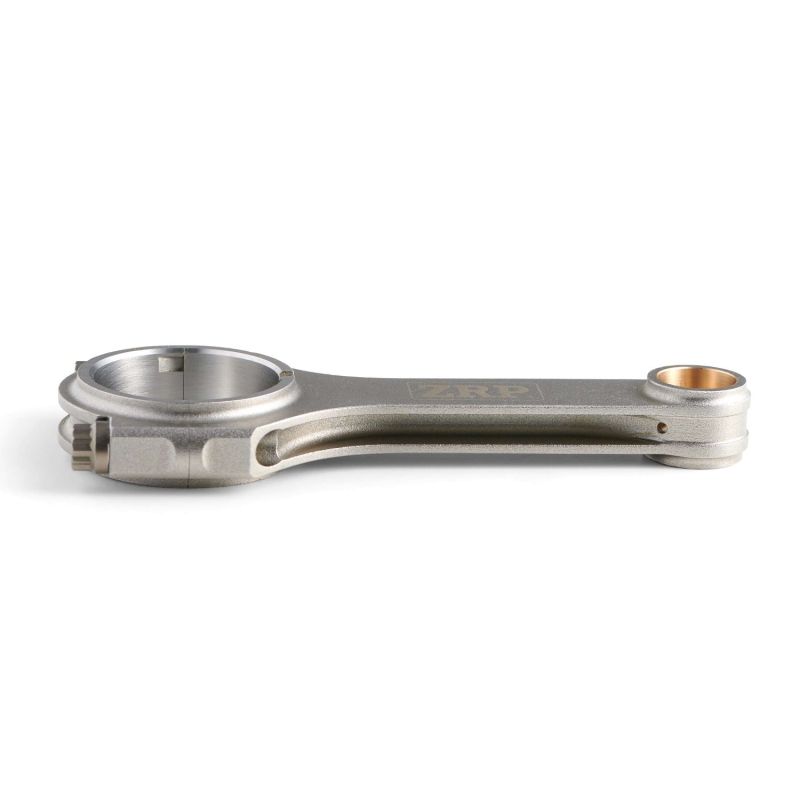

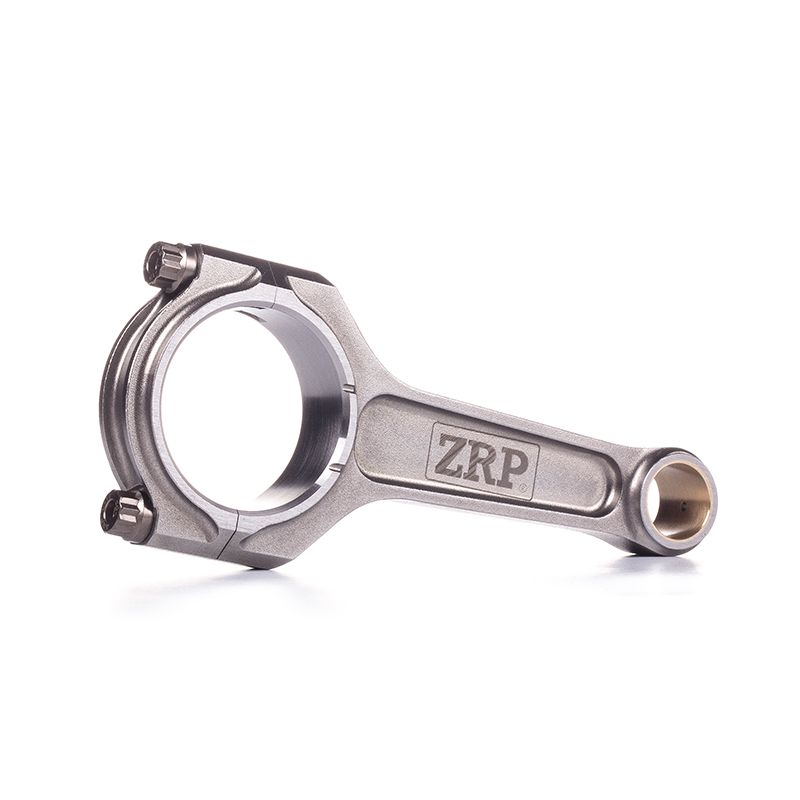

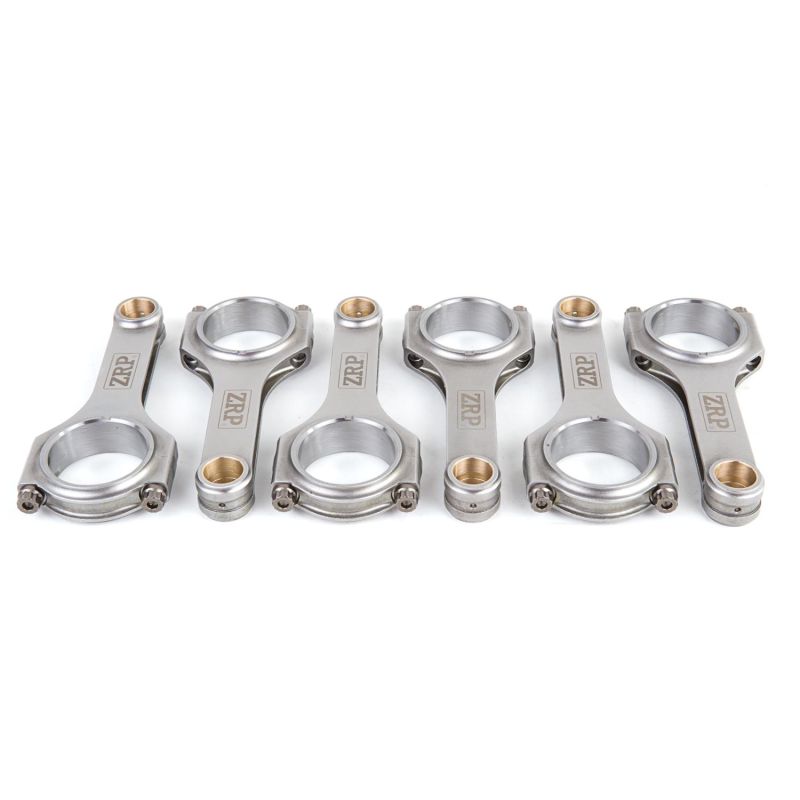

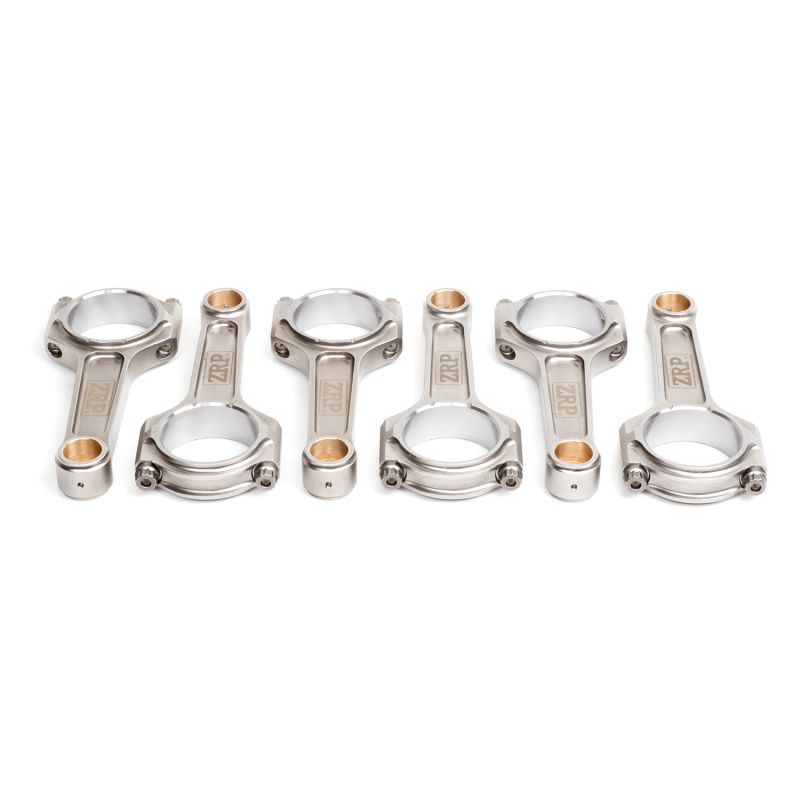

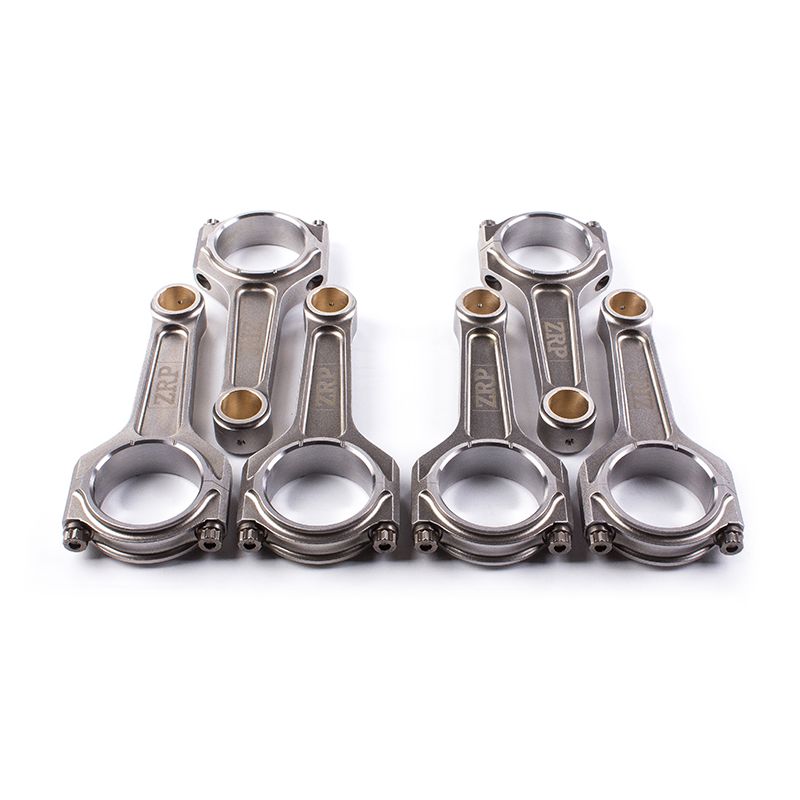

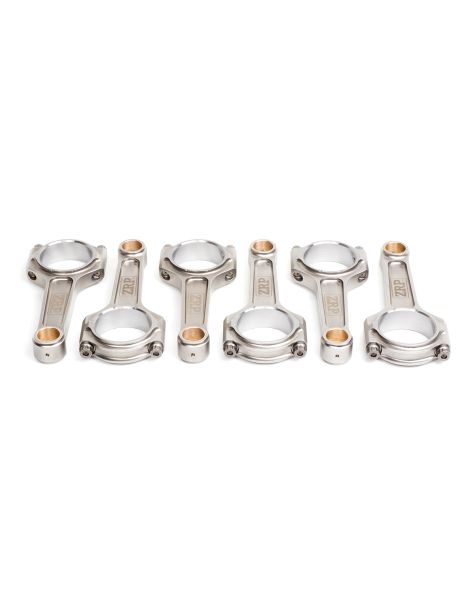

ZRP is the Greek manufacturer led by Alex Drakos in Athens, where everything is drawn, produced and inspected. On the 2JZ the range is broad: an H profile and an I-HD profile in forged 4340 steel, with ARP 2000 or ARP L19 bolts, plus an I-profile variant in 817M40T steel. Every set of six is weighed and matched to ±1 g. The brand draws its experience from rallying, circuit racing and drift.
