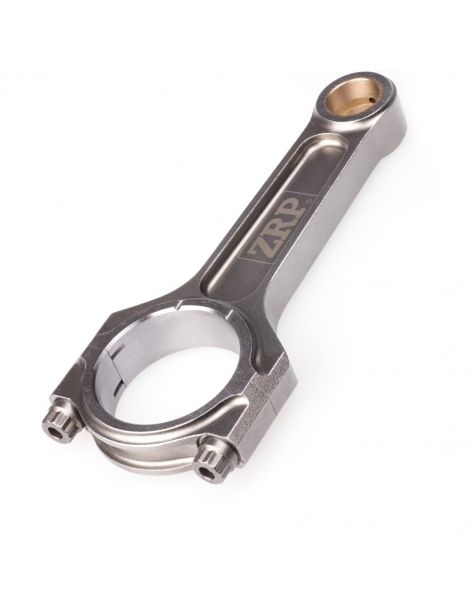

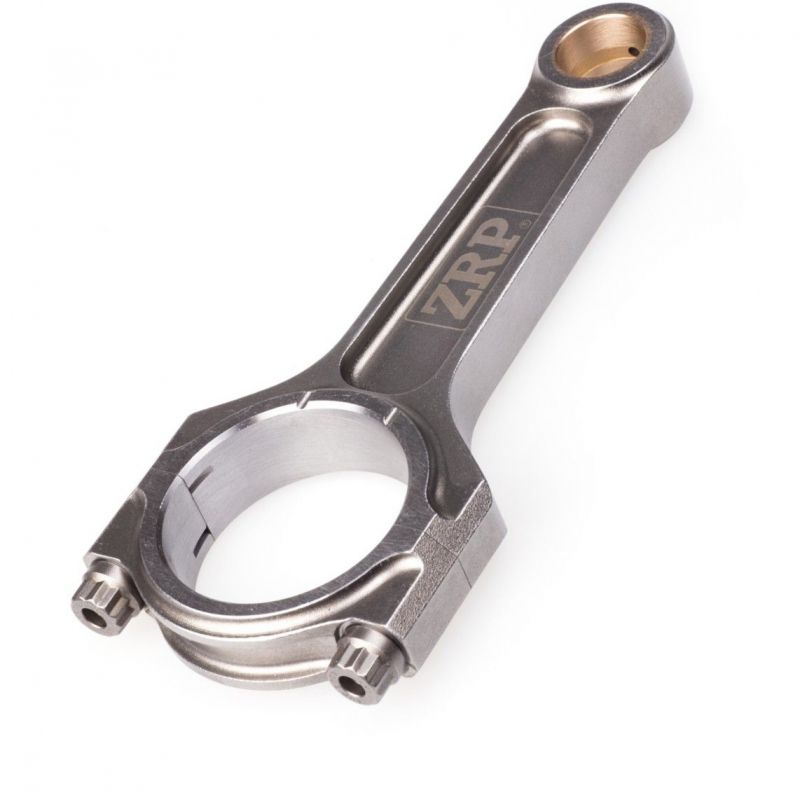

Forged connecting rods I ZRP for TOYOTA 3.0 2JZGTE

The ZRP brand is the subsidiary of DRAKOS ENGEERING renowned for its eXperience in high-performance mechanical part designs. ZRP specializes exclusively in forged engine parts and has designed for your TOYOTA 3.0 24V 2JZGTE Connecting rods forged in 4340 High Tensile Steel in order to accept high boosts on your 2JZGTE engine and ARP2000 Rod bolts for large increases in engine speed.

The head of the ZRP forged Connecting rods for TOYOTA 3.0 24V 2JZGTE is equipped with a ring machined from hot extruded cuPro-aluminum alloy patented AMPCO 18 before being ground to ensure maintenance of the oil film with your Piston pin / Gudgeon pin.

The design of this ZRP forged I-shaped Connecting rod for TOYOTA 3.0 24V 2JZGTE gives it exceptional resistance to significant increases in power and torque through high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation for forged Drift engines and forged Run Dragster engines.

Features:

• Input Pin: 142.00mm
• Foot diameter: 55.00mm
• Foot width: 26.00mm
• Piston pin / Gudgeon pin diameter: 22.00mm
• Rod bolts supplied: ARP2000
• Thread of screws provided: 3/8"
• Weight: 630g
• Maximum admissible power: 1200hp



Lexicon:

1)Small End
2) Foot diameter
3) Connecting rod CoRPS
4) Rod bolt
5) Big End
6) Nut
7) Connecting rod cap
8) Head diameter
9) EntrPin

When you upgrade your 2JZGTE engine to a forged engine, it is recommended to fit forged Connecting rods with tri-metal Connecting rod bearings, in addition to replacing your original Pistons with forged Pistons.

Find the Forged Pistons for your TOYOTA 3.0 24V 2JZGTE (if your engine has more than 50,000km, it is recommended to take an extra cost and carry out a repair of the cylinders followed by honing of the barrels)

Find the Connecting rods Bearings for your ZRP forged Connecting rods for your TOYOTA 3.0 24V 2JZGTE

Find this kit with reinforced rod bolts ARP L19 and ARP 625+ for your TOYOTA 3.0 24V 2JZGTE
