2.0L 8v - HF Integrale
Manufacturers
2.0L 8v - HF Integrale
Warning: Last items in stock!
New product

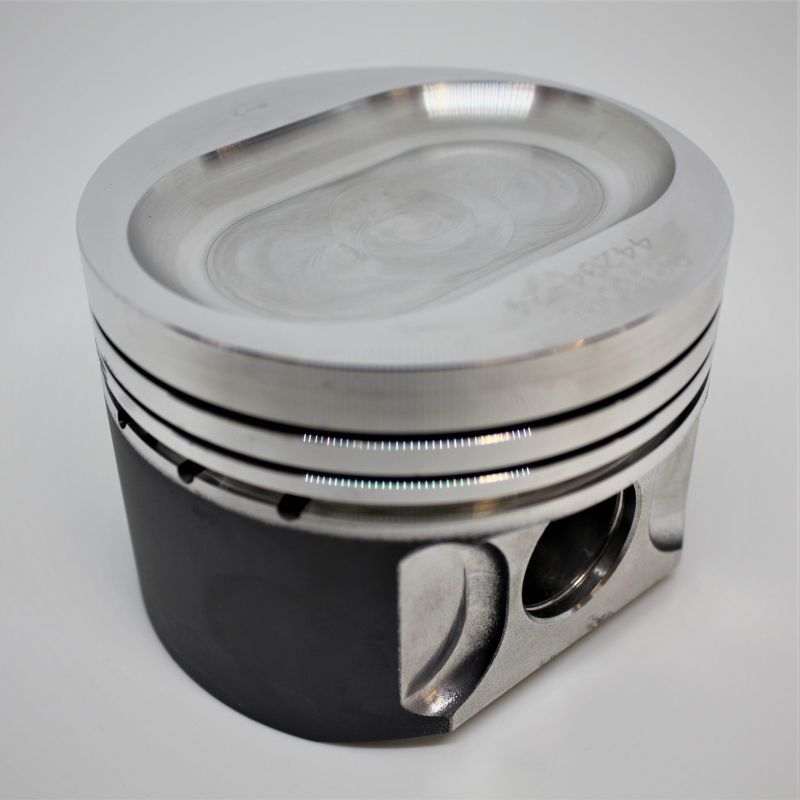

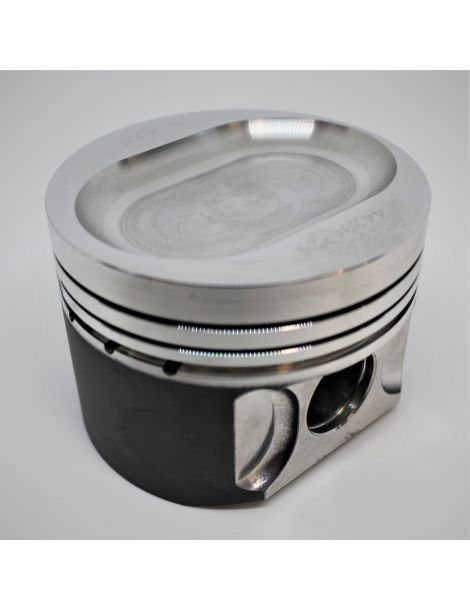

Forged pistons for Lancia Delta HF Integrale 2.0 8v: bore 84–85.5 mm, compression ratio 7.5–8.1:1, 22 mm pin. Wiseco & Wössner kits with piston rings, compatible with the 2.0 8v turbo engine (Type 831).
Specifications of the forged pistons offered by NSB Concept for Lancia 2.0 L 8 v HF Integrale :
| Reference piston | Bore (mm)OEM 84,00 | CROEM 8,0 :1 | pin (mm)OEM 22 | Height pin (mm)OEM 39,65 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE217M84 | 84 | 7.5 :1 | 22 | 38,94 | Wiseco | NC | Skirt | NC | -11 | NC | 8400XX |
| K9010DA | 84 | 8 :1 | 22 | 39,65 | Wossner | NC | NC | Round | -17,45 | NC | 840XPY |
| K9010D020 | 84,2 | 8 :1 | 22 | 39,65 | Wossner | NC | NC | Round | -17,45 | NC | 842XPY |
| WKE217M8425 | 84,25 | 7.5 :1 | 22 | 38,94 | Wiseco | NC | Skirt | NC | -11 | NC | 8425XX |
| K9010D040 | 84,4 | 8,1 :1 | 22 | 39,65 | Wossner | NC | NC | Round | -17,45 | NC | 844XPY |
| WKE217M845 | 84,5 | 7.5 :1 | 22 | 38,94 | Wiseco | NC | Skirt | NC | -11 | NC | 8450XX |
| K9010D060 | 84,6 | 8,1 :1 | 22 | 39,65 | Wossner | NC | NC | Round | -17,45 | NC | 846XPY |
| K9010D080 | 84,8 | 8,1 :1 | 22 | 39,65 | Wossner | NC | NC | Round | -17,45 | NC | 848XPY |
| WKE217M85 | 85 | 7.5 :1 | 22 | 38,94 | Wiseco | NC | Skirt | NC | -11 | NC | 8500XX |
| WKE217M8525 | 85,25 | 7.5 :1 | 22 | 38,94 | Wiseco | NC | Skirt | NC | -11 | NC | 8525XX |
| WKE217M855 | 85,5 | 7.5 :1 | 22 | 38,94 | Wiseco | NC | Skirt | NC | -11 | NC | 8550XX |
Compatibility engine :
| Brand | Model | Chassis | Power (ch) | Years |
|---|---|---|---|---|
| Lancia | Delta HF 4WD | Type 831 | 165 | 1986 – 1987 |
| Lancia | Delta HF Integrale 8v | Type 831 | 185 | 1987 – 1990 |
| Lancia | Delta HF Integrale 8v (catalyzed) | Type 831 | 177 | 1990 – 1991 |
Manufacturer piston references (OEM):
| Brand | Model(s) | Type | Reference OEM |
|---|---|---|---|
| Lancia | Delta HF 4WD / HF Integrale 8v | complete piston (Ø 84,5) | 5890441 |
| Lancia | Delta HF 4WD / HF Integrale 8v | complete piston (variants) | 5893408 |
| Lancia | Delta HF 4WD / HF Integrale 8v | complete piston (variants) | 5888811 |
Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
