ATHENA reinforced head gasket bore 85.3mm FIAT 1.4 146A8 1.6 159A3 LANCIA 2.0 8V 16V HF

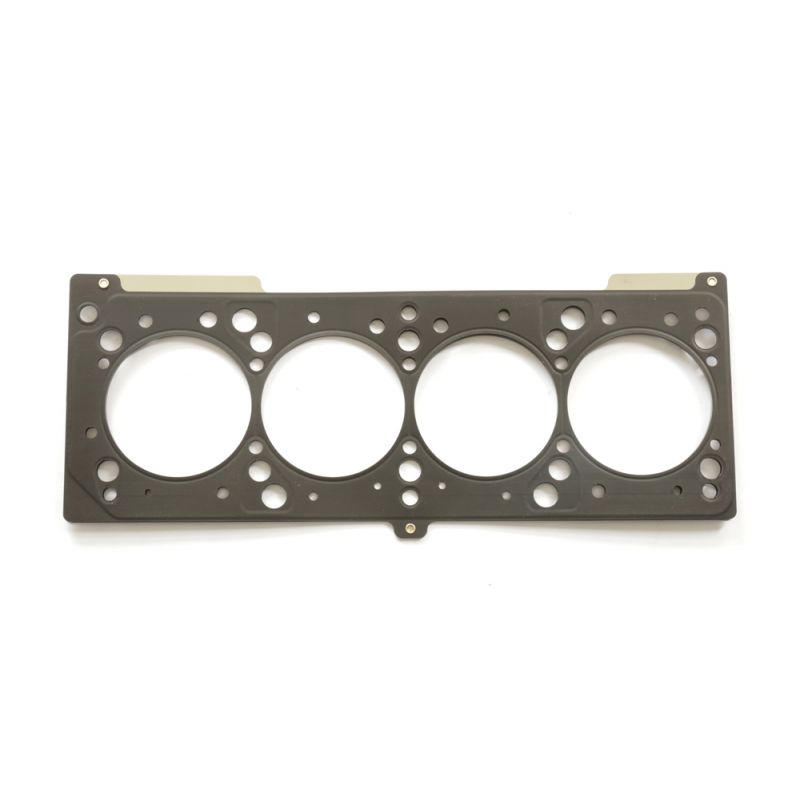

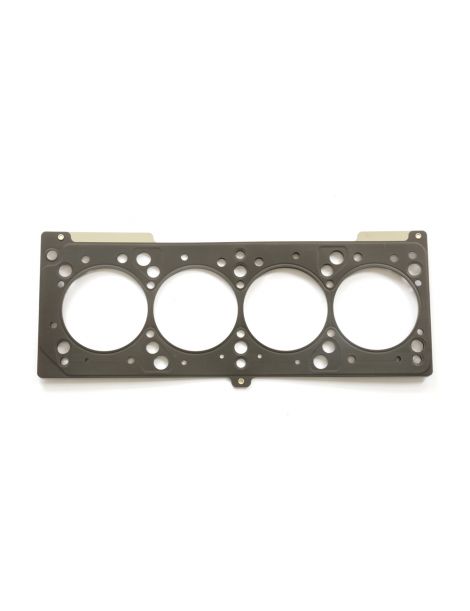

Reinforced cylinder head gasket ATHENA reference 338396R

Application :

-LANCIA Dedra 2.0 Turbo 835 A8.000 177hp 11/1990 - 06/1994

-LANCIA Delta I 2.0 HF Integrale 831 B5.000 166hp 11/1986 - 08/1988

-LANCIA Delta I 2.0 HF Integrale 831 C5.000 181hp 10/1987 - 12/1991

-LANCIA Delta I 2.0 HF Integrale 831 C5.046 177hp 12/1986 - 12/1992

-LANCIA Dedra 2.0 i.e Turbo 835 A7.000 165hp 04/1990 - 08/1991

-LANCIA Delta II 2.0 16V Turbo 836 A2.000 186hp 06/1993 - 08/1999

-LANCIA Dedra 2.0 16V 836 A3.000 139hp 07/1994 - 07/1999

-LANCIA Dedra SW 2.0 16V 836 A3.000 139hp 07/1994 - 07/1999

-LANCIA Dedra SW 2.0 Integrale 836 A3.000 139hp 07/1994 - 07/1999

-LANCIA Delta II 2.0 16V 836 A3.000 139hp 06/1993 - 08/1999

-LANCIA Kappa 2.0 16V Turbo 838 A4.000 205hp 02/1995 - 10/2001

-LANCIA Kappa Coupé 2.0 16V Turbo 838 A4.000 205hp 11/1996 - 03/2001

-LANCIA Kappa SW 2.0 16V Turbo 838 A4.000 205hp 07/1996 - 10/2001

-LANCIA Thema 2000 16V 834 F1.000 152hp 08/1992 - 12/1993

-LANCIA Thema SW 2000 16V 834 F1.000 152hp 05/1992 - 07/1994

-LANCIA Thema 2000 16V Turbo 834 F2.000 201hp 10/1992 - 07/1994

-LANCIA Thema SW 2000 16V Turbo 834 F2.000 201hp 11/1992 - 07/1994

-LANCIA Delta I 2.0 HF Integrale 831 D5.000 196hp 03/1989 - 09/1991

-LANCIA Delta I 2.0 16V HF Evo Integrale 831 E5.046 211hp 06/1993 - 01/1994

-LANCIA Delta I 2.0 16V HF Evo Integrale 831 E5.000 211hp 06/1993 - 01/1994

-FIAT CROMA 2000 16V 154 E1.000 137hp 08/1992 - 08/1996

-FIAT Coupé 2.0 16V 836 A3.000 139hp 11/1993 - 08/1996

-FIAT Tipo 2.0 i.e 16V Sport 836 A3.000 139hp 03/1993 - 04/1995

Type : MLS Range

Bore : 85.3mm

Thickness : your choice

Features :

The head gasket is one of the most important elements of the engine but it is also one of the most fragile. The head gasket is located between the cylinder head and the engine block. Its role is to guarantee the proper functioning of the engine. A good cylinder head gasket must allow complete sealing of the combustion chambers and must ensure the continuity and tightness of the circuits. Thus, this engine part must withstand strong thermal, mechanical and chemical stresses. It is essential to have a cylinder head gasket in good condition to avoid any engine breakdown. With an engine optimized for motor racing, your head gasket will have to withstand great stress, so you must opt for a reinforced head gasket. Athena is an internationally renowned company expert in the reinforced head gaskets market and will satisfy you with high quality head gaskets.

The cylinder head gaskets offered come from the MLS range. These reinforced MLS head gaskets are of high quality and allow you to replace the original head gasket while improving its performance. They are perfectly suited to strong thermal, mechanical and chemical constraints.

ATHENA head gaskets consist of 3 to 5 layers of stainless steel. In addition to these multi-layers, this head gasket is manufactured with folded layer technology which allows the gaskets to accept higher compression ratios or boosting. These cylinder head gaskets also have a special coating which is applied to their surface in order to increase their tightness. These products have been subjected to numerous quality tests to guarantee you cylinder head gaskets in perfect condition, reliable and efficient.

Please note, changing a cylinder head gasket is a relatively technical operation; if you are not sure of yourself, contact a professional for assembly.
