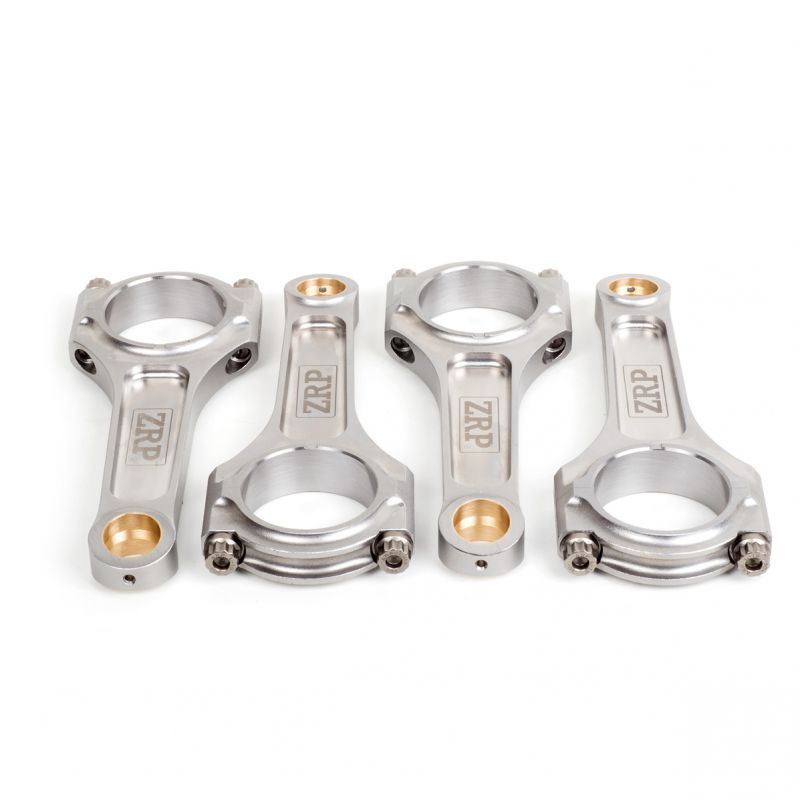

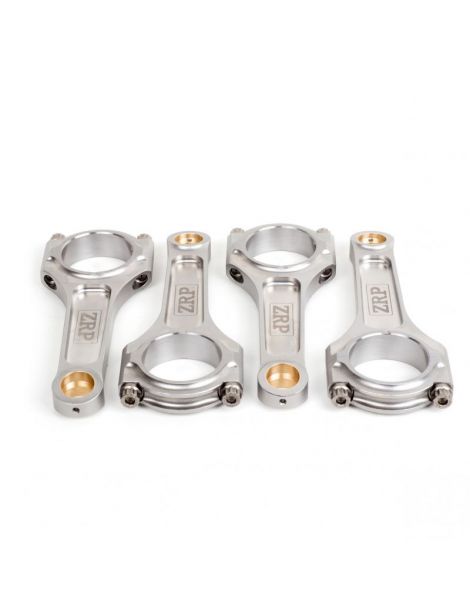

ZRP Pro Series I-forged connecting rods MITSUBISHI Lancer Evolution 2.0 16V 4G63 7 bolts

The ZRP brand is the subsidiary of DRAKOS ENGEERING renowned for its experience in high-performance mechanical part designs. ZRP specializes exclusively in forged engine parts and has designed for your MITSUBISHI Lancer Evolution VII 2.0 16V 4G63 Turbo forged connecting rods in high-strength 4340 steel in order to accept high boosts on your 4G63 Turbo engine and ARP2000 connecting rod screws for large increases in engine speed.

The head of the ZRP forged connecting rods for MITSUBISHI Lancer Evolution VII 2.0 16V 4G63 Turbo is equipped with a ring machined from hot extruded cupro-aluminum alloy patented AMPCO 18 before being ground to ensure that the oil film is maintained with your piston pin.

The design of this ZRP forged I-shaped connecting rod for MITSUBISHI Lancer Evolution VII 2.0 4G63 Turbo gives it exceptional resistance to significant increases in power and torque through high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation for forged Drift engines and forged Run Dragster engines.

Features:

Center distance: 156.00mm

Foot diameter: 48.00mm

Foot width: 26.40mm

Piston pin diameter: 22.00mm

Connecting rod screws supplied: ARP2000

Thread of screws provided: 3/8"

Weight: 633gr

Maximum admissible power: 800hp

Lexicon:

1) Connecting rod

2) Foot diameter

3) Connecting rod body

4) Connecting rod screw

5) Big end

6) Nut

7) Connecting rod cap

8) Head diameter

9) Center distance

When you upgrade your 4G63 Turbo engine to a forged engine, it is recommended to fit forged connecting rods with tri-metal connecting rod bearings, in addition to replacing your original pistons with forged pistons.

Find the forged pistons for your MITSUBISHI Lancer Evolution VII 2.0 16V 4G63 Turbo (if your engine has more than 50,000km, it is recommended to take an extra cost and re-bore the cylinders followed by honing the barrels):

FORGED PISTONS

Find the connecting rod bearings for your ZRP forged connecting rods for your MITSUBISHI Lancer Evolution VII 2.0 16V 4G63 Turbo:

CONNECTING ROD BEARINGS

Find this kit with reinforced ARP L19 and ARP 625+ connecting rod screws for your MITSUBISHI Lancer Evolution VII 2.0 16V 4G63 Turbo:

ZRP FORGED CONNECTING ROD WITH ARP L19 OR 625+ SCREWS
