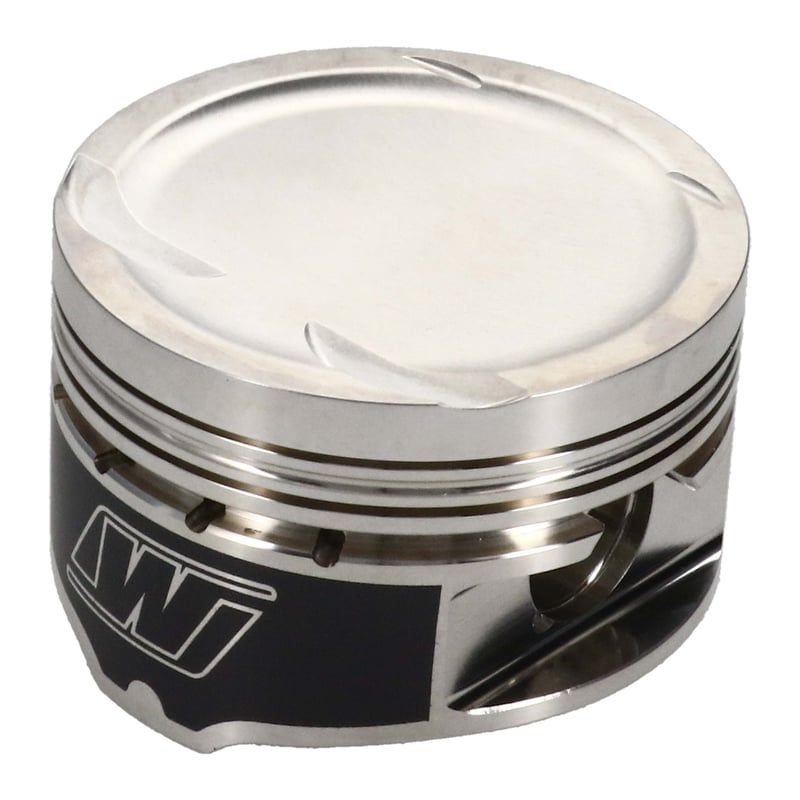

High-quality Forged Pistons 2.0 TFSI EA888 Gen2 (22mm Pin) VW Audi (Forged Pistons 2.0 TFSI EA888 Gen2 22mm Pin) for reliable fitment and performance.
Specifications of the forged pistons offered by NSB Concept for Volkswagen / Audi 2.0 L 16 V EA888 Gen2 :
| Reference | OEM Bore 82,50 mm | OEM CR 9,6 :1 | OEM Pin 22 mm | Height OEM Pin 29,60 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|

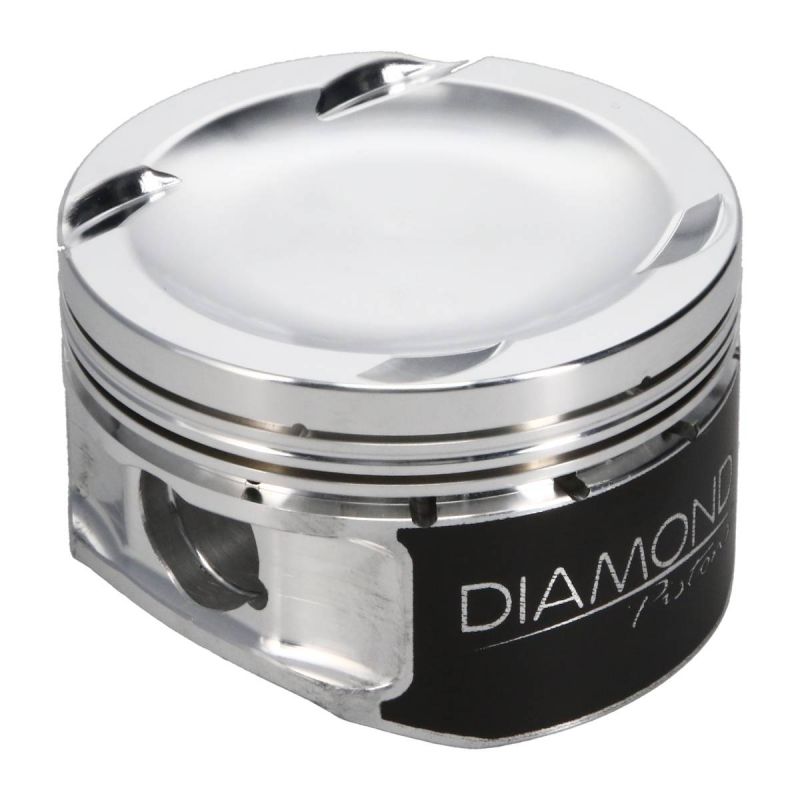

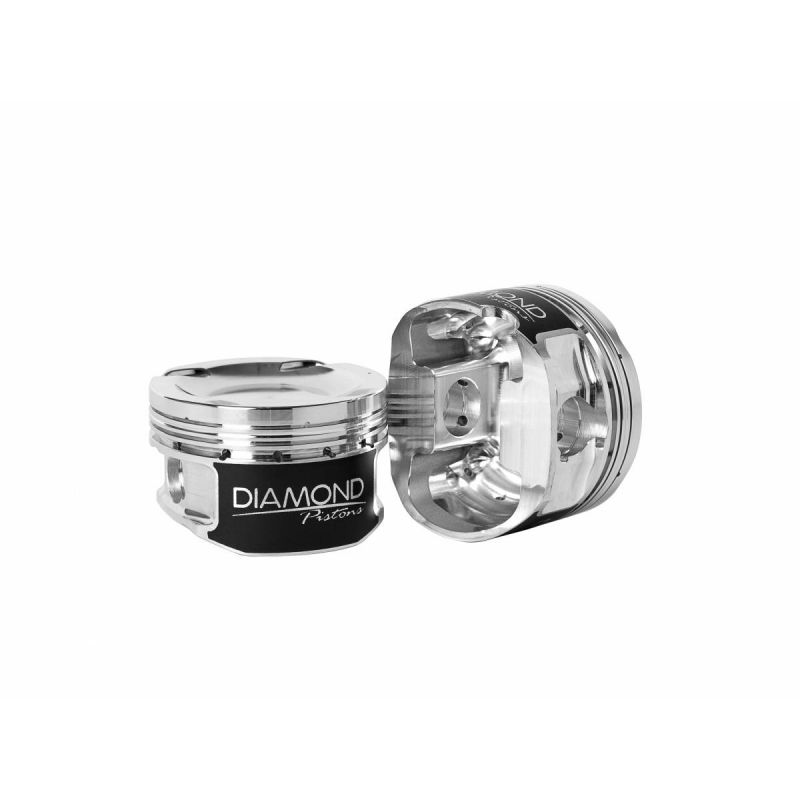

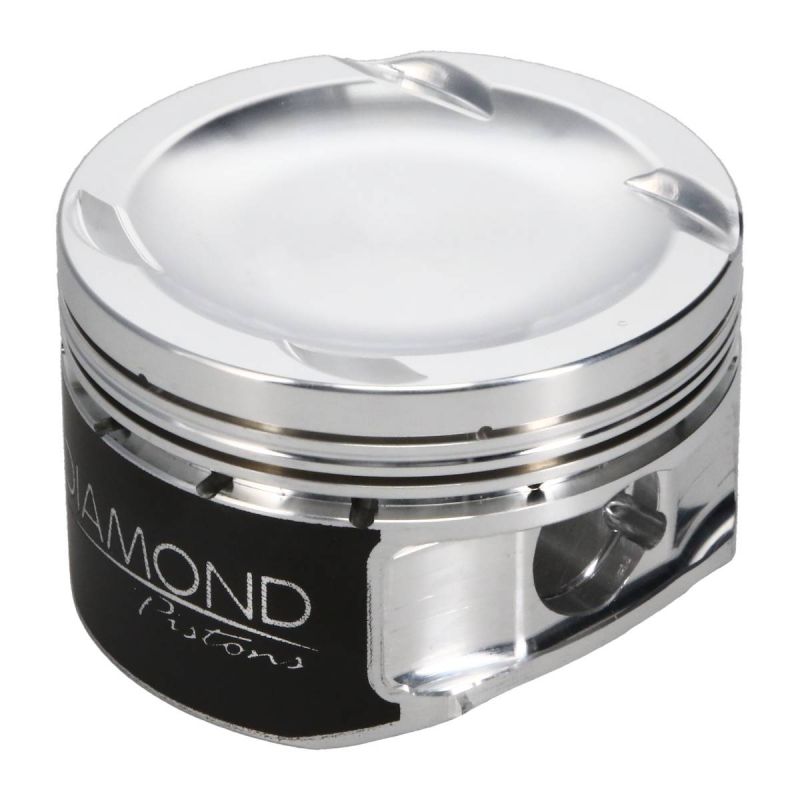

| DIA-38112-4 | 82.50 | 8.5:1 | 22 | 29.59 | Diamond | Skirt | 2618 | NC | -15.5 | NC | 9513248 |
| DIA-38112-4-H | 82.50 | 8.5:1 | 22 | 29.59 | Diamond HD | Skirt | 2618 | NC | -15.5 | NC | 9513248 |
| DIA-38114-4 | 82.50 | 9:1 | 22 | 29.59 | Diamond | Skirt | 2618 | NC | -11.5 | NC | 9513248 |
| DIA-38114-4-H | 82.50 | 9:1 | 22 | 29.59 | Diamond HD | Skirt | 2618 | NC | -11.5 | NC | 9513248 |

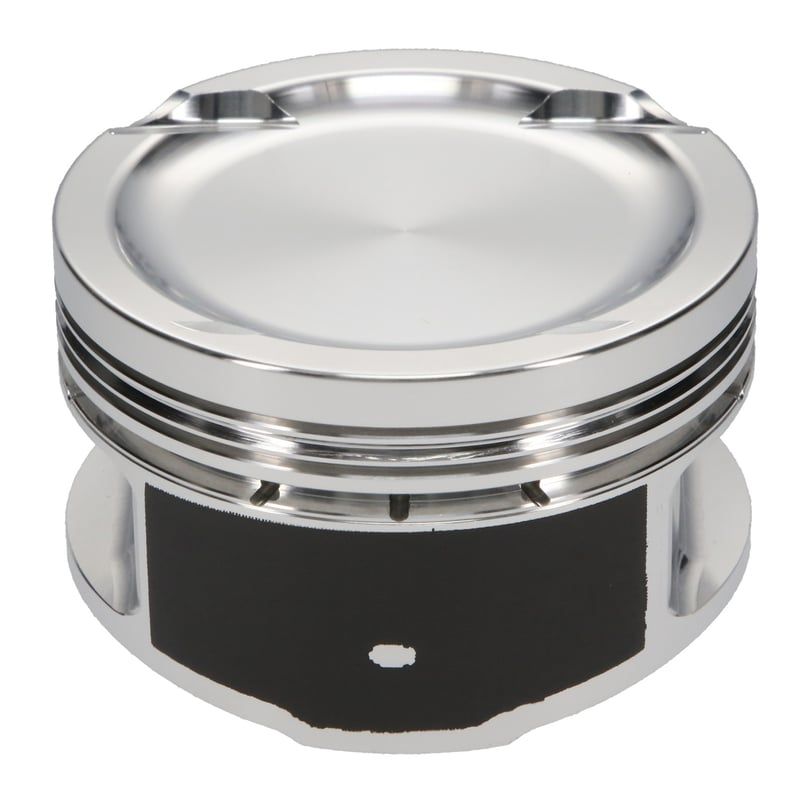

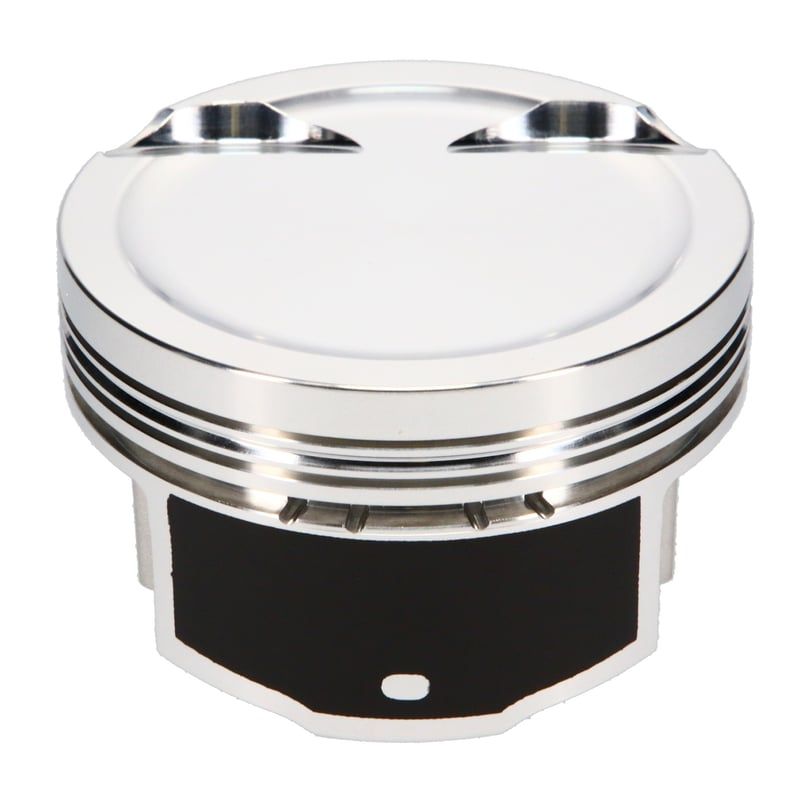

| JE-384218C*4 | 82.50 | 9.1:1 | 22 | 29.67 | JE | NC | NC | NC | -9.2 | NC | NC |
| JE-345813 | 82.50 | 9.6:1 | 22 | 29.6 | JE FSR | NC | 2618 | FSR | NC | NC | NC |
| JE-353849 | 82.50 | 9.6:1 | 22 | 29.6 | JE FSR | NC | 2618 | FSR | -7.1 | NC | NC |
| JE-345812 | 82.50 | 9.6:1 | 22 | 29.6 | JE Round | NC | 2618 | Round | -7.1 | NC | NC |

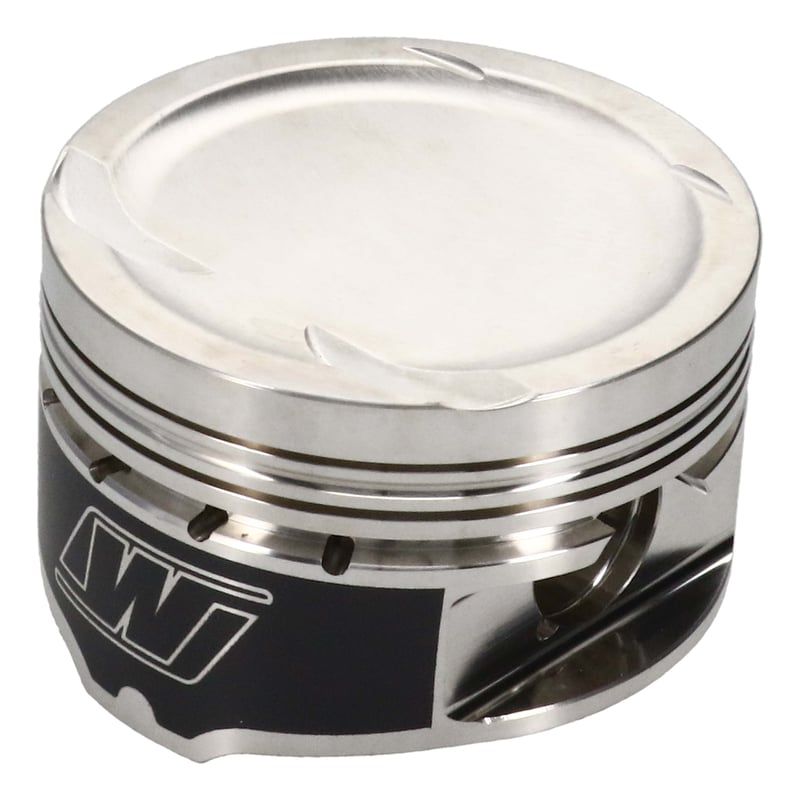

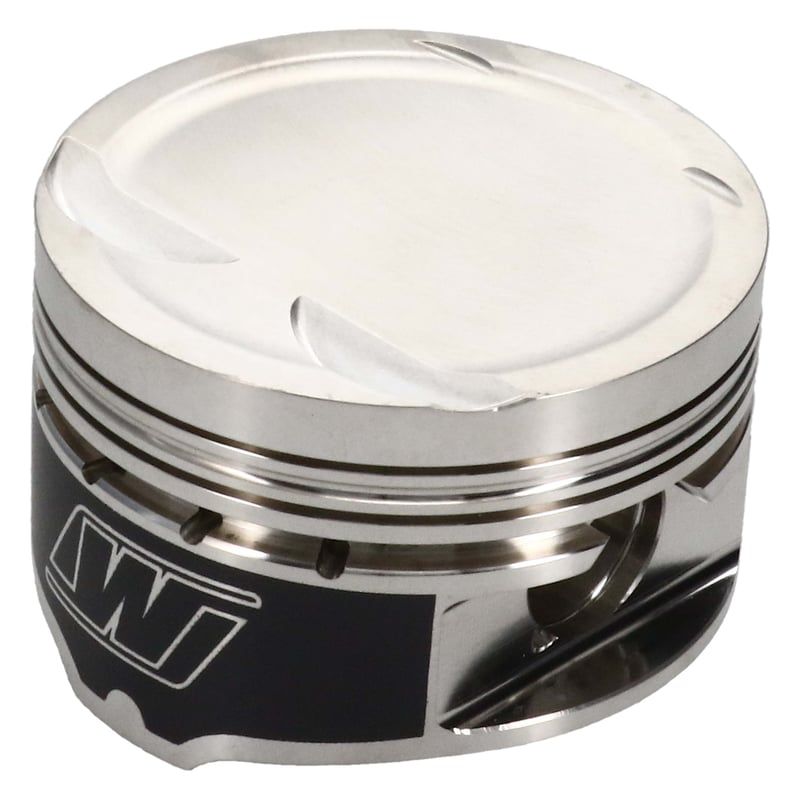

| WK754M825 | 82.50 | 9.6:1 | 22 | 29.59 | Wiseco | Skirt | 2618 | NC | -7.1 | NC | 8250XX |
| DIA-38116-4 | 82.50 | 10:1 | 22 | 29.59 | Diamond | Skirt | 2618 | NC | -4.5 | NC | 9513248 |
| DIA-38116-4-H | 82.50 | 10:1 | 22 | 29.59 | Diamond HD | Skirt | 2618 | NC | -4.5 | NC | 9513248 |

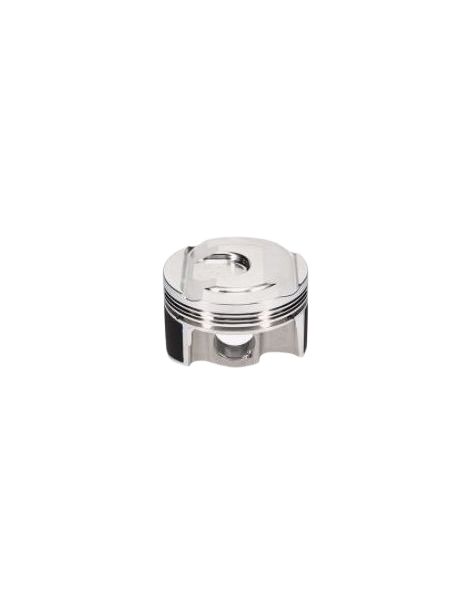

| JE-353852 | 82.50 | 10:1 | 22 | 29.6 | JE FSR | NC | 2618 | FSR | -4.5 | NC | NC |
| JE-353845 | 82.50 | 10:1 | 22 | 29.6 | JE Round | NC | 2618 | Round | -4.5 | NC | NC |
| WK753M825 | 82.50 | 10:1 | 22 | 29.59 | Wiseco | Skirt | 2618 | NC | -4.5 | NC | 8250XX |
| DIA-38113-4 | 83.00 | 8.6:1 | 22 | 29.59 | Diamond | Skirt | 2618 | NC | -15.5 | NC | 9513268 |
| DIA-38113-4-H | 83.00 | 8.6:1 | 22 | 29.59 | Diamond HD | Skirt | 2618 | NC | -15.5 | NC | 9513268 |
| DIA-38115-4 | 83.00 | 9.1:1 | 22 | 29.59 | Diamond | Skirt | 2618 | NC | -11.5 | NC | 9513268 |
| DIA-38115-4-H | 83.00 | 9.1:1 | 22 | 29.59 | Diamond HD | Skirt | 2618 | NC | -11.5 | NC | 9513268 |
| JE-384219C*4 | 83.00 | 9.1:1 | 22 | 29.67 | JE | NC | NC | NC | -10.0 | NC | NC |
| JE-345815 | 83.00 | 9.6:1 | 22 | 29.6 | JE FSR | NC | 2618 | FSR | NC | NC | NC |
| JE-353850 | 83.00 | 9.6:1 | 22 | 29.6 | JE FSR | NC | 2618 | FSR | -7.8 | NC | NC |
| JE-345814 | 83.00 | 9.6:1 | 22 | 29.6 | JE Round | NC | 2618 | Round | -7.8 | NC | NC |
| WK755M83 | 83.00 | 9.6:1 | 22 | 29.59 | Wiseco | Skirt | 2618 | NC | -7.8 | NC | 8300XX |
| JE-353853 | 83.00 | 10:1 | 22 | 29.6 | JE FSR | NC | 2618 | FSR | -5.2 | NC | NC |
| JE-353846 | 83.00 | 10:1 | 22 | 29.6 | JE Round | NC | 2618 | Round | -5.2 | NC | NC |
| WK756M83 | 83.00 | 10:1 | 22 | 29.59 | Wiseco | Skirt | 2618 | NC | -5.2 | NC | 8300XX |
| DIA-38117-4 | 83.00 | 10.1:1 | 22 | 29.59 | Diamond | Skirt | 2618 | NC | -4.5 | NC | 9513268 |
| DIA-38117-4-H | 83.00 | 10.1:1 | 22 | 29.59 | Diamond HD | Skirt | 2618 | NC | -4.5 | NC | 9513268 |
| JE-353851 | 83.50 | 9.6:1 | 22 | 29.6 | JE FSR | NC | 2618 | FSR | -8.4 | NC | NC |
| JE-353848 | 83.50 | 9.6:1 | 22 | 29.6 | JE Round | NC | 2618 | Round | -8.4 | NC | NC |
| WK757M835 | 83.50 | 9.6:1 | 22 | 29.59 | Wiseco | Skirt | 2618 | NC | -8.4 | NC | 8350XX |
| JE-353854 | 83.50 | 10:1 | 22 | 29.6 | JE FSR | NC | 2618 | FSR | -5.8 | NC | NC |
| JE-353847 | 83.50 | 10:1 | 22 | 29.6 | JE Round | NC | 2618 | Round | -5.8 | NC | NC |
Compatibility (engine codes):
Original vehicles equipped with the 2.0 EA888 Gen2 :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Audi | A4 B8 2.0 TFSI | CDNB/CDNC | 180–211 hp | 2008 – 2013 |
| Audi | A5 8T 2.0 TFSI | CDNB/CDNC | 180–211 hp | 2008 – 2012 |
| Audi | Q5 8R 2.0 TFSI | CDNB/CDNC | 180–211 hp | 2009 – 2012 |
| SEAT | Exeo 2.0 TSI | CDNB | 200 hp | 2009 – 2013 |
| Volkswagen | Golf VI (Mk6) GTI 2.0 TSI | CCZB | 211 hp | 2009 – 2013 |
| Volkswagen | Passat B7 2.0 TSI | CCZ* | 160–211 hp | 2010 – 2014 |
| Volkswagen | Scirocco 2.0 TSI | CCZB | 200–211 hp | 2009 – 2014 |
| Volkswagen | Tiguan I (5N) 2.0 TSI | CCZ* | 170–211 hp | 2008 – 2015 |
| Škoda | Octavia II (1Z) vRS 2.0 TSI | CCZA/CCZB | 200–211 hp | 2009 – 2013 |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
