2.0L 16v - Cosworth YB N5
Manufacturers
2.0L 16v - Cosworth YB N5
View larger Warning: Last items in stock!
New product

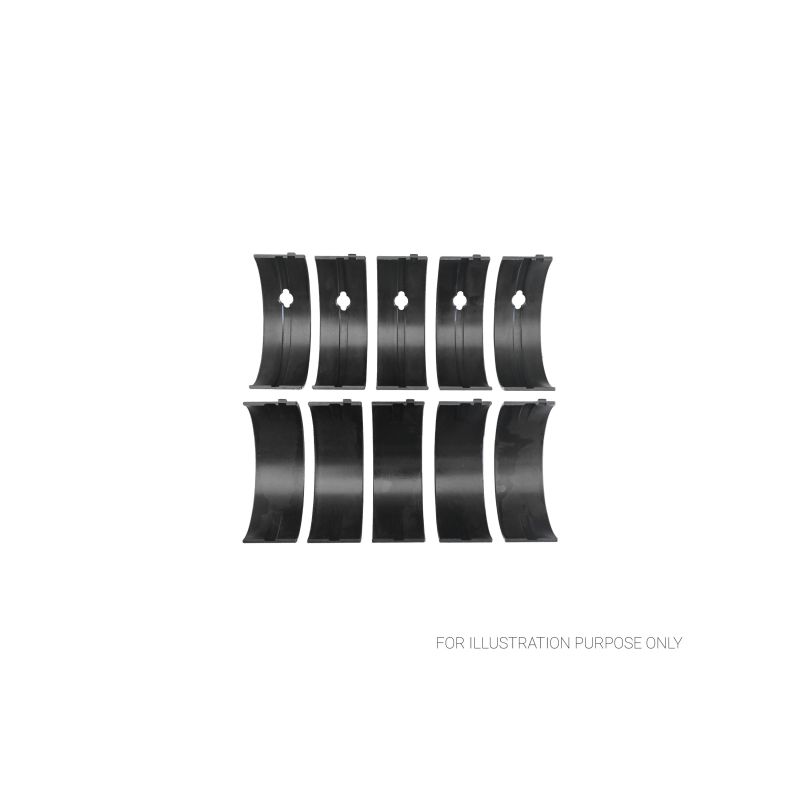

Set of 10 tri-metal crankshaft half bearings for the five main journals of Ford Cosworth YB engines (Ø 56.99 mm).
The Cosworth YB is Ford's turbocharged 2.0 litre 16-valve four-cylinder petrol engine, fitted to the Sierra RS Cosworth (rear-wheel drive and 4x4) and the Escort RS Cosworth (engine codes N5B, N5C, N5D, N5F, YBB and YBD). ACL lists main bearing set 5M2167H for the Ford Cosworth 2.0L: a single set covers these engines.

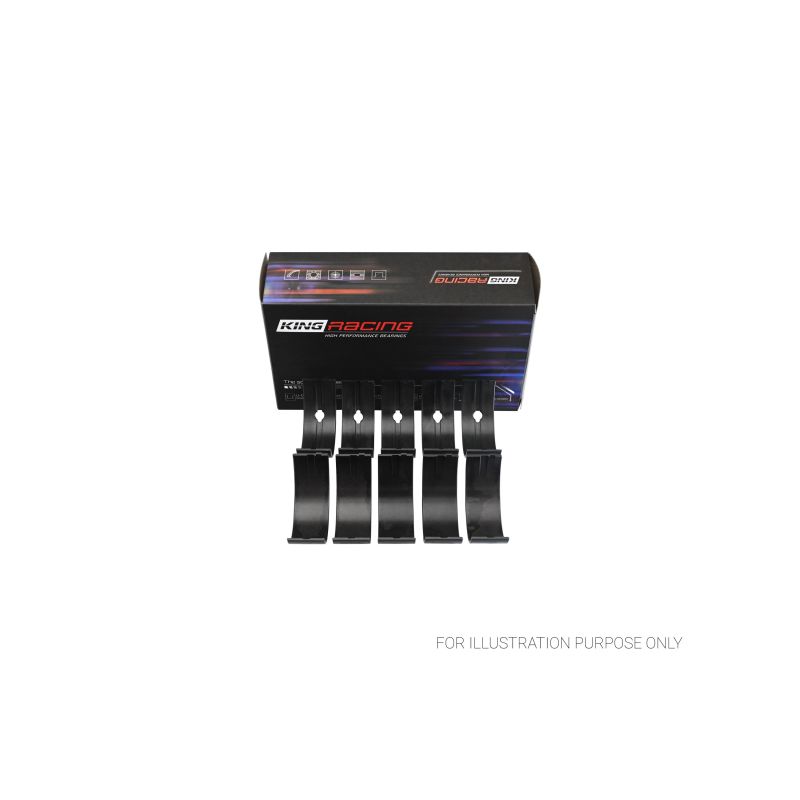

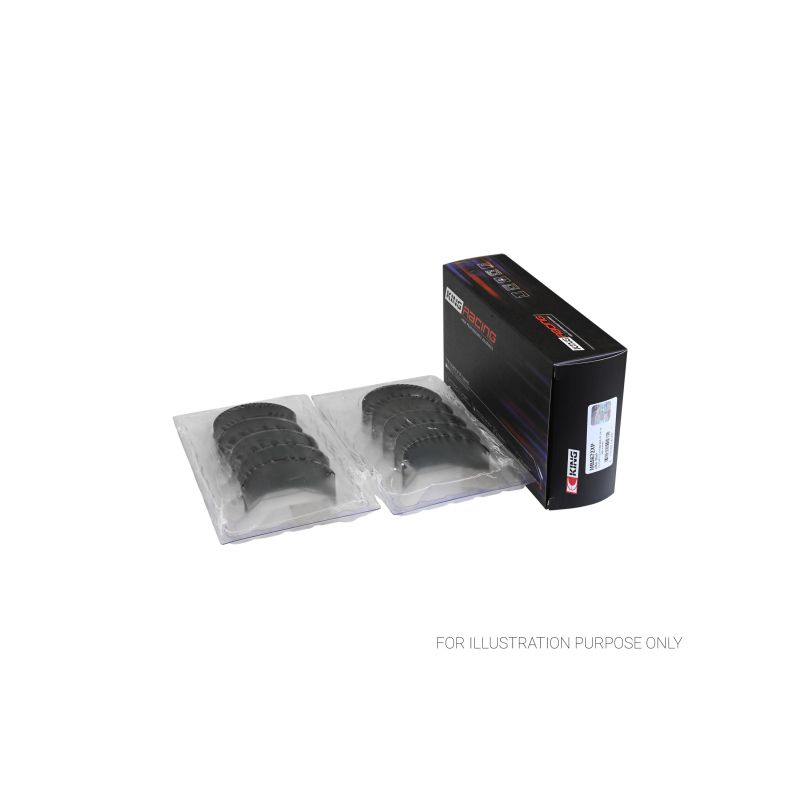

The crankshaft of these engines runs on five main bearings. Each journal turns between two half shells, one seated in the block and the other in the main bearing cap: they carry the crankshaft. The ACL Race Series and King Racing tri-metal sets shown here replace them on built engines.
A tri-metal bearing stacks three layers: a steel back, a copper-lead intermediate layer with high load capacity and an anti-friction running surface that protects the journal. The complete set contains 10 half shells, five pairs for five main bearings.
An aluminium bi-metal takes around 8,000 psi, a performance tri-metal up to 12,000 psi, 50% more. Hence better resistance and better durability on turbocharged, supercharged and high-revving engines.
| ACL bearings Crankshaft journal Ø 56.990 / 57.000 mm Housing bore Ø 60.620 / 60.640 mm Width 23.75 mm | King bearings Crankshaft journal Ø 56.99 / 57.00 mm Housing bore Ø 60.62 / 60.64 mm Width 23.7 mm |
| Reference | Brand and treatment | Size | Wall thickness (mm) |
|---|---|---|---|
| 5M2167H-STD | ACL Race - Untreated | Standard | 1.803 |
| 5M2167HX-STD | ACL Race - Untreated | Std, increased clearance (HX) | 1.79 |
| 5M2167H-.25 | ACL Race - Untreated | +0.25 | 1.928 |
| 5M2167H-.50 | ACL Race - Untreated | +0.50 | 2.053 |

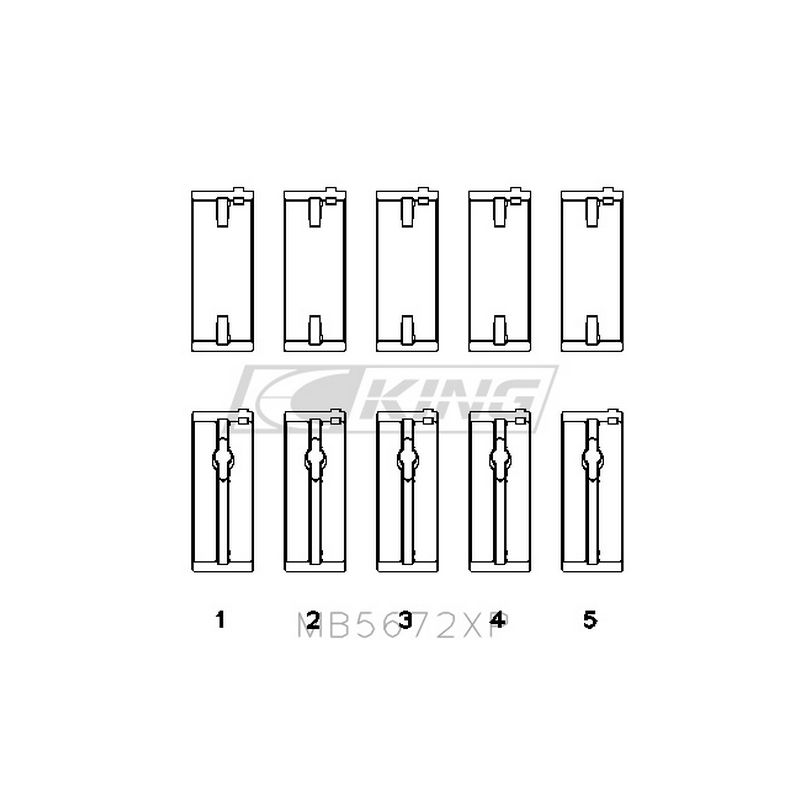

| MB5672XP | King Racing - Untreated | Standard | 1.801 |
| MB5672XP0.25 | King Racing - Untreated | +0.25 | 1.928 |
The running clearance is the gap between the bearing and the journal where the oil film flows.
In operation, the crankshaft journal does not rub against the bearing: it rides on this oil film, which carries the load. Clearance sets the thickness of this film: too tight, oil flows poorly, temperature rises and the risk of seizure increases; too loose, oil escapes, the film loses load-carrying capacity and oil pressure drops. The right clearance is the balance between adequate lubrication and a well-maintained oil film.
| Size / grade | When to choose it | ACL Race Series | King XP |
|---|---|---|---|
| Standard (STD) | Standard journal, not reground | 0.059 to 0.070 mm | 0.057 mm - 0.070 mm |
| Increased clearance (HX) | Wider clearance: high oil flow, high rpm | 0.084 to 0.095 mm | |
| +0.25 mm | Journal reground to 0.25 mm | 0.059 to 0.070 mm | 0.057 mm - 0.070 mm |
| +0.50 mm | Journal reground to 0.50 mm | 0.059 to 0.070 mm |
Check at assembly: lay a calibrated strip (Plastigauge) on the journal, tighten the main cap following the manufacturer's procedure, then compare the width of the crushed strip with the gauge to read the clearance.
The ACL and King main bearings shown here are trimetal bearings, designed for engine building and racing. Compared with an original bearing, they handle far higher loads: they cope with increased power, high rpm or the addition of a turbo or supercharger, where a standard bearing quickly reaches its limit.
 | ACL Bearing Company, an Australian manufacturer of high-performance engine bearings since 1949, offers with its Race Series precise tri-metal bearings, available in many sizes and proven on built engines worldwide. |
 | King Engine Bearings, an Israeli manufacturer of high-performance engine bearings since the 1960s, offers with its pMax Black tri-metal alloy bearings designed for heavy loads. |
| Criterion | ACL Race Series | King Racing |
| Cross-section |  |  |
| Type | High-performance trimetal bearing | High-performance trimetal bearing |
| Country of manufacture | Australia | Israel |
| Construction | Trimetal: steel back, copper layer, soft surface | Trimetal: steel back, copper layer, soft surface |
| Alloy | Race Series (copper-lead) | pMax Black (hardened copper-lead) |
| Protective coating | No | No |
| Available sizes | Standard to +0.50 mm (+ increased clearance HX) | Standard to +0.25 mm |
This main bearing set fits the following vehicles, according to the engine code:
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| FORD | SIERRA I Hatchback 2.0 4x4 | N5B, YBB | 204 hp | 1985–1987 |
| FORD | SIERRA II Hatchback 2.0 RS Cosworth / 2.0 RS500 Cosworth / 2.0 16V Cosworth / 2.0 16V Cosworth Cat 4x4 | N5B, N5C, N5D, YBB, YBD | 204–227 hp | 1987–1993 |
| FORD | ESCORT V (AAL, ABL) RS Cosworth 4x4 | N5F | 220 hp | 1991–1995 |
| FORD | ESCORT VI (GAL, AAL, ABL) RS Cosworth 4x4 | N5F | 220 hp | 1995–1998 |
