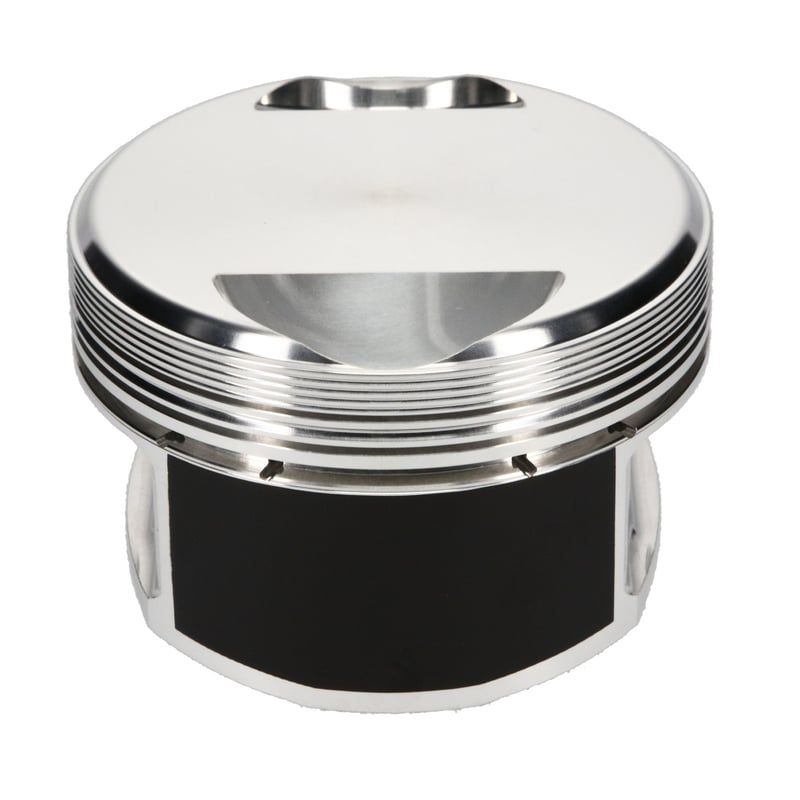

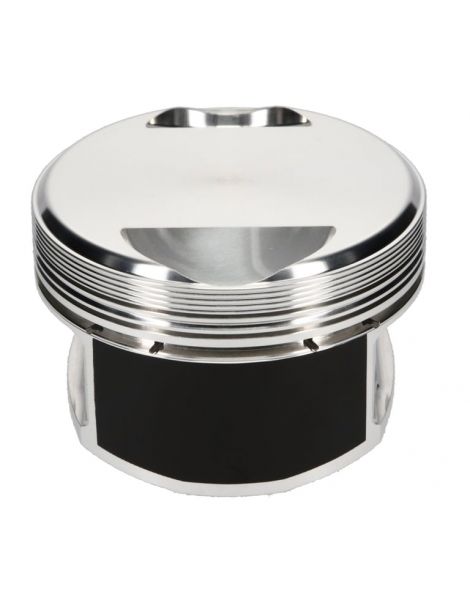

Forged pistons Porsche 930 Turbo 3.0: bore 95 mm, pin 22 mm, CR 6.5:1. Sorted table bore/CR/range, compatibilities 930/50/51/52/53, vehicles 1975-1977 and OEM references 930.103.958.01/.90.
Specifications of the forged pistons offered by NSB Concept for Porsche 911 Turbo 3.0 (930) 1975–1977 :
| Reference | OEM Bore 95,00 mm | OEM CR 6,5 :1 | OEM Pin 22 mm | Height OEM Pin 34,00 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-353242 | 95 | 6.5:1 | 22 | 33.9 | JE Round | NC | 2618.0 | Round | 6.5 | NC | NC |
| K9289DA | 95 | 6.5:1 | 22 | 34.0 | Wossner | NC | NC | Round | 4.2 | NC | 950XTY |
| JE-353243 | 95 | 7:1 | 22 | 33.9 | JE Round | NC | 2618.0 | Round | 14.0 | NC | NC |
| JE-353244 | 98 | 7:1 | 22 | 33.9 | JE Round | NC | 2618.0 | Round | 9.1 | NC | NC |
| JE-353245 | 98 | 7.5:1 | 22 | 33.9 | JE Round | NC | 2618.0 | Round | 15.9 | NC | NC |
Compatibility (engine codes):
Original vehicles equipped with the flat‑6 3.0 Turbo :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Porsche | 911 Turbo 3.0 (US) | 930/53 | 245 hp | 1977 |
| Porsche | 911 Turbo 3.0 Coupé (RoW) | 930/50 | 260 hp | 1975 – 1976 |
| Porsche | 911 Turbo 3.0 Coupé (RoW) | 930/52 | 260 hp | 1977 |
| Porsche | 911 Turbo Carrera (US) | 930/51 | 245 hp | 1976 |
OEM piston references :
Piston and cylinder kit for 3.0 Turbo 95.0 mm (6.5:1): 930.103.958.01 (MAHLE, Nikasil); other part number shown is 930.103.958.90 (packaging/equivalence). Check by VIN/Catalog.
*Part numbers may vary depending on the model year and market. Always confirm via the catalog (Porsche catalog) using the VIN.
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
