Dual-channel ignition module

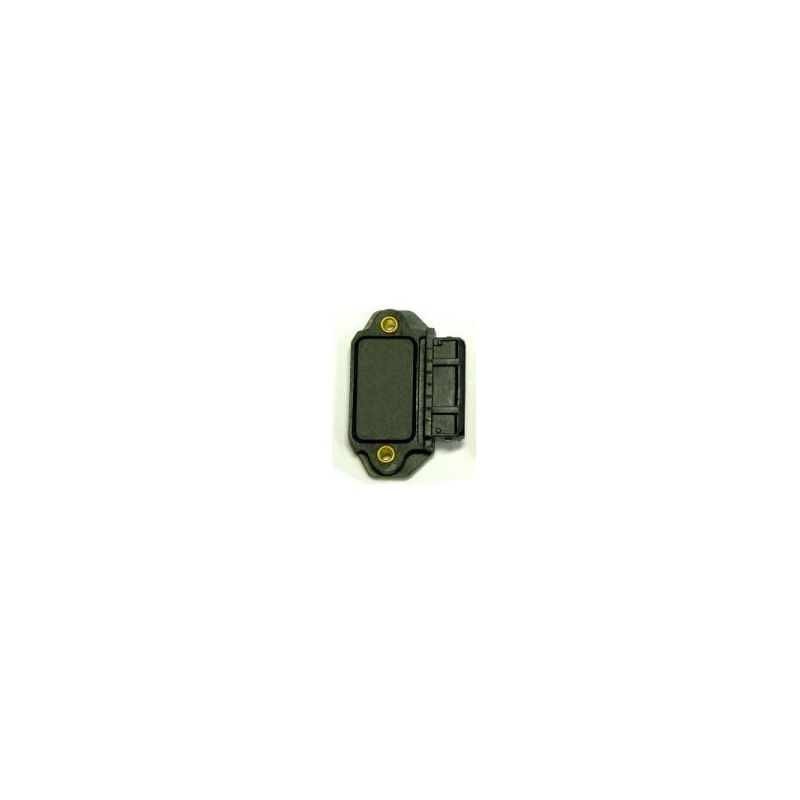

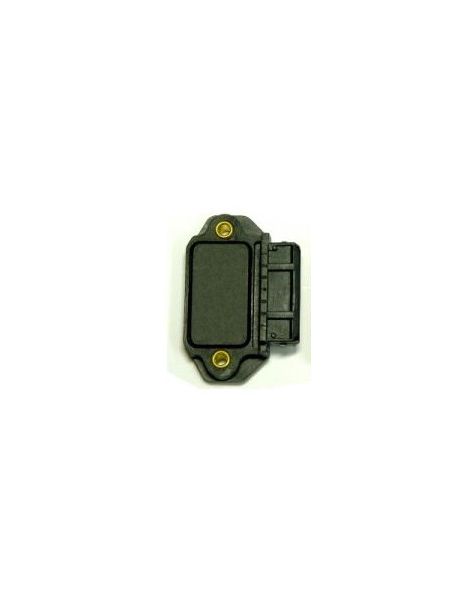

MTR04 Dual-Way Ignition Module

Wiring:

• POSITION 1 : output channel 1 ---> to coil (cylinders 1 and 4)

• POSITION 2 : input channel 1 ---> coming from the ECU

• POSITION 3 : not used

• POSITION 4 : ground 1.5 mm wire on ENGINE BLOCK

• POSITION 5 : not used

• POSITION 6 : output channel 2 ---> to coil channel 2 (cylinders 2 and 3)

• POSITION 7 : input channel 2 ---> coming from the ECU
