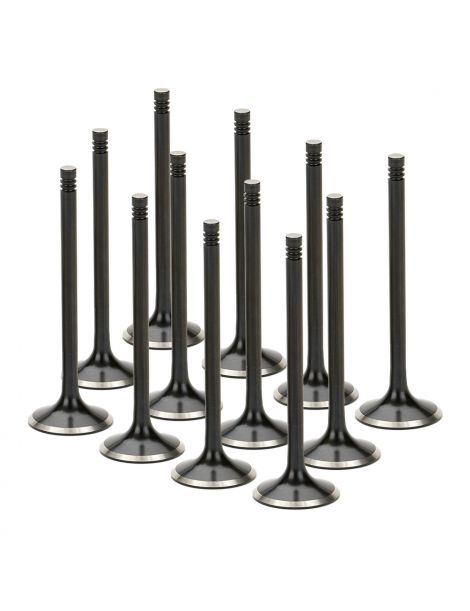

Reinforced exhaust valves BMW M3 E46 Z3M Z4M S54B32

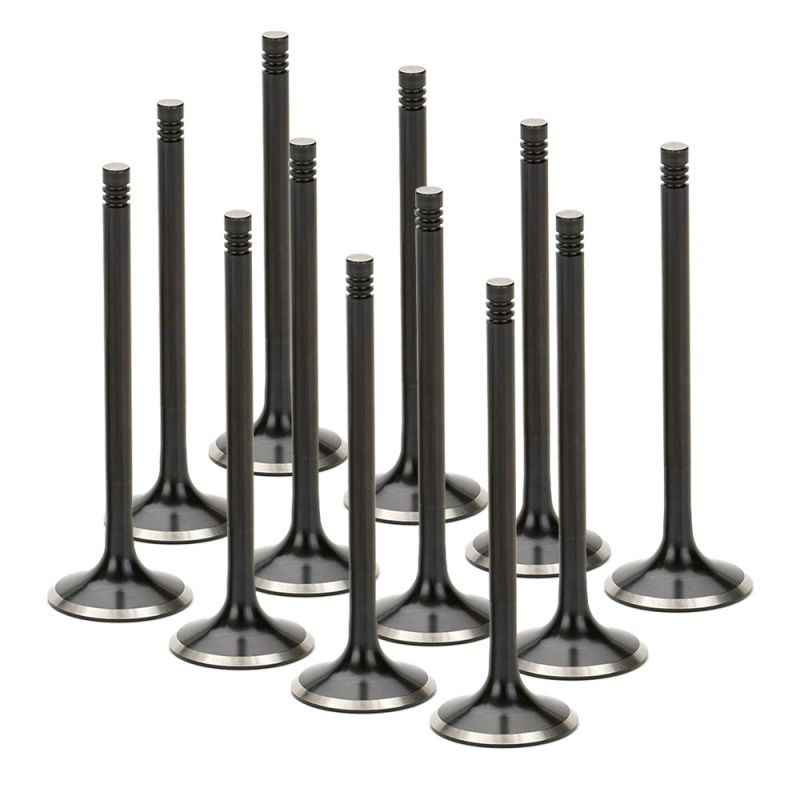

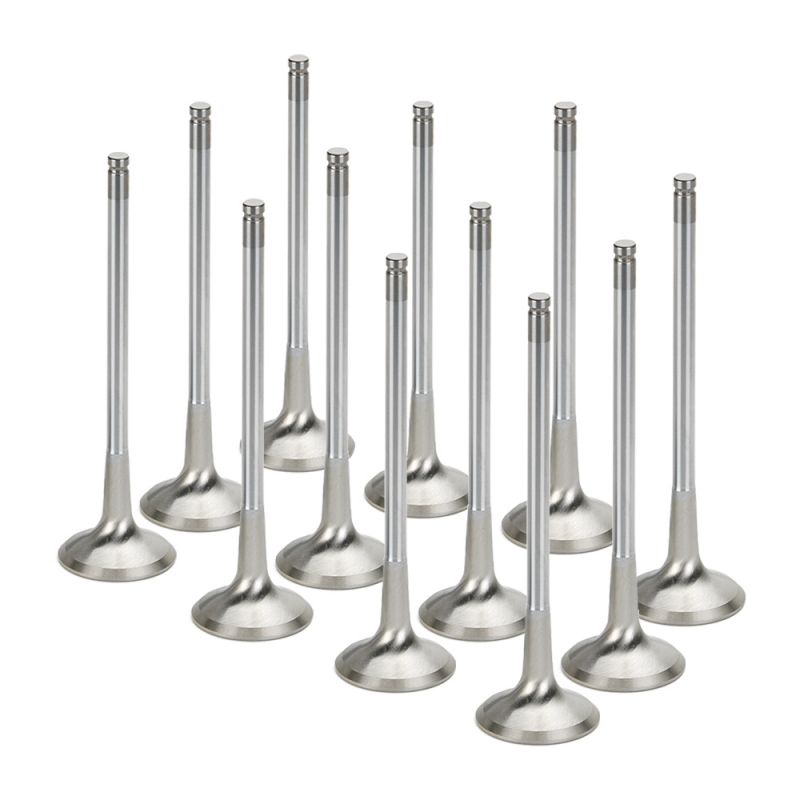

The SUPERTECH and FERREA exhaust valve kits for S54B32 engine are composed of 12 valves.

Find below (click on the images) accessories for BMW engines S54:

- -

-

Technical characteristics-

• Valve head diameter: 30.50mm (original) or 31.50mm (+1mm)
• Valve stem diameter: 5.95mm
• Valve length: 118.85mm or 119.10mm
• Material: stainless steel or inconel
• Number of groove(s): 1 or 3

SUPERTECH valves are manufactured from a forged part which is then machined by numerical control for optimal precision. They then receive a heat treatment (different depending on the application of the valve) and are ground again (Super-finishing process). SUPERTECH valves are controlled by different means such as ultrasound, There are therefore different valve materials such as stainless steel, inconel, titanium, sodium (the latter is present in the valve stem and allows better heat dissipation). technical-

• Valve head diameter: 30.50mm (origin)
• Valve stem diameter: 5.96mm
• Valve length: 119.20mm
• Material: stainless steel
• Number of groove(s): 3

The manufacturing processes for FERREA Racing Components valves are similar to those of SUPERTECH: slow forging in two stages, heat treatment and relaxation over 48 hours and machining by numerical control. These valves are designed to obtain better reliability in all circumstances but also to improve the flow with a thinner stem at the valve head (Superflow Valve). FERREA develops different ranges/materials of valves in order to respond as closely as possible to the constraints of each engine and each application (atmo, turbo, nitro preparation, etc.).
