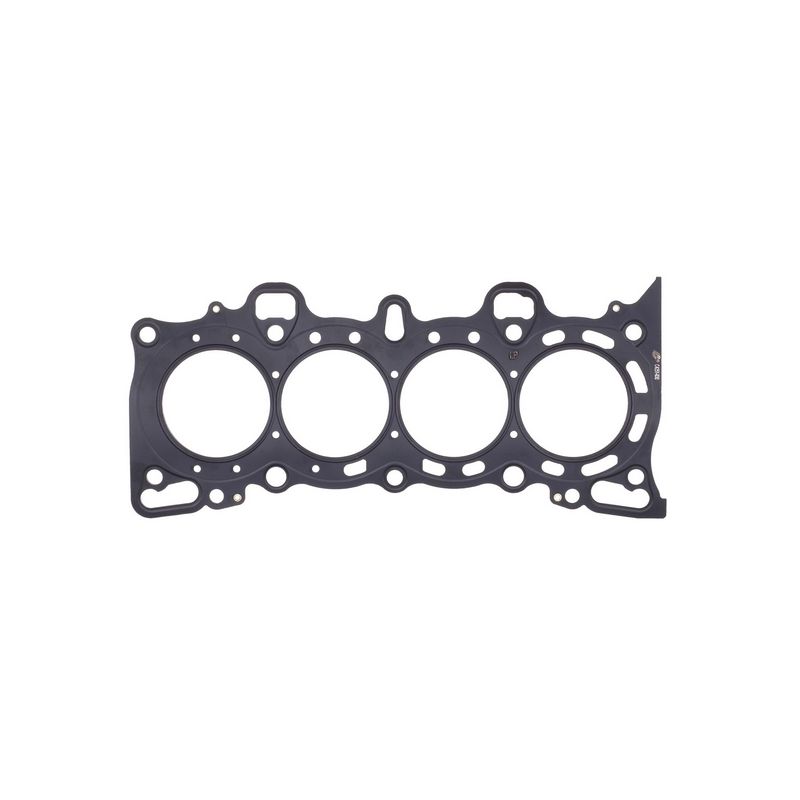

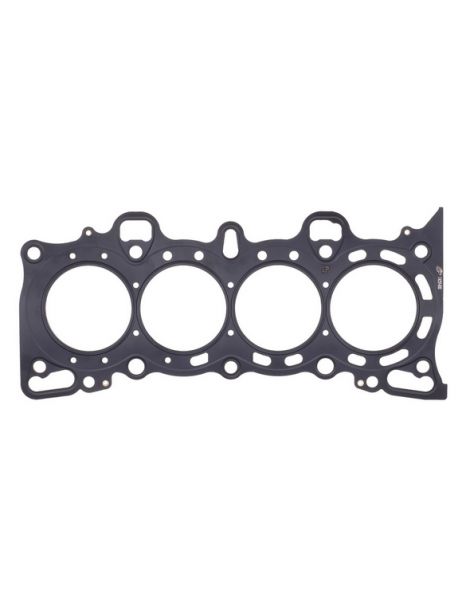

Reinforced Athena and Cometic head gasket, in MLS and MLX for SOHC D16. Sold individually.
The Honda D16 is the 1.6-litre 16-valve SOHC inline four-cylinder petrol engine of the Civic V and VI and the CRX III; the D15Z1 is its 1.5-litre version. This page covers the D15Z1, D16Y5, D16Y7, D16Y8 and D16Z6: these engines take the same reinforced cylinder head gaskets.
The original gasket carries part number 12251-P08-004 on the D15Z1 and D16Z6, and 12251-P2J-004 on the D16Y8. It is a multi-layer steel (MLS) gasket with a 76 mm bore, whose thickness Honda does not publish. It is sized for standard combustion pressure: when that pressure rises, clamping load drops, the cylinder head lifts, and coolant passes into a cylinder.
A cylinder head gasket does not create the seal on its own: it holds because the fasteners clamp the head against the block. A composite gasket is crushed for good beyond 100 N/mm² of admissible stress, whereas the 301 stainless steel of the MLS and MLX gaskets withstands 517 N/mm², 5 times more, and springs back at every combustion.
This page brings together the part numbers from two racing manufacturers, Athena and Cometic, in three constructions: Athena MLS with Gas Stopper, Cometic MLS multi-layer steel and Cometic MLX with a chamber stopper. Gasket bores run from 75.5 to 79 mm, covering the standard block as well as the rebored block, and thicknesses from 0.69 to 3.56 mm, enough to adjust the compression ratio without touching the pistons or the cylinder head. As a rule, the gasket bore chosen is at least 0.5 mm larger than the actual cylinder bore. Each part number is sold individually, one gasket per engine.
| Gasket bore OEM 76 mm | Thickness | Gasket volume | Gasket type OEM MLS | Brand | Part number OEM 12251-P08-004 |
| 75.5 mm | 0.69 mm | 3.09 | MLS | Cometic | C4251-027 |
| 75.5 mm | 0.76 mm | 3.40 | MLS | Cometic | C4251-030 |
| 75.5 mm | 0.91 mm | 4.07 | MLS | Cometic | C4251-036 |
| 75.5 mm | 1.02 mm | 4.57 | MLS | Cometic | C4251-040 |
| 75.5 mm | 1.14 mm | 5.10 | MLS | Cometic | C4251-045 |
| 75.5 mm | 1.30 mm | 5.82 | MLS | Cometic | C4251-051 |
| 75.5 mm | 1.42 mm | 6.36 | MLS | Cometic | C4251-056 |
| 75.5 mm | 1.52 mm | 6.80 | MLS | Cometic | C4251-060 |
| 75.5 mm | 1.68 mm | 7.52 | MLS | Cometic | C4251-066 |
| 75.5 mm | 1.78 mm | 7.97 | MLS | Cometic | C4251-070 |
| 75.5 mm | 1.91 mm | 8.55 | MLS | Cometic | C4251-075 |
| 75.5 mm | 2.03 mm | 9.09 | MLS | Cometic | C4251-080 |
| 75.5 mm | 2.13 mm | 9.54 | MLS | Cometic | C4251-084 |
| 75.5 mm | 2.18 mm | 9.76 | MLS | Cometic | C4251-086 |
| 75.5 mm | 2.34 mm | 10.48 | MLS | Cometic | C4251-092 |
| 75.5 mm | 2.49 mm | 11.15 | MLS | Cometic | C4251-098 |
| 75.5 mm | 3.05 mm | 13.65 | MLS | Cometic | C4251-120 |
| 75.5 mm | 3.56 mm | 15.94 | MLS | Cometic | C4251-140 |
| 76 mm | 0.69 mm | 3.13 | MLS | Cometic | C4195-027 |
| 76 mm | 0.76 mm | 3.45 | MLS | Cometic | C4195-030 |
| 76 mm | 0.85 mm | 3.86 | MLS | Athena | 338112R |
| 76 mm | 0.91 mm | 4.13 | MLS | Cometic | C4195-036 |
| 76 mm | 1.02 mm | 4.63 | MLS | Cometic | C4195-040 |
| 76 mm | 1.14 mm | 5.17 | MLS | Cometic | C4195-045 |
| 76 mm | 1.30 mm | 5.90 | MLS | Cometic | C4195-051 |
| 76 mm | 1.42 mm | 6.44 | MLS | Cometic | C4195-056 |
| 76 mm | 1.52 mm | 6.90 | MLS | Cometic | C4195-060 |
| 76 mm | 1.68 mm | 7.62 | MLS | Cometic | C4195-066 |
| 76 mm | 1.78 mm | 8.07 | MLS | Cometic | C4195-070 |
| 76 mm | 1.91 mm | 8.66 | MLS | Cometic | C4195-075 |
| 76 mm | 2.03 mm | 9.21 | MLS | Cometic | C4195-080 |
| 76 mm | 2.13 mm | 9.66 | MLS | Cometic | C4195-084 |
| 76 mm | 2.18 mm | 9.89 | MLS | Cometic | C4195-086 |
| 76 mm | 2.34 mm | 10.62 | MLS | Cometic | C4195-092 |
| 76 mm | 2.49 mm | 11.30 | MLS | Cometic | C4195-098 |
| 76 mm | 3.05 mm | 13.84 | MLS | Cometic | C4195-120 |
| 76 mm | 3.56 mm | 16.15 | MLS | Cometic | C4195-140 |
| 77 mm | 0.69 mm | 3.21 | MLS | Cometic | C4196-027 |
| 77 mm | 0.76 mm | 3.54 | MLS | Cometic | C4196-030 |
| 77 mm | 0.85 mm | 3.96 | MLS | Athena | 338113R |
| 77 mm | 0.91 mm | 4.24 | MLS | Cometic | C4196-036 |
| 77 mm | 1.02 mm | 4.75 | MLS | Cometic | C4196-040 |
| 77 mm | 1.14 mm | 5.31 | MLS | Cometic | C4196-045 |
| 77 mm | 1.30 mm | 6.05 | MLS | Cometic | C4196-051 |
| 77 mm | 1.42 mm | 6.61 | MLS | Cometic | C4196-056 |
| 77 mm | 1.52 mm | 7.08 | MLS | Cometic | C4196-060 |
| 77 mm | 1.68 mm | 7.82 | MLS | Cometic | C4196-066 |
| 77 mm | 1.78 mm | 8.29 | MLS | Cometic | C4196-070 |
| 77 mm | 1.91 mm | 8.89 | MLS | Cometic | C4196-075 |
| 77 mm | 2.03 mm | 9.45 | MLS | Cometic | C4196-080 |
| 77 mm | 2.13 mm | 9.92 | MLS | Cometic | C4196-084 |
| 77 mm | 2.18 mm | 10.15 | MLS | Cometic | C4196-086 |
| 77 mm | 2.34 mm | 10.90 | MLS | Cometic | C4196-092 |
| 77 mm | 2.49 mm | 11.59 | MLS | Cometic | C4196-098 |
| 77 mm | 3.05 mm | 14.20 | MLS | Cometic | C4196-120 |
| 77 mm | 3.56 mm | 16.58 | MLS | Cometic | C4196-140 |
| 78 mm | 0.69 mm | 3.30 | MLS | Cometic | C4167-027 |
| 78 mm | 0.76 mm | 3.63 | MLS | Cometic | C4167-030 |
| 78 mm | 0.85 mm | 4.06 | MLS | Athena | 338114R |
| 78 mm | 0.91 mm | 4.35 | MLS | Cometic | C4167-036 |
| 78 mm | 1.02 mm | 4.87 | MLS | Cometic | C4167-040 |
| 78 mm | 1.14 mm | 5.45 | MLS | Cometic | C4167-045 |
| 78 mm | 1.30 mm | 6.21 | MLS | Cometic | C4167-051 |
| 78 mm | 1.42 mm | 6.79 | MLS | Cometic | C4167-056 |
| 78 mm | 1.52 mm | 7.26 | MLS | Cometic | C4167-060 |
| 78 mm | 1.68 mm | 8.03 | MLS | Cometic | C4167-066 |
| 78 mm | 1.78 mm | 8.51 | MLS | Cometic | C4167-070 |
| 78 mm | 1.91 mm | 9.13 | MLS | Cometic | C4167-075 |
| 78 mm | 2.03 mm | 9.70 | MLS | Cometic | C4167-080 |
| 78 mm | 2.13 mm | 10.18 | MLS | Cometic | C4167-084 |
| 78 mm | 2.18 mm | 10.42 | MLS | Cometic | C4167-086 |
| 78 mm | 2.34 mm | 11.18 | MLS | Cometic | C4167-092 |
| 78 mm | 2.49 mm | 11.90 | MLS | Cometic | C4167-098 |
| 78 mm | 3.05 mm | 14.57 | MLS | Cometic | C4167-120 |
| 78 mm | 3.56 mm | 17.01 | MLS | Cometic | C4167-140 |
| 79 mm | 0.69 mm | 3.38 | MLS | Cometic | C4197-027 |
| 79 mm | 0.76 mm | 3.73 | MLS | Cometic | C4197-030 |
| 79 mm | 0.81 mm | 3.97 | MLX | Cometic | C14134-032 |
| 79 mm | 0.91 mm | 4.46 | MLS | Cometic | C4197-036 |
| 79 mm | 1.02 mm | 5.00 | MLS | Cometic | C4197-040 |
| 79 mm | 1.02 mm | 5.00 | MLX | Cometic | C14134-040 |
| 79 mm | 1.14 mm | 5.59 | MLS | Cometic | C4197-045 |
| 79 mm | 1.30 mm | 6.37 | MLS | Cometic | C4197-051 |
| 79 mm | 1.42 mm | 6.96 | MLS | Cometic | C4197-056 |
| 79 mm | 1.52 mm | 7.45 | MLS | Cometic | C4197-060 |
| 79 mm | 1.68 mm | 8.23 | MLS | Cometic | C4197-066 |
| 79 mm | 1.78 mm | 8.72 | MLS | Cometic | C4197-070 |
| 79 mm | 1.91 mm | 9.36 | MLS | Cometic | C4197-075 |
| 79 mm | 2.03 mm | 9.95 | MLS | Cometic | C4197-080 |
| 79 mm | 2.13 mm | 10.44 | MLS | Cometic | C4197-084 |
| 79 mm | 2.18 mm | 10.69 | MLS | Cometic | C4197-086 |
| 79 mm | 2.34 mm | 11.47 | MLS | Cometic | C4197-092 |
| 79 mm | 2.49 mm | 12.21 | MLS | Cometic | C4197-098 |
| 79 mm | 3.05 mm | 14.95 | MLS | Cometic | C4197-120 |
| 79 mm | 3.56 mm | 17.45 | MLS | Cometic | C4197-140 |
Gasket volume: the space the gasket leaves above each cylinder. It enlarges the combustion chamber, and the larger it is, the lower the compression ratio. Values compare with one another at identical gasket bore.
| Fasteners | Engines | Tightening torque |
| Original cylinder head bolts 90005-PM3-003, M11 | D15Z1, D16Y8, D16Z6 | Not published |
| ARP cylinder head studs ARP-208-4305 | D16Y8 | 27 Nm, then 54 Nm, then 81 Nm |
Before fitting, check the flatness of the cylinder head and of the block with a straight edge and have them skimmed if necessary. None of these gaskets requires sealant: Athena and Cometic both supply them already coated.
| Reinforced ARP cylinder head studs D16Y8 → |
 | Athena MLS Two to five layers of AISI 301 stainless steel, laser cut, stamped and riveted. Around each cylinder, a layer folded over on itself, the Gas Stopper, concentrates the clamping load on the combustion chamber, while beads seal the water and oil passages. The outer layers receive a two-coat finish: the first withstands high temperatures and fills small irregularities on the block and cylinder head, the second, silicone based, keeps the gasket from sticking on disassembly. This is Athena's all-steel choice, from a prepared naturally aspirated engine to moderate forced induction. |
 | Cometic MLS Several stamped and riveted stainless steel layers. The outer layers carry active beads around each cylinder and each fluid passage. Sealing is achieved with a moderate clamping load and limited bore distortion. This is the versatile choice, from a prepared naturally aspirated engine to light forced induction. |
 | Cometic MLX The same base as the MLS, with a folded centre layer forming a stopper around the combustion chamber and a high-temperature coating. Local clamping increases without adding bore distortion. It is the most resistant of the all-steel gaskets, to be chosen when boost goes beyond what an MLS can hold, in 79 mm. |
Gasket bore. The Athena MLS comes in 76, 77 and 78 mm, the Cometic MLS in 75.5, 76, 77, 78 and 79 mm, the Cometic MLX in 79 mm.
Thickness. Honda does not publish the thickness of the original gasket. A thicker gasket enlarges the combustion chamber and lowers the compression ratio; a thinner one reduces it and raises the ratio.
| Your goal | Thickness to choose |
| Keep the original compression ratio | The value closest to the thickness of the removed gasket |
| Skimmed cylinder head, make up the lost height | The thickness of the removed gasket + what was removed |
| Forced induction build, lower the ratio | A thickness above that of the removed gasket |
| Naturally aspirated build, raise the ratio | A thickness below that of the removed gasket |
With a thickness finer than that of the removed gasket, measure piston protrusion above the block with a dial gauge: it is what determines the remaining clearance between piston and cylinder head.
 | Athena S.p.A. is an Italian manufacturer of engine gaskets and components, with its head office and main plant in Alonte, in the Veneto region. The group also produces in Spain, the United States, Brazil and India. Its multi-layer gaskets are fitted as original equipment by car manufacturers, and its racing range is designed and made entirely in Italy. |
 | Cometic Gasket, Inc. is an American manufacturer of engine gaskets and sealing solutions, founded in 1989 and based in Concord, Ohio. Its speciality is the made-to-order gasket, in the bore and thickness required. All its products are made in the United States, from American materials. |
| Criterion | Original gasket 12251-P08-004 | Reinforced gaskets |
| Construction | Multi-layer steel (MLS) | Multi-layer stainless steel |
| Gasket bore | 76 mm | 75.5 to 79 mm |
| Thicknesses available | Not published by Honda | 0.69 to 3.56 mm, 20 values |
| Compression ratio adjustment | None | Through the thickness chosen |
| Resistance to overpressure | Limited to standard output | Designed for forced induction |
| Model | Engine code | Power | Years |
| Acura EL | D16Y8 | 129 hp | 1996-2000 |
| Honda Civic V (EG, EH) | D15Z1 | 90, 94, 101 and 120 hp | 1991-1995 |
| Honda Civic V (EG, EH) | D16Z6 | 125 and 131 hp | 1991-1995 |
| Honda Civic VI (EJ, EK) | D16Y5 | 114 and 125 hp | 1995-2001 |
| Honda Civic VI (EJ, EK) | D16Y7 | 106 and 107 hp | 1995-2000 |
| Honda Civic VI (EJ, EK) | D16Y8 | 125 and 129 hp | 1995-2001 |
| Honda Civic VI Coupé (EJ, EM1) | D16Y5 | 117 hp | 1997-1999 |
| Honda Civic VI Coupé (EJ, EM1) | D16Y7 | 105 and 107 hp | 1996-2000 |
| Honda Civic VI Coupé (EJ, EM1) | D16Y8 | 118, 125 and 129 hp | 1996-2000 |
| Honda CRX III (EH, EG) | D16Y7 | 107 hp | 1995-1996 |
| Honda CRX III (EH, EG) | D16Y8 | 125 and 129 hp | 1992-1998 |
| Honda CRX III (EH, EG) | D16Z6 | 125 and 128 hp | 1992-1998 |
OEM part number: 12251-P08-004 (D15Z1, D16Z6), 12251-P2J-004 (D16Y8).
Important: the SOHC D15B and D16A6 of the Civic IV and V, as well as the DOHC D16A1 and D16A9, take other cylinder head gaskets: they are not covered by this page.
A reinforced gasket holds where the standard one reaches its limit: at higher combustion pressure it keeps its shape instead of being crushed.
As soon as power goes up, turbo, supercharger or raised compression ratio, the head gasket becomes the weak link of the top end. Switching to a reinforced gasket is then not a comfort but a safeguard: it is what prevents the failure and the head removal that comes with it.
