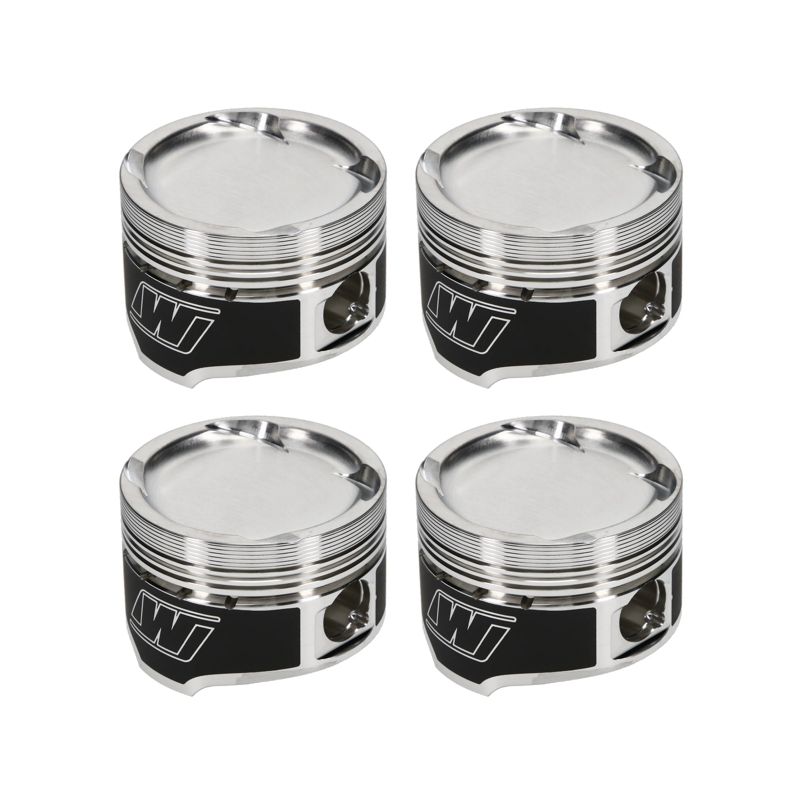

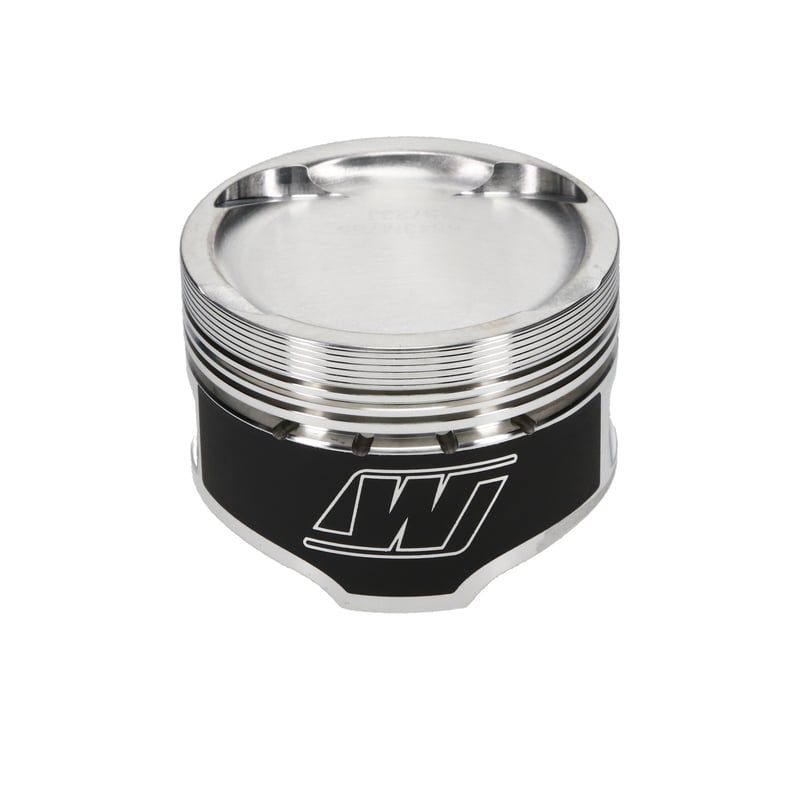

Forged pistons Honda D16Y8 (Civic EX, of Sol Si) Bores 75 76mm, CR OEM 8 11.9:1, Pin19mm. Ranges Wiseco & Wossner. Technical sheet + compatibilities + OEM references.
Specifications of the forged pistons offered by NSB Concept for Honda 1.6 L 16 v D16Y8 :
| Reference piston | Bore (mm)OEM 75 | CROEM 8,5 :1 | pin (mm)OEM 19 | Height pin (mm)OEM 29,2 | Range | Aluminium | Coating | Forging | Dome (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9085DA | 75 | 8 :1 | 19 | 29,2 | Wossner | NC | NC | NC | -3,25 | NC | 750XTZ |
| WK543M75 | 75 | 8,5 :1 | 19 | 29,15 | Wiseco | 2618 | Skirt | NC | -14 | NC | 7500XX |
| K9207DA | 75 | 8,5 :1 | 19 | 29,2 | Wossner | NC | NC | NC | -4 | NC | 750XTZ |
| K9427DA | 75 | 9 :1 | 19 | 29,3 | Wossner | NC | NC | Round | -11,75 | NC | 750XTZ |
| K9206DA | 75 | 11,6 :1 | 19 | 29,2 | Wossner | NC | NC | NC | 9,8 | NC | 750XDS |
| K9085D050 | 75,5 | 8,1 :1 | 19 | 29,2 | Wossner | NC | NC | NC | -3,25 | NC | 755XTZ |
| WK543M755 | 75,5 | 8,5 :1 | 19 | 29,15 | Wiseco | 2618 | Skirt | NC | -14 | NC | 7550XX |
| K9207D050 | 75,5 | 8,6 :1 | 19 | 29,2 | Wossner | NC | NC | NC | -4 | NC | 755XTZ |
| K9427D050 | 75,5 | 9,1 :1 | 19 | 29,3 | Wossner | NC | NC | Round | -11,75 | NC | 755XTZ |
| K9206D050 | 75,5 | 11,7 :1 | 19 | 29,2 | Wossner | NC | NC | NC | 9,8 | NC | 755XDS |
| K9085D100 | 76 | 8,2 :1 | 19 | 29,2 | Wossner | NC | NC | NC | -3,25 | NC | 760XTZ |
| K9207D100 | 76 | 8,7 :1 | 19 | 29,2 | Wossner | NC | NC | NC | -4 | NC | 760XTZ |
| K9427D100 | 76 | 9,2 :1 | 19 | 29,3 | Wossner | NC | NC | Round | -11,75 | NC | 760XTZ |
| K9206D100 | 76 | 11,9 :1 | 19 | 29,2 | Wossner | NC | NC | NC | 9,8 | NC | 760XDS |
Compatibility engine :
| Brand | Model | Chassis | Engine code | Power (ch) | Years |
|---|---|---|---|---|---|
| Honda | Civic VI EX | EJ8 | D16Y8 | 127 | 1996 – 2000 |
| Honda | CR‑X del Sol Si | EH6 | D16Y8 | 127 | 1996 – 1997 |
Manufacturer piston references (OEM):
13010‑P2P‑000 ; piston set (O/S 0,25) : 13020‑P2P‑000.13010‑P2P‑000 ; piston set (O/S 0,25) : 13020‑P2P‑000.Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
