Reinforced valve springs HONDA D15B D16Y6/7/8 D16Z6 D17A

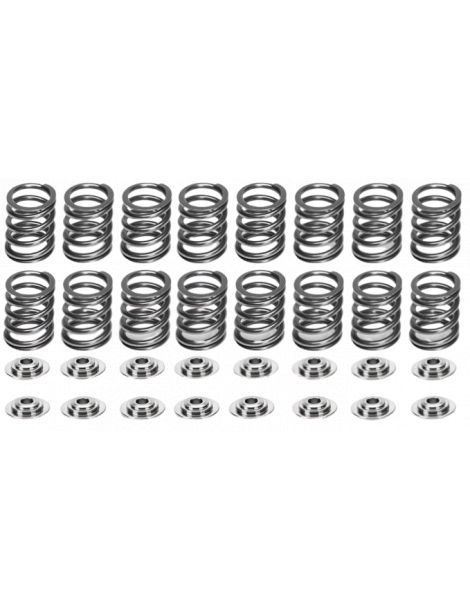

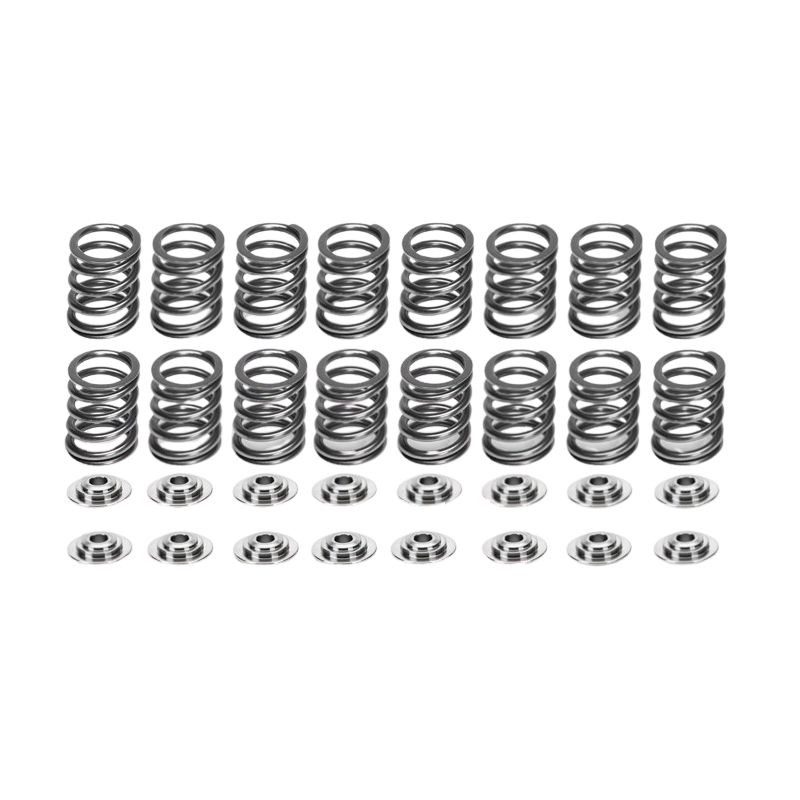

The reinforced springs kit SUPERTECHis composed of 16 double springs with cups for HONDA D15B D16Y7 D16Y8 D16Z6 D17A:

• HONDA CIVIC VI 1.6 (EK1) 107hp D16Y7
• HONDA CRX III 1.6 i (EG1) 107hp D16Y7
• HONDA CIVIC VI 1.6 (EJ8) 118hp D16Y8
• HONDA CIVIC VI 1.6 i Vtec (EM1) 125hp D16Y8
• HONDA CIVIC VI 1.6 i Vtec (EJ8) 129hp D16Y8
• HONDA CRX III 1.6 Si (EH6) 129hp D16Y8
• HONDA CIVIC V 1.6 (EG5) 125hp D16Z6
• HONDA CRX III 1.6 Si (EH6) 128hp D16Z6
• HONDA Civic VII 1.7 (EU3,EU4) 131hp D17A1
• HONDA Civic VII 1.7 (EM2,ES1) 130hp D17A2
• HONDA Civic VII 1.7 (EK9) 125hp D17A6,
• HONDA Civic VII 1.7 (ES1) 120hp D17Z1

Technical characteristics

Seat pressure: 60 to 49.5
Opening pressure: 166 to 12.5
Max lift: 14.90mm
Coil connection: 34.60 mm
External diameter of the outer spring: 22.70 mm
Outer diameter of inner spring: single
Internal diameter of the inner spring: single
Rate: 8.5
Spring kit: SPR-H1002S-ST
Quantity of Springs in the kit: 16
Restraint device: RET-H1002-ST
Internal diameter of the external spring: 15.20 mm

Supertech Valve Springs are made from high quality chrome silicon vanadium steel alloy. This alloy has the advantage of offering superior performance and reliability, especially at high revs, and has better structural memory. Supertech Reinforced Valve Springs are computer designed to ensure harmonics remain under control and stress levels remain within material fatigue diagrams.

The Supertech cups are made of titanium alloy and machined by numerical control in order to obtain the best fit.
