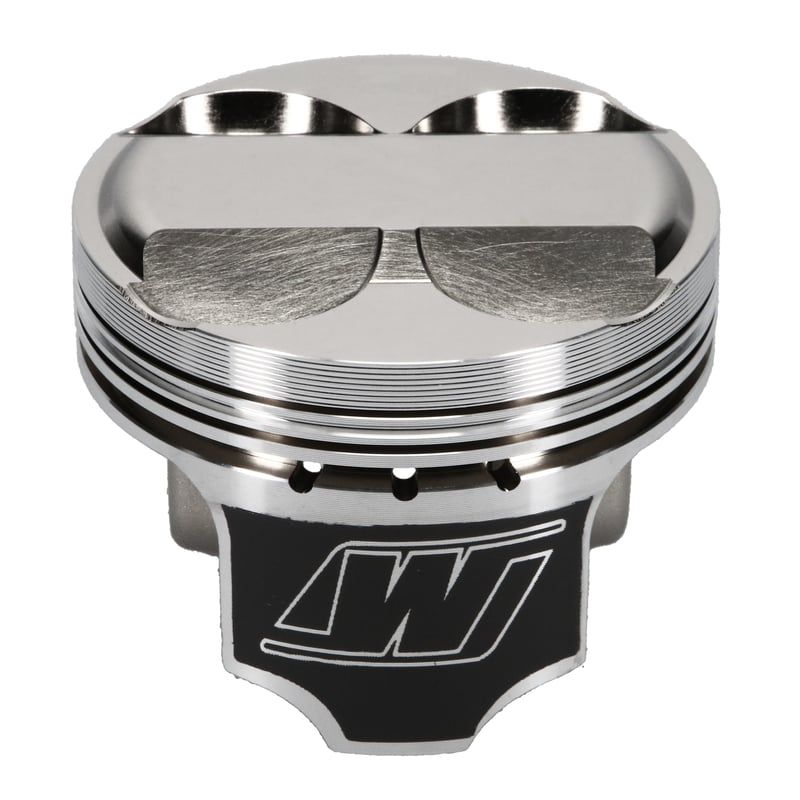

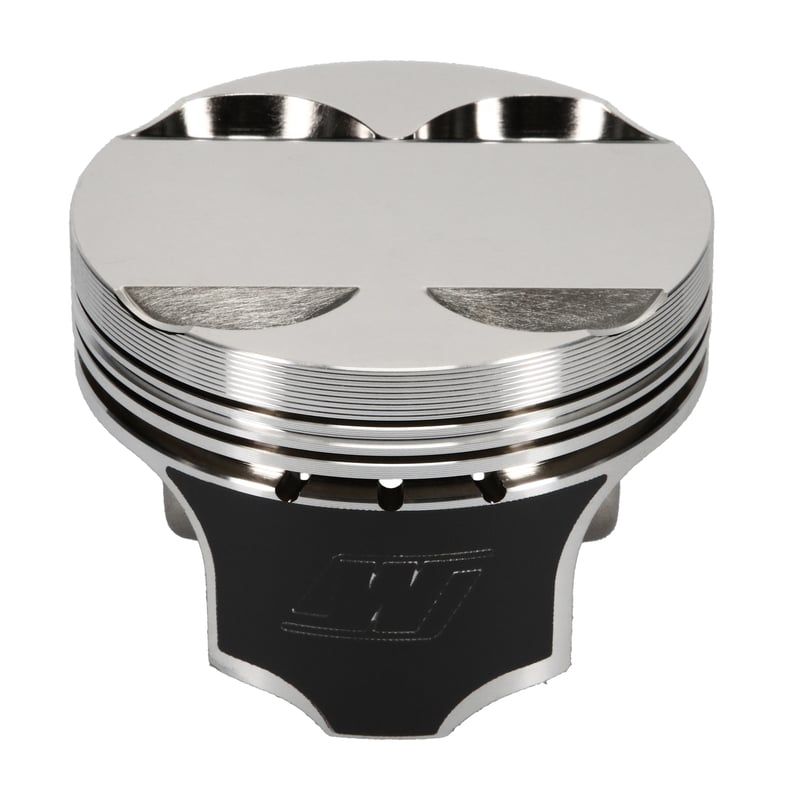

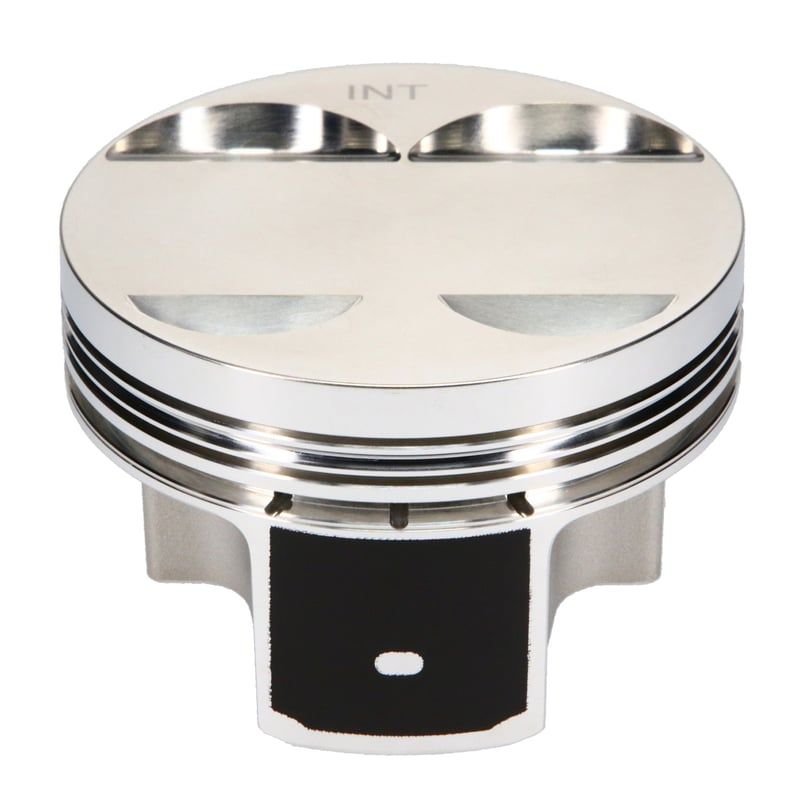

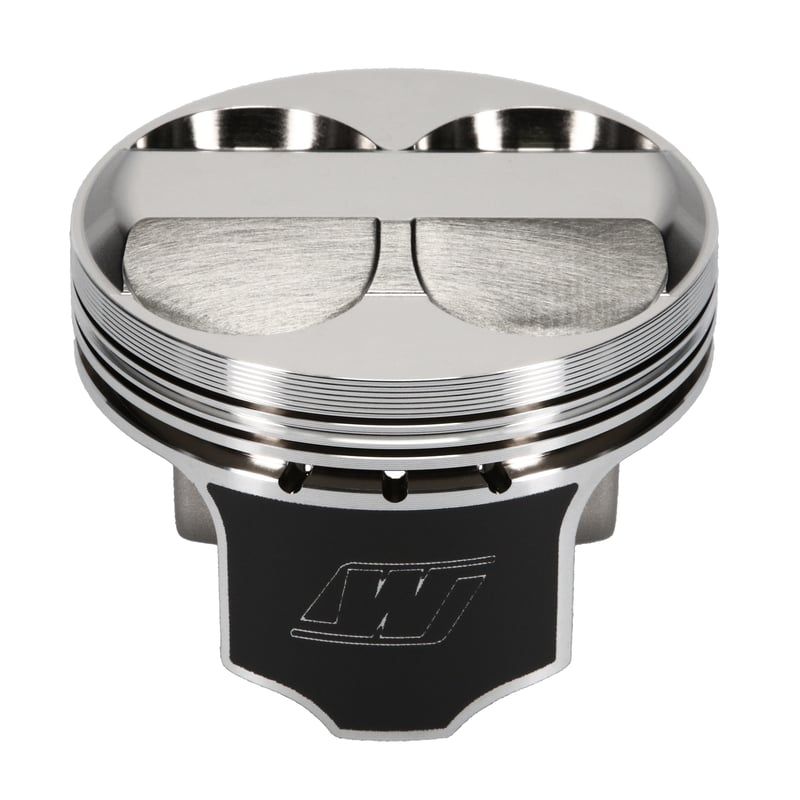

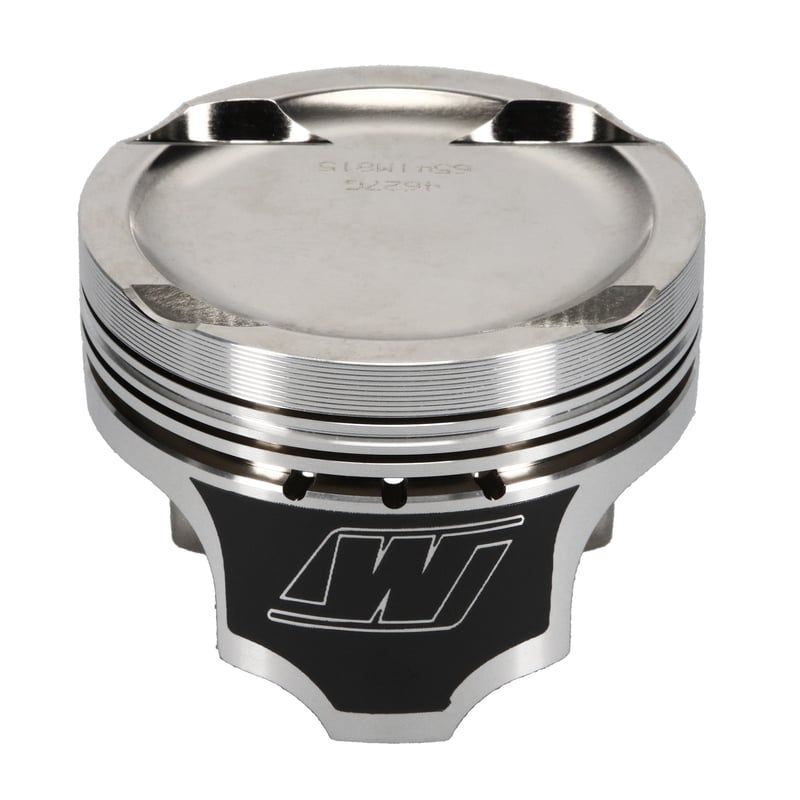

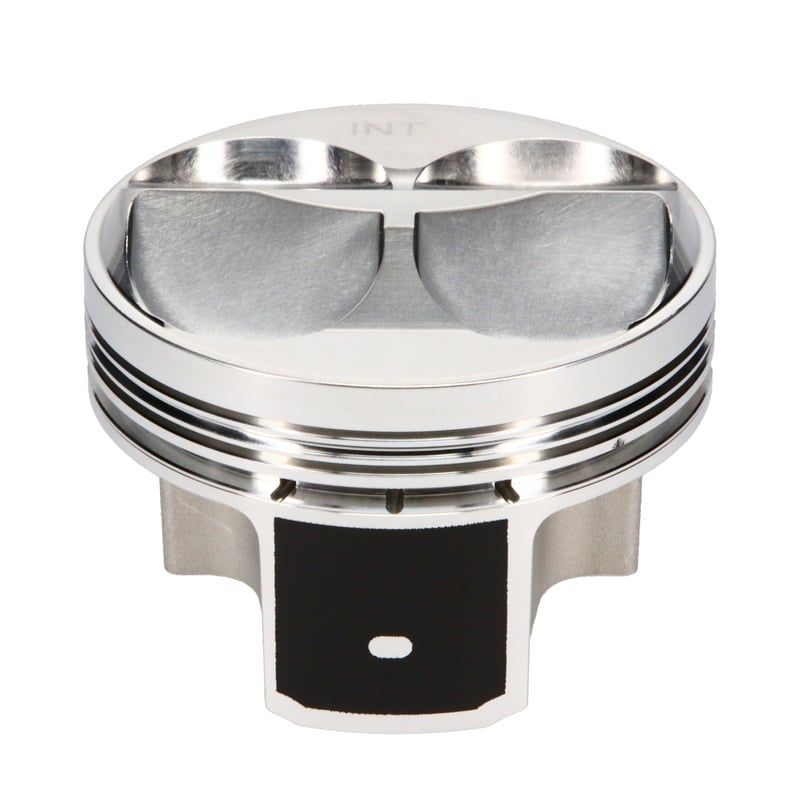

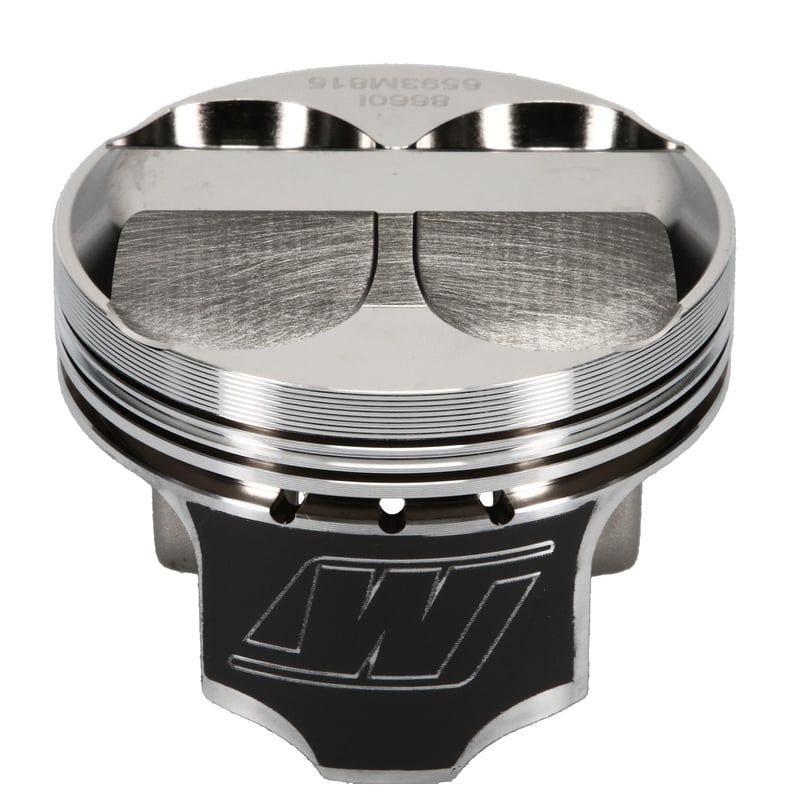

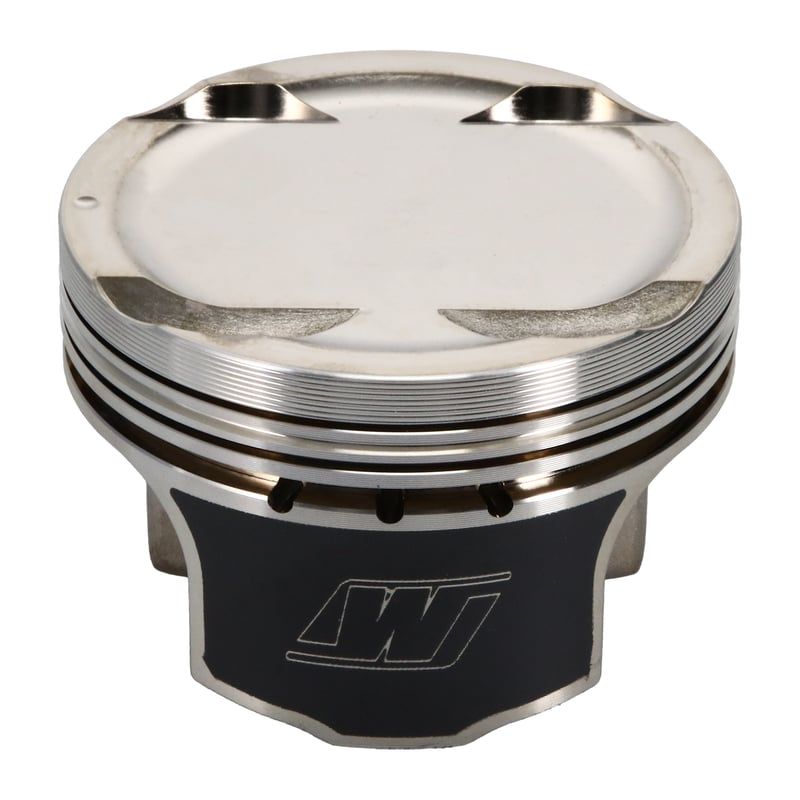

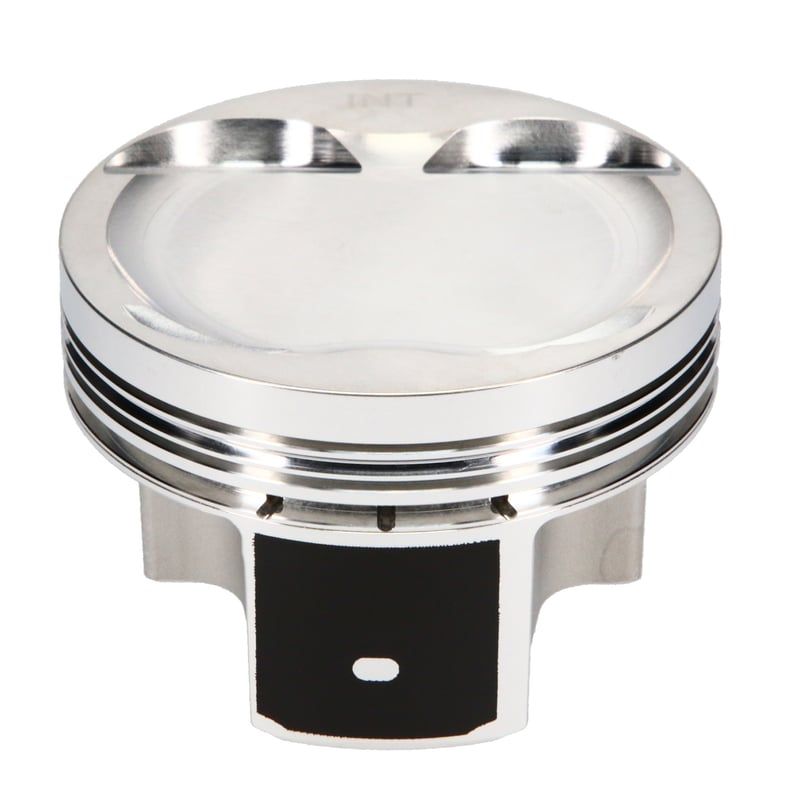

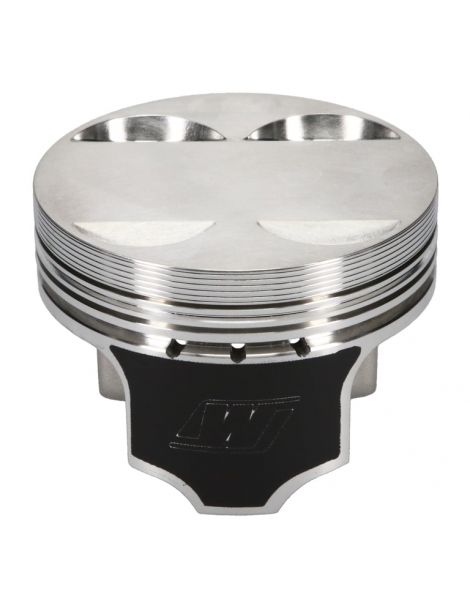

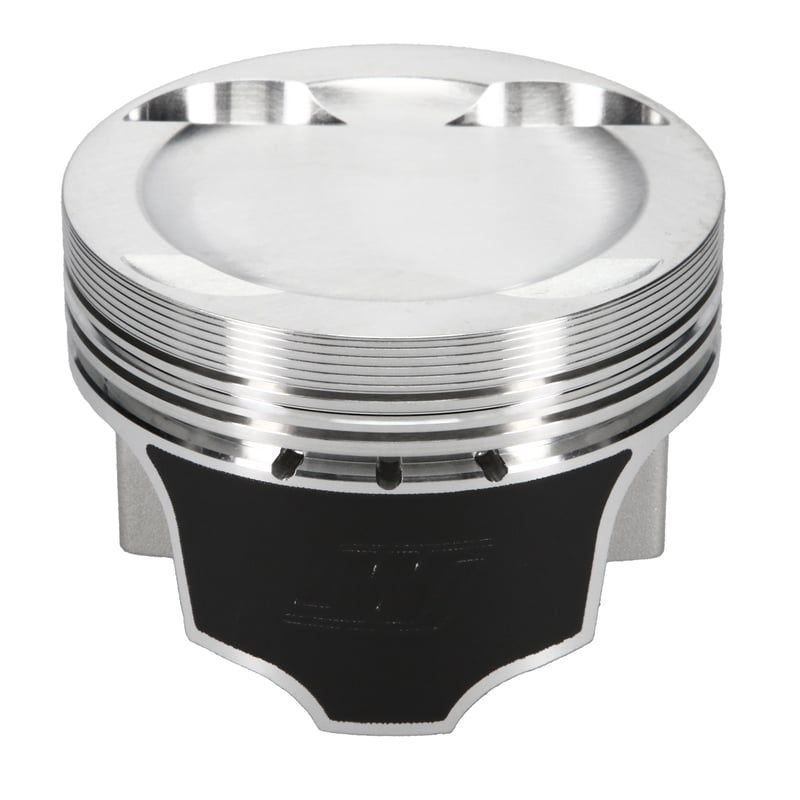

Forged Pistons 1.8L 16v B18C1 Honda

Marque Forged Pistons

Condition: New product

Forged pistonsB18C1(Integra GS-R) Bores81 86mm, CR OEM8.1 13.6:1, Pin21mm. 121 references sorted. RangesWiseco, Wiseco AP, JE FSR, JE Ultra Series, Supertech,. Vehicle table + references PistonsOEM Acura.

More details

574,43 € tax incl.

-25%

765,91 € tax incl.

Bore | CR | Range

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

Quantity

More info
Avis (0)

Specifications of the forged pistons offered by NSB Concept for Honda/Acura 1.8 L 16 v B18C1 :

Reference piston	Bore (mm)OEM 81	CROEM 11,6 :1	pin (mm)OEM 21	Height pin (mm)OEM 30	Range	Aluminium	Coating	Forging	Dome (cc)	Weight (g)	Rings
WK541M81	81	8,1 :1	21	30	Wiseco	2618	Skirt	NC	-12	NC	8100XX
WK541M81AP	81	8,1 :1	21	30	Wiseco AP	2618	Skirt	NC	-12	NC	8100XX
WK673M81	81	8,2 :1	21	30	Wiseco	2618	Skirt	NC	-8	NC	8100XX
WK673M81AP	81	8,2 :1	21	30	Wiseco AP	2618	Skirt	NC	-8	NC	8100XX
JE-302497	81	8,3 :1	21	30	JE FSR	2618	NC	FSR	-7,6	277	NC
WK542M81	81	8,9 :1	21	29,85	Wiseco	2618	Skirt	NC	-2.4FT	NC	8100XX
WK542M81AP	81	8,9 :1	21	29,85	Wiseco AP	2618	Skirt	NC	-2.4FT	NC	8100XX
JE-367841	81	9 :1	21	30	JE Ultra Series	2618	Crown + Skirt	FSR	-1.4 FT	NC	NC
600000-4	81	9 :1	NC	30	Manley	4032	Skirt	NC	-9,3	290	NC
JE-302498	81	9,2 :1	21	30	JE FSR	2618	NC	FSR	-1.4 FT	290	NC
P4-H81-N2R-H13-4	81	10,1 :1	21	30	Supertech	4032	Crown + Skirt	NC	-2,5	302	W8100XX
WK566M81	81	10,5 :1	21	30,1	Wiseco	2618	Skirt	NC	5	NC	8100XX
WK566M81AP	81	10,5 :1	21	30,1	Wiseco AP	2618	Skirt	NC	5	NC	8100XX
JE-302499	81	10,6 :1	21	30	JE FSR	2618	NC	FSR	5,7	301	NC
600100-4	81	11 :1	NC	30	Manley	4032	Skirt	NC	1,2	293	NC
WK593M81	81	11,1 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8100XX
WK593M81AP	81	11,1 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8100XX
JE-302500	81	11,6 :1	21	30	JE FSR	2618	NC	FSR	9,4	308	NC
P4-H81-P6-4	81	11,9 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,9	246	W8100XX
P4-H81-P7-4	81	12,4 :1	21	30	Supertech	4032	Crown + Skirt	NC	7	241	W8100XX
600200-4	81	12,5 :1	NC	30,35	Manley	4032	Skirt	NC	6,7	295	NC
WK541M8125	81,25	8,1 :1	21	30	Wiseco	2618	Skirt	NC	-12	NC	8125XX
WK541M8125AP	81,25	8,1 :1	21	30	Wiseco AP	2618	Skirt	NC	-12	NC	8125XX
WK542M8125	81,25	8,9 :1	21	29,85	Wiseco	2618	Skirt	NC	-2.4FT	NC	8125XX
WK542M8125AP	81,25	8,9 :1	21	29,85	Wiseco AP	2618	Skirt	NC	-2.4FT	NC	8125XX
WK566M8125	81,25	10,5 :1	21	30,1	Wiseco	2618	Skirt	NC	5	NC	8125XX
WK566M8125AP	81,25	10,5 :1	21	30,1	Wiseco AP	2618	Skirt	NC	5	NC	8125XX
WK593M8125	81,25	11,1 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8125XX
WK593M8125AP	81,25	11,1 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8125XX
WK541M815	81,5	8,1 :1	21	30	Wiseco	2618	Skirt	NC	-12	NC	8150XX
WK541M815AP	81,5	8,1 :1	21	30	Wiseco AP	2618	Skirt	NC	-12	NC	8150XX
WK673M815	81,5	8,2 :1	21	30	Wiseco	2618	Skirt	NC	-8	NC	8150XX
WK673M815AP	81,5	8,2 :1	21	30	Wiseco AP	2618	Skirt	NC	-8	NC	8150XX
JE-302502	81,5	8,3 :1	21	30	JE FSR	2618	NC	FSR	-8,2	283	NC
WK542M815	81,5	8,9 :1	21	29,85	Wiseco	2618	Skirt	NC	-2.4FT	NC	8150XX
WK542M815AP	81,5	8,9 :1	21	29,85	Wiseco AP	2618	Skirt	NC	-2.4FT	NC	8150XX
JE-367842	81,5	9 :1	21	30	JE Ultra Series	2618	Crown + Skirt	FSR	-1.9 FT	NC	NC
600005-4	81,5	9 :1	NC	30	Manley	4032	Skirt	NC	-9,3	294	NC
JE-302503	81,5	9,2 :1	21	30	JE FSR	2618	NC	FSR	-1.9 FT	296	NC
P4-H815-N2R-4	81,5	10,1 :1	21	30	Supertech	NC	Crown + Skirt	NC	-2,5	NC	W8150XX
WK566M815	81,5	10,5 :1	21	30,1	Wiseco	2618	Skirt	NC	5	NC	8150XX
WK566M815AP	81,5	10,5 :1	21	30,1	Wiseco AP	2618	Skirt	NC	5	NC	8150XX
JE-302504	81,5	10,6 :1	21	30	JE FSR	2618	NC	FSR	5,2	306	NC
600105-4	81,5	11 :1	NC	30	Manley	4032	Skirt	NC	1,2	297	NC
WK593M815	81,5	11,1 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8150XX
WK593M815AP	81,5	11,1 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8150XX
JE-302505	81,5	11,6 :1	21	30	JE FSR	2618	NC	FSR	9	311	NC
P4-H815-P6-4	81,5	11,9 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,7	261	W8150XX
P4-H815-P7-4	81,5	12,4 :1	21	30	Supertech	4032	Crown + Skirt	NC	7	250	W8150XX
600205-4	81,5	12,5 :1	NC	30,35	Manley	4032	Skirt	NC	6,7	299	NC
WK541M82	82	8,1 :1	21	30	Wiseco	2618	Skirt	NC	-12	NC	8200XX
WK541M82AP	82	8,1 :1	21	30	Wiseco AP	2618	Skirt	NC	-12	NC	8200XX
WK673M82	82	8,2 :1	21	30	Wiseco	2618	Skirt	NC	-8	NC	8200XX
WK673M82AP	82	8,2 :1	21	30	Wiseco AP	2618	Skirt	NC	-8	NC	8200XX
JE-338082	82	8,3 :1	21	30	JE FSR	2618	NC	FSR	-9,5	NC	NC
WK542M82	82	8,9 :1	21	29,85	Wiseco	2618	Skirt	NC	-2.4FT	NC	8200XX
WK542M82AP	82	8,9 :1	21	29,85	Wiseco AP	2618	Skirt	NC	-2.4FT	NC	8200XX
JE-338087	82	9,2 :1	21	30	JE FSR	2618	NC	FSR	-2.2 FT	NC	NC
P4-H82-N2R-H13-4	82	10,1 :1	21	30	Supertech	4032	Crown + Skirt	NC	-2,5	250	W8200XX
WK566M82	82	10,5 :1	21	30,1	Wiseco	2618	Skirt	NC	5	NC	8200XX
WK566M82AP	82	10,5 :1	21	30,1	Wiseco AP	2618	Skirt	NC	5	NC	8200XX
JE-338088	82	10,6 :1	21	30	JE FSR	2618	NC	FSR	4,5	NC	NC
WK593M82	82	11,1 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8200XX
WK593M82AP	82	11,1 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8200XX
JE-312417	82	11,6 :1	21	30	JE FSR	2618	NC	FSR	9	335	NC
P4-H82-P6-4	82	12 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,9	290	W8200XX
P4-H82-P7-4	82	12,5 :1	21	30	Supertech	4032	Crown + Skirt	NC	7	257	W8200XX
JE-338083	82,5	8,3 :1	21	30	JE FSR	2618	NC	FSR	-10,2	NC	NC
JE-338085	82,5	9,2 :1	21	30	JE FSR	2618	NC	FSR	-2.7 FT	NC	NC
JE-338089	82,5	10,6 :1	21	30	JE FSR	2618	NC	FSR	4	NC	NC
JE-338091	82,5	11,6 :1	21	30	JE FSR	2618	NC	FSR	8,6	NC	NC
JE-338084	83	8,3 :1	21	30	JE FSR	2618	NC	FSR	-10,8	NC	NC
JE-338086	83	9,2 :1	21	30	JE FSR	2618	NC	FSR	-3.3 FT	NC	NC
JE-338090	83	10,6 :1	21	30	JE FSR	2618	NC	FSR	3,5	NC	NC
JE-338092	83	11,6 :1	21	30	JE FSR	2618	NC	FSR	8,2	NC	NC
P4-H83-P6-4	83	12 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,9	300	W8300XX
JE-302410	84	8,3 :1	21	30	JE FSR	2618	Skirt	FSR	-11,4	300	NC
WK649M84	84	8,4 :1	21	30	Wiseco	2618	Skirt	NC	-10	NC	8400XX
JE-367843	84	9 :1	21	30	JE Ultra Series	2618	Crown + Skirt	FSR	-4.5 FT	NC	NC
JE-302411	84	9,2 :1	21	30	JE FSR	2618	NC	FSR	-4.5 FT	316	NC
WK623M84	84	9,4 :1	21	30	Wiseco	2618	Skirt	NC	-2.3FT	NC	8400XX
P4-H84-N10R-H13-4	84	9,5 :1	21	30	Supertech	4032	Crown + Skirt	NC	-10,3	295	W8400XX
JE-302412	84	10,6 :1	21	30	JE FSR	2618	NC	FSR	3,2	321	NC
P4-H84-N2R-H13-4	84	10,8 :1	21	30	Supertech	4032	Crown + Skirt	NC	-2,5	295	W8400XX
WK594M84	84	11,5 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8400XX
WK594M84AP	84	11,5 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8400XX
JE-302413	84	11,6 :1	21	30	JE FSR	2618	NC	FSR	7,4	332	NC
P4-H84-P1-4	84	11,6 :1	21	30	Supertech	4032	Crown + Skirt	NC	1,4	285	W8400XX
P4-H84-P5-4	84	12,8 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,5	310	W8400XX
WK594M8425	84,25	11,6 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8425XX
WK594M8425AP	84,25	11,6 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8425XX
WK649M845	84,5	8,4 :1	21	30	Wiseco	2618	Skirt	NC	-10	NC	8450XX
JE-367844	84,5	9 :1	21	30	JE Ultra Series	2618	Crown + Skirt	FSR	-5 FT	NC	NC
JE-302415	84,5	9,2 :1	21	30	JE FSR	2618	NC	FSR	-5 FT	318	NC
P4-H845-N10R-H13-4	84,5	9,2 :1	21	30	Supertech	NC	Crown + Skirt	NC	-10,3	NC	W8450XX
WK623M845	84,5	9,4 :1	21	30	Wiseco	2618	Skirt	NC	-2.3FT	NC	8450XX
JE-302416	84,5	10,6 :1	21	30	JE FSR	2618	NC	FSR	2,8	326	NC
P4-H845-N2R-4	84,5	11 :1	21	30	Supertech	4032	Crown + Skirt	NC	-2,5	290	W8450XX
P4-H845-P1-4	84,5	11,5 :1	21	30	Supertech	4032	Crown + Skirt	NC	1,4	306	W8450XX
JE-302417	84,5	11,6 :1	21	30	JE FSR	2618	NC	FSR	6,9	335	NC
WK594M845	84,5	11,6 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8450XX
WK594M845AP	84,5	11,6 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8450XX
P4-H845-P5-4	84,5	12,5 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,5	310	W8450XX
JE-302414	85	8,3 :1	21	30	JE FSR	2618	NC	FSR	-12	305	NC
JE-302418	85	8,3 :1	21	30	JE FSR	2618	NC	FSR	-12,7	309	NC
WK649M85	85	8,5 :1	21	30	Wiseco	2618	Skirt	NC	-10	NC	8500XX
JE-367845	85	9 :1	21	30	JE Ultra Series	2618	Crown + Skirt	FSR	-5.6 FT	NC	NC
JE-302419	85	9,2 :1	21	30	JE FSR	2618	NC	FSR	-5.6 FT	324	NC
P4-H85-N10R-H13-4	85	9,5 :1	21	30	Supertech	NC	Crown + Skirt	NC	-10,3	NC	NC
JE-302420	85	10,6 :1	21	30	JE FSR	2618	NC	FSR	2,3	328	NC
P4-H85-N2R-4	85	11,1 :1	21	30	Supertech	4032	Crown + Skirt	NC	-2,5	275	W8500XX
JE-302421	85	11,6 :1	21	30	JE FSR	2618	NC	FSR	6,6	338	NC
WK594M85	85	11,7 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8500XX
WK594M85AP	85	11,7 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8500XX
P4-H85-P5-4	85	12,6 :1	21	30	Supertech	4032	Crown + Skirt	NC	5,5	318	W8500XX
P4-H85-P8-4	85	13,6 :1	21	30	Supertech	4032	Crown + Skirt	NC	8	322	W8500XX
WK594M855	85,5	11,8 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8550XX
WK594M855AP	85,5	11,8 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8550XX
WK594M86	86	12 :1	21	30	Wiseco	2618	Skirt	NC	8,3	NC	8600XX
WK594M86AP	86	12 :1	21	30	Wiseco AP	2618	Skirt	NC	8,3	NC	8600XX
JE-338093	86	12,6 :1	21	30	JE FSR	2618	NC	FSR	9	NC	NC

Compatibility engine :

1.8L 16v - B18C1

Brand	Model	Chassis	Engine code	Power (ch)	Years
Acura	Integra GS‑R (3-door)	DC2	B18C1	170	1994 – 2001
Acura	Integra GS‑R (4-door)	DB8	B18C1	170	1994 – 2001

Manufacturer piston references (OEM):

Integra GS‑R 1994–2001 (B18C1) — piston Set (STD) : 13010‑P72‑A00 ; piston Set (O/S 0,25) : 13020‑P72‑A00.

Warning : Before installation, please verify the integrity and conformity of each component of the piston kit, as well as the correctness of the assembly in the engine. Any warranty is strictly limited to the parts included in the piston kit.
