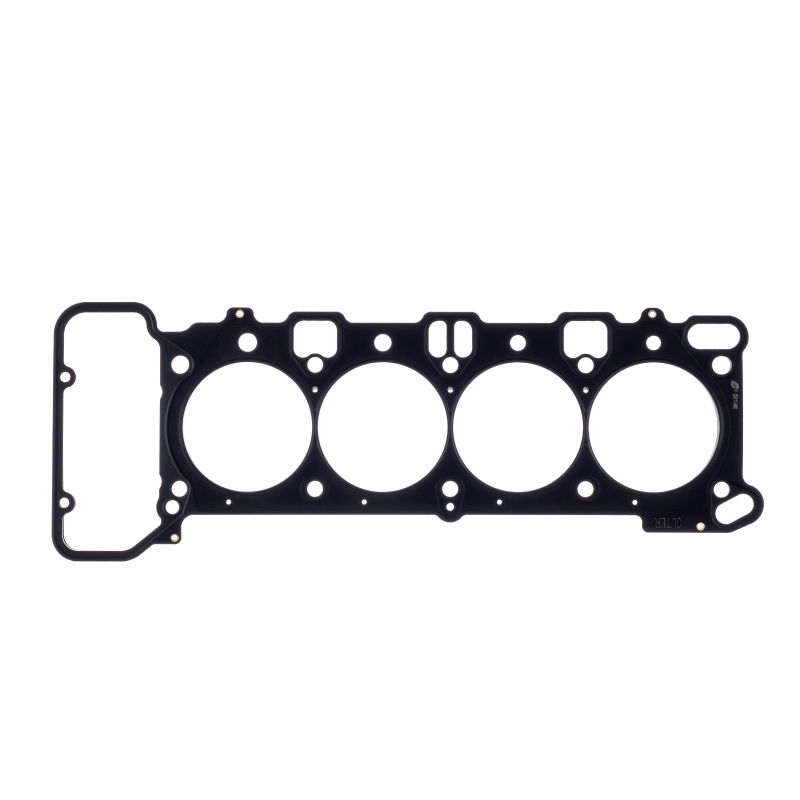

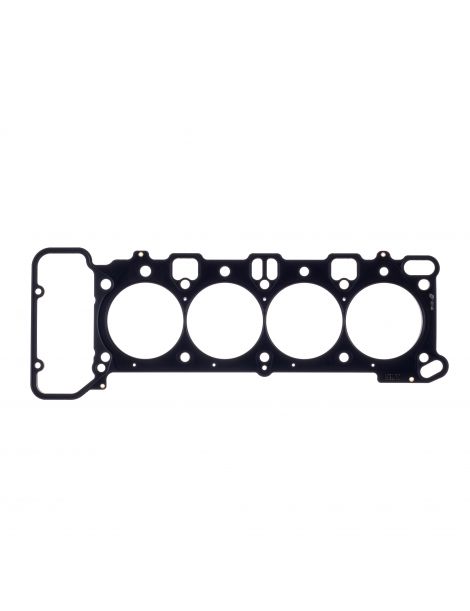

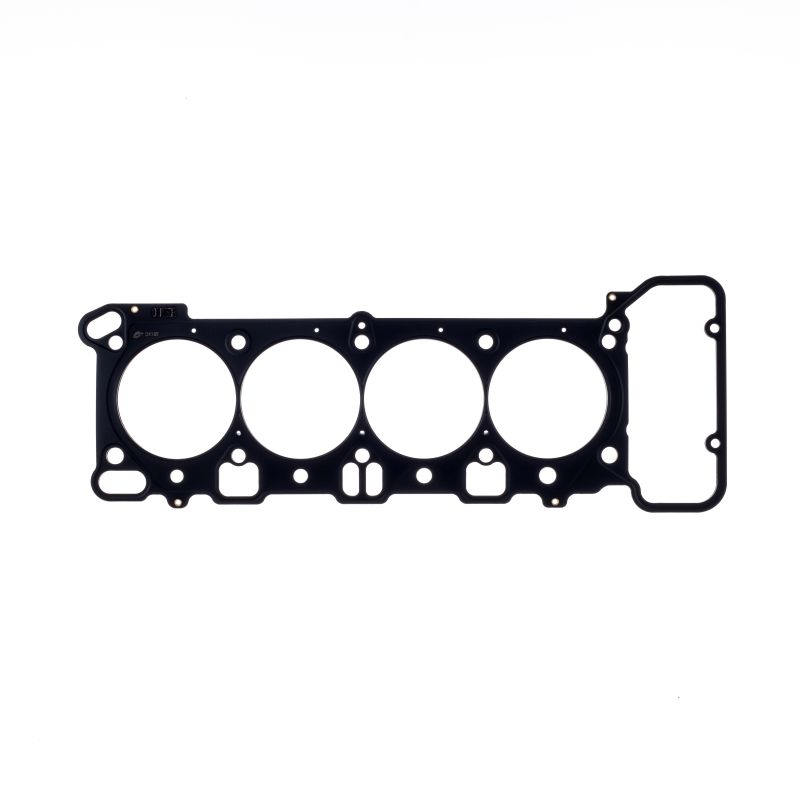

COMETIC reinforced head gasket for BMW M3 E90 E92 E93 4.0 32V S65B40

We offer here a reinforced head gasket, sold individually, for the S65B40 engine, made by COMETIC. Its technical specification is given below.

Click on the picture below for the ARP head studs and head bolts for the BMW S65B40 engine:

Technical specification of the original gasket

• Engine bore: 92mm
• Thickness: 0.60mm

Technical specification

• Engine bore: up to 93 or 94mm
• Gasket type: MLS
• Number of layers: 3, then 5 for gaskets from 2.03mm thick
• Compressed thickness of your choice: 0.69, 0.76, 0.91, 1.02, 1.14, 1.30, 1.42, 1.52, 1.68, 1.78, 1.91, 2.03, 2.18, 2.34, 2.49, 3.05, 3.56mm
• References: C5111, C5111-027, C5111-030, C5111-036, C5111-040, C5111-045, C5111-051, C5111-056, C5111-060, C5111-066, C5111-070, C5111-075, C5111-080, C5111-086, C5111-092, C5111-098, C5111-120, C5111-140, C5112, C5112-027, C5112-030, C5112-036, C5112-040, C5112-045, C5112-051, C5112-056, C5112-060, C5112-066, C5112-070, C5112-075, C5112-080, C5112-086, C5112-092, C5112-098, C5112-120, C5112-140

Founded by Bob Gorman in 1989, Cometic is recognised worldwide as a leader in the design and manufacture of reinforced head gaskets. These, like the rest of the brand's products, are made in the United States. Cometic reinforced head gaskets are built from several pressed stainless steel layers held together by rivets. There are three types of Cometic head gasket:

MLS: the equivalent of the Athena MLS gaskets, these multi-layer gaskets (between 3 and 5 stainless steel layers depending on the thickness) have embossed beads around the cylinders and the fluid passages.

• MLX: this gasket shares the same base as the MLS gasket but adds a folded reinforcement around the cylinders and a special high temperature coating.

• HP: an MLX gasket to which an additional layer has been added in order to improve the sealing of the cylinders (see below).
