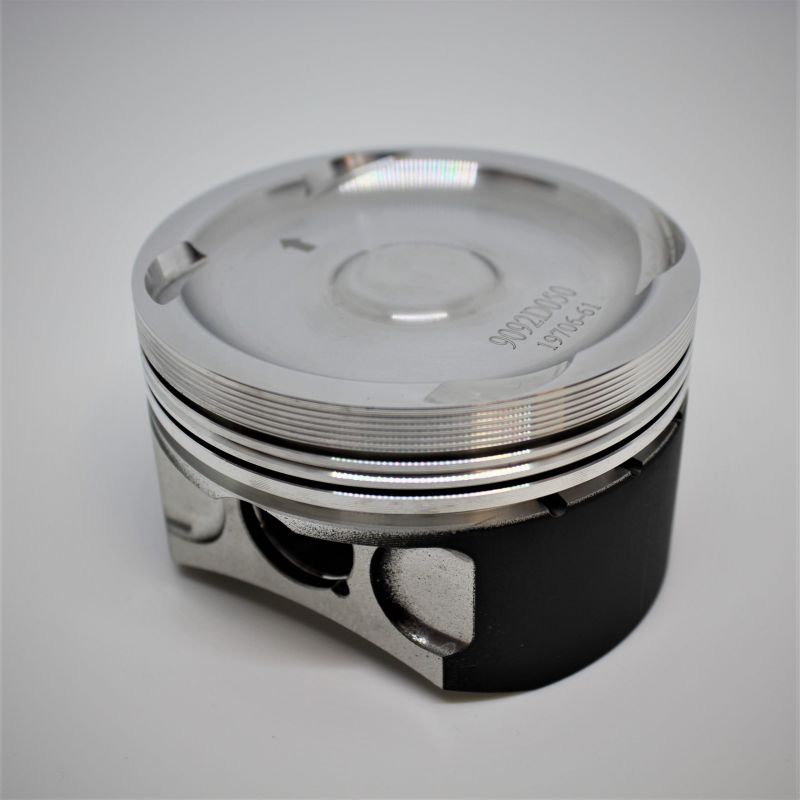

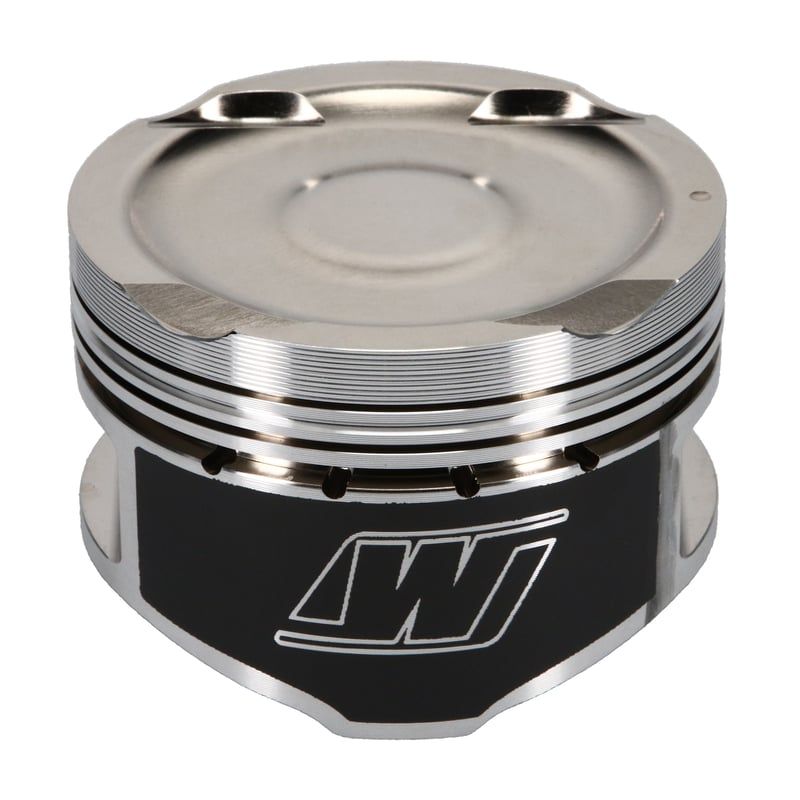

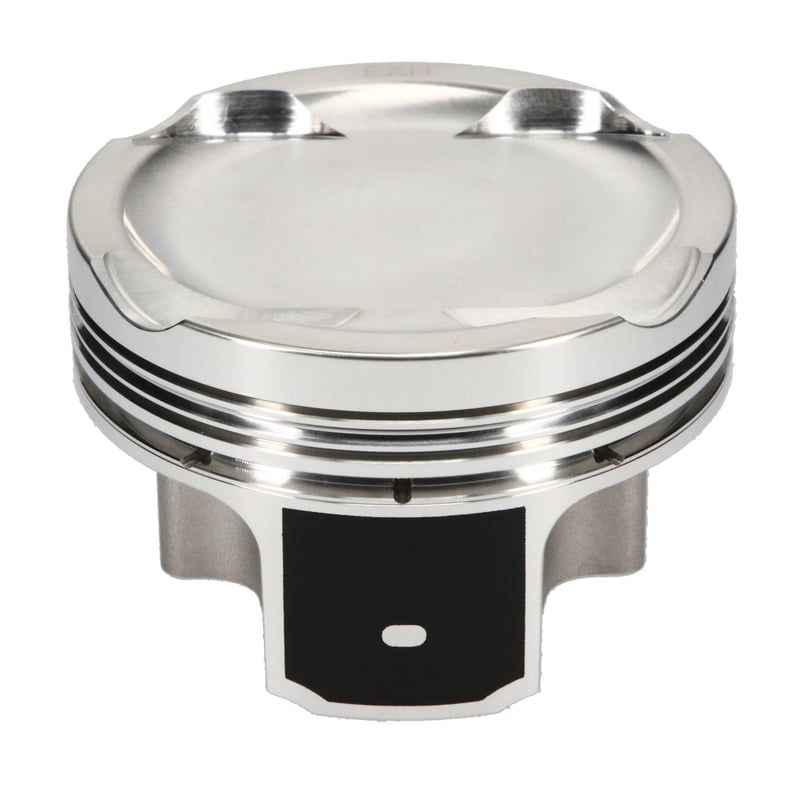

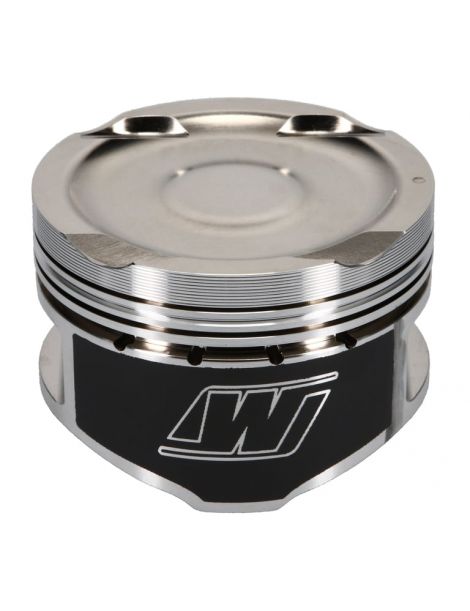

Opel/Vauxhall C20LET 2.0 16v forged pistons: O 86-87.5 mm, RV 8.5-8.8:1, axle 21 mm.
Applications: Calibra A Turbo, Vectra A Turbo 4x4, Cavalier Turbo 4x4 .
OEM Ref: 90443137-41.
Specifications of the forged pistons for engines 2,0 L 16 v C20LET :
| Reference | Bore (mm) | CR | pin (mm) | Height pin (mm) | Range | Coating | Aluminium | Forging | Dome volume (cc) | Weight (g) | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-361355 | 86,25 | 8,5 :1 | 21 | 30,50 | JE FSR | — | 2618.0 | FSR | -16,60 | 307 | — |
| JE-298736 | 86 | 8,5 :1 | 21 | 30,50 | JE FSR | — | 2618.0 | FSR | -16,20 | 308 | — |
| K9092DA | 86 | 8,5 :1 | 21 | 30,50 | Wossner | — | — | Round | -18,40 | — | GNH86.00 |
| WKE165M86AP | 86 | 8,8 :1 | 21 | 30,49 | Wiseco AP | Skirt | 2618.0 | — | -13 | — | 8600XX |
| WKE165M8625AP | 86,25 | 8,8 :1 | 21 | 30,49 | Wiseco AP | Skirt | 2618.0 | — | -13 | — | 8625XX |
| JE-298737 | 86,50 | 8,5 :1 | 21 | 30,50 | JE FSR | — | 2618.0 | FSR | -16,90 | 309 | — |
| K9092D050 | 86,50 | 8,6 :1 | 21 | 30,50 | Wossner | — | — | Round | -18,40 | — | GNH86.50 |
| WKE165M865AP | 86,50 | 8,8 :1 | 21 | 30,49 | Wiseco AP | Skirt | 2618.0 | — | -13 | — | 8650XX |
| WKE165M8675AP | 86,75 | 8,8 :1 | 21 | 30,49 | Wiseco AP | Skirt | 2618.0 | — | -13 | — | 8675XX |
| JE-298738 | 87 | 8,5 :1 | 21 | 30,50 | JE FSR | — | 2618.0 | FSR | -17,60 | 314 | — |
| K9092D100 | 87 | 8,7 :1 | 21 | 30,50 | Wossner | — | — | Round | -18,40 | — | GNH87.00 |
| WKE165M87AP | 87 | 8,8 :1 | 21 | 30,49 | Wiseco AP | Skirt | 2618.0 | — | -13 | — | 8700XX |
| JE-312429 | 87,50 | 8,5 :1 | 21 | 30,50 | JE FSR | — | 2618.0 | FSR | -18,30 | 317 | — |
| K9092D150 | 87,50 | 8,8 :1 | 21 | 30,50 | Wossner | — | — | Round | -18,40 | — | GNH87.50 |
| JE-361355 | 86,25 | 8,5 :1 | 21 | 30,50 | JE FSR | — | 2618.0 | FSR | -16,60 | 307 | — |
Compatible vehicles:
| Manufacturer | Model | Years |
|---|---|---|
| Opel / Vauxhall | Calibra A Turbo 4x4 – C20LET 2.0 16v | 1992–1997 |
| Opel / Vauxhall | Vectra A Turbo 4x4 – C20LET 2.0 16v | 1992–1994 |
| Vauxhall | Cavalier Mk3 Turbo 4x4 – C20LET 2.0 16v | 1992–1994 |
OEM piston references :
| Manufacturer | Model | Reference | Description |
|---|---|---|---|
| Opel / GM | Calibra / Vectra / Cavalier – C20Land – STD 85,986–85,995 (Ident 99) | 90443137 | piston, pin & rings – STD group 99 |
| Opel / GM | Calibra / Vectra / Cavalier – C20Land – STD 85,996–86,005 (Ident 00) | 90443138 | piston, pin & rings – STD group 00 |
| Opel / GM | Calibra / Vectra / Cavalier – C20Land – STD 86,006–86,015 (Ident 01) | 90443139 | piston, pin & rings – STD group 01 |
| Opel / GM | Calibra / Vectra / Cavalier – C20Land – STD 86,016–86,025 (Ident 02) | 90443140 | piston, pin & rings – STD group 02 |
| Opel / GM | Calibra / Vectra / Cavalier – C20Land – 0,50 mm O/S | 90443141 | piston, pin & rings – 0,50 mm oversize |
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
