B48 forged pistons (BMW/MINI/Toyota): Table O82.83, RV 9.5:1 to 11:1, pin 22, CH 33.2. JE, Wossner, Supertech ranges. Engine and vehicle compatibility + OEM references.

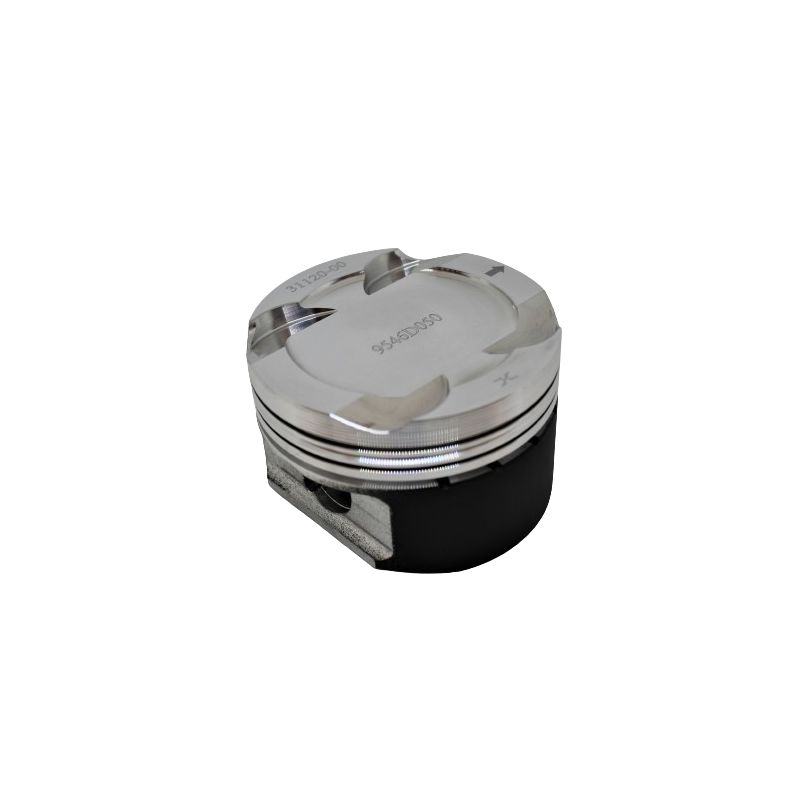

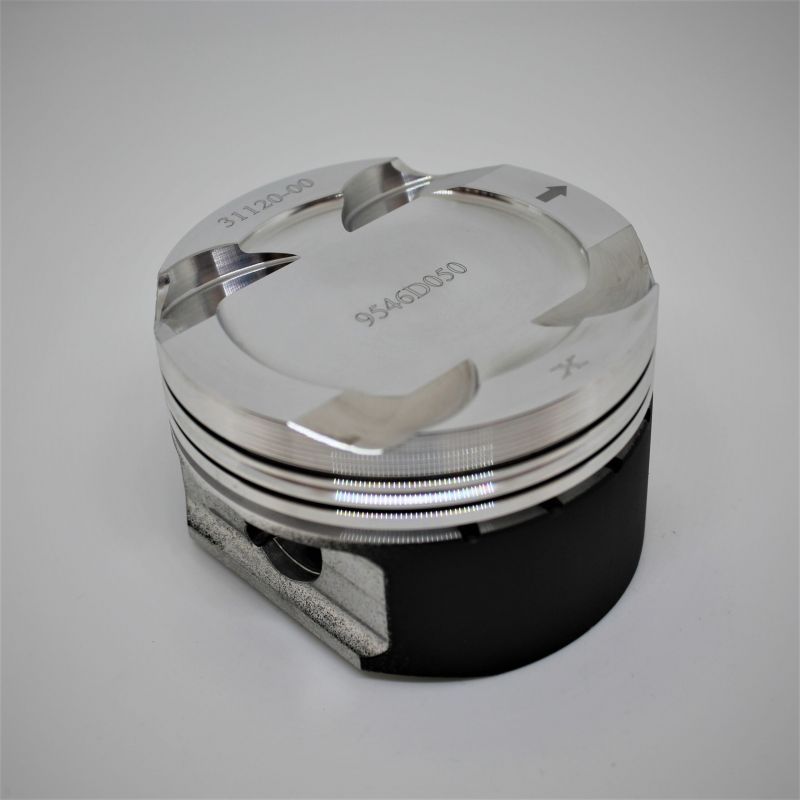

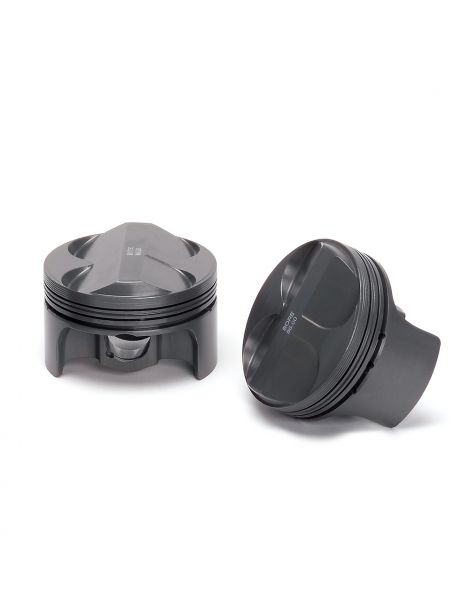

Characteristics of the forged pistons offered by NSB Concept for BMW/MINI/Toyota 2.0 L 16 V B48:
| Reference | Bore | VR | Pin | Axis Height | Range | Treatment | Aluminum | Forging | Dome | Weight | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-353903C*4 | 82.0 | 9.5:1 | 22 | 33.25 | JE | N/A | N/A | -17.5 | N/A | N/A | N/A |
| JE-384912 | 82.0 | 9.5:1 | 22 | 33.2 | JE | N/A | N/A | -17.4 | N/A | N/A | N/A |
| P4-MINB48-82-CR9.5B-4 | 82.0 | 9.5:1 | 22 | 35.5 | Supertech | N/A | N/A | Std. | N/A | N/A | W8200XX |
| P4-MINB48-82-CR10.2-4 | 82.0 | 10.2:1 | 22 | 33.2 | Supertech | N/A | N/A | Std. | 298.0 | N/A | W8200XX |
| P4-MINB48-82-CR10.2-B-4 | 82.0 | 10.2:1 | 22 | 33.2 | Supertech | N/A | N/A | Std. | 298.0 | N/A | W8200XX |
| JE-384914 | 82.0 | 10.5:1 | 22 | 33.2 | JE | N/A | N/A | -11.1 | N/A | N/A | N/A |
| K9559DA-4 | 82.0 | 10.5:1 | 22 | 33.2 | Wossner | Slippers | N/A | -8.47 | N/A | N/A | GNH82.00 |
| P4-MINB48-82-CR11-4 | 82.0 | 11:1 | 22 | 33.2 | Supertech | N/A | N/A | Std. | 298.0 | N/A | W8200XX |
| P4-MINB48-82-CR11-B-4 | 82.0 | 11:1 | 22 | 33.2 | Supertech | N/A | N/A | -8.5 | N/A | N/A | W8200XX |
| K9546DA-4 | 82.0 | 11:1 | 22 | 33.2 | Wossner | N/A | N/A | -8.47 | N/A | N/A | 820XPY |
| K9559D050-4 | 82.5 | 10.6:1 | 22 | 33.2 | Wossner | Slippers | N/A | -8.47 | N/A | N/A | GNH82.50 |
| P4-MINB48-825-CR11-4 | 82.5 | 11:1 | 22 | 33.2 | Supertech | N/A | N/A | Std. | 308.0 | N/A | W8250XX |
| K9546D050-4 | 82.5 | 11.1:1 | 22 | 33.2 | Wossner | N/A | N/A | -8.47 | N/A | N/A | 825XPY |
| JE-384913 | 83.0 | 9.5:1 | 22 | 33.2 | JE | N/A | N/A | -18.7 | N/A | N/A | N/A |
| JE-384915 | 83.0 | 10.5:1 | 22 | 33.2 | JE | N/A | N/A | -13.2 | N/A | N/A | N/A |
Compatibilities (engine codes):
BMW: B48B20M0, B48B20M1, B48B20O0, B48B20O1, B48A20M1, B48A20O1, B48A20T1/T2.
MINI: B48A20A (Cooper S), B48A20T1/T2 (JCW), B48A20M (Clubman/Countryman).
Toyota: B48B20 (B48L/B48H) GR Supra 2.0 (DB42/DB81/DB22 depending on markets).
Original vehicles equipped with the B48:
| Brand | Model | Engine Code | Power | Years |
|---|---|---|---|---|
| BMW | 120i F20 | B48B20M0 | 184 hp | 2016 2019 |
| BMW | 220i F22/F23 | B48B20M0 | 184 hp | 2016 2019 |
| BMW | 320i F30/F31/F34 | B48B20M0 | 184 hp | 2015 2019 |
| BMW | 320i G20 | B48B20M1 | 184 hp | 2019 present |
| BMW | 330i F30/F32/F36 | B48B20O0 | 252.258 hp | 2015 2019 |
| BMW | 330i G20/G21 | B48B20O1 | 255.258 hp | 2019 present |
| BMW | 420i F32/F33/F36 | B48B20M0 | 184 hp | 2016 2019 |
| BMW | 430i G22/G23/G26 | B48B20O1 | 258 hp | 2019 present |
| BMW | 520i G30/G31 | B48B20M0 | 184 hp | 2017 present |
| BMW | 530i G30/G31 | B48B20O0/O1 | 252.258 hp | 2016 present |
| BMW | Z4 G29 sDrive20i | B48A20M1 | 197 hp | 2018 present |
| BMW | Z4 G29 sDrive30i | B48B20O1 | 258 hp | 2019 present |
| BMW | X1 F48 20i | B48A20M1 | 192 hp | 2016 present |
| BMW | X3 G01 xDrive30i | B48B20O0/O1 | 252.258 hp | 2018 present |
| MINI | Cooper S F56/F55/F57 | B48A20A | 192 hp | 2014 present |
| MINI | JCW (F56/F54/F60) | B48A20T1/T2 | 231.306 hp | 2014 present |
| Toyota | GR Supra 2.0 (DB42/DB81) | B48B20 (B48L/H) | 197.255 hp | 2020 here |
Piston manufacturer references (OEM):
BMW B48 (e.g. 320i/330i/430i/530i, etc.)
: 11 25 8 678 931 (11258678931), 11 25 8 678 934 (11258678934) complete pistons with pin & rings (variants depending on version/year/grade).
MINI B48 (Cooper S / JCW)
: identical BMW references (shared platform).
Toyota GR Supra 2.0 (DB42)
: 13101-WAA03 (complete piston with pin & segments, depending on vintage).
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
