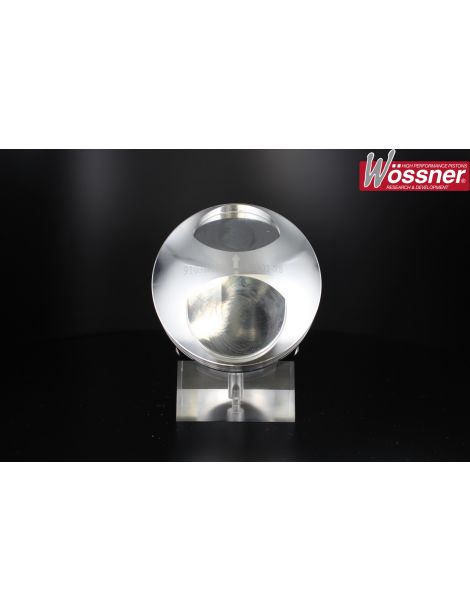

Reduced price! Pistons forgés 2.2L 12v 911 Porsche View larger
Previous Next

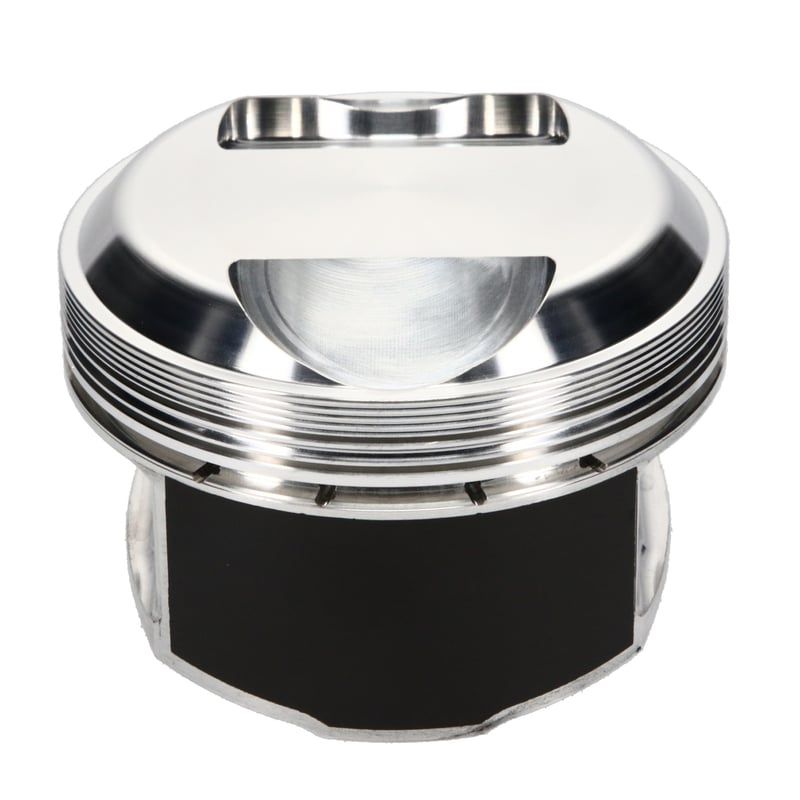

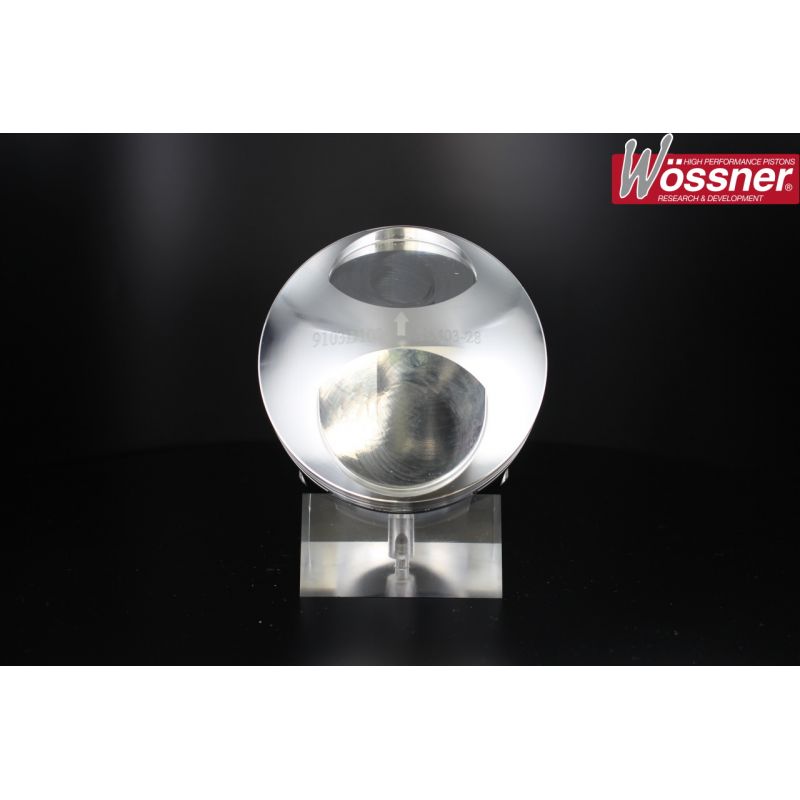

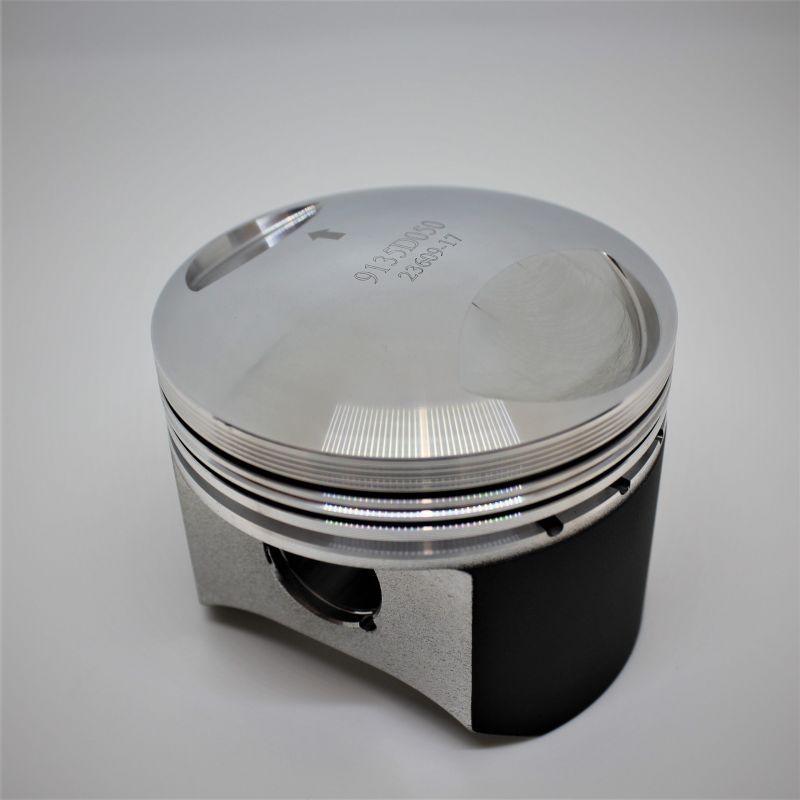

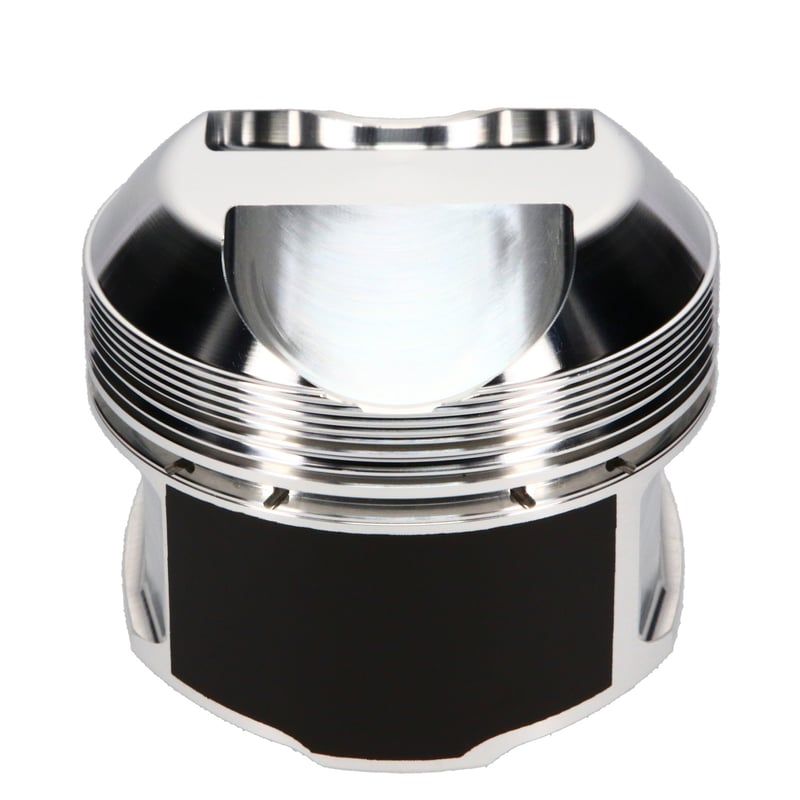

Forged pistons 2.2L 12v 911 Porsche

New product

Forged pistons Porsche 911 2.2 (1970-1971): diameter 84-89 mm, pin 22 mm, Pin Height -34 mm, CR 8.5-10.7:1. Complete table, compatibilities 911 T/E/S and OEM references.

More details

1 501,98 € tax incl.

-25%

2 002,64 € tax incl.

ORDER TODAY, WE SHIP IN 5 - 15 DAYS

  • Specifications of the forged pistons offered by NSB Concept for Porsche 911 2.2 L 12 V (C/D-series 1970–1971) :

    ReferenceOEM Bore
    84,00 mm    		OEM CR 8,6–9,8 :1 (T/E/S)OEM Pin
    22 mm    		Height OEM Pin
    ≈34,0 mm    		RangeCoatingAluminiumForgingDomeWeightRings
    K9135DA84.08.5:12234.0WossnerNCNCRound19.1NC840XPY
    JE-35322284.09.5:12233.9JE RoundNC2618.0Round30.6NCNC
    JE-38124384.010:12233.9JENC4032.0NC33.5NCNC
    JE-35322384.010.5:12233.9JE RoundNC2618.0Round35.1NCNC
    K9103DA84.010.5:12234.0WossnerNCNCRound29.4NC840XSY
    K9135D05084.58.6:12234.0WossnerNCNCRound19.1NC845XPY
    K9103D05084.510.6:12234.0WossnerNCNCRound29.4NC845XSY
    K9135D10085.08.7:12234.0WossnerNCNCRound19.1NC850XPY
    JE-35322485.09.5:12233.9JE RoundNC2618.0Round29.7NCNC
    JE-38124485.010:12233.9JENC4032.0NC32.0NCNC
    JE-35322585.010.5:12233.9JE RoundNC2618.0Round34.3NCNC
    K9103D10085.010.7:12234.0WossnerNCNCRound29.4NC850XSY
    JE-35322687.59.5:12233.9JE RoundNC2618.0Round27.4NCNC
    JE-38124587.510:12233.9JENC4032.0NC29.9NCNC
    JE-35322787.510.5:12233.9JE RoundNC2618.0Round32.3NCNC
    JE-38124689.010:12233.9JENC4032.0NC29.3NCNC
    JE-35322889.010.5:12233.9JE RoundNC2618.0Round31.1NCNC


    Compatibility (engine codes):

    • Flat-6 2.2 — Type 911/03 (911 T, carbu) ; Type 911/01 (911 E, MFI) ; Type 911/02 (911 S, MFI).


    Original vehicles equipped with the 2.2 (C/D-series) :

    BrandModelEngine codePowerYears
    Porsche911 T 2.2911/03125 hp1970 – 1971
    Porsche911 E 2.2911/01155 hp1970 – 1971
    Porsche911 S 2.2911/02180 hp1970 – 1971


    OEM piston references :

    • 911 T 2.2 (Type 911/03, 125 hp) : kit piston + cylinder Porsche 911.103.914.01 (depending on selection A/B and oversizes).
    • 911 E 2.2 (Type 911/01, 155 hp) : kit piston + cylinder Porsche 911.103.916.01 / 911.103.916.02 (Nikasil) & variants.
    • 911 S 2.2 (Type 911/02, 180 hp) : kit piston + cylinder Porsche 911.103.918.01 / 911.103.918.02 (Mahle 5030390, Nikasil).
    • Note: the exact references are VIN-dependent (sort classes & oversizes). Check in the Porsche Catalog with the serial number.

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
