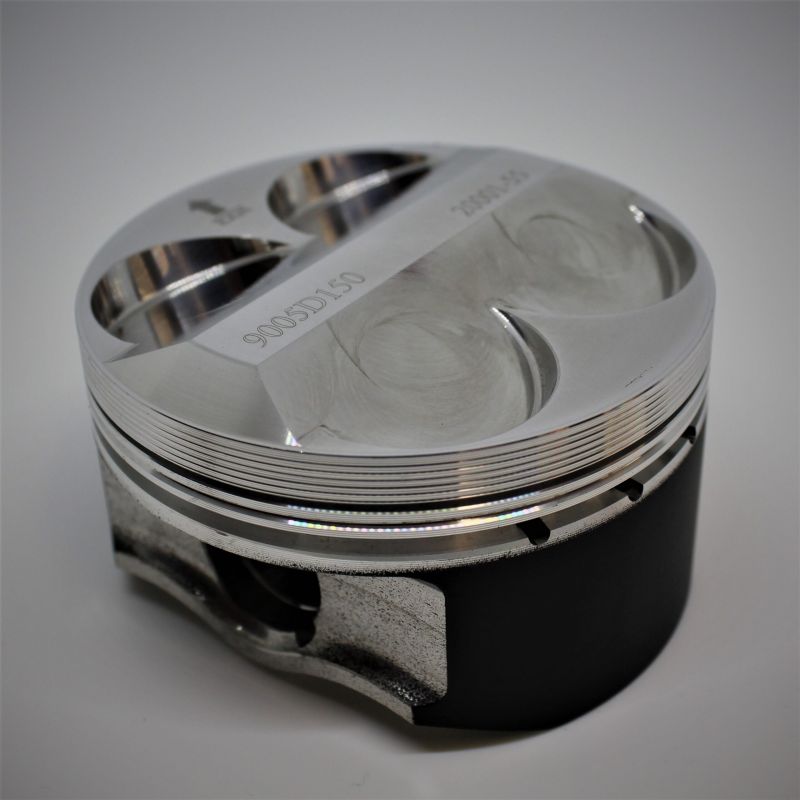

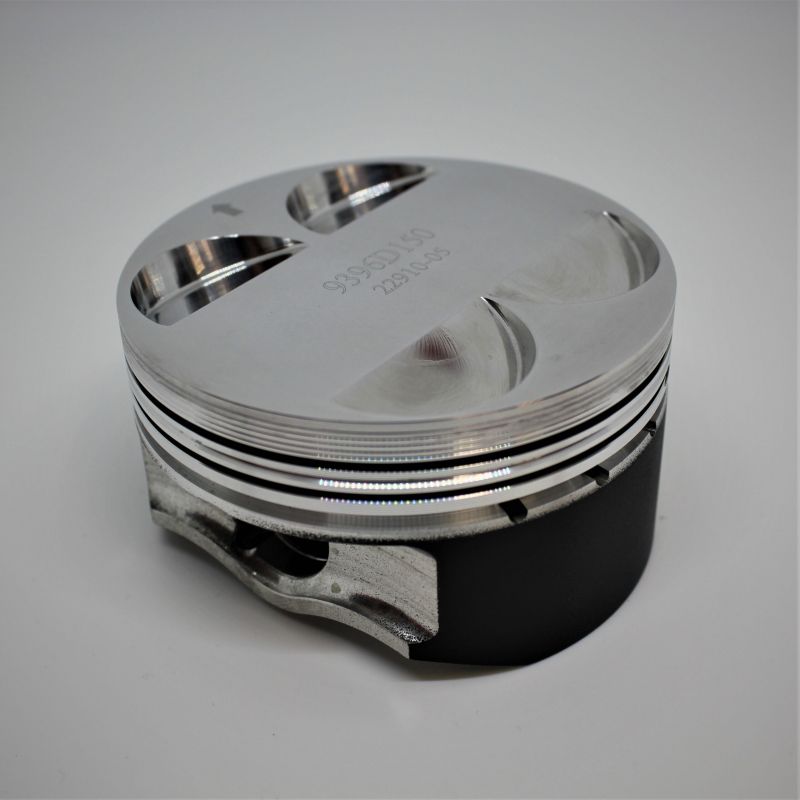

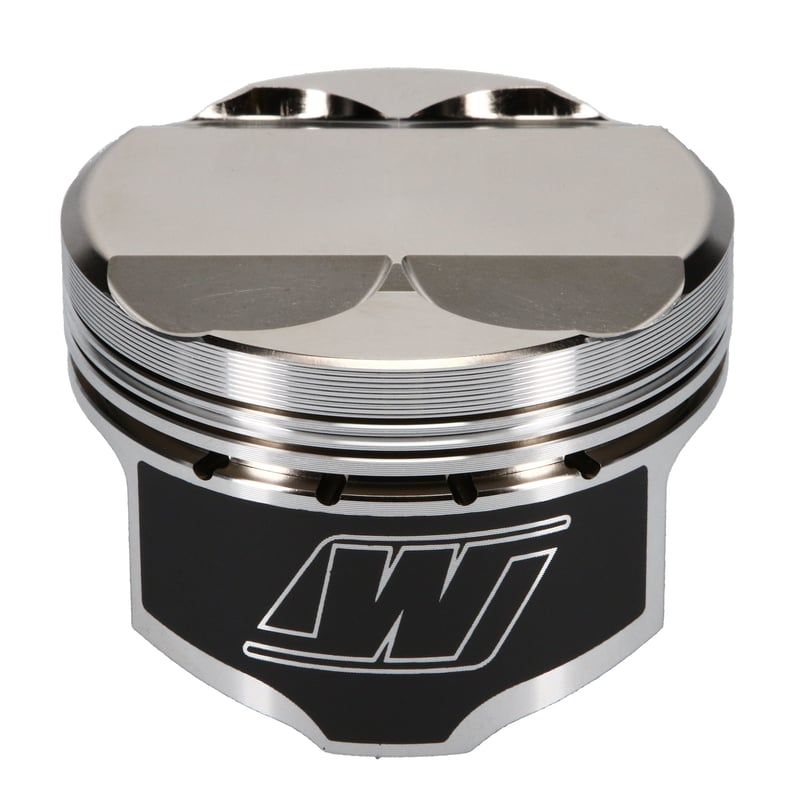

Opel C20XE 2.0 16v forged pistons (86-88mm bore, 21mm pin), ratio 10.5-13.5:1. JE, Wiseco, Wossner. Compatible with Kadett E GSi, Astra F GSi, Calibra, Vectra A. OEM C20XE refs listed.
Characteristics of the forged pistons offered by NSB Concept for Opel 2.0 L 16 v C20XE:
| Reference | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Aluminum | Treatment | Forging | Dome (cc) | Weight (g) | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-298740 | 86 | 10.5:1 | 21 | N/A | I | N/A | N/A | FSR | -2.2 | 307 | N/A |
| WKE163M86AP | 86 | 12:1 | 21 | N/A | Wiseco | N/A | Skirt | N/A | 5.2 | N/A | 8600XX |
| K9005DA | 86 | 12.5:1 | 21 | 30.5 | Wossner | N/A | N/A | Slippers | 2.33 | N/A | 860XSY |
| K9259DA | 86 | 12.5:1 | 21 | 30.5 | Wossner | N/A | N/A | Slippers | 2.33 | N/A | 860XSY |
| WKE263M86 | 86 | 13.5:1 | 21 | N/A | Wiseco | N/A | Skirt | N/A | 12 | N/A | 8600XX |
| JE-361356 | 86.25 | 10.5:1 | 21 | N/A | I | N/A | N/A | FSR | -2.5 | 307 | N/A |
| JE-361356 | 86.25 | 10.5:1 | 21 | N/A | I | N/A | N/A | FSR | -2.5 | 307 | N/A |
| WKE163M8625AP | 86.25 | 12:1 | 21 | N/A | Wiseco | N/A | Skirt | N/A | 5.2 | N/A | 8625XX |
| WKE263M8625 | 86.25 | 13.5:1 | 21 | N/A | Wiseco | N/A | Skirt | N/A | 12 | N/A | 8625XX |
| JE-298741 | 86.5 | 10.5:1 | 21 | N/A | I | N/A | N/A | FSR | -2.7 | 310 | N/A |
| WKE163M865AP | 86.5 | 12:1 | 21 | N/A | Wiseco | N/A | Skirt | N/A | 5.2 | N/A | 8650XX |
| K9005D050 | 86.5 | 12.6:1 | 21 | 30.5 | Wossner | N/A | N/A | Slippers | 2.33 | N/A | 865XSY |
| K9259D050 | 86.5 | 12.6:1 | 21 | 30.5 | Wossner | N/A | N/A | Slippers | 2.33 | N/A | 865XSY |
| WKE263M865 | 86.5 | 13.5:1 | 21 | N/A | Wiseco | N/A | Skirt | N/A | 12 | N/A | 8650XX |
| WKE163M8675AP | 86.75 | 12:1 | 21 | N/A | Wiseco | N/A | Skirt | N/A | 5.2 | N/A | 8675XX |
| JE-298739 | 87 | 10.5:1 | 21 | N/A | I | N/A | N/A | FSR | -3.3 | 315 | N/A |
| WKE163M87AP | 87 | 12:1 | 21 | N/A | Wiseco | N/A | Skirt | N/A | 5.2 | N/A | 8700XX |
| K9005D100 | 87 | 12.8:1 | 21 | 30.5 | Wossner | N/A | N/A | Slippers | 2.33 | N/A | 870XSY |
| K9259D100 | 87 | 12.8:1 | 21 | 30.5 | Wossner | N/A | N/A | Slippers | 2.33 | N/A | 870XSY |
| WKE263M87 | 87 | 13.5:1 | 21 | N/A | Wiseco | N/A | Skirt | N/A | 12 | N/A | 8700XX |
| K9396D150 | 87.5 | 11:1 | 21 | N/A | Wossner | N/A | N/A | Round | -5.3 | N/A | 875XSY |
| WKE163M875AP | 87.5 | 12:1 | 21 | N/A | Wiseco | N/A | Skirt | N/A | 5.2 | N/A | 8750XX |
| K9005D150 | 87.5 | 12.9:1 | 21 | 30.5 | Wossner | N/A | N/A | Slippers | 2.33 | N/A | 875XSY |
| K9259D150 | 87.5 | 12.9:1 | 21 | 30.5 | Wossner | N/A | N/A | Slippers | 2.33 | N/A | 875XSY |
| K9391D200 | 88 | 12.5:1 | 18 | N/A | Wossner | N/A | N/A | Round | 0.3 | N/A | 880XDS |
| K9005D200 | 88 | 13:1 | 21 | 30.5 | Wossner | N/A | N/A | Slippers | 2.33 | N/A | 880XSY |
| K9259D200 | 88 | 13:1 | 21 | 30.5 | Wossner | N/A | N/A | Slippers | 2.33 | N/A | 880XSY |
Engine compatibility:
2.0L 16v C20XE
| Brand | Model | Chassis | Engine Code | Power (hp) | Years |
|---|---|---|---|---|---|
| Opel | Astra F GSi 2.0 16V | F | C20XE | 150 | 1991-1994 |
| Opel | Calibra 2.0 16V | C20XE | 150 | 1989-1994 | |
| Opel | Kadett E GSi 16V | E | C20XE | 150 | 1988-1991 |
| Opel | Vectra A 2.0i 16V | A | C20XE | 150 | 1990-1992 |
Piston manufacturer references (OEM):
Opel C20XE (bare piston / or equipped with segments depending on version)
: 623430, 90467629, 90467637, 90509608, 90509610.
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
