2.0L 16v - B20A/F20A
Manufacturers
2.0L 16v - B20A/F20A
Warning: Last items in stock!
New product

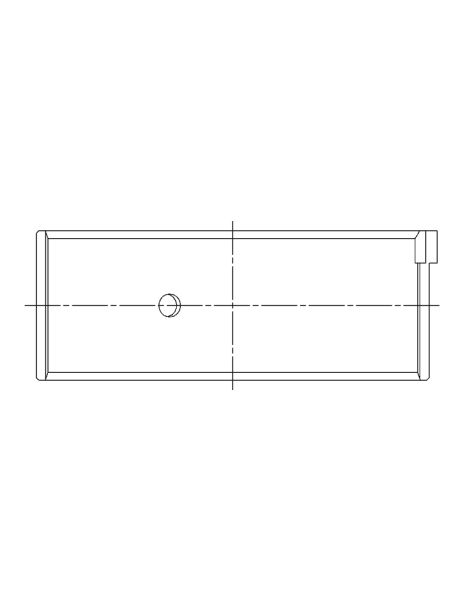

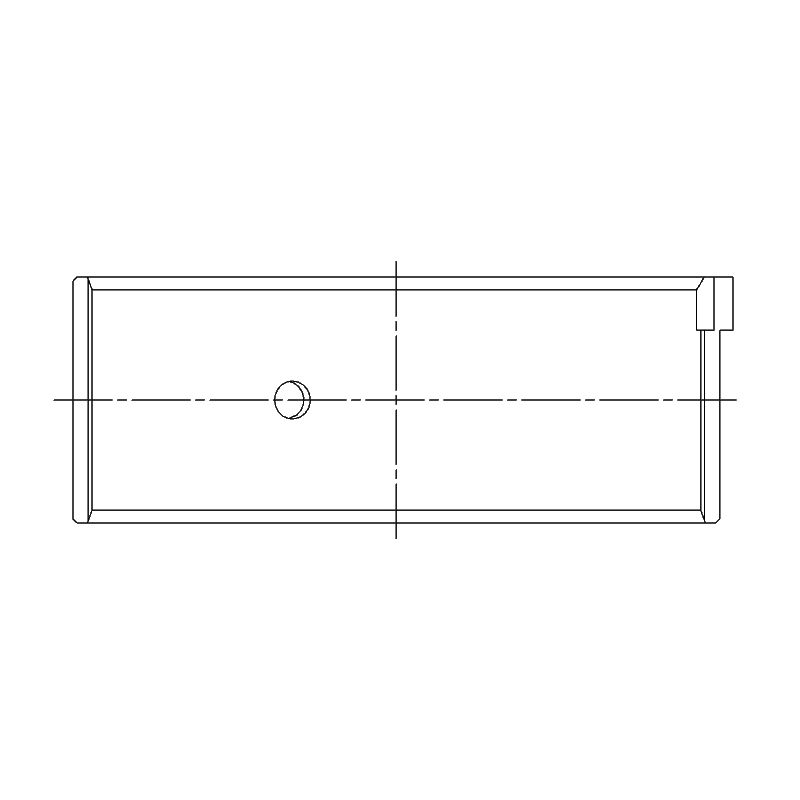

Set of 8 trimetal connecting rod half-bearings for Honda B20A, F20A, F22A, F22B and H23A.
The B20A, F20A, F22A, F22B and H23A are Honda's 2.0 to 2.3 litre 16-valve four-cylinder engines, fitted to the Prelude, Accord, Shuttle and Odyssey. ACL lists a single bearing set for these engines: same crankpin diameter, a single set covers the family.
From the factory, this engine is fitted with standard production connecting rod bearings, sized for the loads of the original engine: as soon as power, engine speed or boost pressure increase, they reach their limits.
A trimetal bearing stacks three layers: a steel back, a copper-lead intermediate layer with high load capacity and an anti-friction running surface that protects the journal. The complete set contains 8 half shells, four pairs for a four-cylinder engine.
The original bearing relies on an aluminium alloy over a steel back, intended for low to medium loads, whereas trimetal is designed for high, sustained loads: an aluminium bi-metal takes around 8,000 psi, a performance trimetal up to 12,000 psi, 50% more. Hence better resistance and better durability on turbocharged, supercharged and high-revving engines.
| ACL bearings Crankpin Ø 47.980 / 48.000 mm Housing bore Ø 51.004 / 51.024 mm Width 19.4 mm |
| Reference | Brand and treatment | Size | Wall thickness (mm) |
|---|---|---|---|
| 4B1936H-STD | ACL Race - Untreated | Standard | 1.496 |
| 4B1936HX-STD | ACL Race - Untreated | Std, increased clearance (HX) | 1.483 |
| 4B1936H-.025 | ACL Race - Untreated | +0.025 | 1.5085 |
| 4B1936H-.25 | ACL Race - Untreated | +0.25 | 1.621 |
The running clearance is the gap between the bearing and the journal where the oil film flows.
In operation, the crankshaft journal does not rub against the bearing: it rides on this oil film, which carries the load. Clearance sets the thickness of this film: too tight, oil flows poorly, temperature rises and the risk of seizure increases; too loose, oil escapes, the film loses load-carrying capacity and oil pressure drops. The right clearance is the balance between adequate lubrication and a well-maintained oil film.
| Size / grade | When to choose it | ACL Race Series |
|---|---|---|
| Standard (STD) | Standard journal, not reground | 0.051 to 0.061 mm |
| Increased clearance (HX) | Wider clearance: high oil flow, high rpm | 0.077 to 0.086 mm |
| +0.025 mm | Polished journal | 0.051 to 0.061 mm |
| +0.25 mm | Journal reground to 0.25 mm | 0.051 to 0.061 mm |
Checking on assembly: lay a calibrated strip (Plastigauge) on the journal, torque the rod cap to spec, then compare the crushed strip against the gauge to read the clearance.
The ACL rod bearings shown here are trimetal bearings, designed for engine building and racing. Compared with an original bearing, they handle far higher loads: they cope with increased power, high rpm or the addition of a turbo or supercharger, where a standard bearing quickly reaches its limit.
 | ACL Bearing Company, an Australian manufacturer of high-performance engine bearings since 1949, offers with its Race Series precise trimetal bearings, available in many sizes and proven on built engines worldwide. |
This connecting rod bearing set fits the B20A, F20A, F22A, F22B and H23A four-cylinder engines of the following Honda models:
| Brand | Model (chassis) | Engine code | Power | Years |
|---|---|---|---|---|
| Honda | ACCORD III (CA) Saloon 2.0 i 16V (CA5) | B20A2, B20A8 | 133–137 hp | 1987–1989 |
| Honda | PRELUDE III (BA) Coupé 2.0 i EX 16V (BA2, BA4, BA5) / 2.1 | B20A1, B20A5, B20A6, B20A7, B20A9, B21A1 | 137–150 hp | 1986–1992 |
| Honda | PRELUDE IV (BB_) Coupé 2.0 i 16V (BB3) / 2.3 i 16V (BB2) / 2.2 S (BA8) / 2.2 (BB5) | F20A4, F22A1, H23A2 | 131–160 hp | 1991–1996 |
| Honda | ACCORD IV (CB) Saloon 2.0 16V (CB3) / 2.2 i 16V (CB7) | F20A2, F20A4, F20A5, F20A6, F20A8, F22A1, F22A3, F22A4, F22A6 | 90–150 hp | 1990–1993 |
| Honda | ACCORD IV Coupe (CB, CC) Coupé 2.0 i 16V (CC1) / 2.2 (CB7) | F20A5, F20A7, F22A1, F22A4, F22A6 | 126–141 hp | 1989–1993 |
| Honda | ACCORD V (CC, CD) Saloon 2.3 i SR (CD6) / 2.2 16V / 2.2 Vti (SV4, CD5) / 2.2 EXi (CD5) | F22B1, F22B2, F22B3, H23A3 | 132–158 hp | 1993–1997 |
| Honda | SHUTTLE (RA) MPV 2.2 16V (RA1) | F22B8 | 150 hp | 1994–1998 |
| Honda | PRELUDE V (BB_) Coupé 2.0 16V (BB9) / 2.2 Si (BB5) | F20A4, F22Z6 | 133–160 hp | 1996–2001 |
| Honda | ACCORD V Coupe (CD) Coupé 2.2 16V | F22B2 | 132 hp | 1993–1997 |
| Honda | ACCORD IV Aerodeck (CB) Estate 2.2 / 2.2 16V (CB7, CB8, CB9) / 2.0 i | F20A5, F22A1, F22A4, F22A6 | 126–141 hp | 1990–1993 |
| Honda | ACCORD V (CE, CF_, CD) Saloon 2.2 (CE1) / 2.2 | F22B1, F22B2 | 132–146 hp | 1995–1997 |
| Honda | ODYSSEY (RA_) MPV 2.2 4x4 (RA2) / 2.2 16V (RA1) | F22B6 | 140–146 hp | 1995–1999 |
| Honda | ACCORD V Aerodeck (CE) Estate 2.2 / 2.2 i EX (CE1) | F22B1, F22B2 | 132–147 hp | 1993–1997 |
