2.0L 16v - ABF
Manufacturers
2.0L 16v - ABF
Warning: Last items in stock!
New product

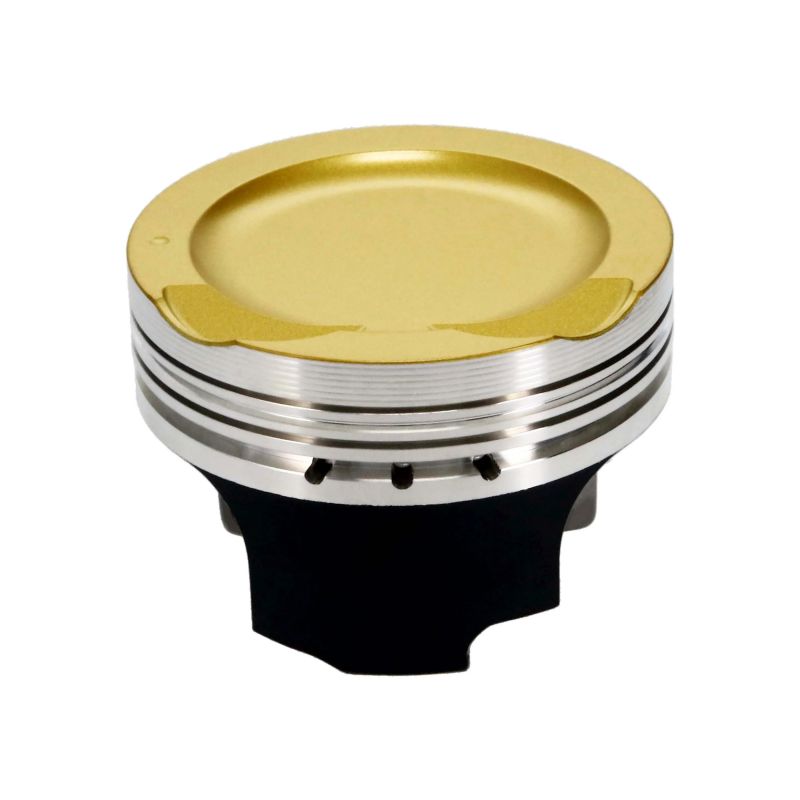

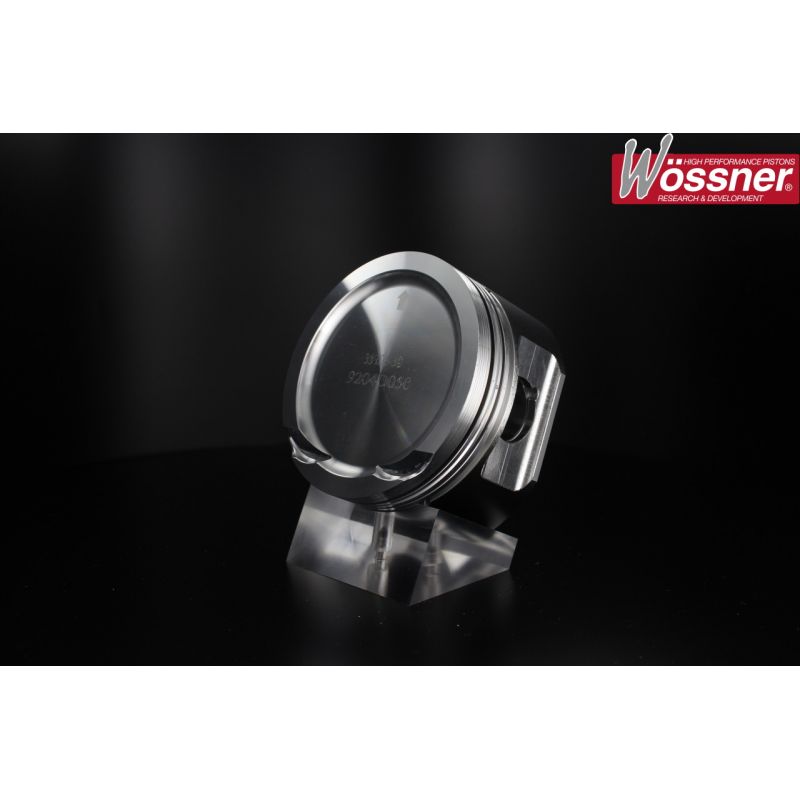

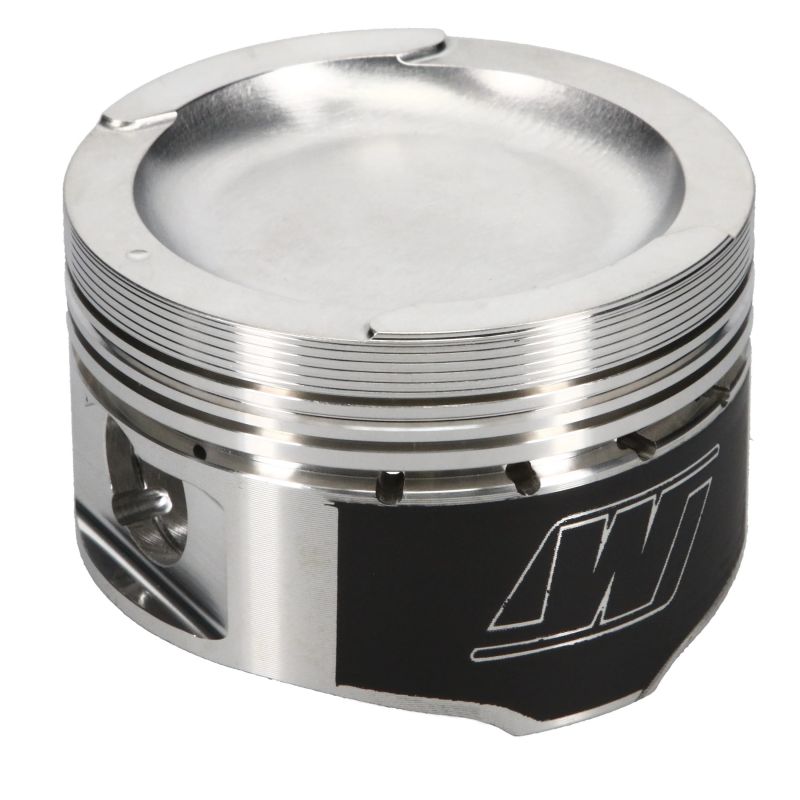

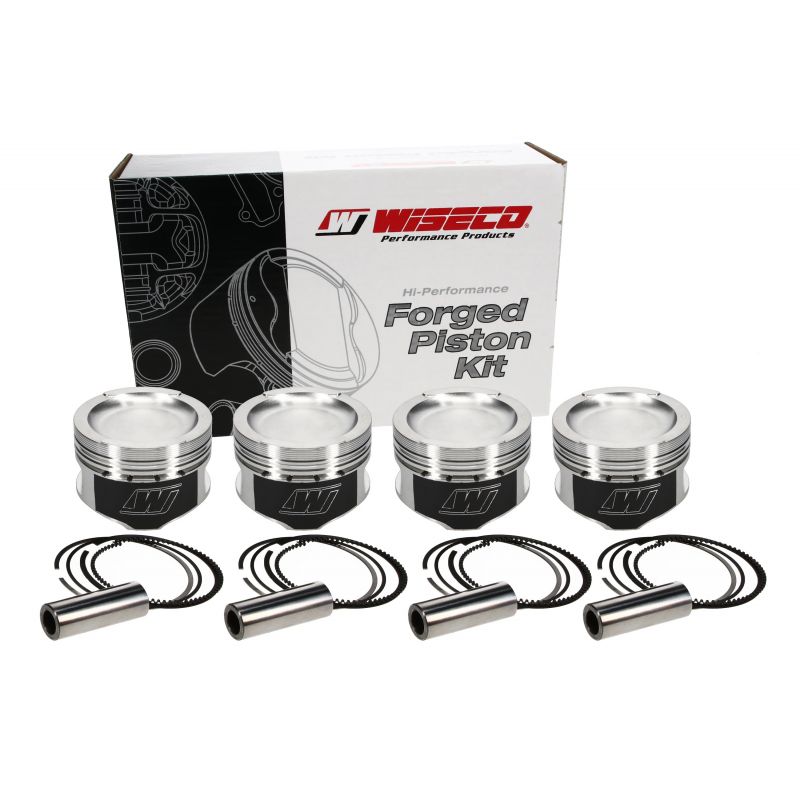

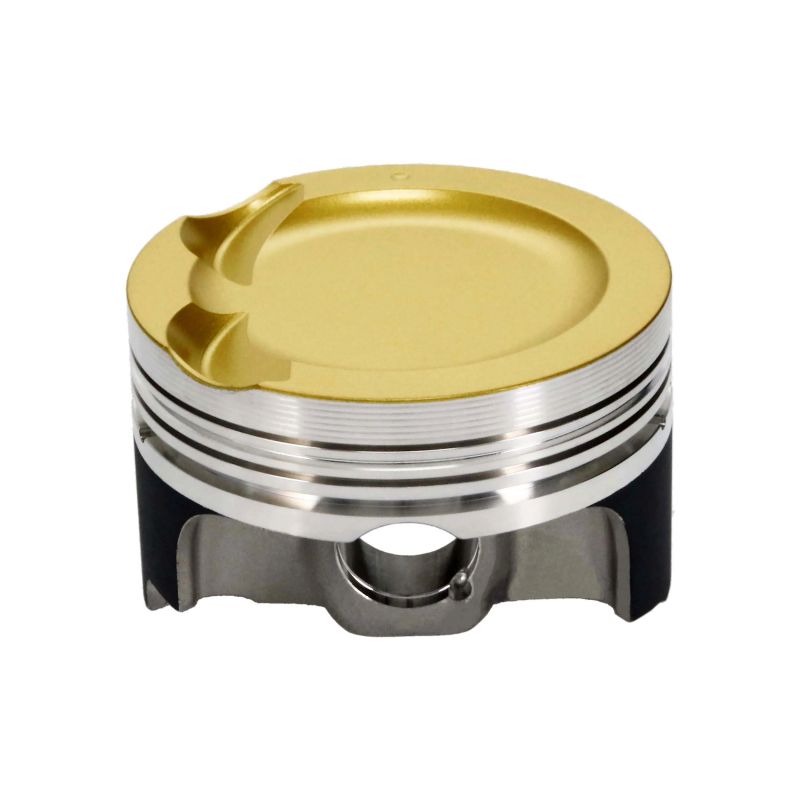

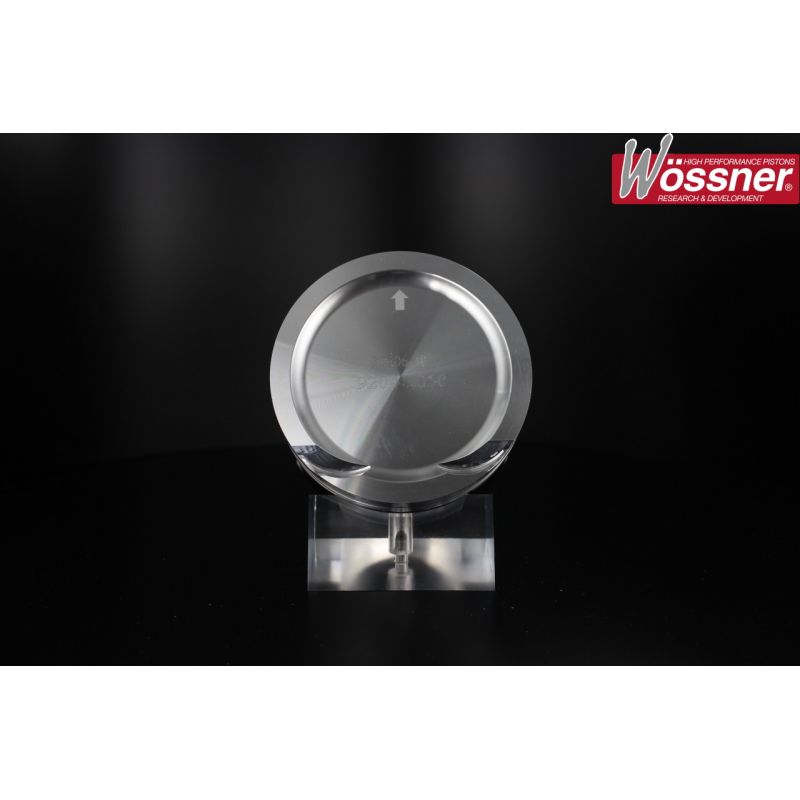

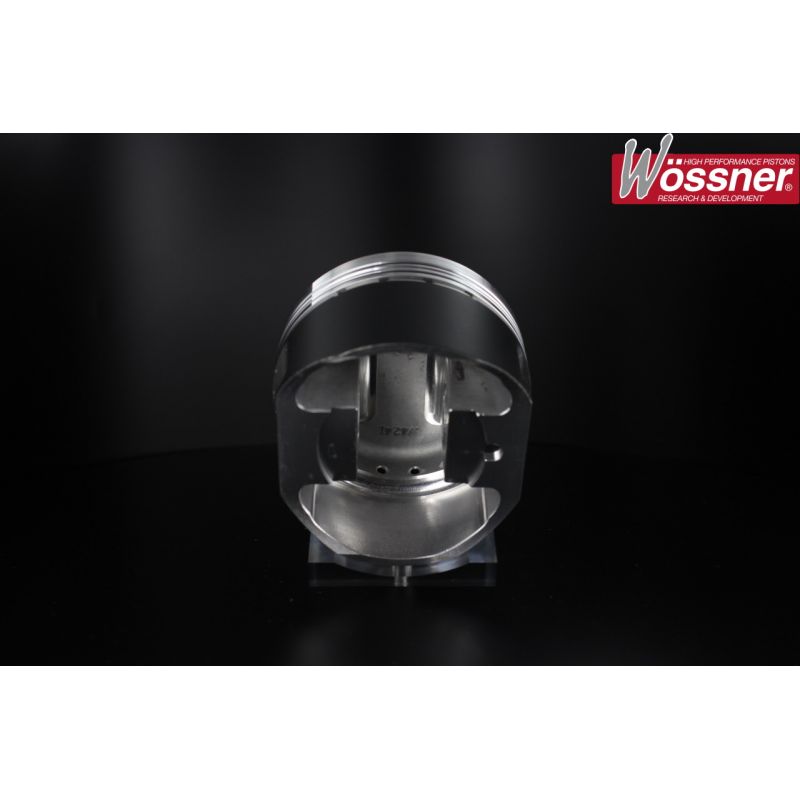

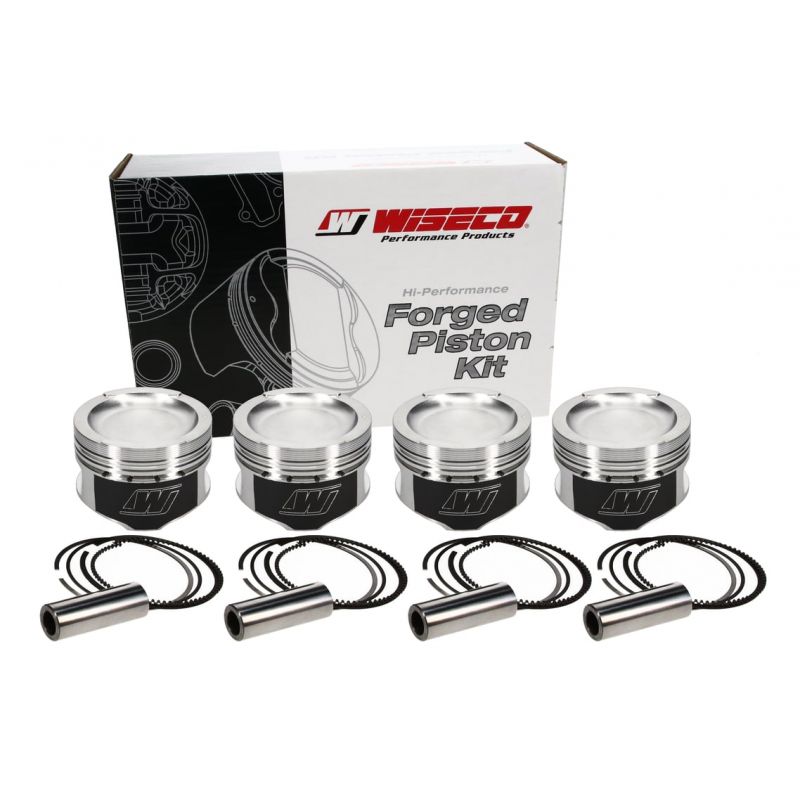

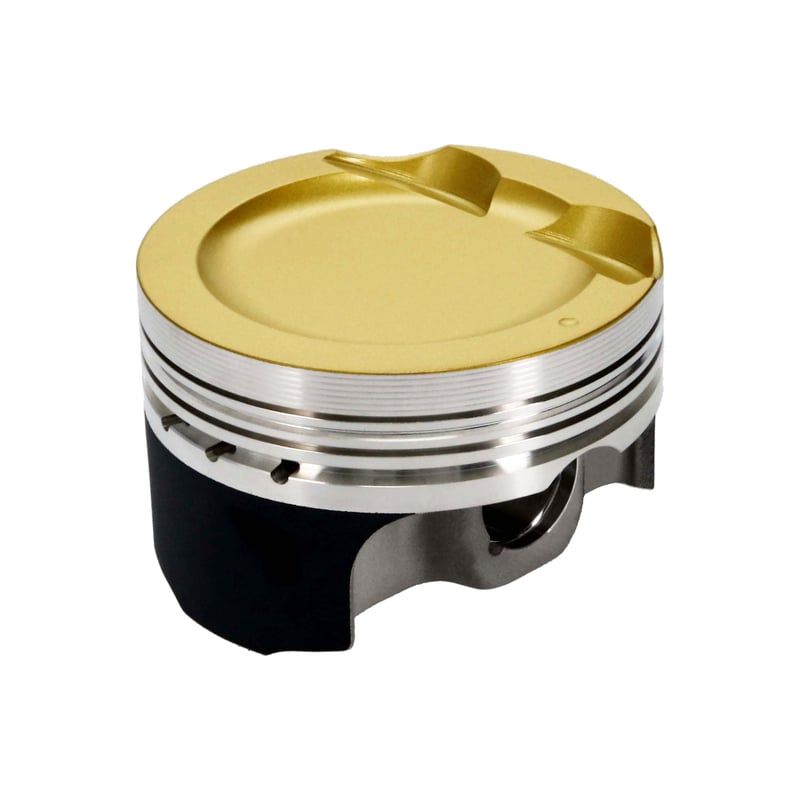

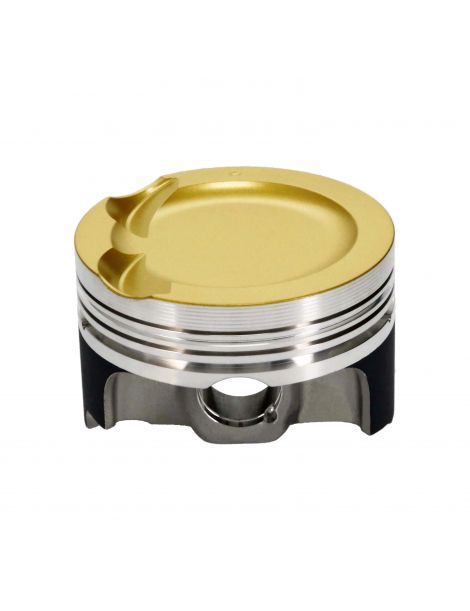

2.0 16V ABF forged pistons: Bore 82.5 mm, Pin 21 mm, CH 31.6 mm. Rings included. Compatibilities Golf 3 GTI 16V, Passat B4, SEAT Ibiza/Cordoba/Toledo 150 hp.
Specifications of the forged pistons offered by NSB Concept for Volkswagen / SEAT 2.0 L 16 V ABF :
| Reference | OEM Bore 82,50 mm | OEM CR 10,5 :1 | OEM Pin 21 mm | Height OEM Pin 31,60 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE188M825 | 82.5 | 8.5:1 | 21.0 | 30.6 | Wiseco | Skirt | 2618 | NC | -11.0 | NC | 8250XX |
| K9204DA | 82.5 | 9:1 | 21.0 | 31.6 | Wossner | NC | NC | Round | -10.6 | NC | 825XPY |
| WKE190M825 | 82.5 | 10.5:1 | 21.0 | 30.6 | Wiseco | Skirt | 2618 | NC | 4.0 | NC | 8250XX |
| P4-VW16-ABF-82.5-4 | 82.5 | 11.6:1 | 21.0 | 31.35 | Supertech | Crown + Skirt | 4032 | NC | 10.3 | 274.0 | R82.50-895052-00 |
| WKE290M825 | 82.5 | 11.8:1 | 21.0 | 30.6 | Wiseco | Skirt | 2618 | NC | 8.0 | NC | 8250XX |
| K9032DA | 82.5 | 13:1 | 21.0 | 31.6 | Wossner | NC | NC | Round | 9.8 | NC | 825XSY |
| P4-VW16-ABF-82.70-4 | 82.7 | 11.7:1 | 21.0 | 31.35 | Supertech | Crown + Skirt | NC | NC | 10.3 | NC | R82.75-895052-25 |
| K9032D020 | 82.7 | 13.1:1 | 21.0 | 31.6 | Wossner | NC | NC | Round | 9.8 | NC | 827XSY |
| WKE290M8275 | 82.75 | 11.8:1 | 21.0 | 30.6 | Wiseco | Skirt | NC | NC | 8.0 | NC | 8300XX |
| WKE188M83 | 83.0 | 8.5:1 | 21.0 | 30.6 | Wiseco | Skirt | 2618 | NC | -11.0 | NC | 8300XX |
| K9204D050 | 83.0 | 9.1:1 | 21.0 | 31.6 | Wossner | NC | NC | Round | -10.6 | NC | 830XPY |
| WKE190M83 | 83.0 | 10.5:1 | 21.0 | 30.6 | Wiseco | Skirt | 2618 | NC | 4.0 | NC | 8300XX |
| JE-385568C*4 | 83.0 | 11.3:1 | NC | NC | JE | NC | NC | NC | NC | NC | NC |
| P4-VW16-ABF-83-4 | 83.0 | 11.8:1 | 21.0 | 31.35 | Supertech | Crown + Skirt | 4032 | NC | 10.3 | 273.0 | R83-895052-50 |
| WKE290M83 | 83.0 | 11.8:1 | 21.0 | 30.6 | Wiseco | Skirt | 2618 | NC | 8.0 | NC | 8300XX |
| JE-355149C*4 | 83.0 | 13:1 | 21.0 | 30.6 | JE | NC | NC | NC | 13.5 | NC | NC |
| K9032D050 | 83.0 | 13.1:1 | 21.0 | 31.6 | Wossner | NC | NC | Round | 9.8 | NC | 830XSY |
| WKE188M835 | 83.5 | 8.5:1 | 21.0 | 30.6 | Wiseco | Skirt | 2618 | NC | -11.0 | NC | 8350XX |
| K9204D100 | 83.5 | 9.2:1 | 21.0 | 31.6 | Wossner | NC | NC | Round | -10.6 | NC | 835XPY |
| WKE190M835 | 83.5 | 10.5:1 | 21.0 | 30.6 | Wiseco | Skirt | 2618 | NC | 4.0 | NC | 8350XX |
| WKE290M835 | 83.5 | 11.8:1 | 21.0 | 30.6 | Wiseco | Skirt | 2618 | NC | 8.0 | NC | 8350XX |
| K9032D100 | 83.5 | 13.3:1 | 21.0 | 31.6 | Wossner | NC | NC | Round | 9.8 | NC | 835XSY |
| WKE188M84 | 84.0 | 8.5:1 | 21.0 | 30.6 | Wiseco | Skirt | 2618 | NC | -11.0 | NC | 8400XX |
| K9032D150 | 84.0 | 13.4:1 | 21.0 | 31.6 | Wossner | NC | NC | Round | 9.8 | NC | 840XSY |
Compatibility (engine codes):
Original vehicles equipped with the 2.0 16V ABF :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| SEAT | Cordoba 6K 2.0 16V | ABF | 150 hp | 1996 – 1999 |
| SEAT | Ibiza 6K Cupra 2.0 16V | ABF | 150 hp | 1996 – 1999 |
| SEAT | Toledo 1L 2.0 16V | ABF | 150 hp | 1994 – 1999 |
| Volkswagen | Golf III (1H) GTI 16V | ABF | 150 hp | 1993 – 1997 |
| Volkswagen | Passat B4 (3A/35i) 2.0 16V | ABF | 150 hp | 1993 – 1997 |
OEM piston references :
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
Forged pistons 2.0 16V ABF : bore 82,5 mm, pin 21 mm, CH 31,6 mm. Rings included. Compatibility Golf 3 GTI 16V, Passat B4, SEAT Ibiza/Cordoba/Toledo 150 hp.
