Crankshaft thrust washers BMW MINI N12 N13 N14 N18

The BMW and MINI N12, N13, N14 and N18 petrol engines

The 1.6 L four-cylinder petrol engines of the N12, N13, N14 and N18 families power the MINI Cooper, Cooper S and John Cooper Works of the R55 to R61 series, as well as the BMW 1 Series (F20, F21) and 3 Series (F30, F31, F80), among others. The manufacturers list two thrust washer part numbers, both in standard size: ACL 1T7788 and King TW1046AM. The engine codes listed by King are given in the manufacturer notes below; ACL publishes no application for 1T7788.

Thrust washers

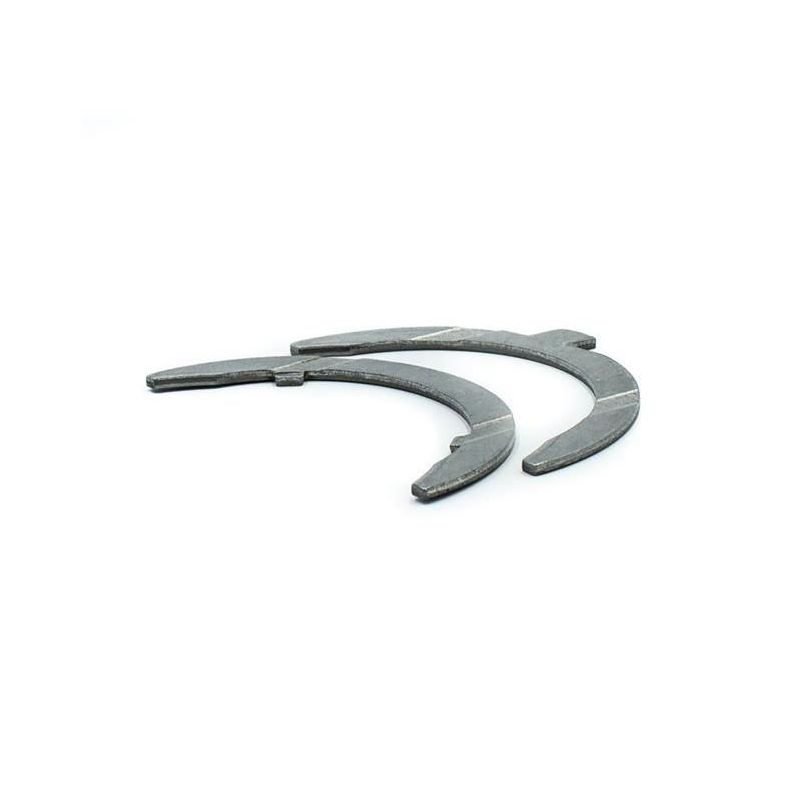

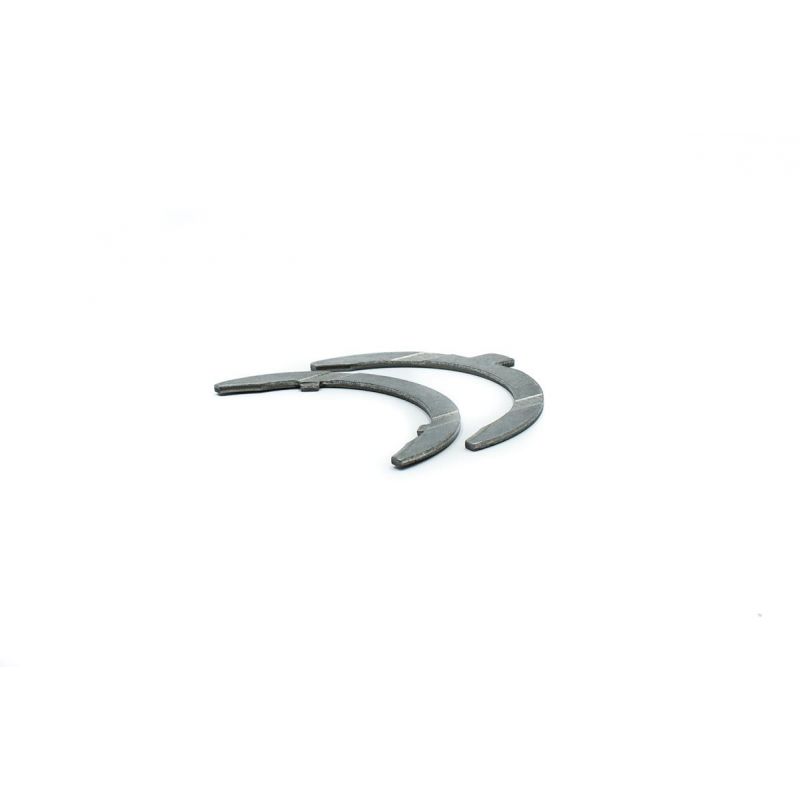

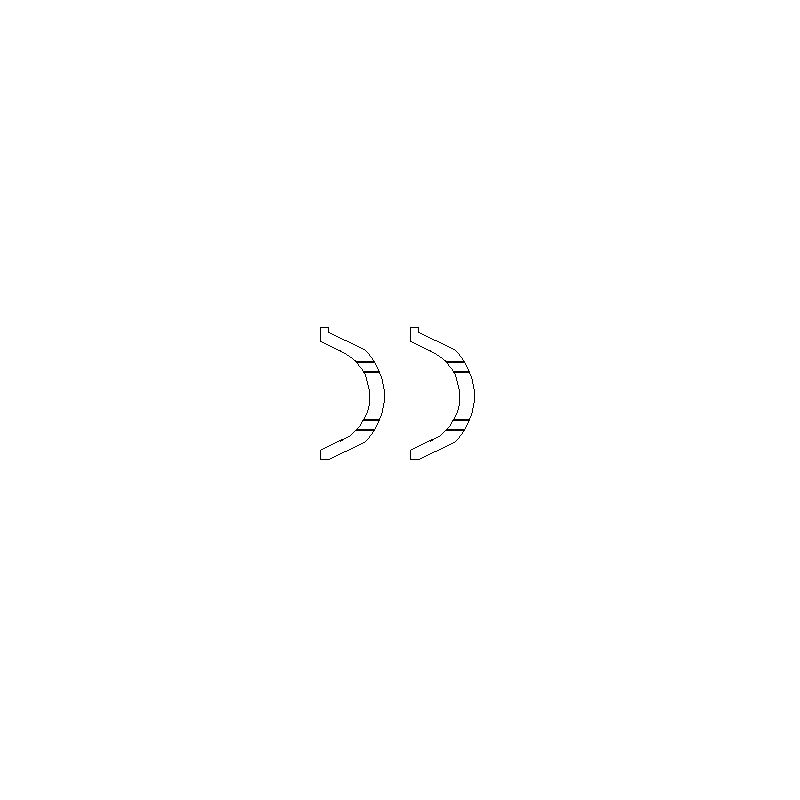

Thrust washers sit on each side of a crankshaft main bearing. They take the clutch thrust every time the pedal is pressed and set the crankshaft end play. Two versions in standard size: identical half washers on one side, and a one-pair set in lead-free aluminium on the other.

The aluminium version, lead-free Al20Sn1Cu alloy, is certified by its manufacturer to meet or exceed the vehicle manufacturer's specifications.

Technical specifications

The two brands

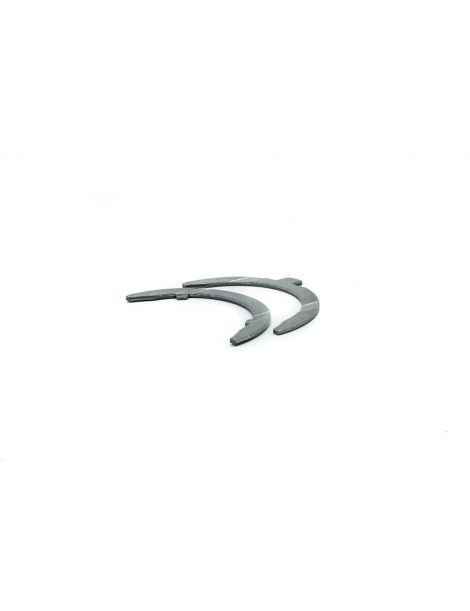

	ACL Bearing Company, an Australian manufacturer of high-performance engine bearings since 1949, supplies thrust washers uncoated.

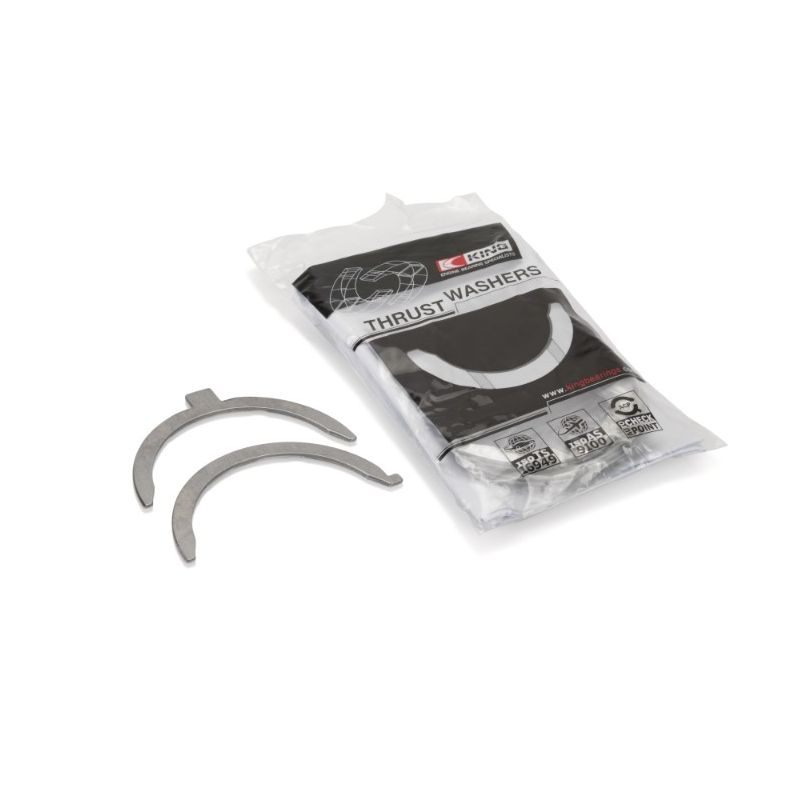

	King Engine Bearings, an Israeli engine bearing manufacturer since the 1960s, offers its OE Replacement range thrust washers in lead-free aluminium bi-metal.

Vehicle compatibility

The King TW1046AM thrust washer fits the BMW and MINI petrol engines (engine codes listed by the manufacturer, see the notes above) of the following vehicles:
