1.6L 16v - M16A

Information

Manufacturers

1.6L 16v - M16A

Reduced price! SUZUKI référence R-SUZ-001H Kit 4 bielles forgées en H ZRP avec vis ARP View larger

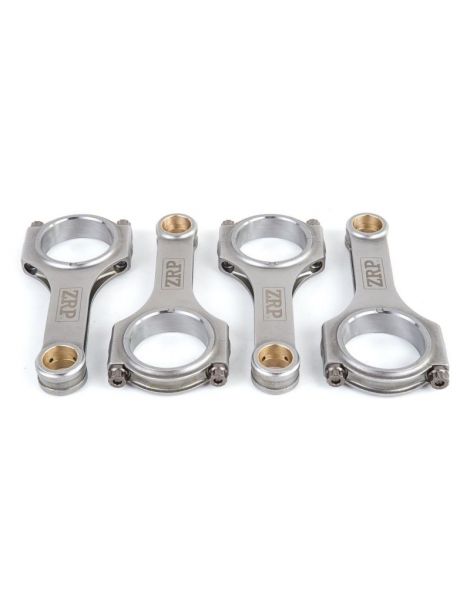

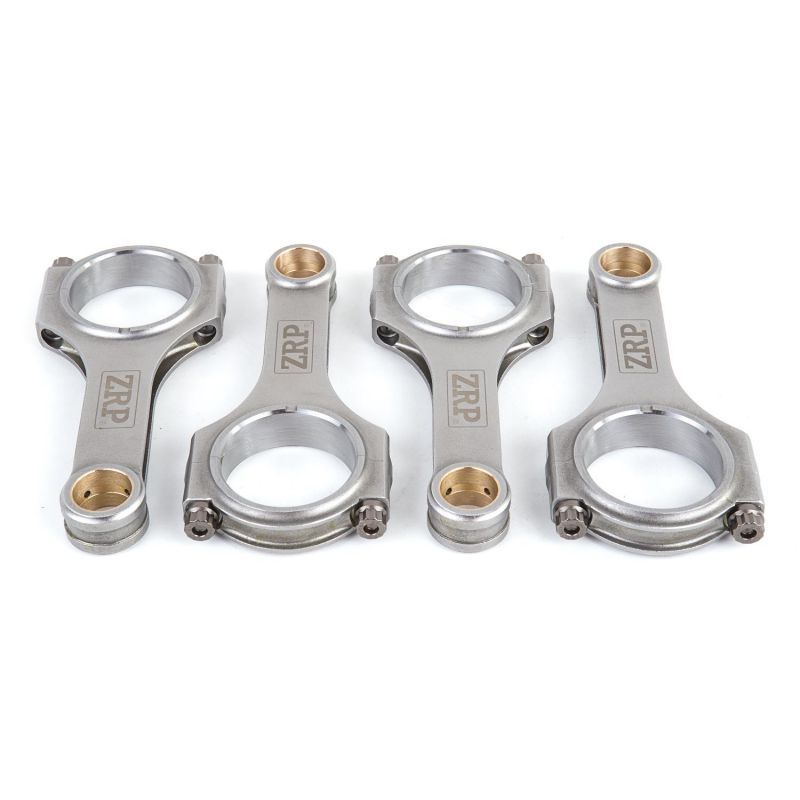

Forged Connecting Rods ZRP kit Suzuki 1.6 125CV M16A

New product

High-quality Forged Connecting Rods ZRP kit Suzuki 1.6 125CV M16A (Forged Connecting Rods ZRP Suzuki 1.6 125CV M16A) for reliable fitment and performance.

More details

437,64 € tax incl.

-30%

625,20 € tax incl.

SUR COMMANDE : 2 semaines

  • The forged connecting rod kits ZRP for Suzuki 1.6 125CV M16A engine consist of 4 rods and are supplied with ARP connecting rod bolts.

    Installation instructions are available in the "Downloads" tab above.

    Technical Characteristics

    • Rod Type: I-Beam
    • Centerline Length: 135.16mm
    • Head Diameter: 45.00mm
    • Head Width: 23.84mm
    • Wrist Pin Diameter: 20.00mm
    • Rod Bolts: ARP2000 or L19
    • Bolt Thread: 3/8"
    • Weight: 412gr
    • Steel Type: 4340

    ZRP brand is the subsidiary of DRAKOS ENGINEERING, renowned for high-performance mechanical component design expertise. ZRP specializes exclusively in forged engine components and has engineered 4340 high-strength steel forged rods to accept strong boost levels on your engine with ARP2000 rod bolts for high RPM capability.

    The head of ZRP forged rods is equipped with a machined bushing in proprietary hot-extruded AMPCO 18 copper-aluminum alloy, then honed to ensure oil film maintenance with your piston pin. The I-beam design of this ZRP forged rod provides exceptional resistance to significant power and torque increases from strong turbo or supercharger pressure, as well as extreme applications such as drift and dragster builds.

    Terminology:

    1) Rod foot
    2) Foot diameter
    3) Rod body
    4) Rod bolt
    5) Rod head
    6) Rod bolt nut
    7) Rod cap
    8) Head diameter
    9) Centerline length
