Forged piston table for Suzuki M16A 1.6 16v: O 78.00 mm, 20 mm wrist pin, stroke height 30.00 mm, CR 9.7-11.1:1.
Compatible with Swift Sport ZC31S/ZC32S, SX4, Grand Vitara JB416, Liana, Fiat Sedici.
Complete OEM references.

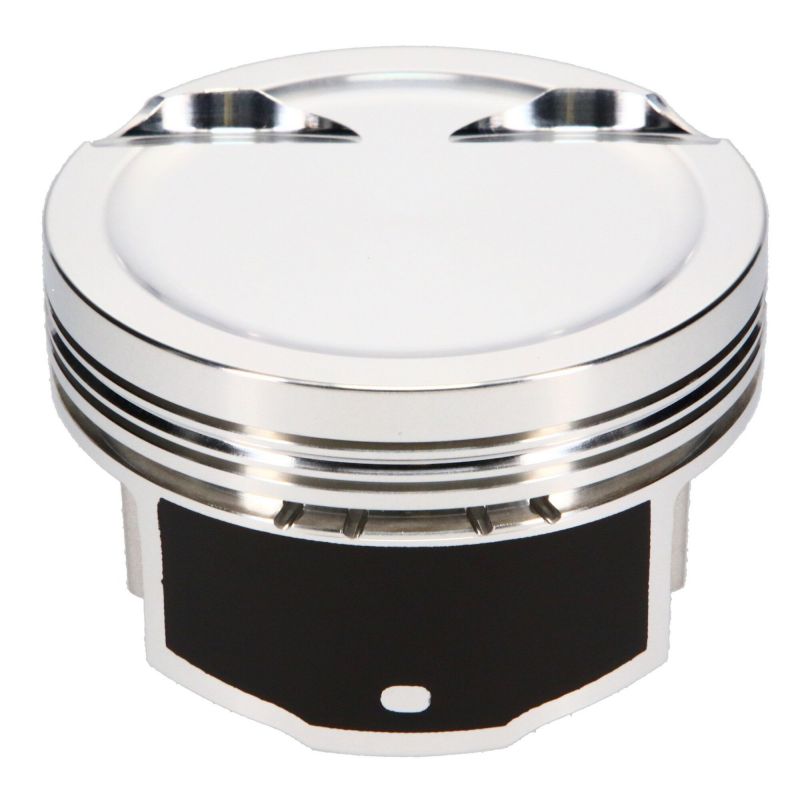

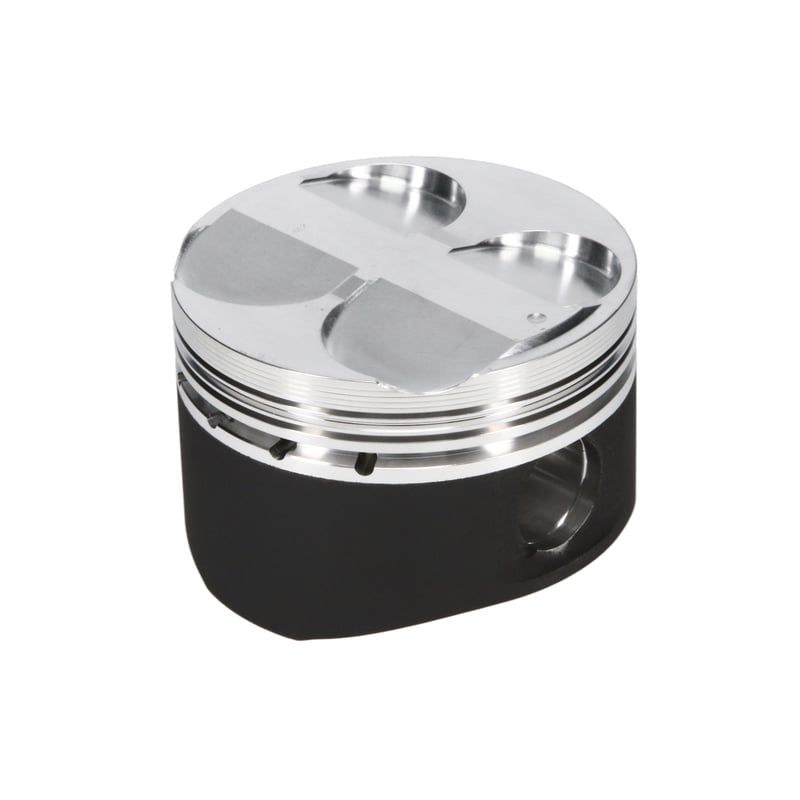

Specifications of the forged pistons offered by NSB Concept for Suzuki 1.6 L 16 V — engine M16A :
| Reference | OEM Bore 78,00 mm | OEM CR 9,7–11,1 :1 | OEM Pin 20 mm | Height OEM Pin 30,00 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WKE248M78 | 78.0 | 9:1 | 20 | 30 | Wiseco | Skirt | 2618 | NC | -15.0 | NC | 7800XX |
| WKE249M78 | 78.0 | 12:1 | 20 | 30 | Wiseco | Skirt | 4032 | NC | -1.5 | NC | 7800XX |
| WKE248M785 | 78.5 | 9:1 | 20 | 30 | Wiseco | Skirt | 2618 | NC | -15.0 | NC | 7850XX |
| WKE249M785 | 78.5 | 12:1 | 20 | 30 | Wiseco | Skirt | 4032 | NC | -1.5 | NC | 7850XX |
| WKE248M79 | 79.0 | 9:1 | 20 | 30 | Wiseco | Skirt | 2618 | NC | -15.0 | NC | 7900XX |
| WKE249M79 | 79.0 | 12:1 | 20 | 30 | Wiseco | Skirt | 4032 | NC | -1.5 | NC | 7900XX |
| JE-352927C*4 | 81.0 | 12:1 | 20 | 30 | JE | NC | NC | NC | -4.7 | NC | NC |
Compatibility (engine codes):
Original vehicles equipped with the M16A 1.6 16v :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Fiat | Sedici 1.6 16V | M16A | 107 hp | 2005 – 2009 |
| Suzuki | Grand Vitara II (JT) 1.6 (JB416) | M16A | 99–106 hp | 2005 – 2009 |
| Suzuki | Liana / Aerio 1.6 | M16A | 76–79 kW (103–107 hp) | 2001 – 2007 |
| Suzuki | SX4 1.6 16V | M16A | 107 hp | 2006 – 2009 |
| Suzuki | Swift Sport ZC31S | M16A | 125 hp | 2005 – 2011 |
| Suzuki | Swift Sport ZC32S | M16A | 136 hp | 2011 – 2017 |
OEM piston references :
Suzuki Swift / Swift Sport (M16A): 12100-72840 (STD), 12100-72840-050 (+0.50).
Suzuki SX4 / S-Cross (M16A, depending on model year): 12100-54812 (STD), 12100-54812-050 (+0.50).
Other M16A applications: 12100-57811 (STD) depending on catalogs parts (markets/years).
references depending on the market and of the model year (EU/JP, Swift Sport ZC31S/ZC32S, SX4/S-Cross, Liana/Aerio, Grand Vitara JB416). Verification via VIN in EPC recommended.
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
