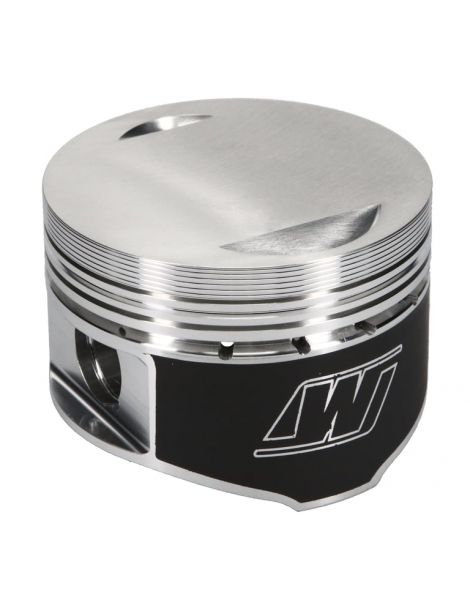

Forged pistons 1.5L 16v 5E-FTE Toyota

New product

Toyota 5E-FTE forged piston table (5E base): O 74.00 mm, axle 18 mm, CH 30.00 mm, RV OEM 9.4-10.0:1. Compatibilities, vehicles (Tercel, Cynos/Paseo, Sera, Caldina, Raum) and OEM references.

More details

602,24 € tax incl.

-25%

802,98 € tax incl.

ORDER TODAY, WE SHIP IN 2 - 5 DAYS

  • Specifications of the forged pistons offered by NSB Concept for Toyota 1.5 L 16 V — base 5E (conversion 5E‑FTE) :

    ReferenceOEM Bore
    74,00 mm    		OEM CR 9,4–10,0 :1OEM Pin
    18 mm    		Height OEM Pin
    30,00 mm    		RangeCoatingAluminiumForgingDomeWeightRings

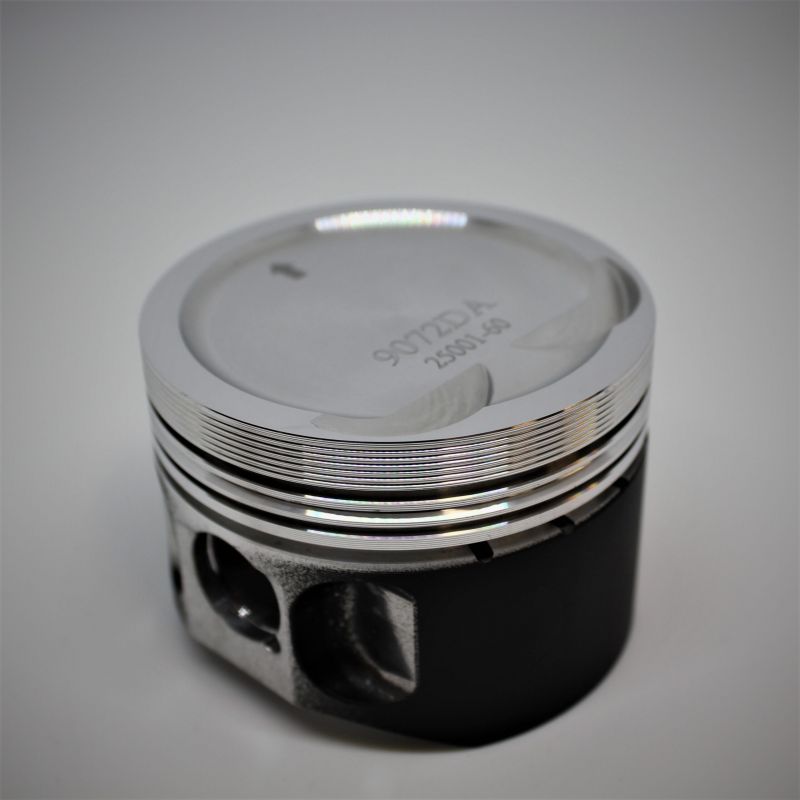

    K9072DA74.07.5:11830.0WossnerNCNCRound-6.2NC740XPZ

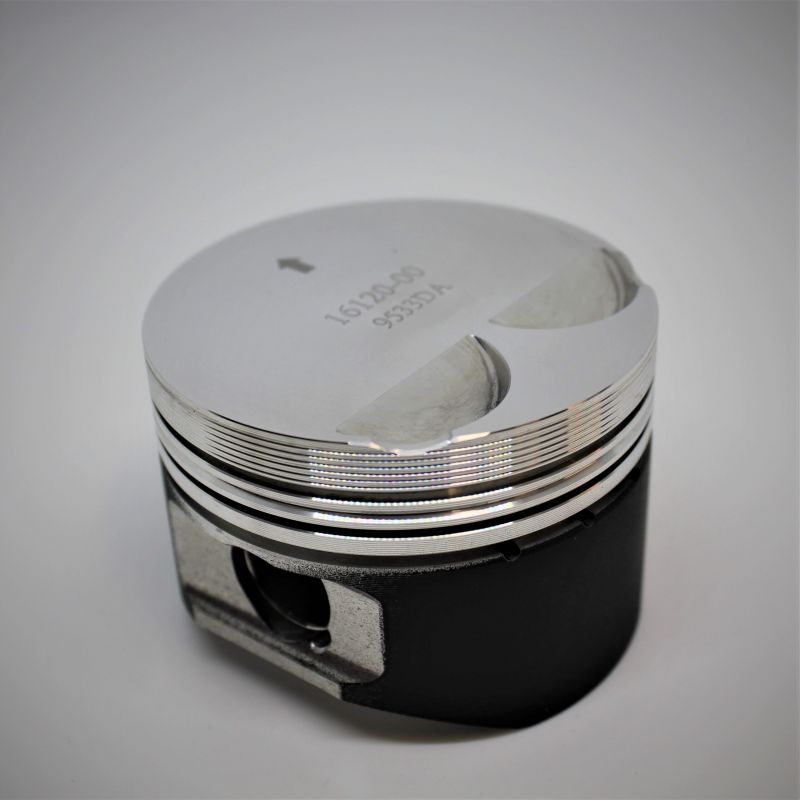

    K9533DA74.08:11830.0WossnerNCNCNC-1.36NC740XPZ
    K9072D05074.57.6:11830.0WossnerNCNCRound-6.2NC745XPZ
    K9533D05074.58.1:11830.0WossnerNCNCNC-1.36NC745XPZ

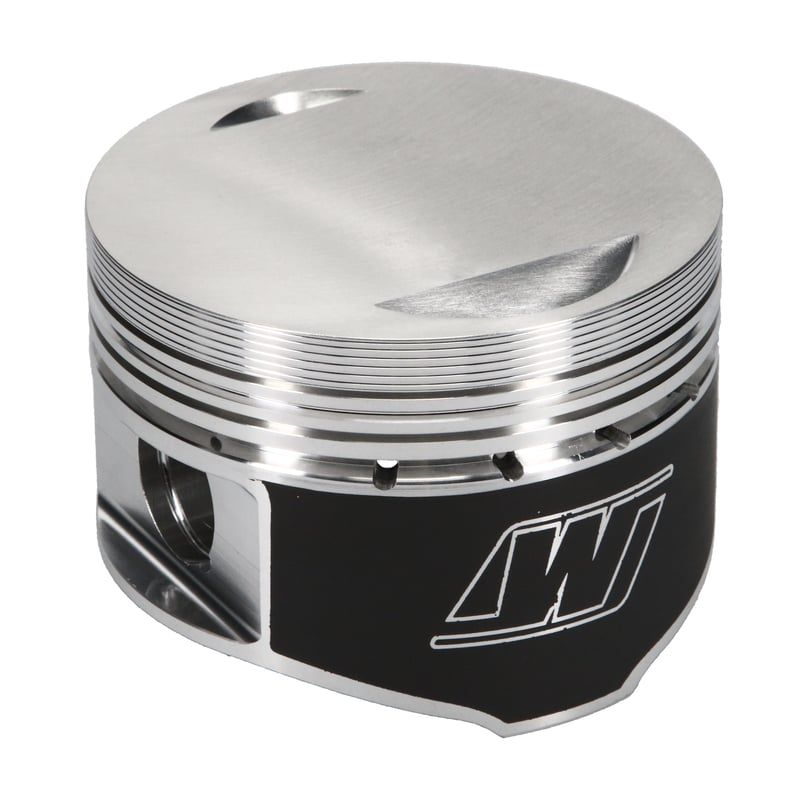

    WK687M74574.59.2:11829.9WisecoSkirt2618NC-2.5NC2933XC
    K9072D10075.07.7:11830.0WossnerNCNCRound-6.2NC750XPZ
    K9533D10075.08.2:11830.0WossnerNCNCNC-1.36NC750XPZ
    WK687M7575.09.3:11829.9WisecoSkirt2618NC-2.5NC2953XC


    Compatibility (engine codes):

    • 5E‑FE (1.5 DOHC 16v), 5E‑FHE (1.5 DOHC 16v high ratio), and applications 5E‑FTE (turbo based conversion 5E‑FE/FHE, close components 4E‑FTE).


    Original vehicles affected by the 5E family (base the applications 5E‑FTE):

    BrandModelEngine codePowerYears
    ToyotaCaldina Van and196V5E-FE100 hp1994 – 1997
    ToyotaCorolla II EL535E-FE94 hp1994 – 1999
    ToyotaCorsa L505E-FE94 hp1994 – 1999
    ToyotaCynos/Paseo EL54 1.5 β5E-FHE110 hp1995 – 1999
    ToyotaRaum EXZ10/EXZ15 (1re Gen.)5E-FE94–100 hp1997 – 2003
    ToyotaSera EXY105E-FHE110 hp1990 – 1995
    ToyotaTercel EL53 (5e Gen.)5E-FE94 hp1994 – 1999
    ToyotaTercel/Corsa (4e Gen.)5E-FHE115 hp1990 – 1994


    OEM piston references :

    • Toyota 5E‑FE : 13101‑11120‑01/‑03, 13101‑11130‑02/‑03, 13101‑11131, 13101‑11161 (depending on markets/grades and oversizes STD/OS).
    • Toyota 5E‑FHE (Sera/Cynos β) : 13101‑11121‑01 (and variants associated depending on model year).

    the references may vary depending on the market (Japan/US/EU), the grade of selection and the rectification (STD, +0.5 andc.). Verification by VIN in the EPC Toyota recommended.

    Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
