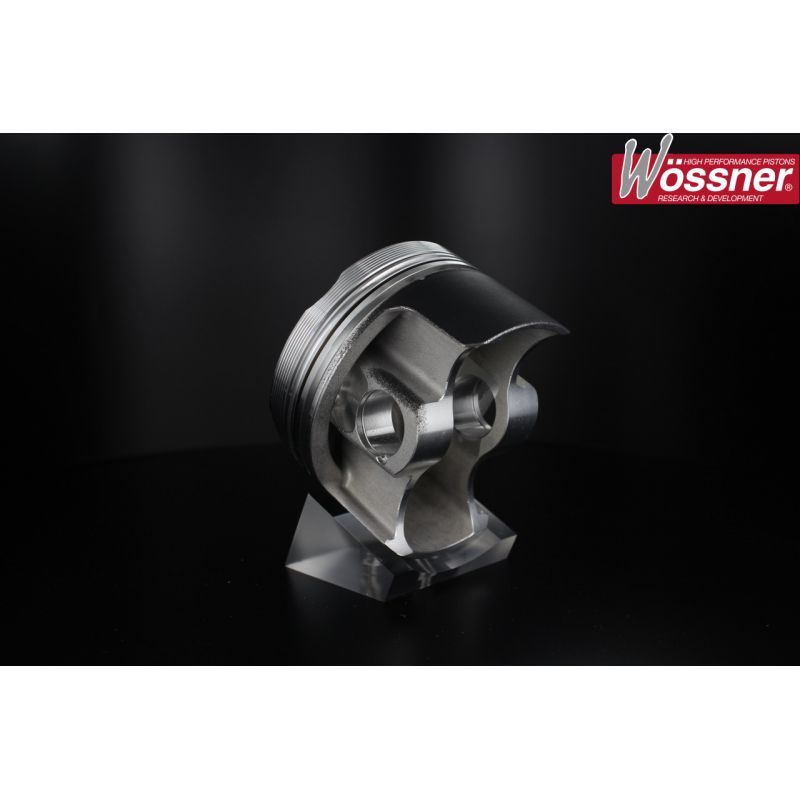

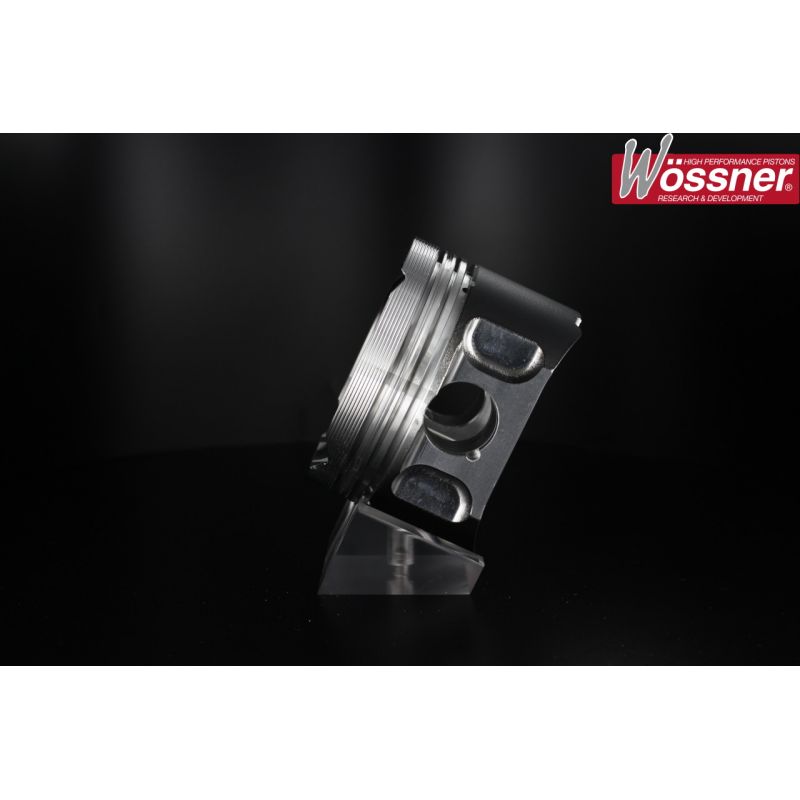

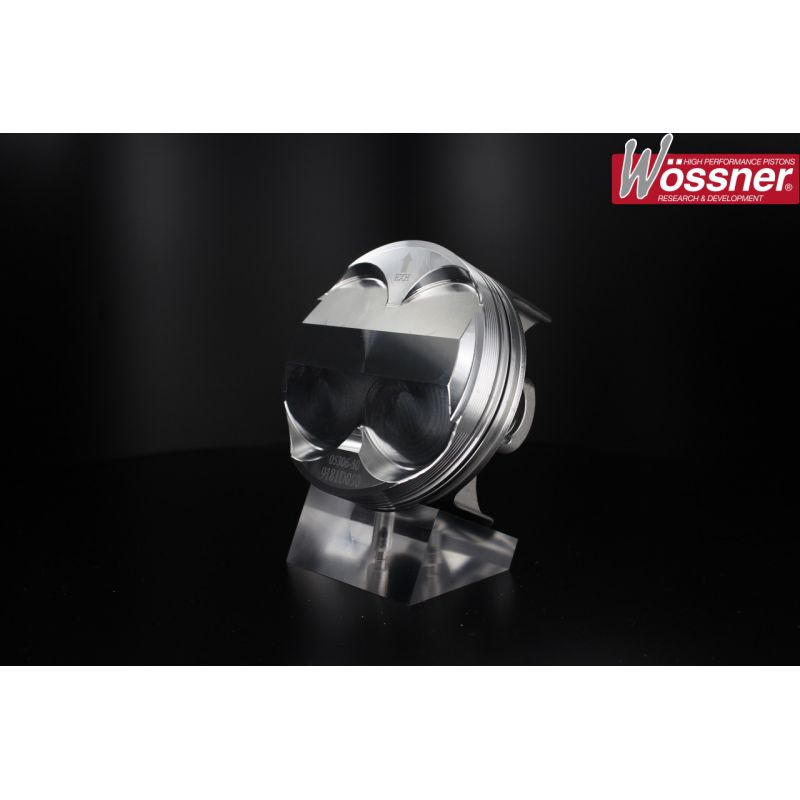

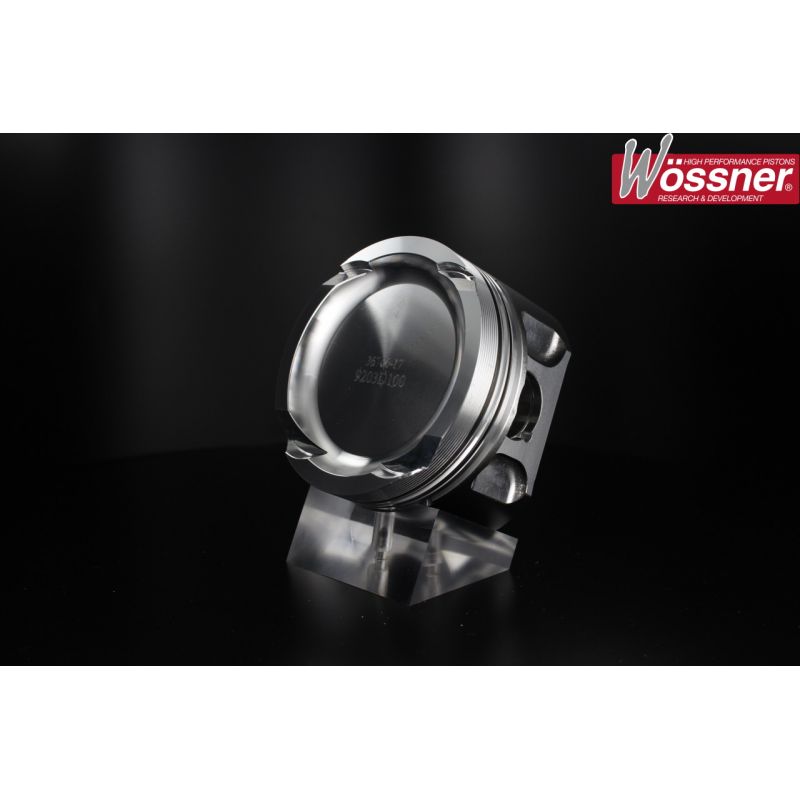

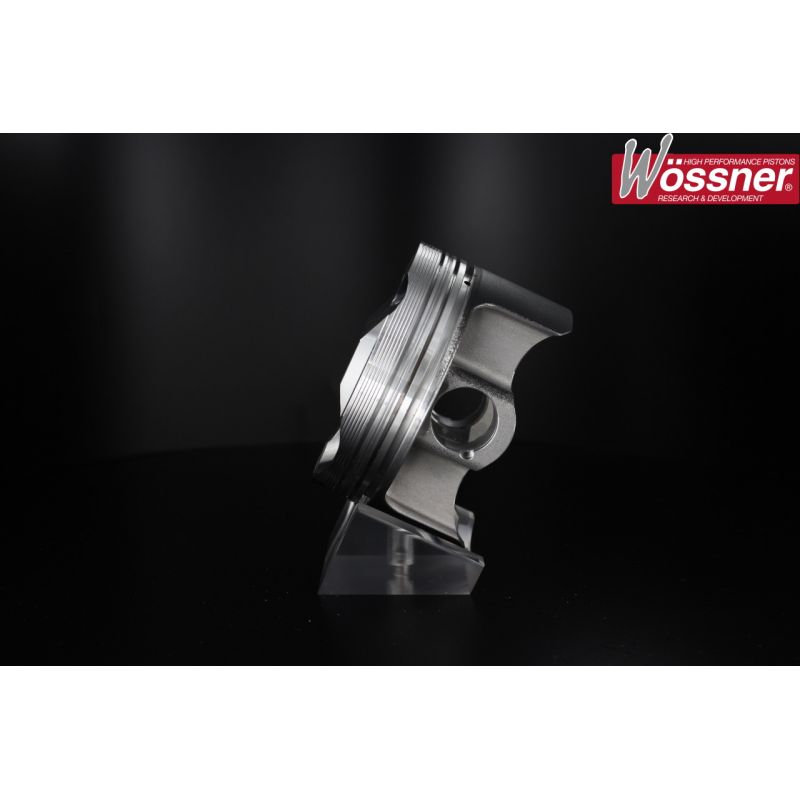

Pistons forged 2.0L 16v XU10J4RS Pin 22mm Peugeot. NSB CONCEPT. Fast shipping!

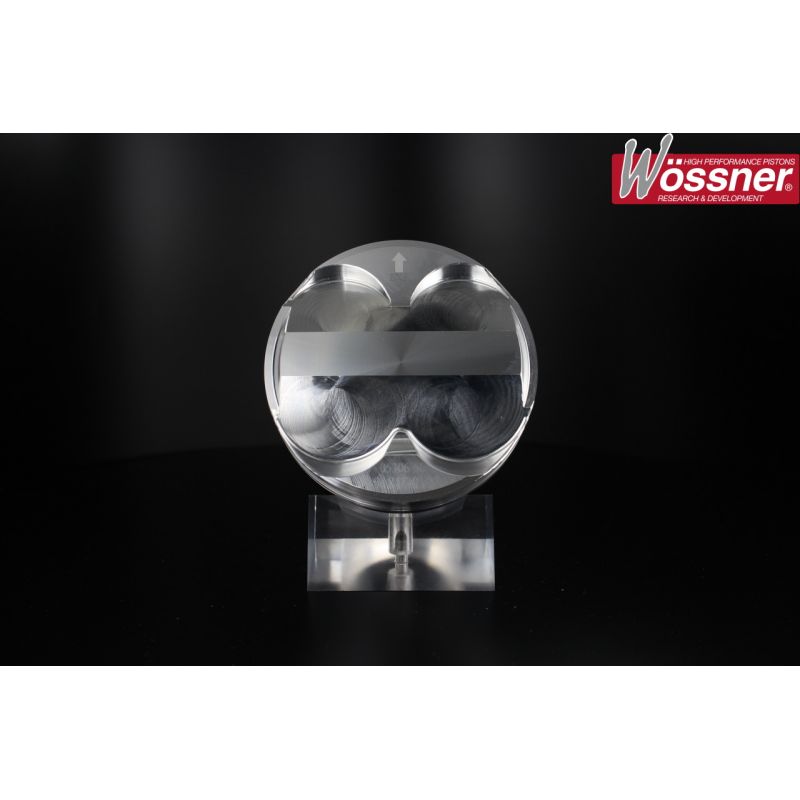

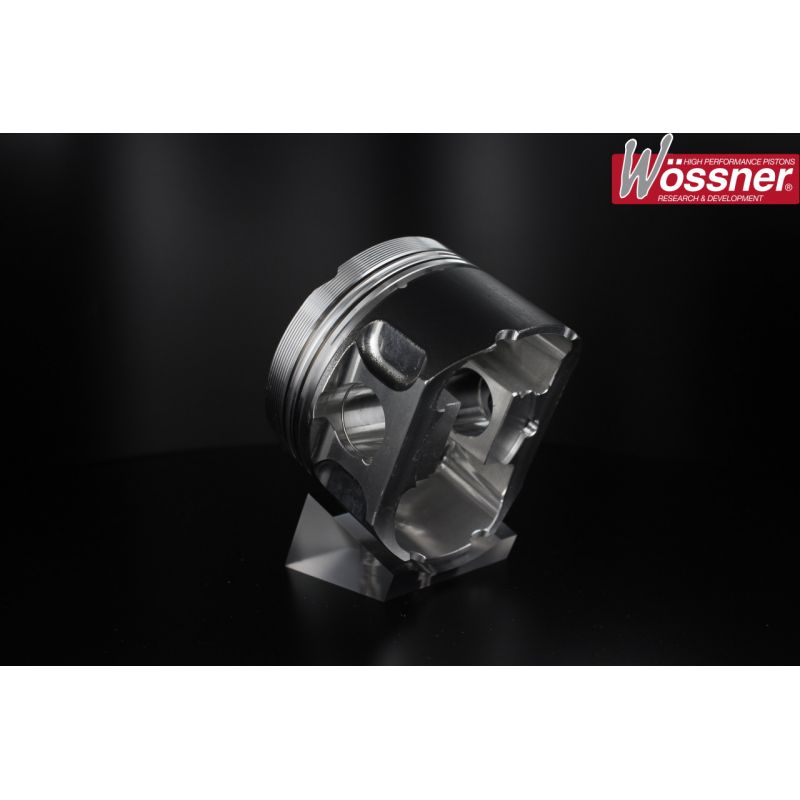

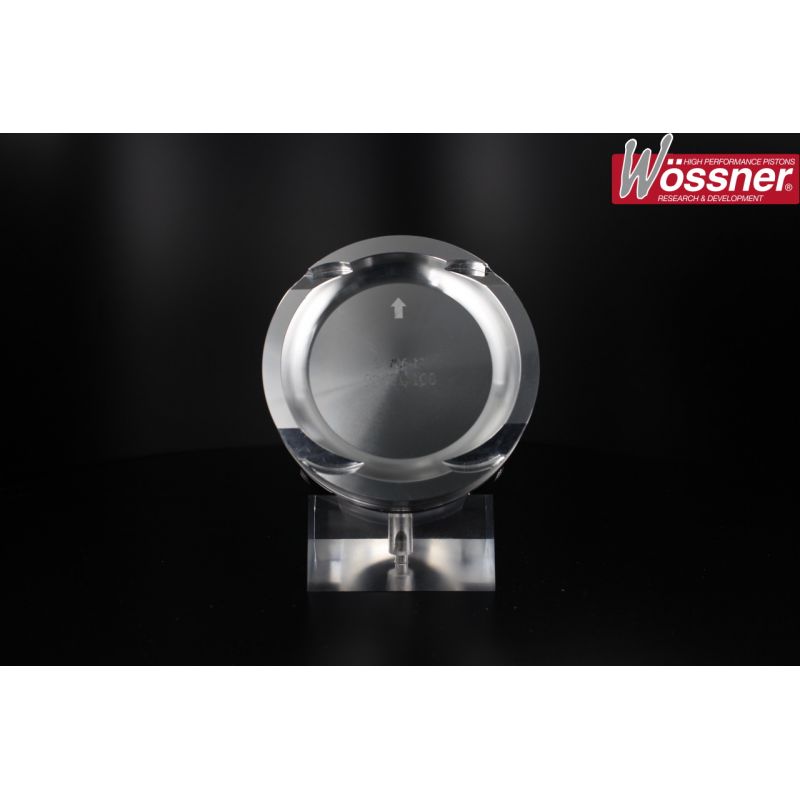

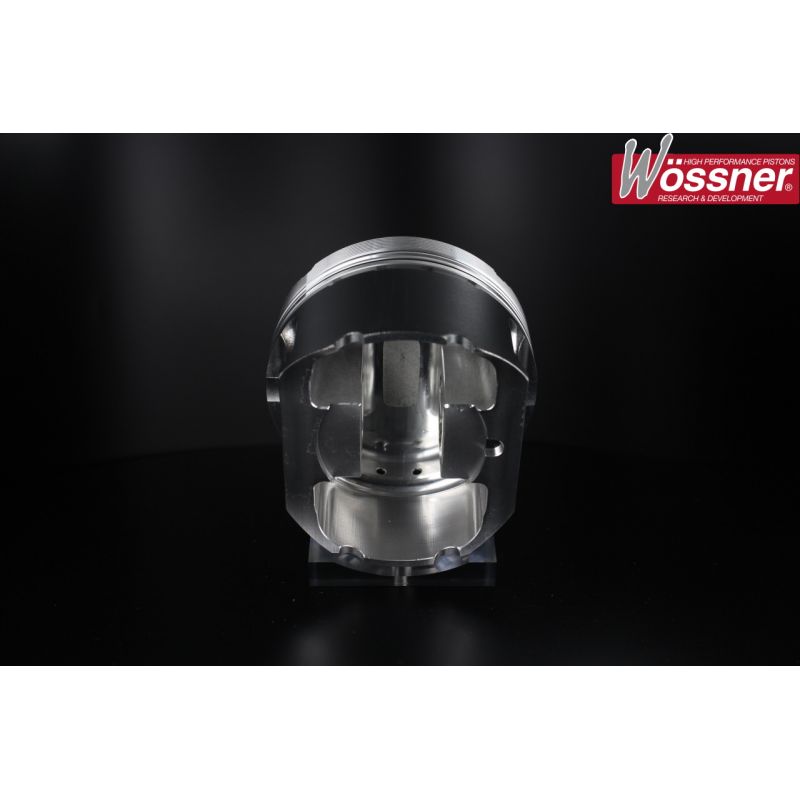

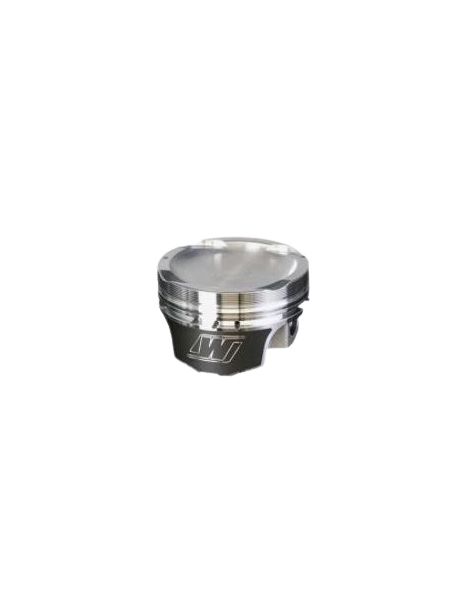

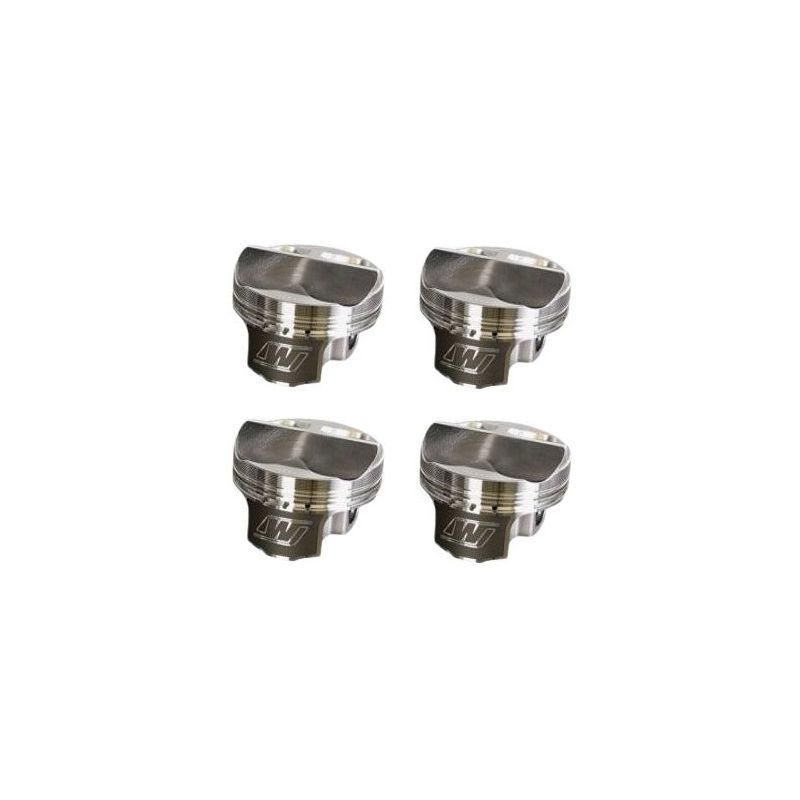

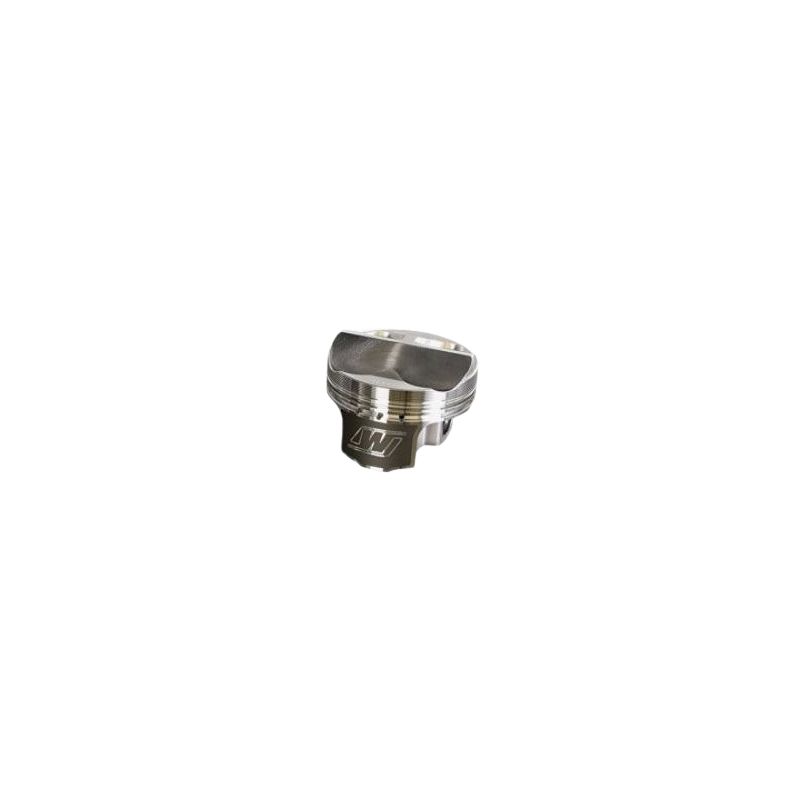

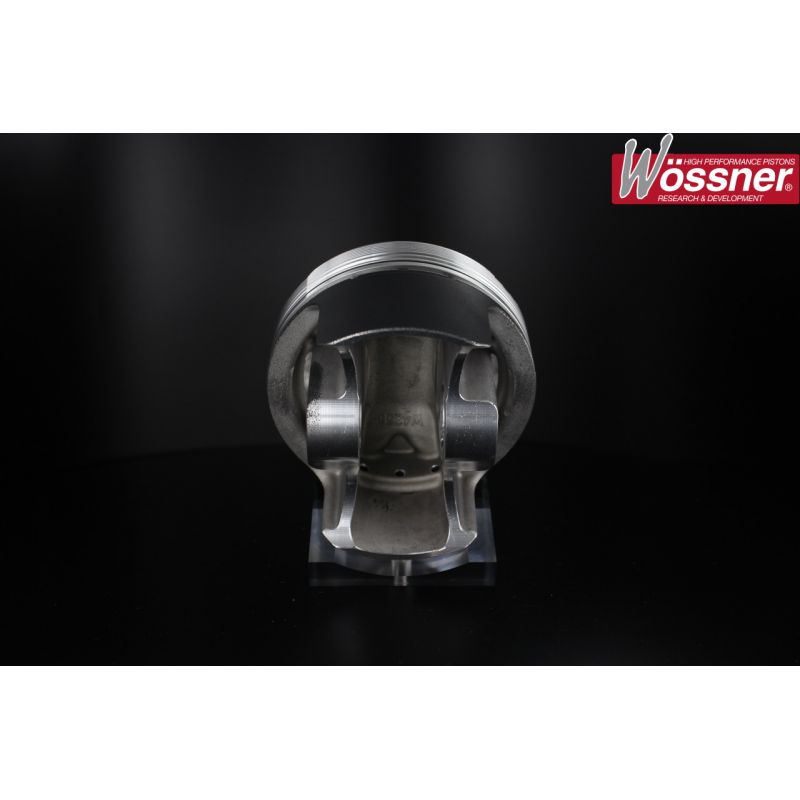

Specifications of the forged pistons offered by NSB Concept for Peugeot/Citroën 2.0 L 16V XU10J4RS (RFS, pin 22 mm) :
| Reference | OEM Bore 86,00 mm | OEM CR 10,8 :1 | OEM Pin 22 mm | Height OEM Pin 39,10 mm | Range | Coating | Aluminium | Forging | Dome | Weight | Rings |
|---|---|---|---|---|---|---|---|---|---|---|---|
| K9203DA | 86.0 | 8:1 | 22 | 34 | Wossner | NC | NC | Round | -24.97 | NC | 860XPY |
| WKE256M86 | 86.0 | 8.5:1 | 22 | 34 | Wiseco | Skirt | NC | NC | -22.5 | NC | 8600XX |
| WKE256M8625 | 86.25 | 8.5:1 | 22 | 34 | Wiseco | Skirt | NC | NC | -22.5 | NC | 8625XX |
| K9203D050 | 86.5 | 8.1:1 | 22 | 34 | Wossner | NC | NC | Round | -24.97 | NC | 865XPY |
| WKE256M865 | 86.5 | 8.5:1 | 22 | 34 | Wiseco | Skirt | NC | NC | -22.5 | NC | 8650XX |
| WKE256M8675 | 86.75 | 8.5:1 | 22 | 34 | Wiseco | Skirt | NC | NC | -22.5 | NC | 8675XX |
| K9203D100 | 87.0 | 8.2:1 | 22 | 34 | Wossner | NC | NC | Round | -24.97 | NC | 870XPY |
| WKE256M87 | 87.0 | 8.5:1 | 22 | 34 | Wiseco | Skirt | NC | NC | -22.5 | NC | 8700XX |
Compatibility (engine codes):
Original vehicles equipped with the XU10J4RS 2.0 16v :
| Brand | Model | Engine code | Power | Years |
|---|---|---|---|---|
| Citroën | Xsara Coupé VTS 2.0 16V | XU10J4RS (RFS) | 167 hp | 1998 – 2002 |
| Peugeot | 306 S16 GTI-6 (N5) | XU10J4RS (RFS) | 167 hp | 1996 – 2001 |
| Peugeot | 306 Rallye (UK) | XU10J4RS (RFS) | 167 hp | 1999 – 2000 |
OEM piston references :
Peugeot/Citroën XU10J4RS (RFS 167 hp): 0628.C6 — complete piston Ø86.00 mm (with rings & pin; check. by VIN ServiceBox).
References vary depending on model year, market and selection class. Check systematically via the VIN (Peugeot/Citroën Servicebox).
Warning: Before installation, please verify the integrity and conformity of each component of the piston kit as well as the correctness of the assembly in the engine; any warranty is strictly limited to the parts included in the piston kit.
