Reduced price! Pistons forgés 2.0L 16v XU10J4RS Axe 20mm Peugeot Citroën View larger

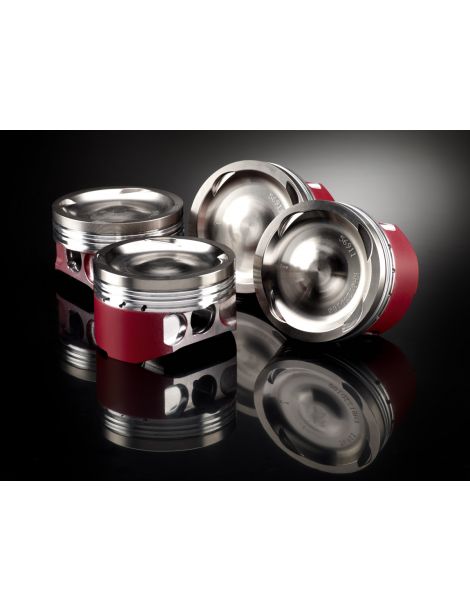

Forged pistons 2.0L 16v XU10J4RS Axle 20mm Peugeot Citroen

New product

XU10J4RS (RFS) Pin 20mm forged pistons for 2.0 16v PSA. COMPLETE table Bores/Volume ratio/materials/Treatments, compatibilities 306 GTi-6 & Rally, Xsara VTS + OEM data.

More details

896,35 € tax incl.

-30%

1 280,51 € tax incl.

  • Characteristics of the forged pistons offered by NSB Concept for Peugeot/Citroen 2.0 L 16 V XU10J4RS (RFS):

    In-Heads "OEM" below indicate the Manufacturer OEM values for the RFS engine (XU10J4RS).

    ReferenceBore OEM
    86.00mm    		CR OEMPin OEM
    22mm    		Pin Height OEM
    34.00mm    		RangeTreatmentAluminumForgingDomeWeightRings
    WKE252M8686.011.5:12034WisecoSkirtNCNC-2.5FTNC8600XX
    K9181DA86.012.2:12034WossnerNCNCSlipper2.8NC860XSY
    K1475DA86.012.5:12034WossnerNCNCNC7.8NC860XSY
    K9181DD86.0312.2:12034WossnerNCNCSlipper2.8NC860XSY
    WKE252M862586.2511.5:12034WisecoSkirtNCNC-2.5FTNC8625XX
    WKE252M86586.511.5:12034WisecoSkirtNCNC-2.5FTNC8650XX
    K9181D05086.512.3:12034WossnerNCNCSlipper2.8NC865XSY
    K1475D05086.512.5:12034WossnerNCNCNC7.8NC865XSY
    WKE252M867586.7511.5:12034WisecoSkirtNCNC-2.5FTNC8675XX
    WKE252M8787.011.5:12034WisecoSkirtNCNC-2.5FTNC8700XX
    K9181D10087.012.5:12034WossnerNCNCSlipper2.8NC870XSY


    COMPatibilities (engine codes):

    • XU10J4RS RFS (PSA, 2.0 L 16 V)


    OEM vehicles equipped with the XU10J4RS 2.0:

    BrandModelEngine CodePowerYears
    CitroenXsara Coupe VTS 2.0 16VXU10J4RS (RFS)163 hp1998 2002
    Peugeot306 S16 GTi-6 (3 doors)XU10J4RS (RFS)167 hp1996 2001
    Peugeot306 Rally (UK)XU10J4RS (RFS)167 hp1998 1999


    Manufacturer Pistons References (OEM):

    • Peugeot 306 GTi-6 / Rally (RFS):NC PSA reference to be confirmed via SeCRice Box according to OPR/ORGA and selection (Bore/sorting).
    • Citroen Xsara VTS 2.0 16V (RFS):NC PSA reference to be confirmed via SeCRice Box according to OPR/ORGA and selection (Bore/sorting).

    Attention:before any assembly, please check the integrity and conformity of each COMPONENT of the Pistons kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the Piston kit only.
