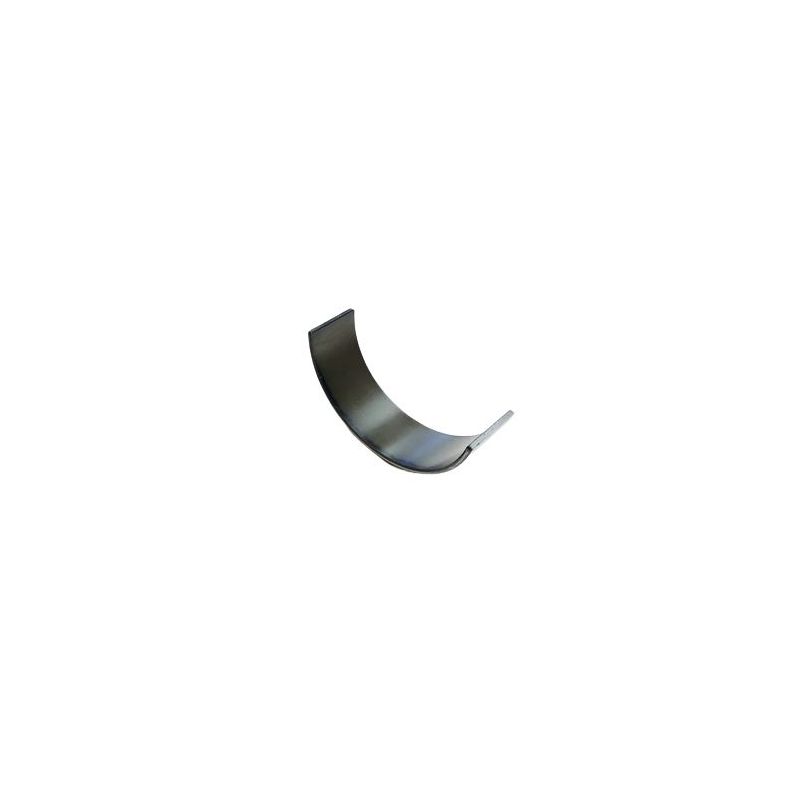

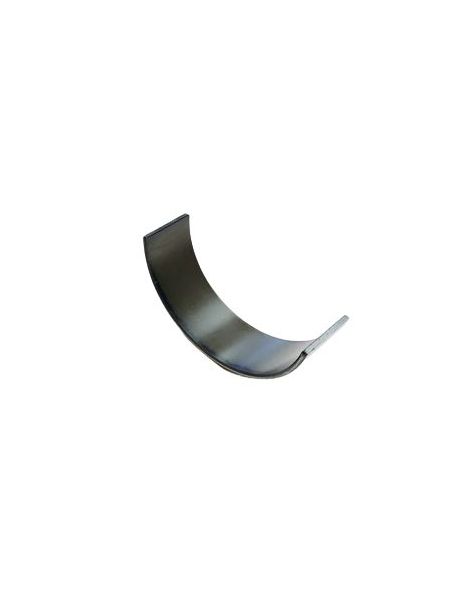

Bearings Connecting rods tri-metal BMW N62B40 N62B48 N63B44 until 2011

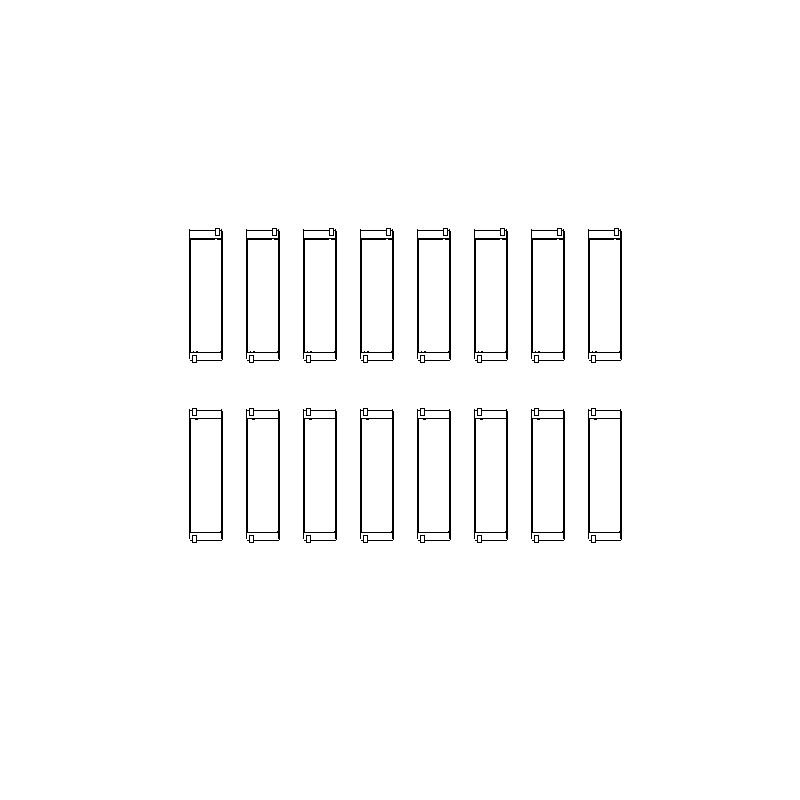

The Bearing Games of Connecting rods trimetalKing Racing for N62B40, N62B48 and N63B44 engines are composed of16 Bearings.

Technical characteristics

• Crankpins Crankshaft Diameter (min/max): 53.97 / 53.99mm
• Big Ends diameter (min/max): 57.60 / 57.61mm
• Max thickness: 1,796mm
• Side(s): standard or standard with HX clearance or +0.026 or +0.25mm
• Anti-friction Coating: with

• References: CR8049, CR8049GPC, CR8049GPC STDX, CR8049GPC.026, CR8049GPC0.25

Since 1960, the company King Racing has designed and manufactured high-performance/quality bearings. Beyond high-performance Production machines, King Racing relies on simulation software to analyze the thermodynamics, dynamics and elasto-hydrodynamics of their Bearings. King Racing Trimetal Bearings are produced in pMax Black, a trimetal alloy 24% stronger than all existing trimetal Bearings.

The King Racing Bearings are made up of 3 to 4 layers (depending on the Applications):

Exterior: steel Intermediate: lead bronze Interior: regulates with high percentage of copper Anti-friction Coating containing lubricant and ceramic additives
