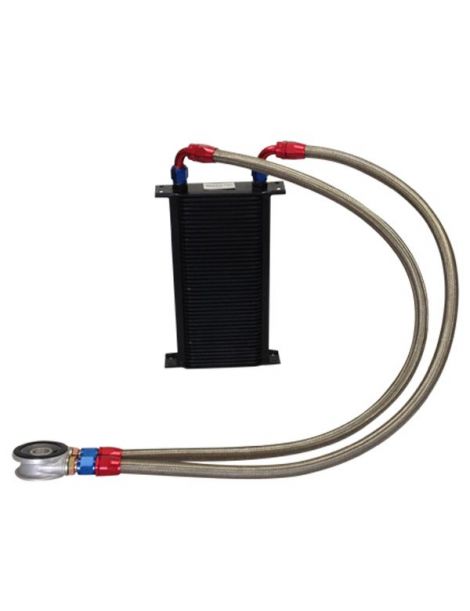

BREEZY DASH10 115mm 44-row matrix oil cooler kit, MOCAL standard plate

PRO kit with fittings and DASH hose (required for oil circuit homologation in competition), including:

• 1 x 44-row, 115mm matrix oil cooler, male connections: UNF-JIC 7/8"-14 (DASH10)
• 1 x standard MOCAL sandwich plate with O-ring + 2 sealing gaskets
• 2 x UNF-JIC 7/8"-14 DASH10 male-to-male adapters (sandwich plate inlet and outlet)
• 2 x 1-meter lengths of DASH10 stainless steel braided hose with 1 straight fitting and 1 x 90A UNF-JIC 7/8"-14 elbow fitting (DASH10)

ATTENTION: The extension nipple and the sandwich plate's Chinese-style cap are not included in this kit.

To determine your thread size, we invite you to select your car's oil filter on this filter manufacturer's website: https://catalog.mann-filter.com/EU/fre/vehicle

Then click on your thread size and add the nipple to your cart:

- M20x150 Nipple
- 3/4" Nipple
- Nipple M18x150
- M16x150 Nipple
- 13/16" Nipple
- Nipple 5/8"
- Nipple 5/8" INVERSE

This kit mounts on all vehicles with a screw-on oil filter.

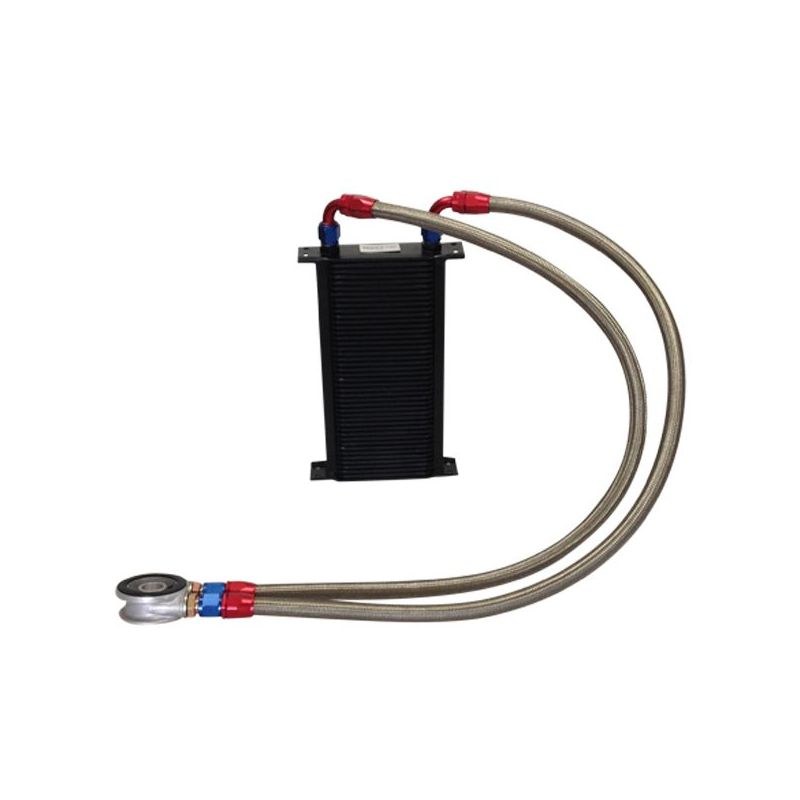

Please note: the hose shown with crimped fittings is for illustration only. The kit is supplied with 2 x 1 m DASH 10 stainless braided hoses, 2 straight DASH 10 blue/red fittings and 2 x 90° DASH 10 blue/red fittings, to be assembled yourself.

Fitting the ends onto DASH hose: cut the hose cleanly (wrap tape around it to limit fraying); slide the nut then the hose into the fitting body up to the stop and mark it; lubricate the nipple with engine oil; screw by hand then tighten with a wrench without letting the hose back out; pressure-test the line before fitting it to the vehicle.
