Ignition coil, integrated module, 4 x 1 output

Ignition coil, integrated module, 4 x 1 output

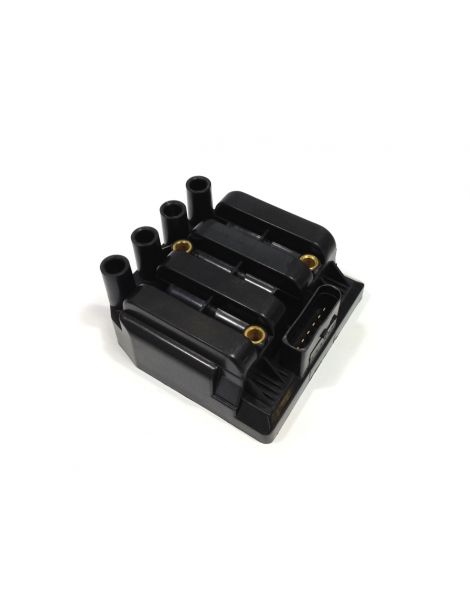

Allows direct connection from the ECU to each ignition control wire for each of the 4 cylinders. The ignition module is integrated into the coil; you only need to connect the spark plug wires directly to the coil.

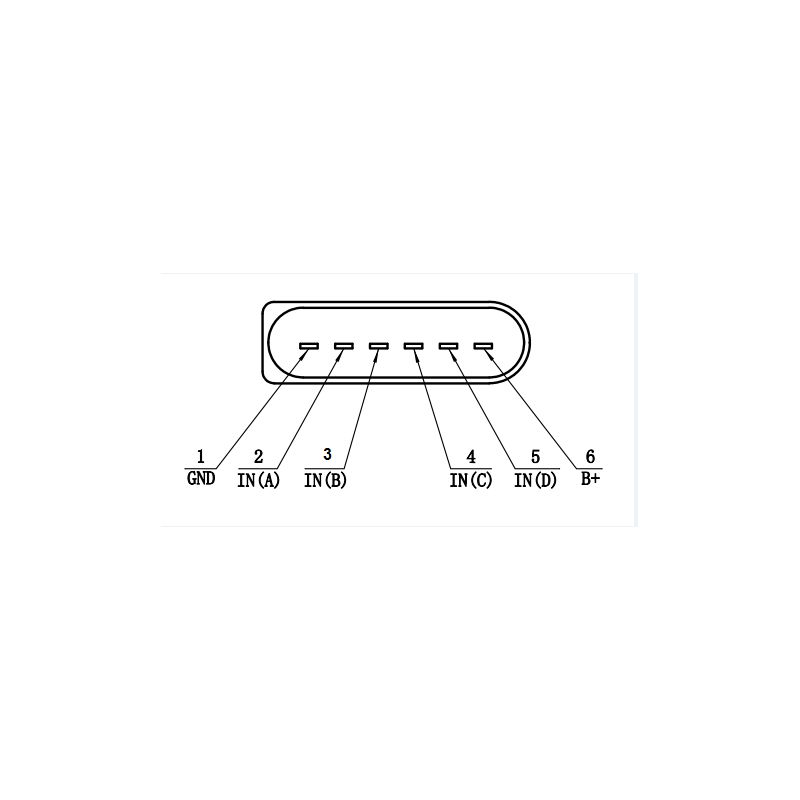

Wiring diagram:

1) GND: Ground
2) Ignition control input
3) Ignition control input B
4) Ignition control input C
5) Ignition control input D
6) B+: +12V
