1.6L 8v - TU5J2 TU5JP
Manufacturers
1.6L 8v - TU5J2 TU5JP
Warning: Last items in stock!
New product

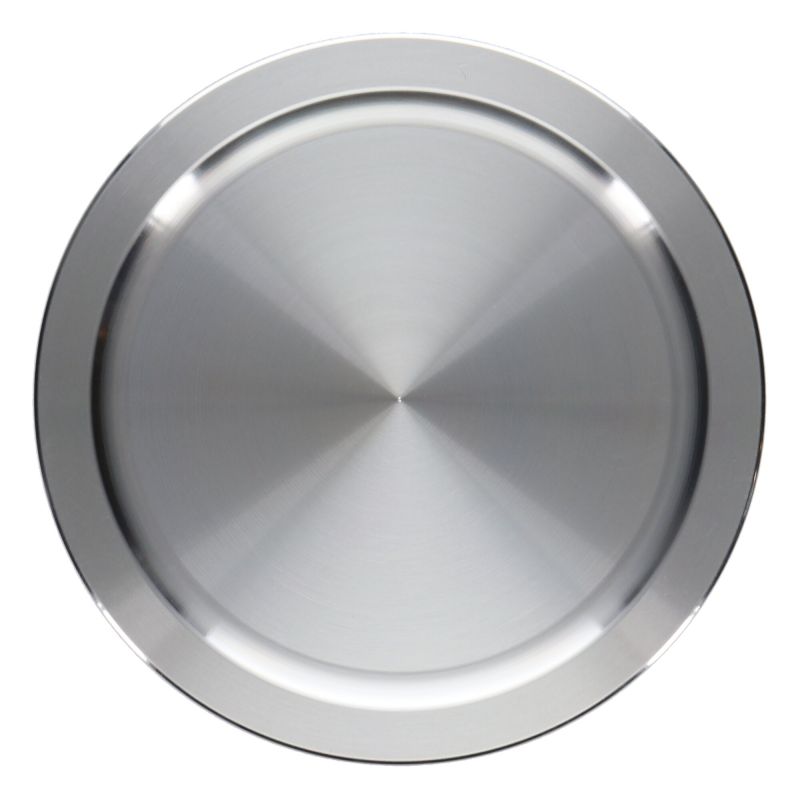

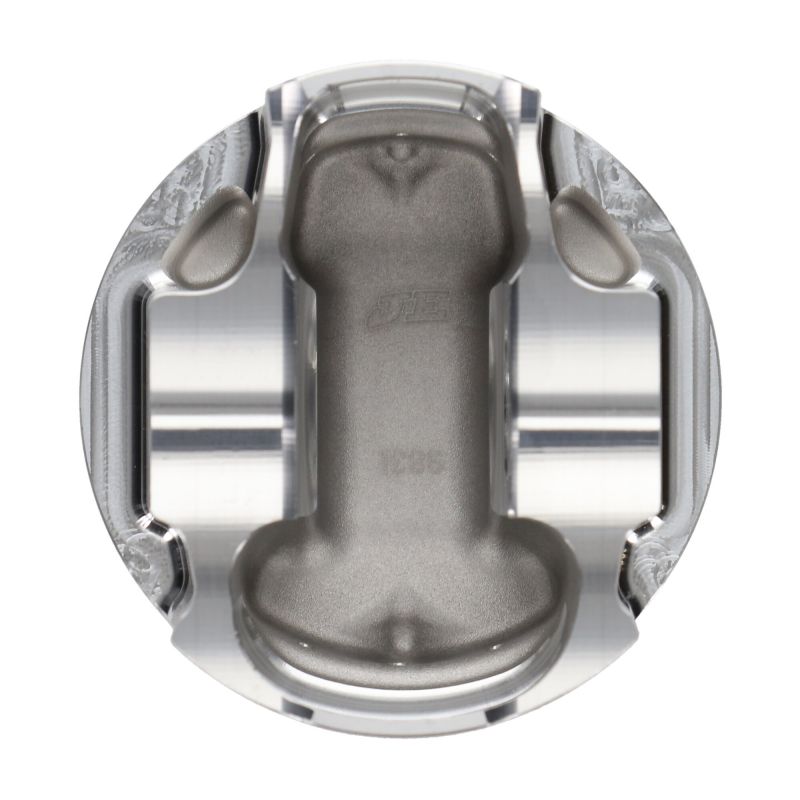

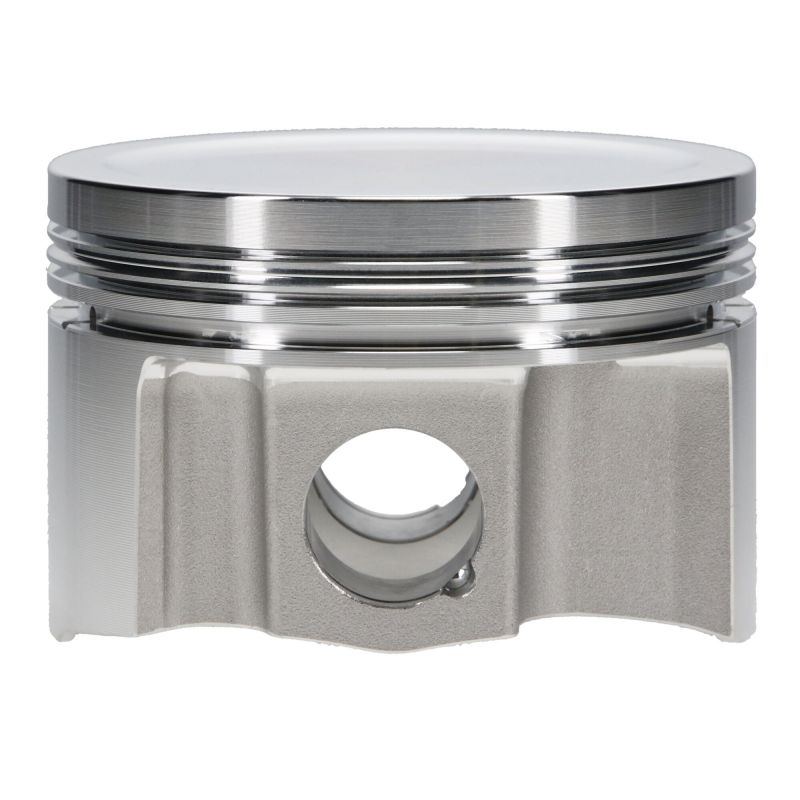

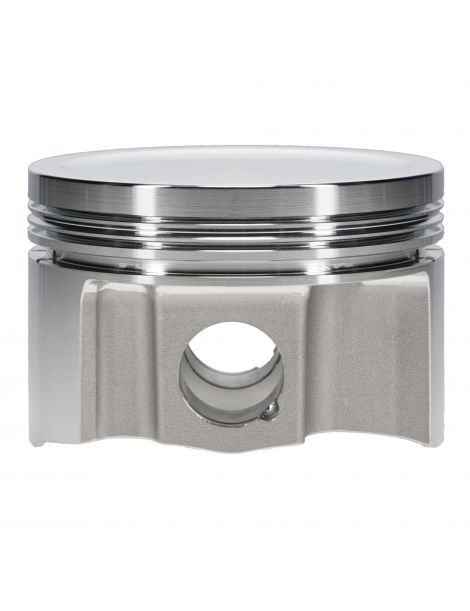

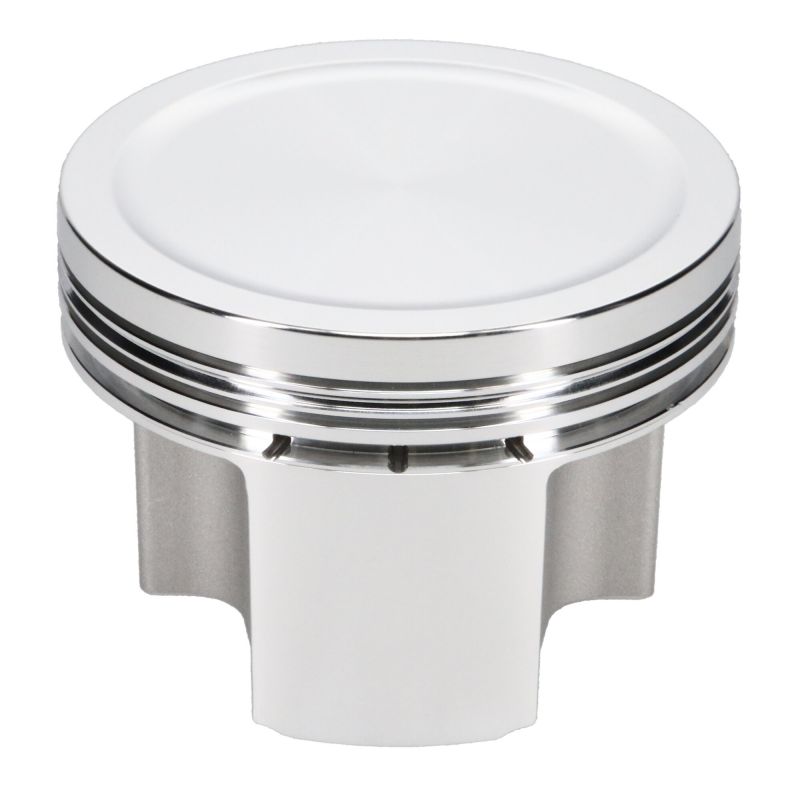

TU5J2 1.6 8v forged pistons (18mm axle) JE & Wossner bores 78.5 to 79.5 mm, RV 11.8.12.8:1. Compatible Peugeot 106 XSi & 106 Rallye S2. Ideal road/track.
NSB Concept forged pistons Peugeot/Citroen 1.6 L 8v TU5J2 (18 mm axle)
Wide choice of bores for road/track preparations. High performance alloys and profiles adapted to the constraints of TU5J2.
| Reference | Bore (mm) | VR | Axis (mm) | Axis Height (mm) | Range | Aluminum | Treatment | Forging | Dome (cc) | Weight (g) | Segments |
|---|---|---|---|---|---|---|---|---|---|---|---|
| JE-360800C*4 | 78.5 | 11.8:1 | 18 | 32.5 | JE | N/A | N/A | N/A | 2.5 | N/A | N/A |
| JE-312431 | 78.5 | 11.8:1 | 18 | 32.5 | JE | 2618 | N/A | Round | 2.5 | 270 | N/A |

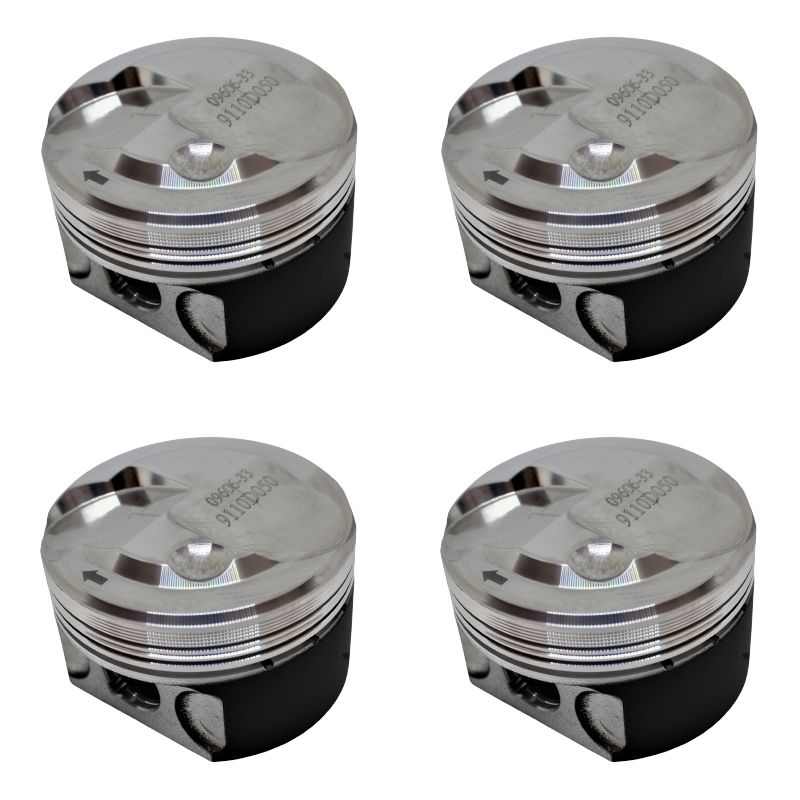

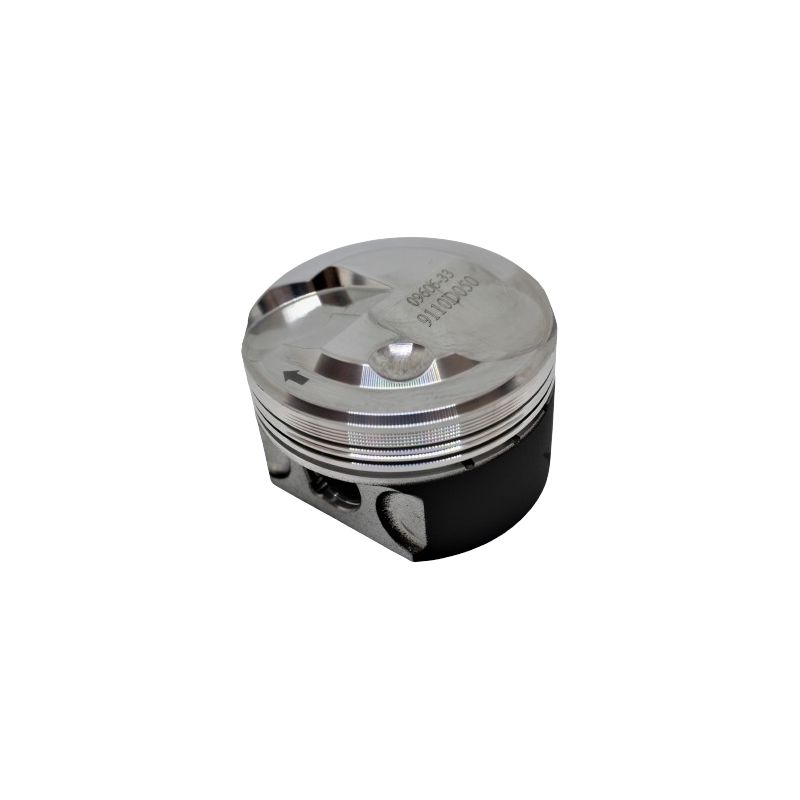

| K9110DA | 78.5 | 11.8:1 | 18 | 32.5 | Wossner | N/A | N/A | Round | 1.9 | N/A | 785XDS |
| K9110D020 | 78.7 | 11.9:1 | 18 | 32.5 | Wossner | N/A | N/A | Round | 1.9 | N/A | 787XDS |
| K1571D020 | 78.7 | 12.8:1 | 18 | 27 | Wossner | N/A | N/A | N/A | 15.8 | N/A | 787XDS |
| JE-329114C*4 | 78.75 | 11.8:1 | 18 | 32.5 | JE | N/A | N/A | N/A | 2.5 | N/A | N/A |
| K9110D050 | 79 | 11.9:1 | 18 | 32.5 | Wossner | N/A | N/A | Round | 1.9 | N/A | 790XDS |
| K9110D100 | 79.5 | 12.1:1 | 18 | 32.5 | Wossner | N/A | N/A | Round | 1.9 | N/A | 795XDS |
Engine compatibility:
PSA TU5J2 1.6L 8v NFY/NFW codes.
| Brand | Model | Chassis | Engine Code | Power (hp) | Years |
|---|---|---|---|---|---|
| Peugeot | 106 XSi | Phase 1 (S1) | TU5J2 (NFY) | 105 | 1994 1996 |
| Peugeot | 106 Rally | Phase 2 (S2) | TU5J2 (NFW) | 103 | 1997 2000 |
Warning:
before any assembly, please check the integrity and conformity of each component of the piston kit as well as the conformity of the assembly in the engine; any possible warranty is strictly limited to the parts of the piston kit only.
