4.0L 32v - S65B40
Manufacturers
4.0L 32v - S65B40
Warning: Last items in stock!
New product

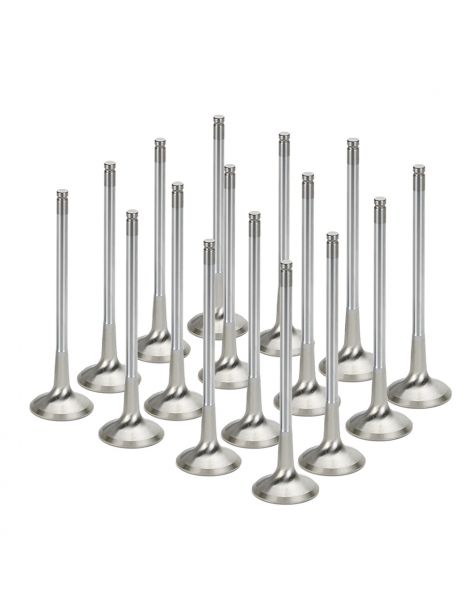

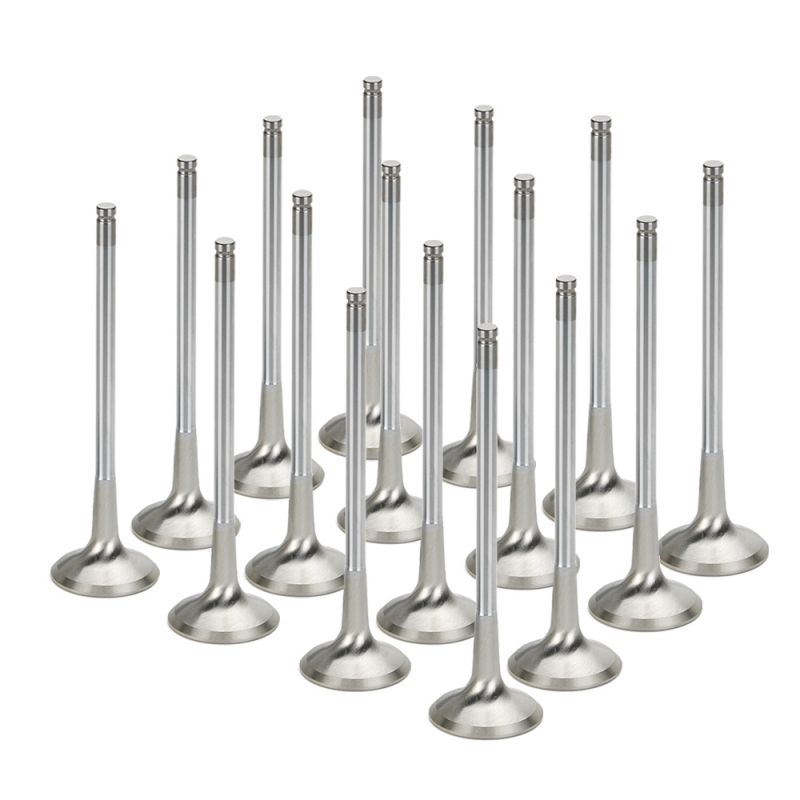

Set of 16 reinforced exhaust valves for BMW S65B40.
The S65B40 is the naturally aspirated V8 of the E90, E92 and E93 M3: 3,999 cc, 92 mm bore and 75.2 mm stroke, built from 2007 to 2013. Its very short stroke lets it rev high, with four valves per cylinder.
Its 16 exhaust valves have a thin 5 mm stem and a single groove; They are fitted with the original BMW collets and valve stem seals. A track session holds this V8 near its maximum rpm for a long time, and its exhaust valves under a continuous thermal load.
On the exhaust side, the valve head sits in the burnt gases: the metal reaches 760 to 870 °C on a naturally aspirated V8 such as the S65, and exceeds 1,000 °C once a supercharger is fitted. About 75 % of that heat leaves through the seat and 20 % through the guide. An EV8 family steel, taken as a benchmark, keeps only 300 MPa at 800 °C, against 550 MPa at 600 °C.
The SUPERTECH BMEVI-1065 is made of Inconel, a nickel based superalloy that keeps 860 MPa at 732 °C and 554 MPa at 816 °C, about 85 % more than EV8 steel around 800 °C. It keeps the original dimensions (30.5 mm head, 110.2 mm length) and the single groove of the BMW assembly.
| Part number | Brand | Size | Head Ø | Stem Ø | Length | Grooves | Material |
|---|---|---|---|---|---|---|---|
| BMEVI-1065-16 | SUPERTECH | Standard | 30.5 mm | 5 mm | 110.2 mm | 1 | Inconel |
| Part | BMW original | Reinforced |
|---|---|---|
| Collets | 11 34 7 838 296 | |
| Valve stem seals | Kit 11 34 0 032 548 | |
| Valve guide | Inner Ø 5.0 mm |
The single groove of the BMEVI-1065 matches the BMW valve: the original collets, preferably new, are kept.
The head keeps its 30.5 mm, so the exhaust seats only need an inspection when the head is rebuilt.
On the S65, the original BMW valve stem seals are kept.
 | SUPERTECH Performance has been making racing valves and valvetrain parts in California for more than thirty years. For the S65 V8 and S85 V10, it offers an Inconel exhaust valve to the original dimensions. |
There is a single version for the S65; its features compared with the original valve:
| Criterion | Option 1 | Option 2 |
|---|---|---|
| Size | Standard, 30.5 mm Seats kept, direct replacement for the BMW valves. | |
| Grooves | Single groove Single groove as on the BMW engine, with the original collets. |
| Model | Engine code | Power | Years |
|---|---|---|---|
| M3 / M3 CRT (E90) | S65B40 | 420-450 hp | 2007-2011 |
| M3 / M3 GTS (E92) | S65B40 | 420-450 hp | 2007-2013 |
| M3 (E93) | S65B40 | 420 hp | 2008-2013 |
OEM part number (exhaust valve): 11 34 7 838 294
While rebuilding an S65 cylinder head, also consider the inlet valves:
| Inlet valves BMW M3 E90 E92 S65B40 → |
