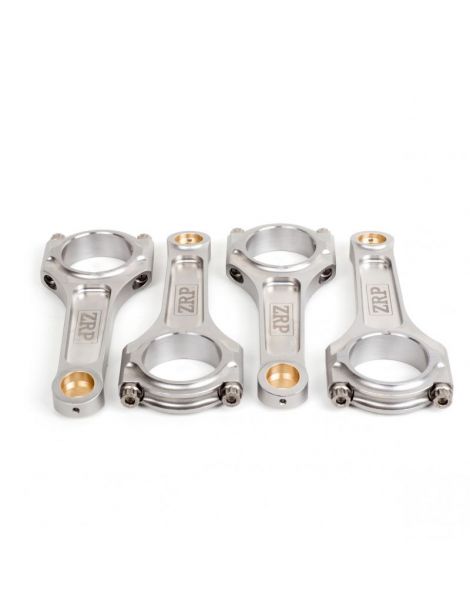

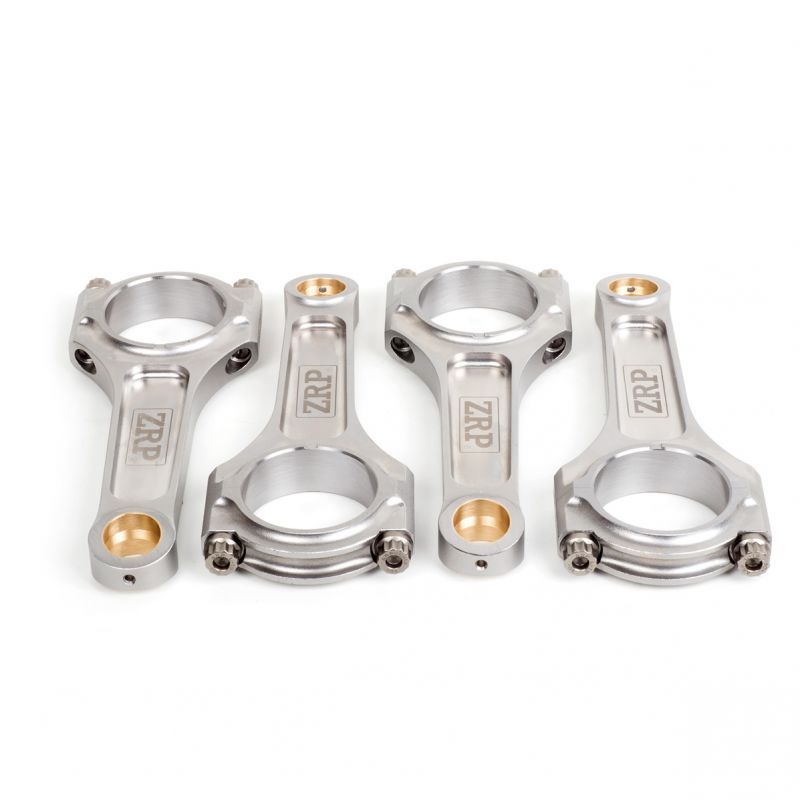

ZRP Heavy Duty I-Forged Connecting Rods FORD Focus III RS 2.3 16V YVDA 349CV 2015-

The ZRP brand is the subsidiary of DRAKOS ENGEERING renowned for its experience in high-performance mechanical part designs. ZRP specializes exclusively in forged engine parts and has designed forged connecting rods in high-strength 4340 steel for your FORD Focus III RS 2.3 16V YVDA in order to accept high boosts on your YVDA engine and ARP2000 connecting rod screws for large increases in engine speed.

The head of the ZRP forged connecting rods for FORD Focus III RS 2.3 16V YVDA is equipped with a ring machined from hot extruded cupro-aluminum alloy patented AMPCO 18 before being ground to ensure that the oil film is maintained with your piston pin.

This connecting rod is reinforced which allows it to resist an increase in engine compression ratios.

The design of this ZRP forged I-shaped connecting rod for FORD Focus III RS 2.3 YVDA gives it exceptional resistance to significant increases in power and torque due to high boost pressures, as well as to extreme uses as we encounter with our customers whom we equip for their preparation for forged Drift engines and forged Run Dragster engines.

Features:

Center distance: 149.25mm

Foot diameter: 55.04mm

Foot width: 21.84mm

Piston pin diameter: 22.50mm

Connecting rod screws supplied: ARP2000

Thread of screws provided: 3/8"

Weight: 576gr

Maximum admissible power: 800hp

Lexicon:

1) Connecting rod

2) Foot diameter

3) Connecting rod body

4) Connecting rod screw

5) Big end

6) Nut

7) Connecting rod cap

8) Head diameter

9) Center distance

When you upgrade your YVDA engine to a forged engine, it is recommended to fit forged connecting rods with tri-metal connecting rod bearings, in addition to replacing your original pistons with forged pistons.

Find the forged pistons for your FORD Focus III RS 2.3 16V YVDA (if your engine has more than 50,000km, it is recommended to take an extra cost and re-bore the cylinders followed by honing the barrels):

FORGED PISTONS

Find the connecting rod bearings for your ZRP forged connecting rods for your FORD Focus III RS 2.3 16V YVDA:

CONNECTING ROD BEARINGS

Find this kit with reinforced ARP L19 and ARP 625+ connecting rod screws for your FORD Focus III RS 2.3 16V YVDA:

ZRP FORGED CONNECTING ROD WITH ARP L19 OR 625+ SCREWS
